233-105-T0XW19L datasheet, PDF

Datasheet> All Categories > 233-105-T0XW19L

Preview

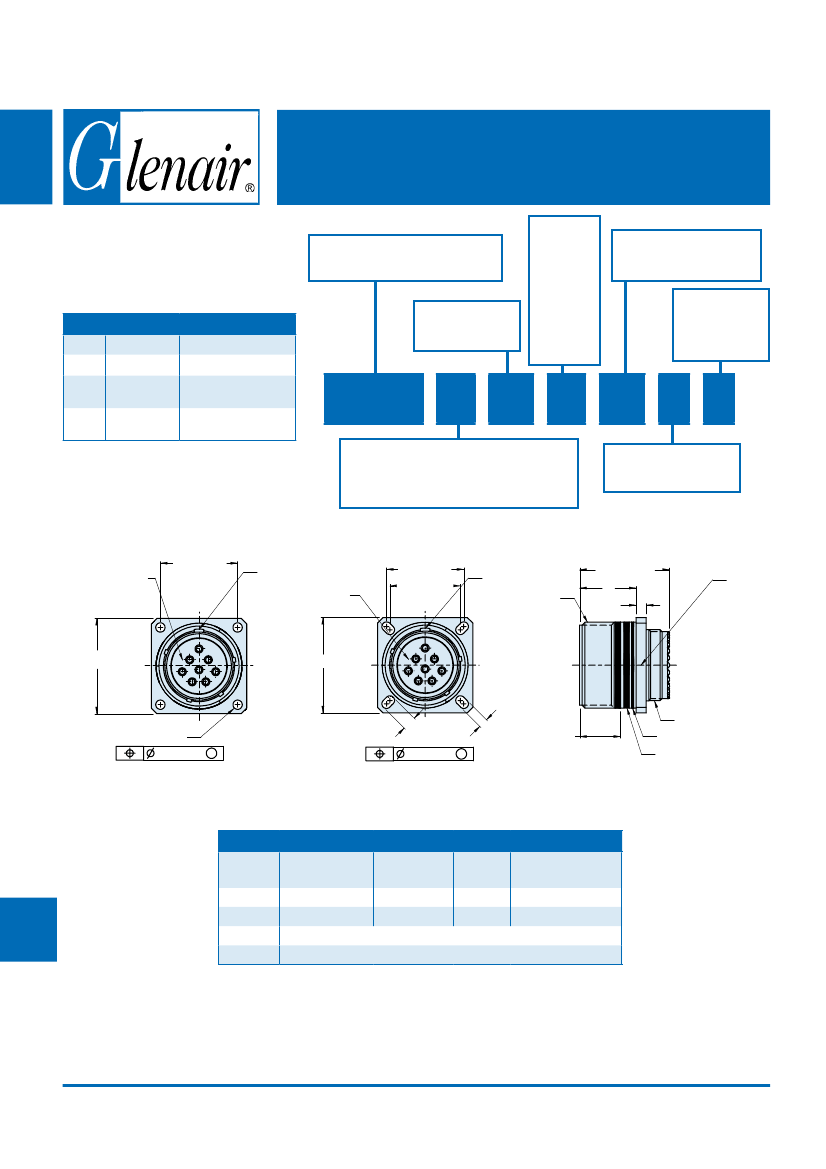

233-105-T0XW19L: DescriptionWall Mount Environmental Receptacle Connector; File Size365KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

233-105-T0XW19L Overview

Wall Mount Environmental Receptacle Connector

Preview

Download Datasheet

View All

Environmental

Connectors

Wall Mount Environmental Receptacle Connector

Shell Size

09 19L

13 21L

13L 23

15 23L

15L 25

17 25C

17L 25L

19 25Q

233-105-00, D0 and T0

MIL-DTL-38999 Series III Type

TABLE II: FINISH

SYM

MATERIAL

Composite

FINISH

Electroless Nickel

Ni-PTFE

1000 Hour

Grey

Cadmium O.D. Over

Electroless Nickel

XMT

Basic Part Number

233-105

D38999 Series III Type

Power and Signal Connector

Insert Arrangement

per MIL-STD-1560

and JSFD08

Alternate Key

Position

A, B, C, D, or E

Finish Material

(See Table II)

(N for Normal)

233-105

Contact Type

(See Table I)

Shell Style

- Receptacle, Wall Mount w/ Slotted Holes

- Receptacle, Wall Mount w/ Round Holes

- Receptacle, Wall Mount w/ Tapped Holes

D0 - ROUND HOLES

2X C BSC

Insert Arrangement

per MIL-STD-1560

00 - SLOTTED HOLES

Master

Keyway

Insert Arrangement

for Reference Only

2X C BSC

2X D BSC

Master

Keyway

A Thread

1.240 (31.5)

Max

Mfg’s

Name

and Part

Number

B SQ

4 x K Dia Holes

.005 (0.1) M

.520 (13.2) Max

Fully Mated Red

Indicator Band

J Thread

Yellow Color band

Blue Color Band

Ordering

Code

Consult factory for available insert arrangements.

Metric Dimensions in Parenthesis.

TABLE I: CONTACT TYPES

Assembly Dash

Number

850-002-16-364

850-001-16-352

Wire Size

#16 – #20

Type

Socket

Military Part

Number

M39029/58-364

M39029/56-352

Less pin contacts

Less socket contacts

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

F-10
