34691-9080

Description
Automotive Connectors STAC64 RA HDR 8 CKT BLK POL A TUBE
CategoryThe connector    The connector
File Size35KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

34691-9080 Online Shopping

Suppliers Part Number Price MOQ In stock
34691-9080 - - View Buy Now

34691-9080 Overview

Automotive Connectors STAC64 RA HDR 8 CKT BLK POL A TUBE

34691-9080 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsPEG
body width0.868 inch
body length0.74 inch
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance6 mΩ
Contact styleSQ PIN-SKT
maximum insertion force60.048 N
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
JESD-609 codee3
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
reliabilityCOMMERCIAL
Terminal length0.119 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts8
Evacuation force-minimum value75.616 N

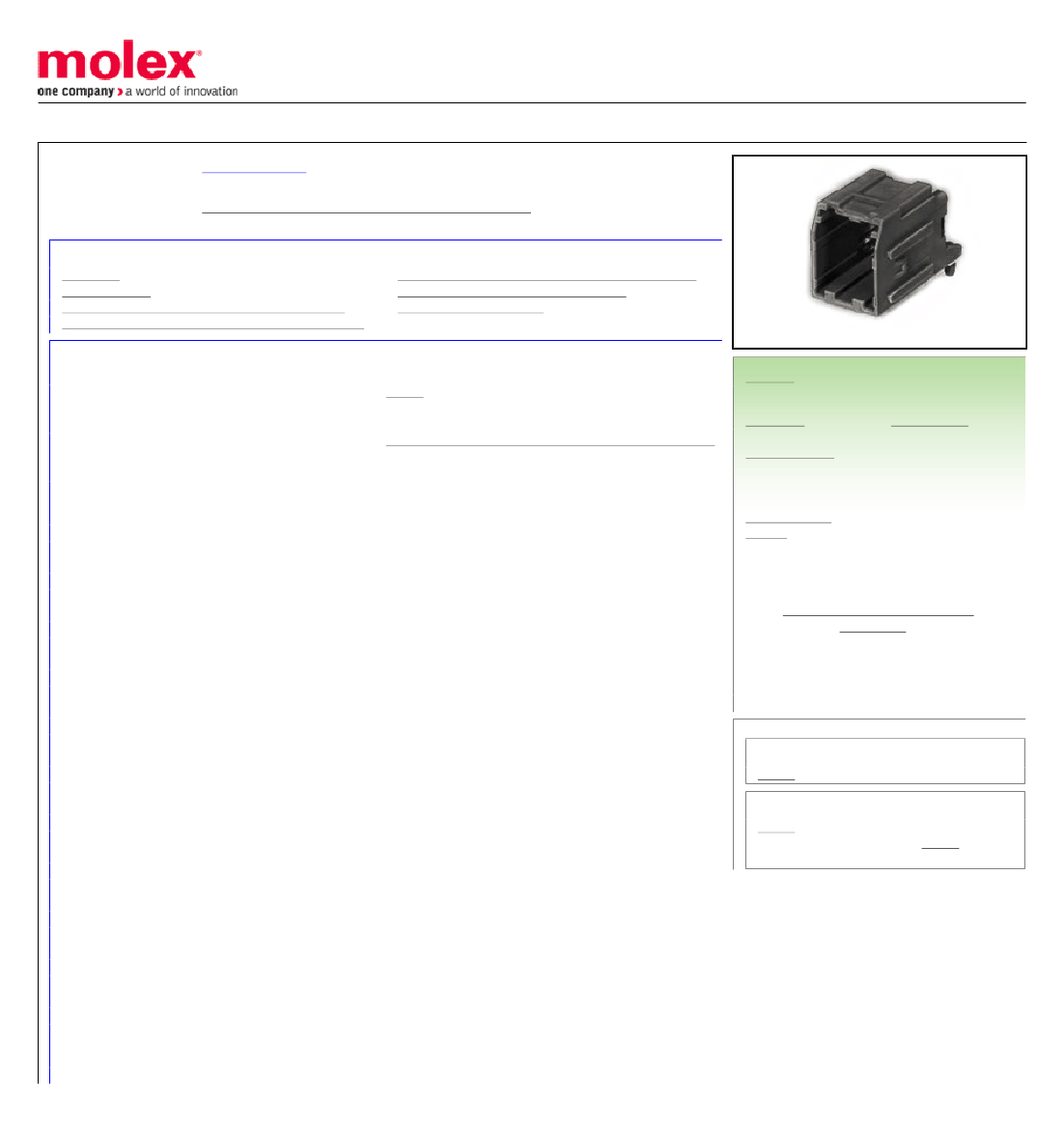

This document was generated on 02/27/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0346919080
Active
Stac64 Single, Multi-Pocket and Hybrid Header System
Stac64 Right Angle Header, 8 Circuits, Polarization A, Black, Tube
Documents:
3D Model
Drawing (PDF)
Product Specification PS-34729-020-001 (PDF)
Application Specification AS-34729-020-001 (PDF)
General
Product Family
Series
Application
Comments
Overview
Product Literature Order No
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Capable
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Packaging Specification PK-31301-063-001 (PDF)
RoHS Certificate of Compliance (PDF)
Product Literature (PDF)
Series image - Reference only
PCB Headers
34691
Power, Wire-to-Board
Polarization A
Stac64 Single, Multi-Pocket and Hybrid Header System
987650-4561
Stac64
883906211653
No
8
8
Black
10
No
No
No
None
Yes
Brass
Tin
Tin
High Temperature Thermoplastic
5.136/g
2
Right Angle
3.36mm
Yes
None
1.57mm
Tube
2.54mm
2.54mm
Yes
Yes
Yes
No
No
-40°C to +105°C
Through Hole
10.0A
500V
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Relevant
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Relevant
Compliant
Not Contained
Search Parts in this Series
34691 Series
Mates With
34729 2.54mm (.100") Pitch Stac64
Receptacle Assembly <br> 31408 USCAR
2.54mm (.100”) Pitch Receptacle
