503304-1840 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 503304-1840

503304-1840: DescriptionBoard to Board & Mezzanine Connectors 0.4 B/B Rec Assy 18Ckt EmbsTp Pkg; CategoryThe connector The connector; File Size26KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

503304-1840 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	503304-1840	-	-	View	Buy Now

503304-1840 Overview

Board to Board & Mezzanine Connectors 0.4 B/B Rec Assy 18Ckt EmbsTp Pkg

503304-1840 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.102 inch
subject depth	0.027 inch
body length	0.228 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Dielectric withstand voltage	350VAC V
Durability	30 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.016 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4064 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

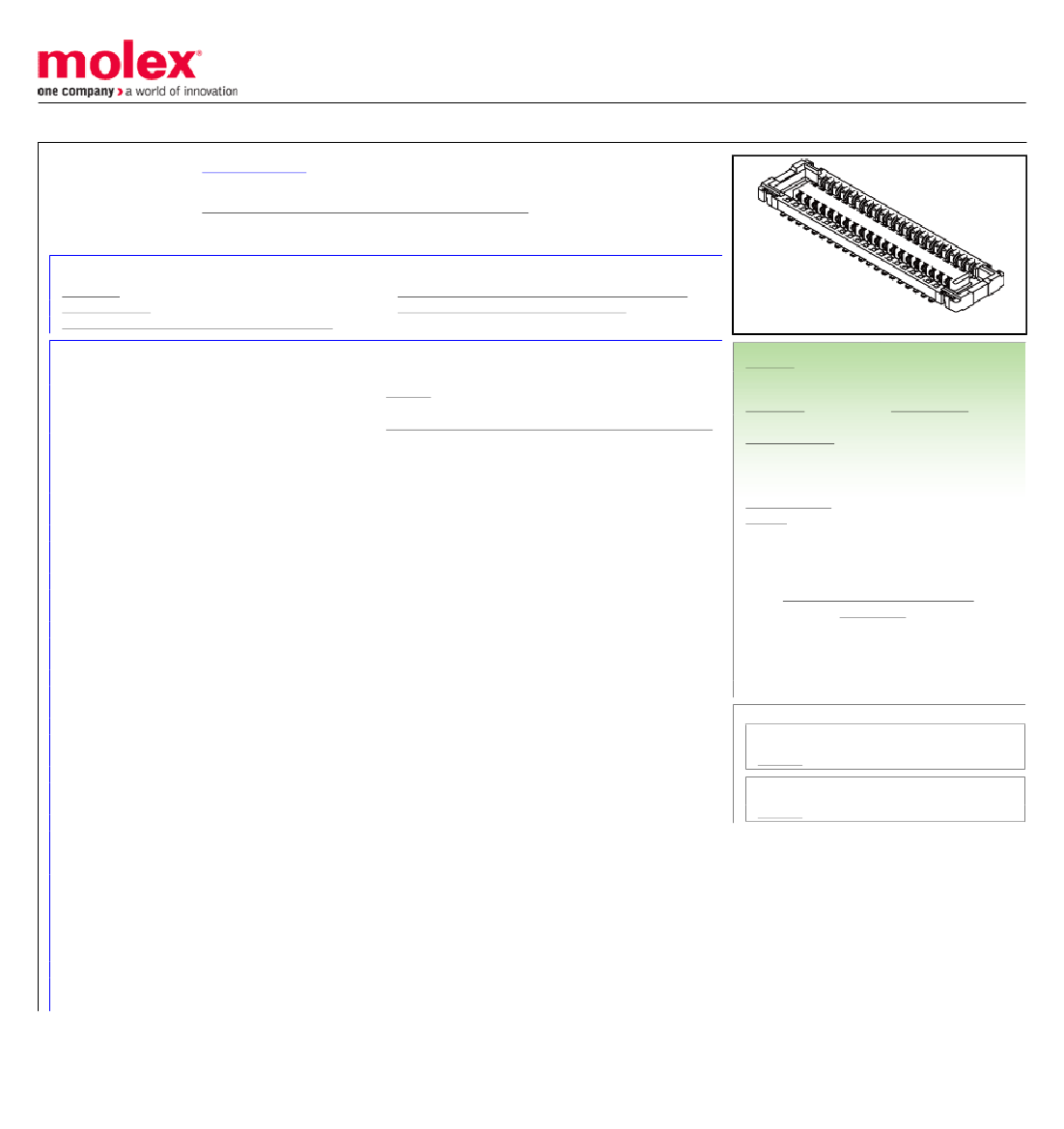

Part Number:

Status:

Overview:

Description:

5033041840

Active

SlimStack™ 0.40mm Pitch Board-to-Board Connectors

SlimStack 0.40mm Pitch Board-to-Board Receptacle, Surface Mount, Dual Row,

Vertical, 0.70mm Stacking Height, 18 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification 5033040000-000 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Capable

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-503304-003-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

PCB Receptacles

503304

Board-to-Board, Signal

SlimStack™ 0.40mm Pitch Board-to-Board Connectors

SlimStack

887191498751

Black

Yes

0.70mm

Copper Alloy

Gold

10.146/mg

Vertical

Yes

Embossed Tape on Reel

0.40mm

-40°C to +85°C

Surface Mount

0.3A

50V AC/DC

Search Parts in this Series

503304 Series

Mates With

503308 PCB Header

5033040000-000, PS-503304-003-001

5033040000-000, 5033040001-000, 5033041000-000,

5033041001-000

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
