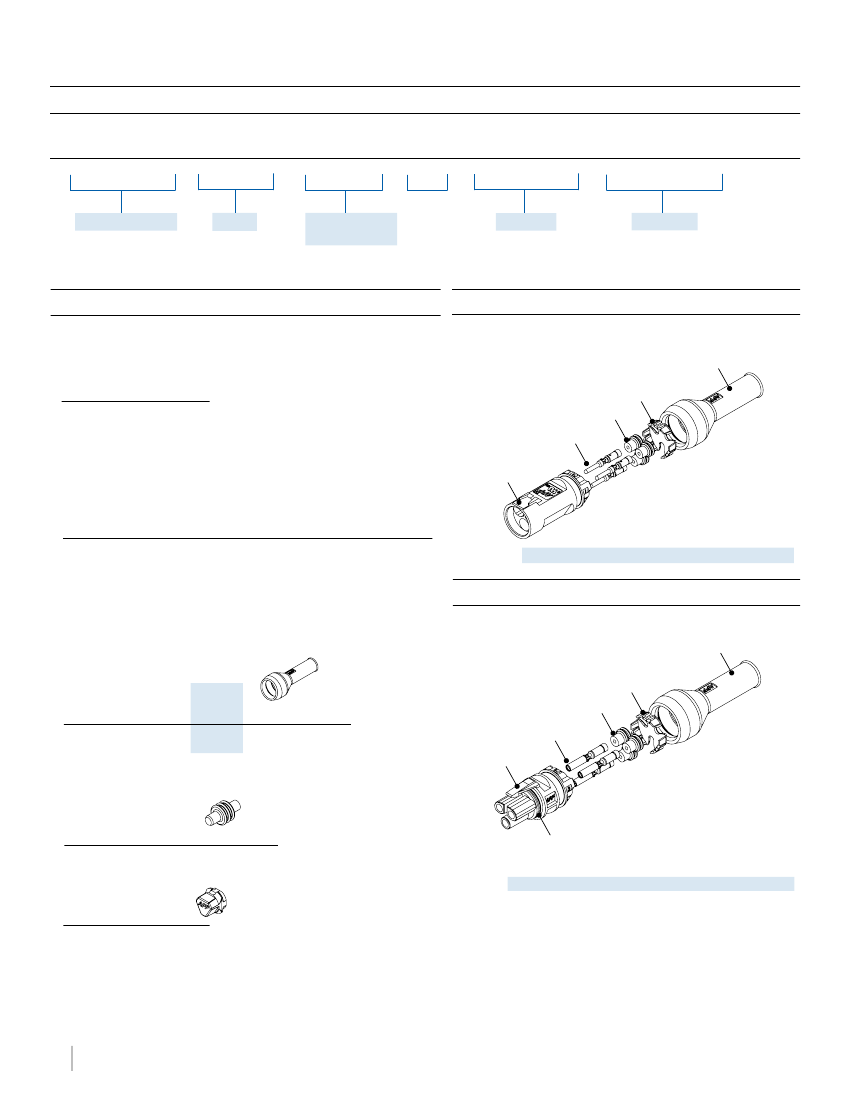

S41 = 3 each #16 to #14 AWG (PM16S1416S32 Socket & 114916P3 Wire Sealing Grommet)
S42 = 3 each #20 to #16 AWG (PM16S1620S32 Socket & 114916P2 Wire Sealing Grommet)
S43 = 3 each #24 to #20 AWG (PM16S2024S32 Socket & 114916P1 Wire Sealing Grommet)
Receptacle
Part Numbering Notes:
* Custom configured Mini 3 Pole SPEC Pak
™
Plug connector example: SK6-016M03PB01-P00-A01
* Custom configuration may not be UL recognized.
1. To Order Mini 3 Pole SPEC Pak
™
shell kits only (no contacts or wire sealing grommets), use part numbering on page 2 only. Contacts, wire seals
and wire protection may be ordered separately.
2. To order customer configured Mini 3 Pole SPEC Pak
™
connectors (including contacts, wire sealing grommet and wire protection) use Part Number
Plan across the top of page 2 and 3.
Customer configured Mini 3 Pole SPEC Pak
™
Plug connector example: SK6-016M03PB01-P41

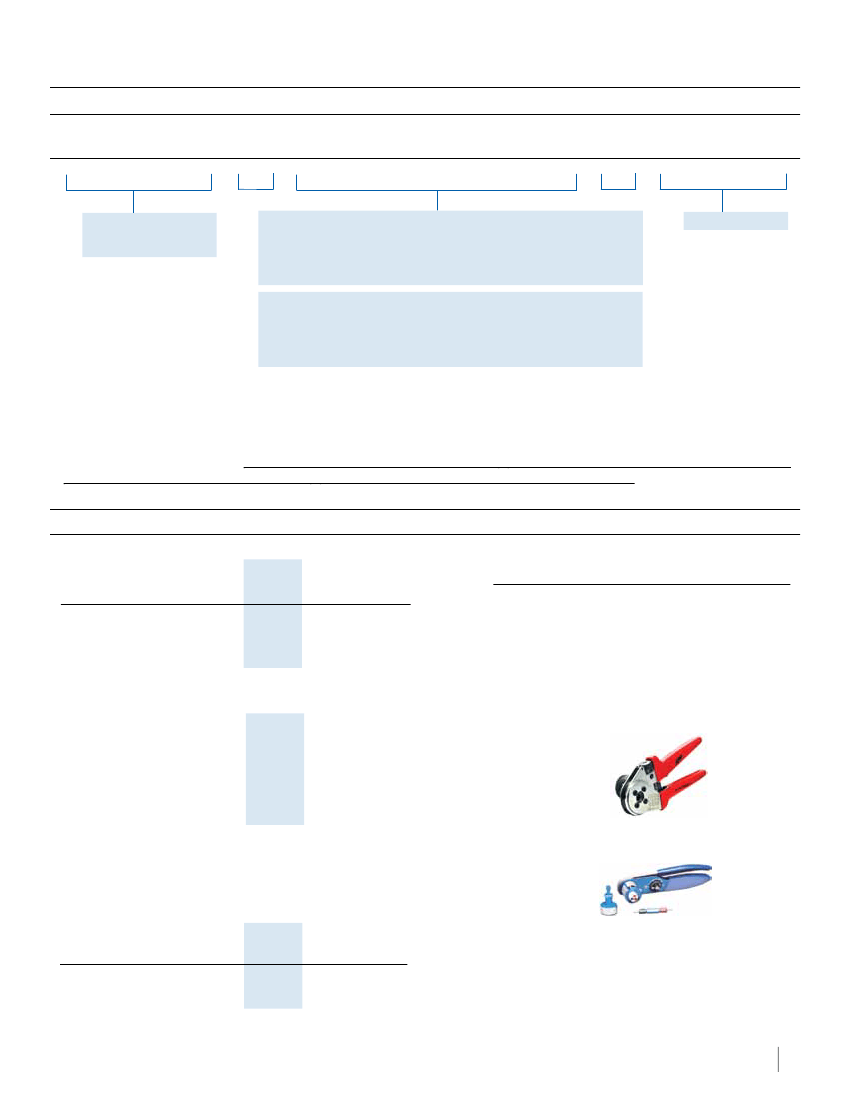

ORDERING INFORMATION
Pin Contacts
Part Number -----------------
Standard Qty 500 Packaged Qty 50
Standard Length 7.7mm
PM16P2024S30 PM16P2024S30-50
PM16P1620S30 PM16P1620S30-50
PM16P1416S30 PM16P1416S30-50
----------------- APP
®
Housing
Arrangement
Designation
P43
P42
P41
Tooling
- Wire -
AWG
mm²
#24 / 20
#20 / 16
#16 / 14
0.50 / 0.75
0.50 / 1.5
1.5 / 2.5
Part Number
PM1000G1
TM0001
TP0001
TL0001
TL0002
PM1001G1
PM1002G1
PM1003G1
Description
Four Indent Hand Crimp Tool for Pins and Sockets
Mil Standard Hand Crimp Tool (Locator/Turret Required)
Pneumatic Crimp Tool (Locator/Turret Required)
Pin Locator/Turret for TM0001 or TP0001
Socket Locator/Turret for TM0001 or TP0001
Loose Piece Crimp Machine (Semi automatic)
Contact Insertion Tool
Contact Extraction Tool
When purchasing the following part numbers, it will be considered
a custom configuration
Pre-Mate 8.5mm
PM16P2024B30 PM16P2024B30-50
#24 / 20
0.50 / 0.75
P00
PM16P1620B30 PM16P1620B30-50
#20 / 16
0.50 / 1.5
P00
PM16P1416B30 PM16P1416B30-50
#16 / 14
1.5 / 2.5
P00
Post-Mate 6.6mm
PM16P2024C30
PM16P1620C30
PM16P1416C30
PM16P2024C30-50
PM16P1620C30-50
PM16P1416C30-50
P00
P00
P00
#24 / 20
#20 / 16
#16 / 14
0.50 / 0.75
0.50 / 1.5
1.5 / 2.5
PM1000G1
NOTE:
1. Pre-mate 9.3 contacts can not be used.
2. For IP68 sealing of custom configurations, order 1 wire seal for every 1
pin and/or socket contact that is ordered.
Socket Contacts
----------------- APP
®
Part Number -----------------
Packaged Qty 50
Standard Qty 500
PM16S2024S32
PM16S2024S32-50
PM16S1620S32
PM16S1620S32-50
PM16S1416S32
PM16S1416S32-50
TM0001
Housing
Arrangement
Designation
S43
S42
S41
- Wire -
AWG
mm²
#24 / 20
0.50 / 0.75
#20 / 16
0.50 / 1.5
#16 / 14
1.5 / 2.5
NOTE :
1. For IP68 sealing of custom configurations, order 1 wire seal for every 1
pin and/or socket contact that is ordered.
www.andersonpower.com
-3-

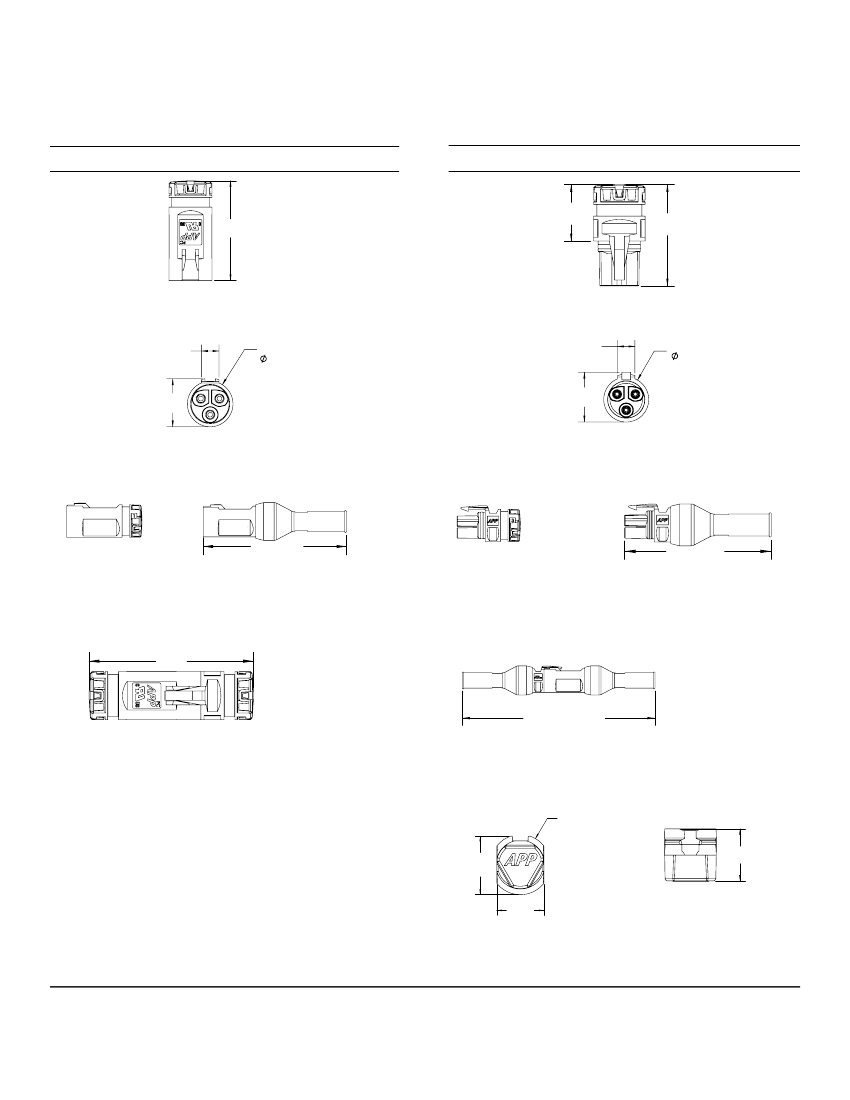

Dimensions
DIMENSIONS - PLUG
Top View
[ 1.41 ]
35.9
DIMENSIONS - RECEPTACLE
Top View
[ 0.67 ]
16.9
[ 1.20 ]
30.4
Front View
[ 0.24 ]
6.0
[ 0.64 ]
16.4
Front View
[ 0.61 ]
15.5
[ 0.24 ]
6.0
[ 0.68 ]
17.2
[ 0.61 ]
15.5
Side View
Side View With Optional
Wire Protection
Side View
Side View With Optional
Wire Protection
[ 2.84 ]
72.2
[ 2.62 ]
66.7
Mated View - Plug & Receptacle
[ 2.08 ]
52.9
Mated View - Plug & Receptacle
With Optional Wire Protection
[ 4.93 ]
125.3
Mated Length
Receptacle Cover Kit
Front View
[ 19.1 ]
Ø 0.75
[ 18.6 ]
0.73
[ 15.0 ]
0.59
Side View
[ 15.0 ]
0.59
All Data Subject To Change Without Notice
Patents Pending
DS-MINISPAK REV 0
