Datasheet> All Categories > The connector> 84502-101LF
PDF
Preview

84502-101LF

Description
Board to Board & Mezzanine Connectors 300POS RECPT 30 GOLD
CategoryThe connector
File Size180KB，4 Pages
ManufacturerFCI / Amphenol
Environmental Compliance
Download Datasheet Parametric Compare View All

84502-101LF Online Shopping

Suppliers Part Number Price MOQ In stock
84502-101LF - - View Buy Now

84502-101LF Overview

Board to Board & Mezzanine Connectors 300POS RECPT 30 GOLD

84502-101LF Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerFCI / Amphenol
Product CategoryBoard to Board & Mezzanine Connectors
RoHSDetails
ProductReceptacles
Number of Positions300 Position
Pitch1.27 mm
Number of Rows10 Row
Termination StyleSMD
Current Rating450 mA
Voltage Rating200 V
PackagingCut Tape
PackagingMouseReel
PackagingReel
Contact PlatingGold
Housing MaterialLiquid Crystal Polymer (LCP)
Contact MaterialCopper Alloy
Stack Height5.5 mm
Factory Pack Quantity200
Unit Weight0.130514 oz

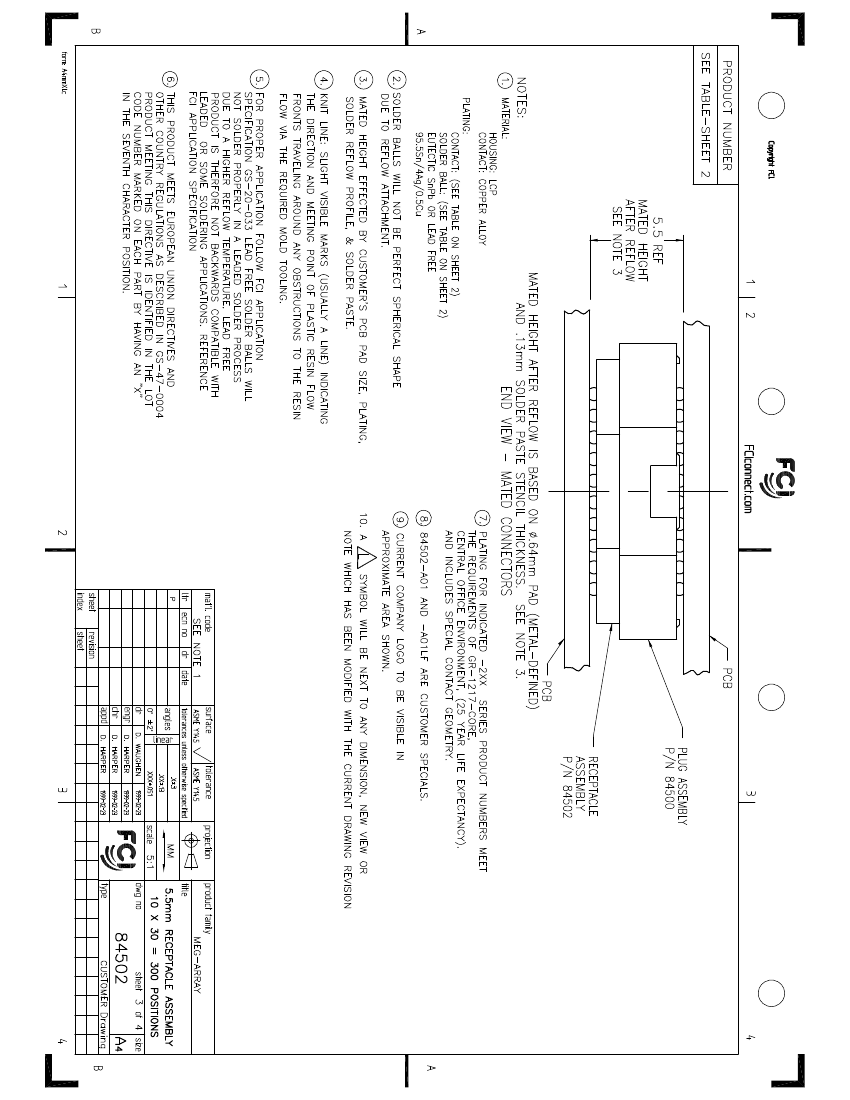

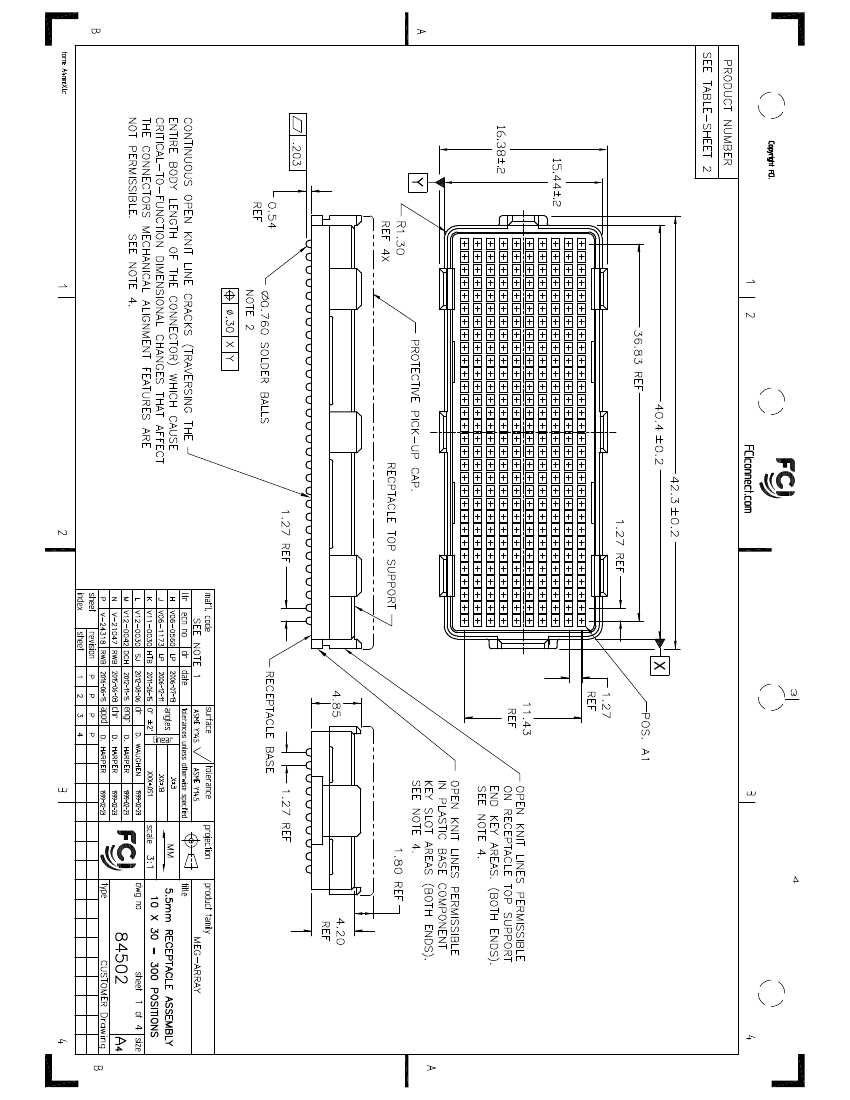

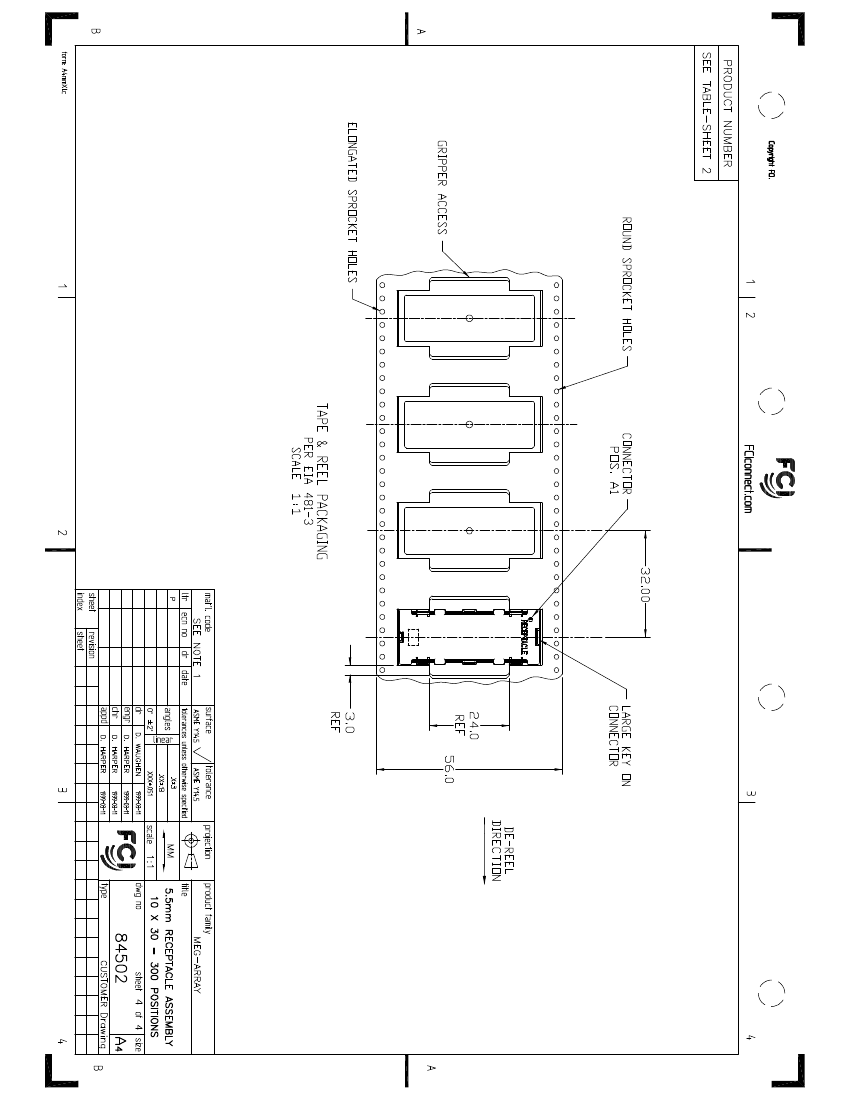

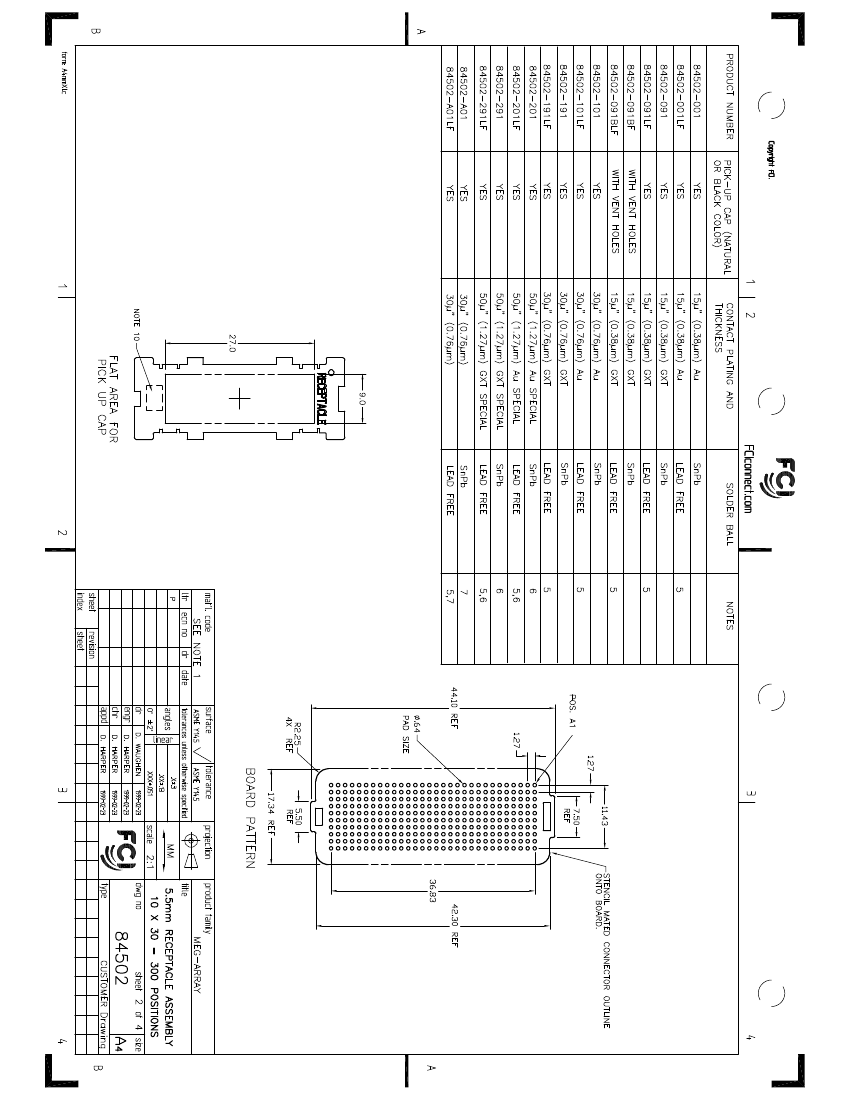

Preview

Download Datasheet
PDS: Rev :P
STATUS:Released
Printed: Jun 16, 2016

84502-101LF Related Products

84502-101LF 84502-091LF 84502-201LF 84502-101 84502-291LF 84502-001 84502-201 84502-A01LF 84502-001LF
Description Board to Board & Mezzanine Connectors 300POS RECPT 30 GOLD Board to Board & Mezzanine Connectors 300P RCPT 5.5MM W/CAP Board to Board & Mezzanine Connectors 300P RECEPTACLE Board to Board & Mezzanine Connectors 300POS RECPT 30 GOLD Board to Board & Mezzanine Connectors L/F 300PIT-5.5 MMRCPTT Board to Board & Mezzanine Connectors MEG ARRAY RECPT Board to Board & Mezzanine Connectors MEG-ARRAY 300POS 5.5MM TELCORDIA REC Board to Board & Mezzanine Connectors 300P RECEPT 5.5MM W/CAP Board to Board & Mezzanine Connectors MEG ARRAY RECPT
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer FCI / Amphenol FCI / Amphenol FCI / Amphenol FCI / Amphenol FCI / Amphenol FCI / Amphenol FCI / Amphenol FCI / Amphenol FCI / Amphenol
Product Category Board to Board & Mezzanine Connectors Board to Board & Mezzanine Connectors Board to Board & Mezzanine Connectors Board to Board & Mezzanine Connectors Board to Board & Mezzanine Connectors Board to Board & Mezzanine Connectors Board to Board & Mezzanine Connectors Board to Board & Mezzanine Connectors Board to Board & Mezzanine Connectors
Factory Pack Quantity 200 200 200 200 200 200 200 200 200
RoHS Details - Details N - No -; RoHS Version Available N Details Details
Product Receptacles - Receptacles Receptacles - Receptacles Receptacles - Receptacles
Number of Positions 300 Position - 300 Position 300 Position - 300 Position 25 Position - 300 Position
Pitch 1.27 mm - 1.27 mm 1.27 mm - 1.27 mm 2.54 mm - 1.27 mm
Number of Rows 10 Row - 10 Row 10 Row - 10 Row - - 10 Row
Termination Style SMD - SMD SMD/SMT - SMD SMD - SMD
Current Rating 450 mA - 450 mA 450 mA - 450 mA 450 mA - 450 mA
Voltage Rating 200 V - 200 V 200 V - 200 V 200 V - 200 V
Packaging Reel Reel Reel Reel Reel Reel Reel Reel Reel
Contact Plating Gold - Gold Gold - Gold - - Gold
Housing Material Liquid Crystal Polymer (LCP) - Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) - Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) - Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy - Copper Alloy Copper Alloy - Copper Alloy Copper Alloy - Copper Alloy
Stack Height 5.5 mm - 5.5 mm 5.5 mm - 5.5 mm - - 5.5 mm
