SBR10U45SD1
10A SBR
®
SUPER BARRIER RECTIFIER
Features
•
•
•
•
•
•
•
Designed as Bypass Diodes for Solar Panels
Selectively Rated for +200ºC Maximum Junction Temperature
for High Thermal Reliability
Patented Super Barrier Rectifier Technology
High Forward Surge Capability
Ultra Low Forward Voltage Drop
Excellent High Temperature Stability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Mechanical Data
•
•
•
•
•
Case: DO-201AD
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Tin Plated Leads. Solderable per MIL-STD-
202, Method 208
Weight: 1.21 grams (approximate)
Top View
Ordering Information
(Note 3)
Part Number
SBR10U45SD1-T
Notes:
Case
DO-201AD
Packaging
1200/Tape & Reel, 13-inch
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
SBR10U45 = Product Type Marking Code
AB = Foundry and Assembly Code
= Manufacturers’ code marking
YWW = Date Code Marking
Y = Last digit of year (ex: 8 for 2008)
WW = Week code (01 to 53)
YWW
SBR10U45
AB
SBR10U45SD1
Document number: DS31350 Rev. 8 - 2
1 of 4
www.diodes.com
July 2012
© Diodes Incorporated
SBR is a registered trademark of Diodes Incorporated.
SBR10U45SD1
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
Non-Repetitive Avalanche Energy
(T
J
= +25°C , I
AS =
20A , L = 8.5mH)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
RM
V
R(RMS)
I
O
E
AS
I
FSM
Value
45
32
10
20
200
Unit
V
V
A
mJ
A
Thermal Characteristics
Characteristic
Maximum Thermal Resistance
Thermal Resistance Junction to Ambient (Note 4)
Thermal Resistance Junction to Lead (Note 4)
Operating Temperature Range
Storage Temperature Range
V
R
≤
80% V
RRM
V
R
≤
50% V
RRM
DC Forward Mode
Symbol
R
θ
JA
R
θ
JL
T
J
T
STG
Value
54
18
-65 to +150
≤180
≤200
-65 to +175
Unit
°C/W
°C/W
°C
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 5)
Forward Voltage Drop
Symbol
V
(BR)R
V
F
Min
45
—
—
—
—
—
—
Typ
—
—
0.42
0.37
0.051
—
27
Max
—
0.42
0.47
0.41
0.3
15
75
Unit
V
V
Test Condition
I
R
= 0.5mA
I
F
= 8A, T
J
= +25°C
I
F
= 10A, T
J
= +25°C
I
F
= 10A, T
J
= +125°C
V
R
= 45V, T
J
= +25°C
V
R
= 45V, T
J
= +100°C
V
R
= 45V, T
J
= +150°C
Leakage Current (Note 5)
Notes:
I
R
mA
4. FR-4 PCB, 2oz. Copper, minimum recommended pad layout per http://www.diodes.com.
5. Short duration pulse test used to minimize self-heating effect.
SBR10U45SD1
Document number: DS31350 Rev. 8 - 2
2 of 4
www.diodes.com
July 2012
© Diodes Incorporated
SBR is a registered trademark of Diodes Incorporated.
SBR10U45SD1
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
100
100,000
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
T
A
= 150°C
10,000
10
T
A
= 125°C
T
A
= 150°C
T
A
= 125°C
1,000
T
A
= 85°C
1
T
A
= 85°C
T
A
= 25°C
100
T
A
= 25°C
10
0.1
T
A
= -55°C
1
0.1
T
A
= -55°C
0.01
0
0.1
0.2
0.3
0.4
0.5
0.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

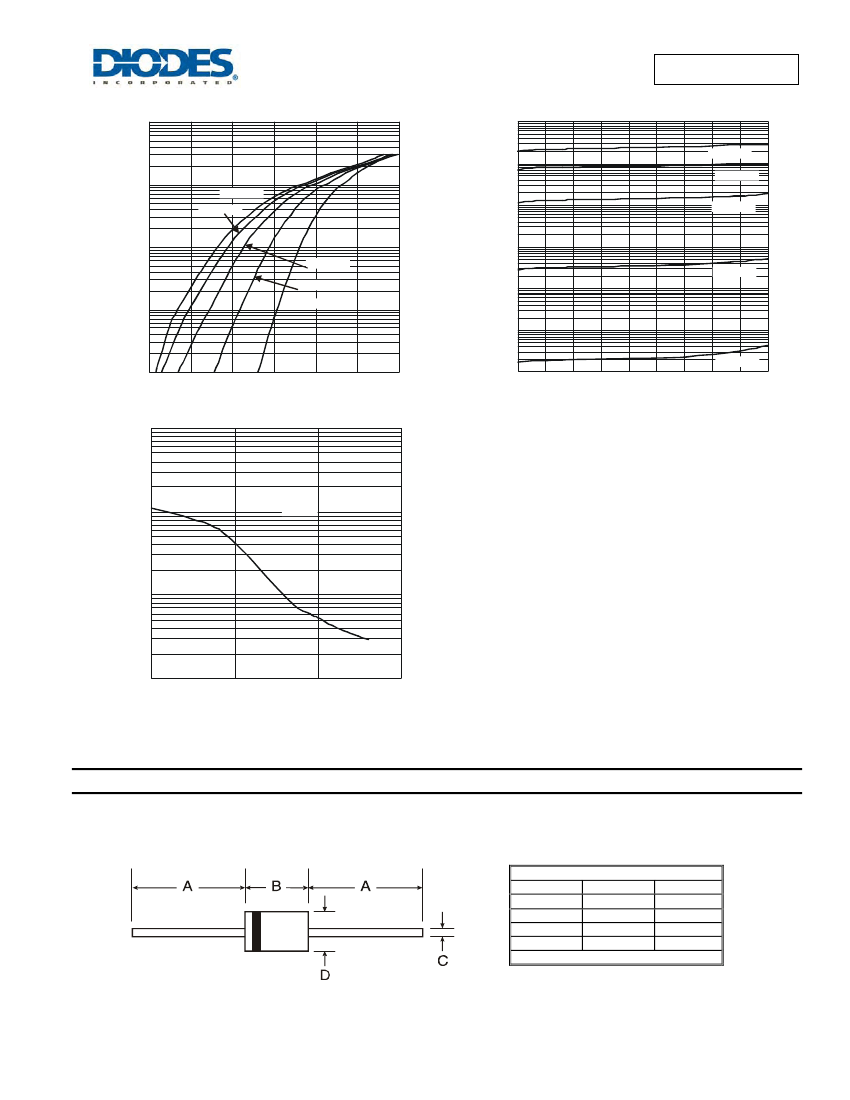

Figure 1 Typical Forward Characteristics
0
5
10 15 20 25 30 35 40 45
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 2 Typical Reverse Characteristics
100,000
C
T
, TOTAL CAPACITANCE (pF)
10,000
f = 1MHz
1,000
100
0.1
1
10
100
V
R
, DC REVERSE VOLTAGE (V)
Figure 3 Total Capacitance vs. Reverse Voltage
Package Outline Dimensions
Dim
A
B
C
D
DO-201AD
Min
25.40
7.20
1.20
4.80
All Dimensions in mm
Max
⎯
9.50
1.30
5.30
SBR10U45SD1
Document number: DS31350 Rev. 8 - 2
3 of 4
www.diodes.com
July 2012
© Diodes Incorporated
SBR is a registered trademark of Diodes Incorporated.
