74HC374D,653 datasheet, PDF - EEWORLD Datasheet

74HC374D,653: DescriptionFlip Flops OCTAL D F/F 3STATE; Categorylogic logic; File Size60KB，9 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric View All

74HC374D,653 Overview

Flip Flops OCTAL D F/F 3STATE

Parameter Name	Attribute value
Brand Name	NXP Semiconductor
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	SOP
package instruction	PLASTIC, SO-20
Contacts	20
Manufacturer packaging code	SOT163-1
Reach Compliance Code	compliant
series	HC/UH
JESD-30 code	R-PDSO-G20
JESD-609 code	e4
length	12.8 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Maximum Frequency@Nom-Sup	24000000 Hz
MaximumI(ol)	0.004 A
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260
power supply	2/6 V
propagation delay (tpd)	50 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	POSITIVE EDGE
width	7.5 mm

INTEGRATED CIRCUITS

DATA SHEET

For a complete data sheet, please also download:

•

The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Information

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines

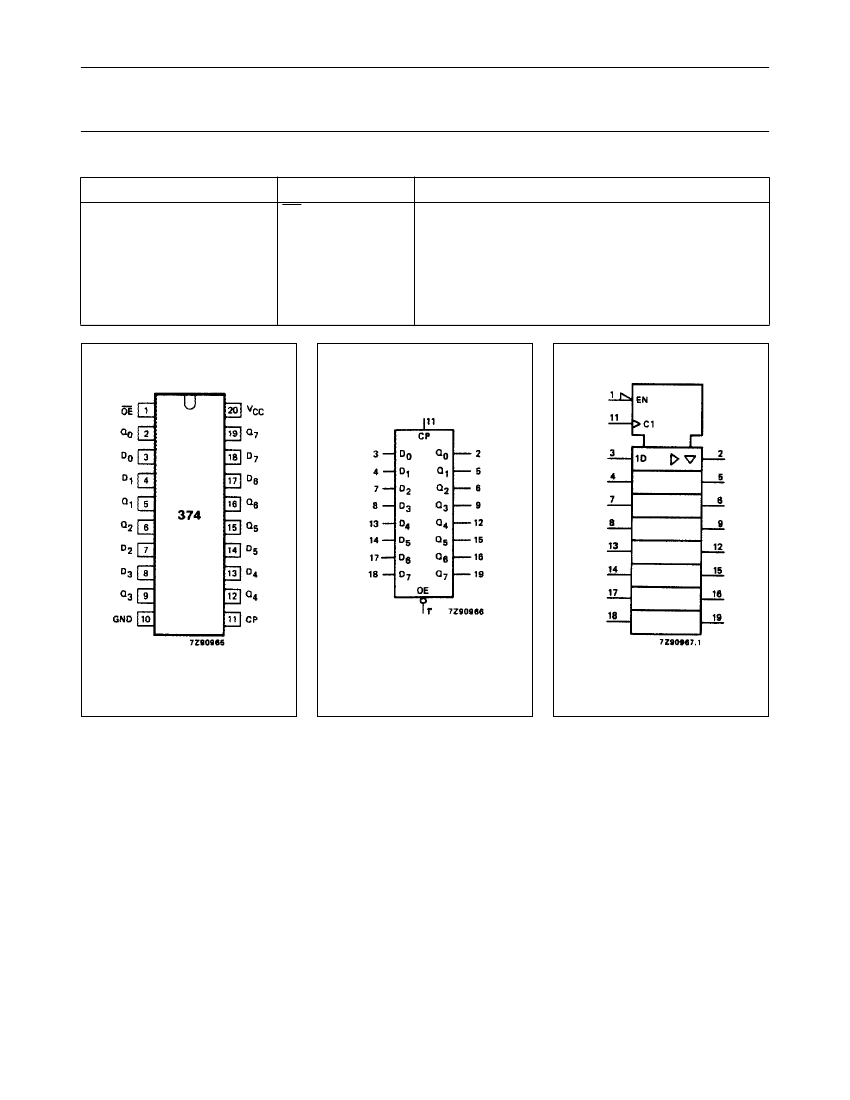

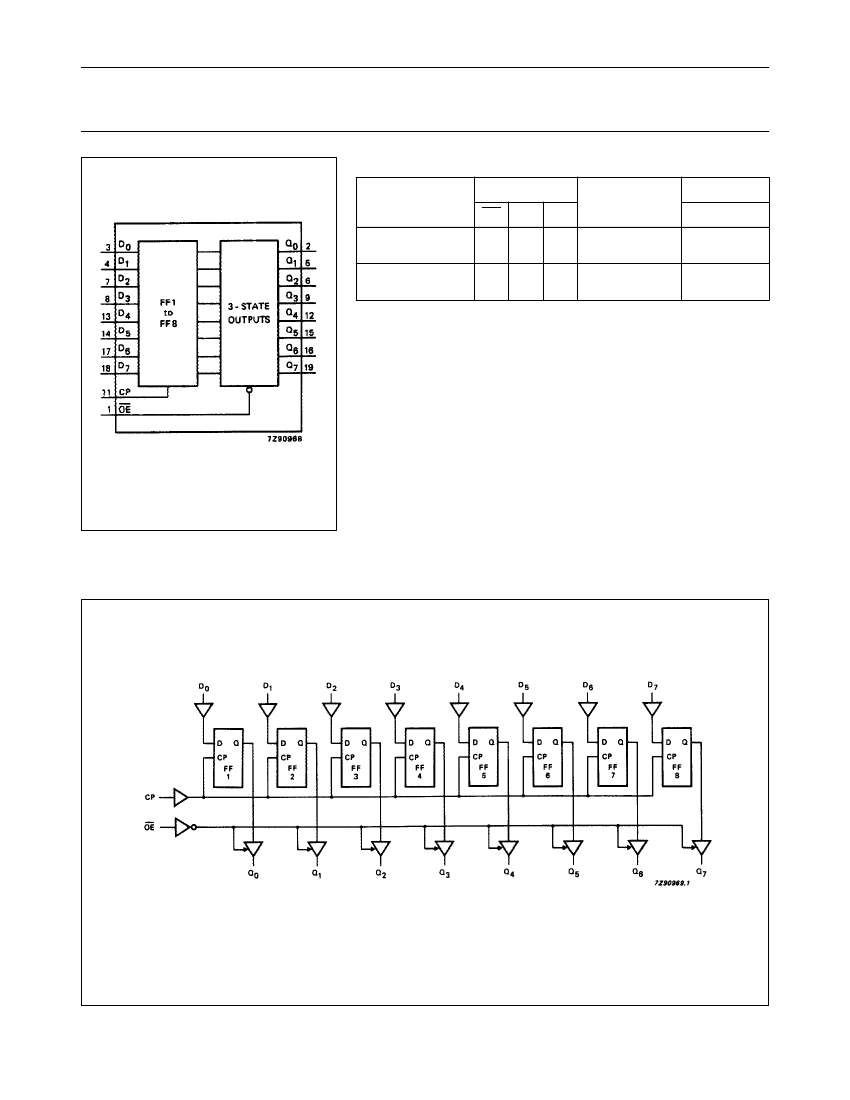

74HC/HCT374

Octal D-type flip-flop; positive

edge-trigger; 3-state

Product speciﬁcation

File under Integrated Circuits, IC06

December 1990
