SY89112UMY-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > SY89112UMY-TR

SY89112UMY-TR: DescriptionClock Multiplexer 12-OUT 2-IN 1:12 44-Pin QFN EP T/R; File Size859KB，14 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SY89112UMY-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SY89112UMY-TR	-	-	View	Buy Now

SY89112UMY-TR Overview

Clock Multiplexer 12-OUT 2-IN 1:12 44-Pin QFN EP T/R

SY89112UMY-TR Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Type	Clock Multiplexer
Fanout	1:12
Number of Outputs per Chip	12
Maximum Input Frequency (MHz)	3000(Typ)
Maximum Propagation Delay Time @ Maximum CL (ns)	0.55@2.375V to 3.6V
Absolute Propagation Delay Time (ns)	0.6
Output Logic Level	LVPECL
Minimum Operating Supply Voltage (V)	2.375
Typical Operating Supply Voltage (V)	2.5\|3.3
Maximum Operating Supply Voltage (V)	3.6
Maximum Quiescent Current (mA)	130
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Packaging	Tape and Reel
Supplier Package	QFN EP
Pin Count	44
Mounting	Surface Mount
Package Height	0.85(Max)
Package Length	7
Package Width	7
PCB changed	44

Preview

Download Datasheet

View All

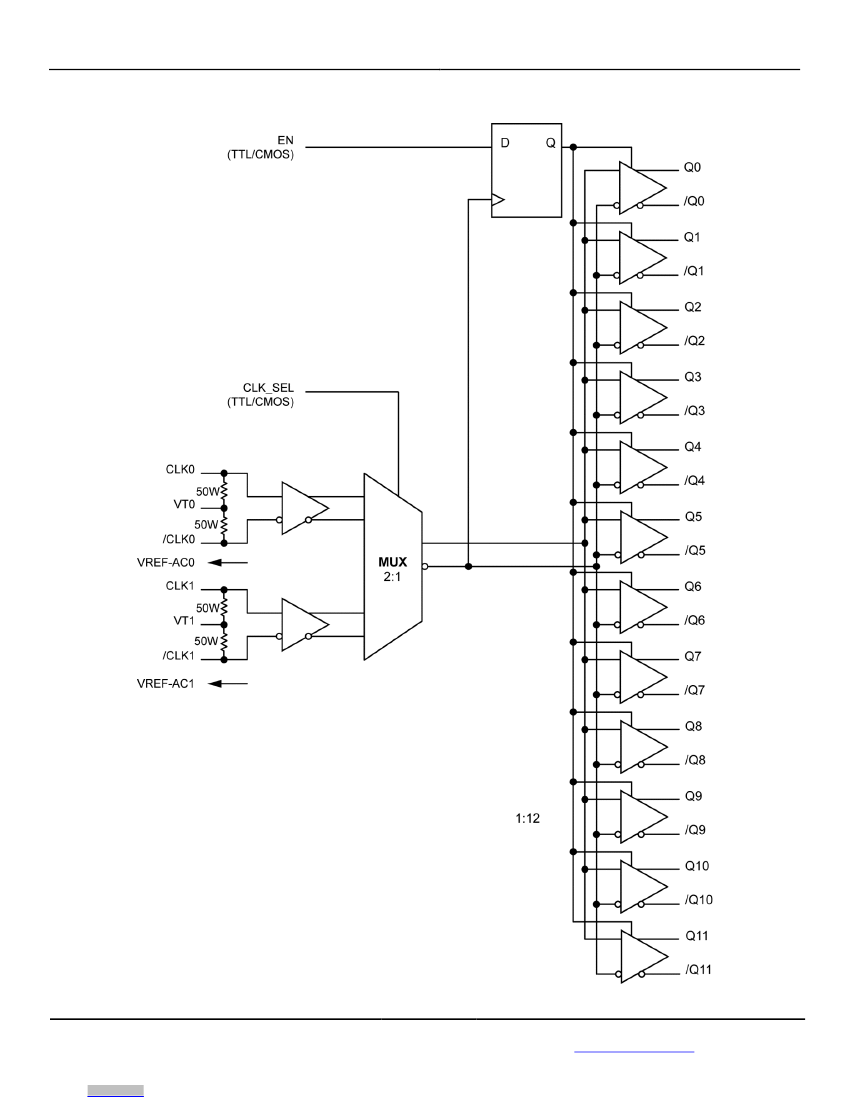

SY89112U

2.5/3.3V Low-Jitter, Low-Skew 1:12 LVPECL

Fanout Buffer with 2:1 Input MUX and

Internal Termination

General Description

The SY89112U is a low-jitter, low-skew, high-speed

LVPECL 1:12 differential fanout buffer optimized for

precision telecom and enterprise server distribution

applications. The input includes a 2:1 MUX for clock

switchover application. Unlike other multiplexers, this input

includes a unique isolation design to minimize channel-to-

channel crosstalk. The SY89112U distributes clock

frequencies from DC to >2GHz guaranteed over

temperature and voltage. The SY89112U incorporates a

synchronous output enable (EN) so that the outputs will

only be enabled/disabled when they are already in the

LOW state. This reduces the chance of generating “runt”

clock pulses.

The SY89112U differential input includes Micrel’s unique,

patent-pending 3-pin input termination architecture that

directly interfaces to any differential signal (AC- or DC-

coupled) as small as 100mV (200mV

) without any level

shifting or termination resistor networks in the signal path.

For AC-coupled input interface, an on-board output

reference voltage (VREF-AC) is provided to bias the

center-tap (VT) pin. The outputs are 800mV, 100K-

compatible LVPECL with fast rise/fall times guaranteed to

be less than 220ps.

The SY89112U operates from a 2.5V ±5% or 3.3V ±10%

supply and is guaranteed over the full industrial

temperature range of –40°C to +85°C. The SY89112U is

part of Micrel’s high-speed, Precision Edge product line.

Datasheets and support documentation are available on

Micrel’s web site at:

www.micrel.com.

Features



Selects between 1 of 2 inputs, and provides 12

precision, low skew LVPECL output copies



Guaranteed AC performance over temperature and

voltage:



DC to >2GHz throughput



<550ps propagation delay CLK-to-Q



<220ps rise/fall time



<25ps output-to-output skew



Ultra-low jitter design:



50fs

RMS

phase jitter (typ.)



<0.7ps

RMS

crosstalk induced jitter



Unique, patent-pending input termination and VT pin

accepts DC-coupled and AC-coupled differential inputs



Unique, patent-pending 2:1 input MUX provides superior

isolation to minimize channel-to-channel crosstalk



800mV, 100K LVPECL output swing



Power supply 2.5V +5% or 3.3V +10%



Industrial temperature range –40°C to +85°C



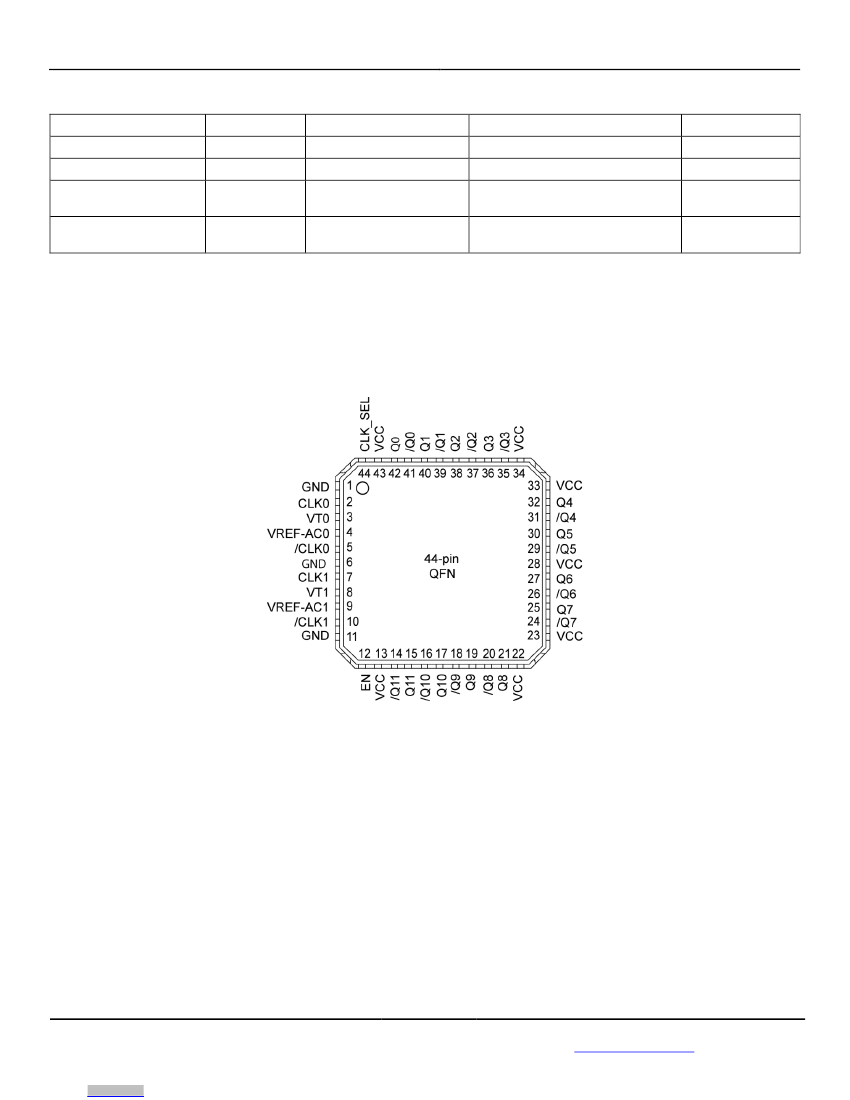

Available in 44-pin (7mm x 7mm) QFN package

Applications



Multi-processor server

SONET/SDH clock/data distribution

Fibre Channel distribution

Gigabit Ethernet clock distribution

United States Patent No. RE44,134

Precision Edge is a registered trademark of Micrel, Inc.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 •

http://www.micrel.com

April 8, 2014

040814-6.0

hbwhelp@micrel.com

or (408) 955-1690
