BAT54SW-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT54SW-7

BAT54SW-7: DescriptionSchottky Diodes & Rectifiers 30V 200mW; CategoryDiscrete semiconductor diode; File Size188KB，4 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

BAT54SW-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAT54SW-7	-	-	View	Buy Now

BAT54SW-7 Overview

Schottky Diodes & Rectifiers 30V 200mW

BAT54SW-7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

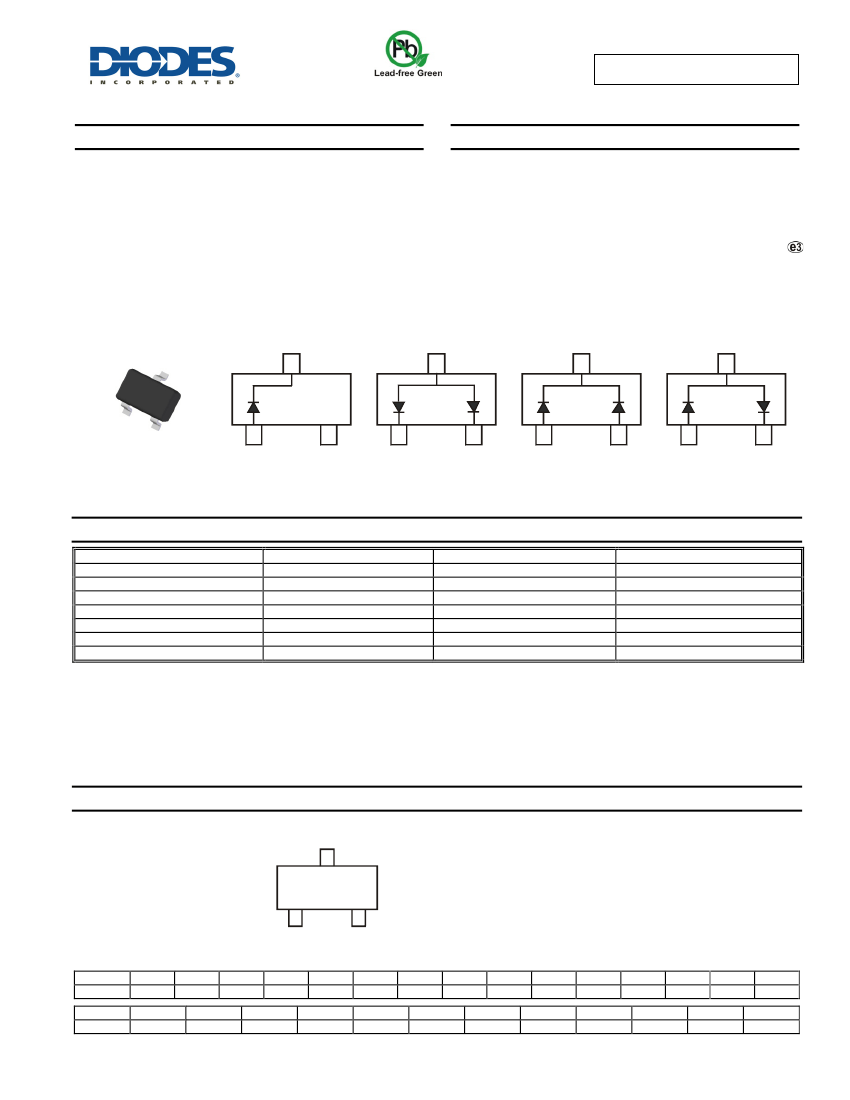

BAT54W /AW /CW /SW

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Features



Low Forward Voltage Drop

Fast Switching

Ultra-Small Surface Mount Package

PN Junction Guard Ring for Transient and ESD Protection

Qualified to AEC-Q101 Standards for High Reliability

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Notes 3 & 4)

Mechanical Data



Case: SOT323

Case Material: Molded Plastic, "Green" Molding Compound,

Note 5. UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Polarity: See Diagrams Below

Weight: 0.006 grams (approximate)

SOT323

Top View

BAT54W-KL5

BAT54AW-KL6

BAT54CW-KL7

BAT54SW-KL8

Ordering Information

(Note 5)

Part Number

BAT54W-7-F

BAT54WQ-7-F

BAT54AW-7-F

BAT54AWQ-7-F

BAT54CW-7-F

BAT54SW-7-F

BAT54SWQ-7-F

Notes:

Compliance

Standard

Automotive

Standard

Automotive

Standard

Automotive

Case

SOT323

Packaging

3000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Product manufactured with Date Code 1327 (week 27, 2013) and newer are built with Green Molding Compound. Product manufactured prior to Date

Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

xxx = Product Type Marking Code

KL5 = BAT54W

KL6 = BAT54AW

KL7 = BAT54CW

KL8 = BAT54SW

YM = Date Code Marking

Y = Year (ex: A = 2013)

M = Month (ex: 9 = September)

xxx

Date Code Key

Year

2000

Code

Month

Code

Jan

2001

Feb

2002

2003

Mar

2004

Apr

…

May

2010

Jun

2011

2012

Jul

2013

Aug

2014

Sep

2015

Oct

2016

2017

Nov

2018

Dec

BAT54W /AW /CW /SW

Document number: DS30065 Rev. 13 - 2

1 of 4

www.diodes.com

October 2013

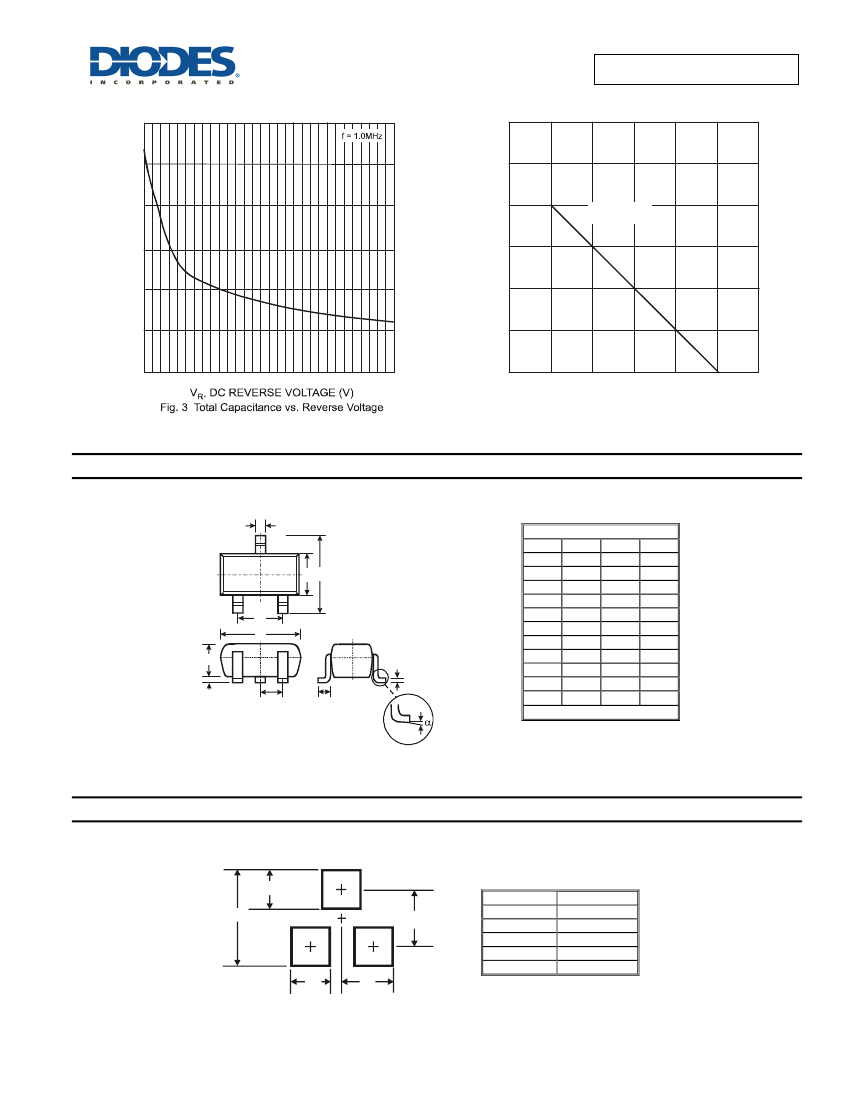

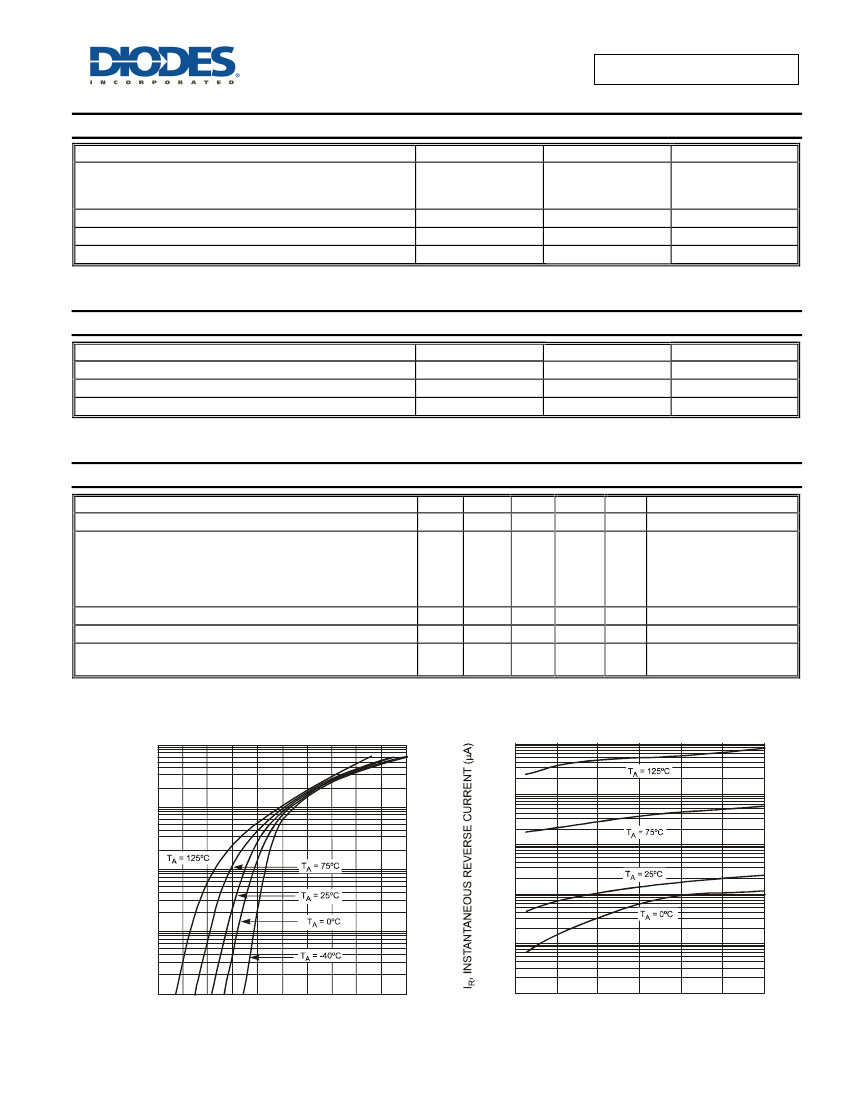

BAT54W /AW /CW /SW
