ZVP4424Z
240V P-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET
Features
•
•
•
•
•
•
•
BV
DSS
> -240V
R
DS(on)
≤
8.8Ω @ V
GS
= -3.5V
Low threshold and Fast switching
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Mechanical Data
•
•
•
•
•
Case: SOT89
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.052 grams (approximate)
Application
•
•
Electronic hook switches
Telecoms and Battery powered equipment

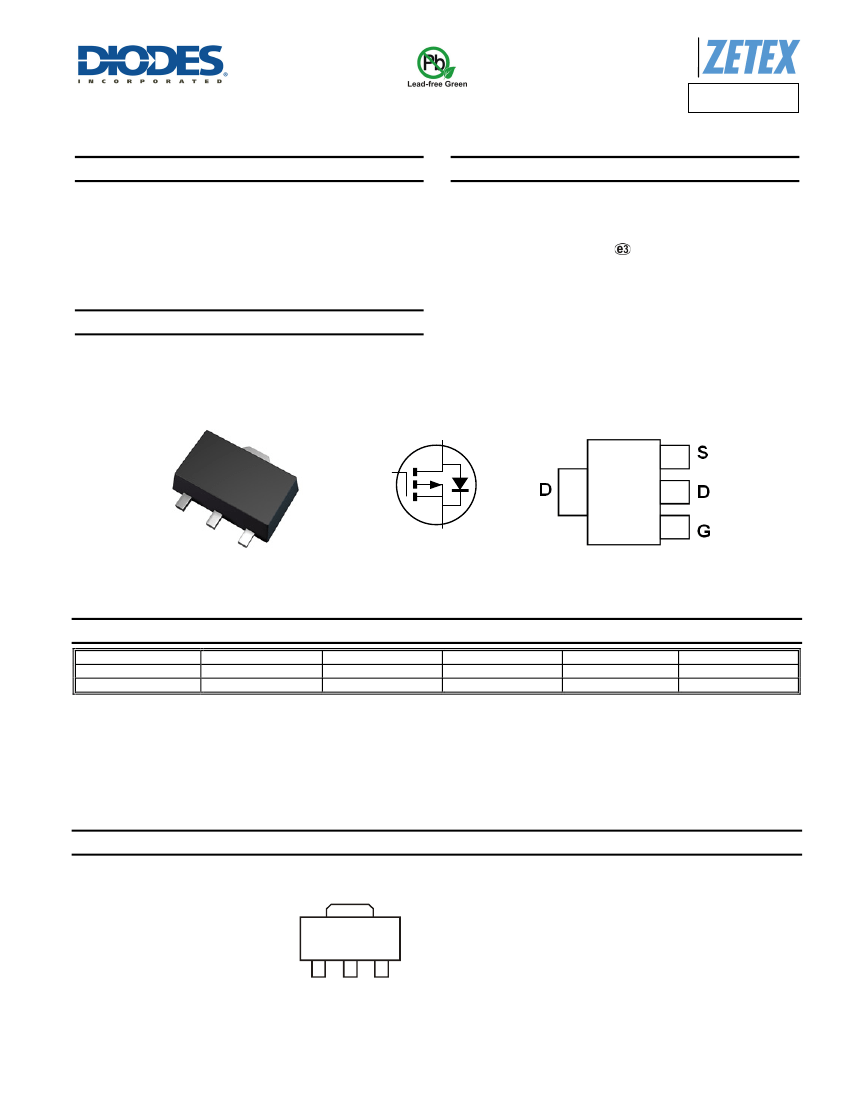

SOT89
D
G
S
Top View
Device symbol
Pin-out Top
Ordering Information
(Notes 4 & 5)
Product
ZVP4424ZTA
ZVP4424ZQTA
Notes:
Compliance
AEC-Q101
Automotive
Marking
24P
24P
Reel size (inches)
7
7
Tape width (mm)
12
12
Quantity per reel
1,000
1,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at http://www.diodes.com.
Marking Information
24P
24P = Product type Marking Code
ZVP4424Z
Document Number DS33410 Rev. 2 - 2
1 of 6
www.diodes.com
December 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZVP4424Z
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
Pulsed Drain Current (Note 8)
Symbol
V
DSS
V
GSS
I
D
I
DM
Value
-240
±40
-200
-1.0
Unit
V
V
mA
A
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Leads
Operating and Storage Temperature Range
Notes:
Symbol
(Note 6)
(Note 7)
(Note 6)
(Note 7)
(Note 9)
P
D
R
θJA
R
θJL
T
J
,
T
STG
Value
1.5
2.6
83.3
47.4
3.64
-55 to +150
Unit
W
W
°C/W
°C/W
°C/W
°C
6. For a device surface mounted on 25mm x 25mm FR4 PCB with high coverage of single sided 1oz copper, in still air conditions.
7. For a device surface mounted on FR4 PCB measured at t
≤
10 sec.
8. Repetitive rating - 25mm x 25mm FR4 PCB, D = 0.02, pulse width 300μs – pulse width limited by maximum junction temperature.
9. Thermal resistance from junction to solder-point (at the end of the drain lead).
Thermal Characteristics
ZVP4424Z
Document Number DS33410 Rev. 2 - 2
2 of 6
www.diodes.com
December 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZVP4424Z
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
Gate-Source Leakage
ON CHARACTERISTICS
On state Drain Current (Note 10)
Gate Threshold Voltage
Static Drain-Source On-Resistance (Note 10)
Forward Transconductance (Notes 10 & 12)
DYNAMIC CHARACTERISTICS
(Note 12)
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Turn-On Delay Time (Note 11)
Rise Time (Note 11)
Turn-Off Delay Time (Note 11)
Fall Time (Note 11)
Notes:
Symbol
BV
DSS
I
DSS
I
GSS
I
D(on)
V
GS(th)
R
DS(on)
g
fs
C
iss
C
oss
C
rss
t
d(on)
t
f
t
d(off)
t
f
Min
-240
⎯
⎯
-0.75
-0.7
⎯
125
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Typ
⎯
⎯
⎯
-1.0
-1.4
7.1
8.8
⎯
100
18
5
8
8
26
20
Max
⎯
-10
-100
±100
⎯
-2.0
9
11
⎯
200
25
15
15
15
40
30
Unit
V
μA
μA
Test Condition
I
D
= -1mA, V
GS
= 0V
V
DS
= -240V, V
GS
= 0V
V
DS
= -190V, V
GS
= 0V, T
A
= +125°C
V
GS
=
±40V,
V
DS
= 0V
V
DS
= -10V, V
GS
= -10V
I
D
= -1mA, V
DS
= V
GS
V
GS
= -10V, I
D
= -200mA
V
GS
= -3.5V, I
D
= -100mA
V
DS
= -10V, I
D
= -200mA
V
DS
= -25V, V
GS
= 0V
f = 1.0MHz
nA
A
V
Ω
mS
pF
ns
V
DD
= -50V, I
D
= -250mA
V
GEN
= -10V
10. Measured under pulsed conditions. Pulse width = 300μs. Duty cycle
≤
2%.
11. Switching characteristics are independent of operating junction temperature.
12. For design aid only, not subject to production testing.
ZVP4424Z
Document Number DS33410 Rev. 2 - 2
3 of 6
www.diodes.com
December 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZVP4424Z

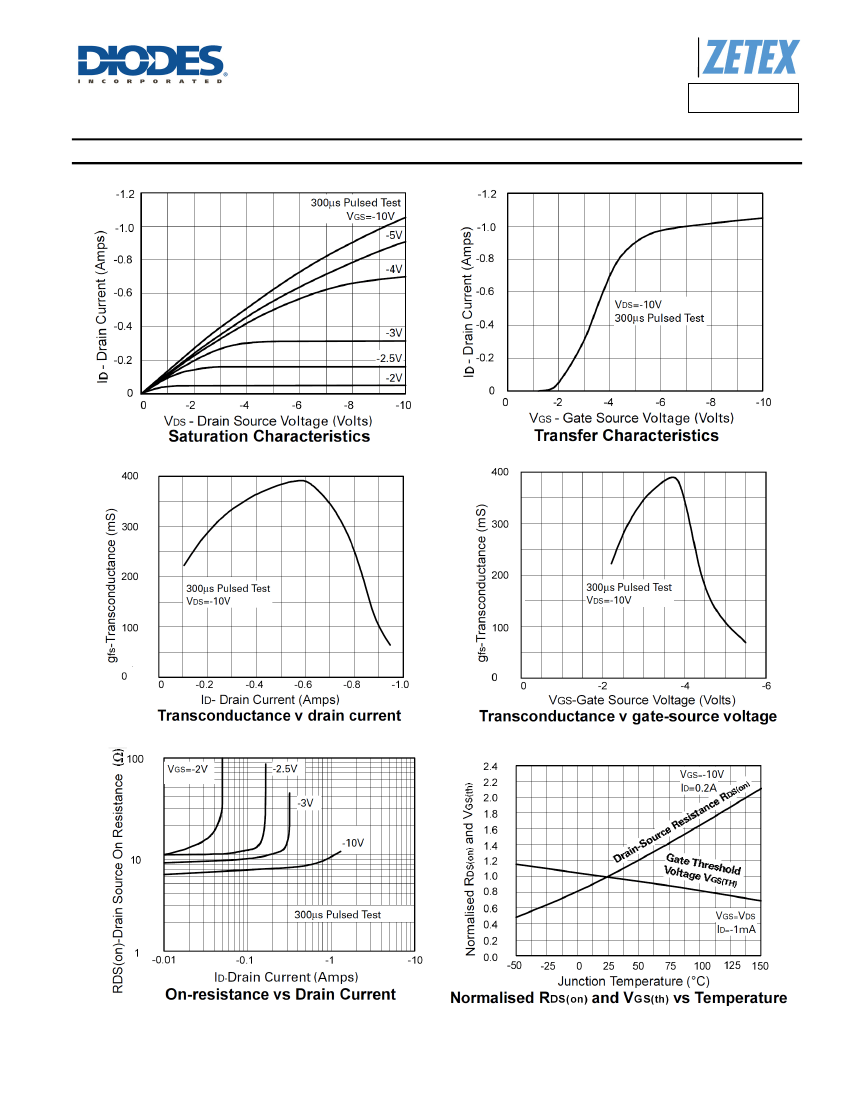

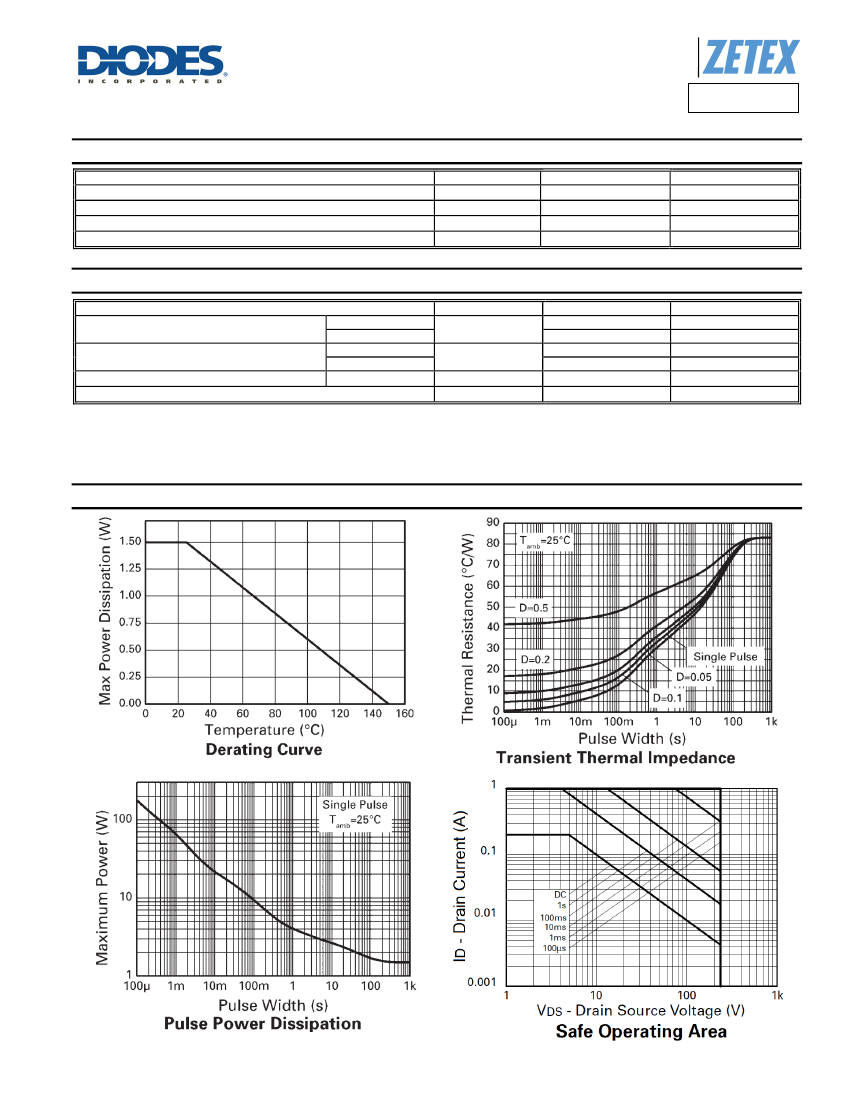

Typical Characteristics
ZVP4424Z
Document Number DS33410 Rev. 2 - 2
4 of 6
www.diodes.com
December 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZVP4424Z

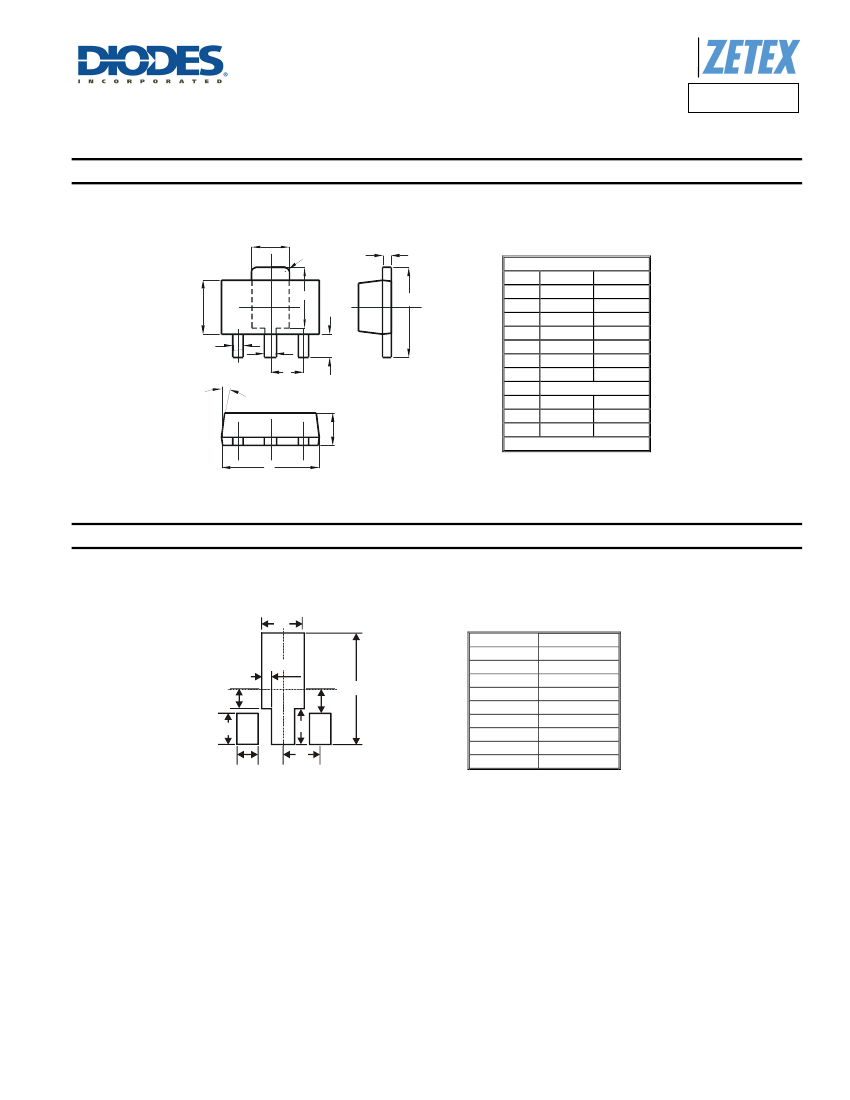

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
D1
00
0.2
R
1
C
H
E
H
B1
B
e
8° (4X)
L
A
SOT89
Dim
Min
Max
A
1.40
1.60
B
0.44
0.62
B1
0.35
0.54
C
0.35
0.44
D
4.40
4.60
D1
1.62
1.83
E
2.29
2.60
e
1.50 Typ
H
3.94
4.25
H1
2.63
2.93
L
0.89
1.20
All Dimensions in mm
D
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X1
X2 (2x)
Y3
Y
Y2
C
X (3x)
Y1
Y4
Dimensions Value (in mm)
X
0.900
X1
1.733
X2
0.416
Y
1.300
Y1
4.600
Y2
1.475
Y3
0.950
Y4
1.125
C
1.500
ZVP4424Z
Document Number DS33410 Rev. 2 - 2
5 of 6
www.diodes.com
December 2012
© Diodes Incorporated
