HI9P0546-9Z: DescriptionMultiplexer Switch ICs MUX 16:1 OVP 28 IND; CategoryAnalog mixed-signal IC The signal circuit; File Size732KB，25 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance; Related ProductsFound15parts with similar functions to HI9P0546-9Z

Download Datasheet Parametric Compare View All

HI9P0546-9Z Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HI9P0546-9Z	-	-	View	Buy Now

HI9P0546-9Z Overview

Multiplexer Switch ICs MUX 16:1 OVP 28 IND

HI9P0546-9Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP, SOP28,.4
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Other features	OVERVOLTAGE PROTECTION
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G28
JESD-609 code	e3
length	17.9 mm
Humidity sensitivity level	3
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	16
Number of functions	1
Number of terminals	28
Nominal off-state isolation	68 dB
On-state resistance matching specifications	126 Ω
Maximum on-state resistance (Ron)	1800 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum signal current	0.02 A
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	1000 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

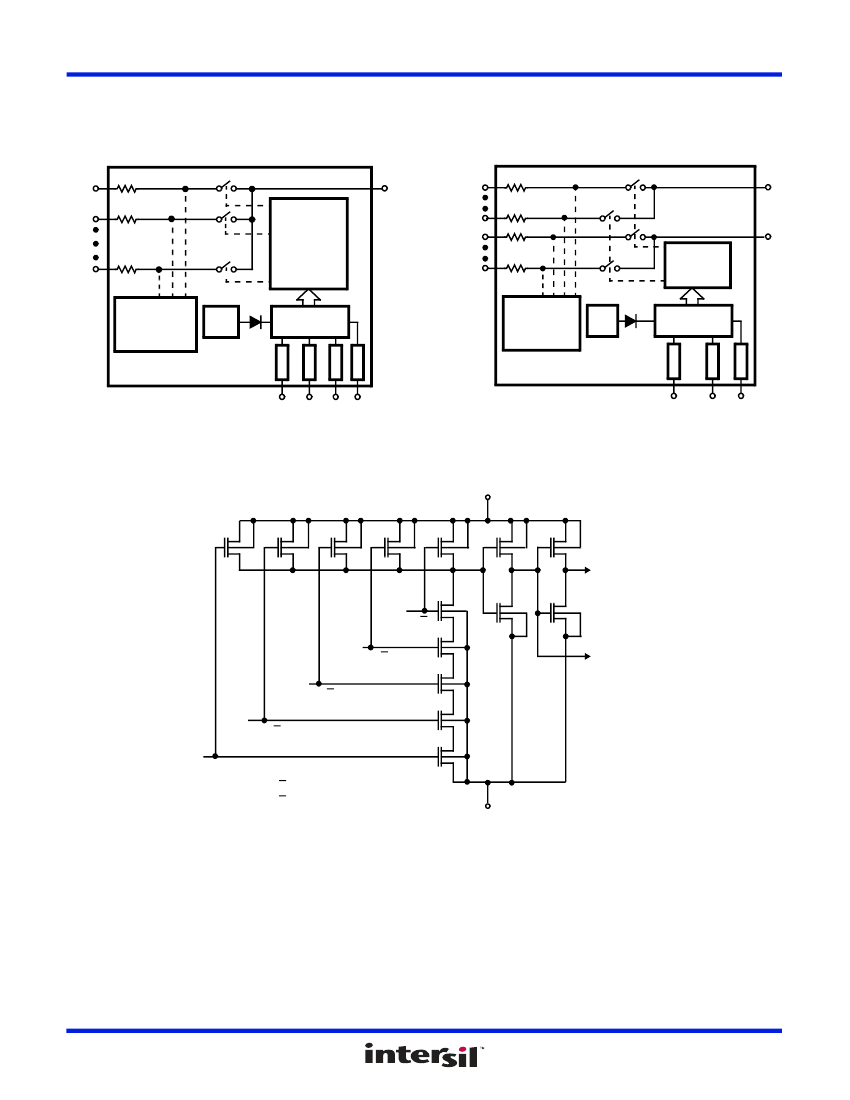

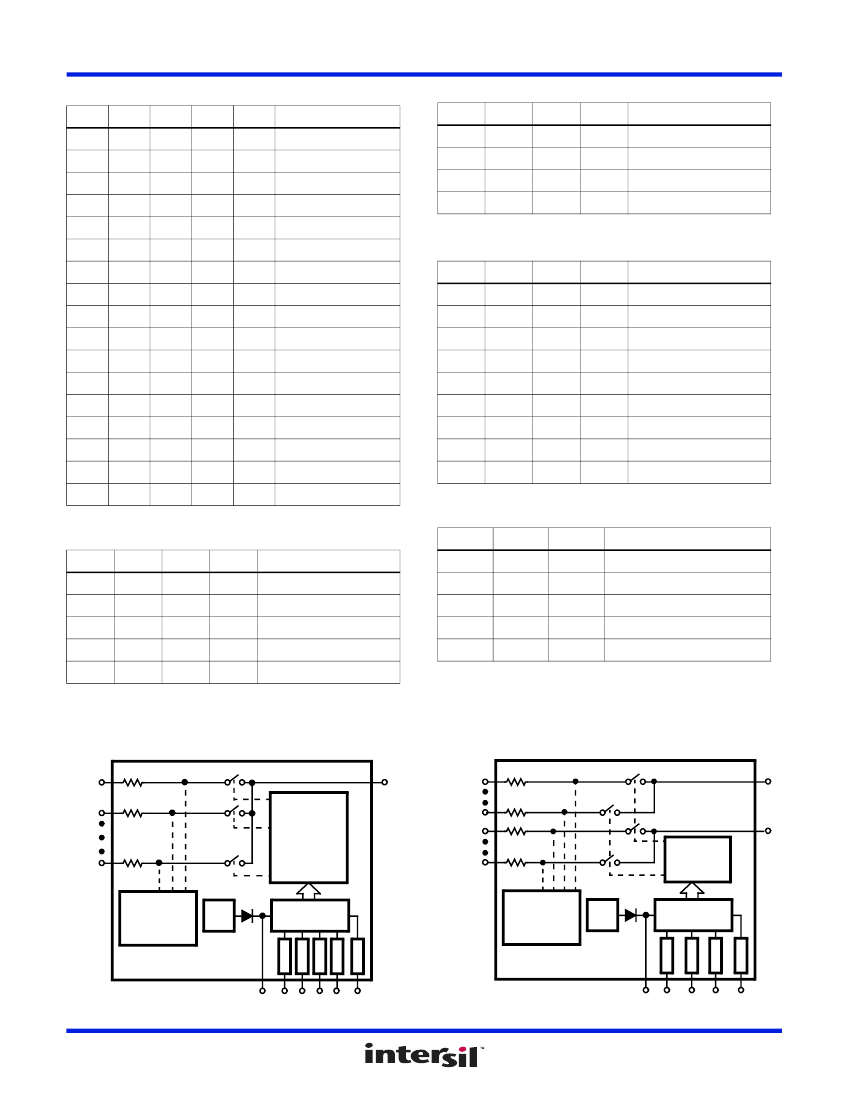

DATASHEET

HI-546, HI-547, HI-548, HI-549

Single 16 and 8, Differential 8-Channel and 4-Channel CMOS Analog MUXs with

Active Overvoltage Protection

The HI-546, HI-547, HI-548 and HI-549 are analog

multiplexers with active overvoltage protection and

guaranteed r

matching. Analog input levels may greatly

exceed either power supply without damaging the device or

disturbing the signal path of other channels. Active

protection circuitry assures that signal fidelity is maintained

even under fault conditions that would destroy other

multiplexers.

Analog inputs can withstand constant 70V

P-P

levels with

15V

supplies. Digital inputs will also sustain continuous

faults up to 4V greater than either supply. In addition, signal

sources are protected from short circuiting should

multiplexer supply loss occur. Each input presents 1k of

resistance under this condition. These features make the

HI-546, HI-547, HI-548 and HI-549 ideal for use in systems

where the analog inputs originate from external equipment

or separately powered circuitry. All devices are fabricated

with 44V Dielectrically Isolated CMOS technology. The

HI-546 is a single 16-Channel, the HI-547 is an 8-Channel

differential, the HI-548 is a single 8-Channel and the HI-549

is a 4-Channel differential device. If input overvoltage

protection is not needed the HI-506/507/508/509

multiplexers are recommended. For further information see

Application Notes AN520 and AN521.

For MIL-STD-883 compliant parts, request the HI-546/883,

HI-547/883, HI-548/883 and HI-549/883 datasheets.

FN3150

Rev 7.00

Jun 15, 2016

Features

• Analog Overvoltage Protection. . . . . . . . . . . . . . . . . . 70V

P-P

• No Channel Interaction During Overvoltage

• Guaranteed r

Matching

• Maximum Power Supply . . . . . . . . . . . . . . . . . . . . . . 44V

• Break-Before-Make Switching

• Analog Signal Range . . . . . . . . . . . . . . . . . . . . . . . .

15V

• Access Time (Typical) . . . . . . . . . . . . . . . . . . . . . . . 500ns

• Standby Power (Typical) . . . . . . . . . . . . . . . . . . . . 7.5mW

• Pb-Free Plus Anneal Available (RoHS Compliant)

Applications

• Data Acquisition

• Industrial Controls

• Telemetry

FN3150 Rev 7.00

Jun 15, 2016

Page 1 of 25

HI9P0546-9Z Related Products

	HI9P0546-9Z	HI1-0548-2	HI9P0548-5Z	HI9P0548-5Z96
Description	Multiplexer Switch ICs MUX 16:1 OVP 28 IND	Multiplexer Switch ICs MUX 8:1 OVP 16CDIP MIL	Multiplexer Switch ICs MUX 8:1 OVP 16N COM	Multiplexer Switch ICs MUX 8:1 OVP 16N COM
Is it lead-free?	Lead free	Contains lead	Lead free	Lead free
Is it Rohs certified?	conform to	incompatible	conform to	conform to
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SOIC	DIP	SOIC	SOIC
package instruction	SOP, SOP28,.4	DIP, DIP16,.3	SOP, SOP16,.25	SOP, SOP16,.25
Contacts	28	16	16	16
Reach Compliance Code	compliant	not_compliant	compliant	compliant
Factory Lead Time	7 weeks	19 weeks	20 weeks	4 weeks
Other features	OVERVOLTAGE PROTECTION	OVERVOLTAGE PROTECTION	OVERVOLTAGE PROTECTION	OVERVOLTAGE PROTECTION
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G28	R-CDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e3	e0	e3	e3
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	16	8	8	8
Number of functions	1	1	1	1
Number of terminals	28	16	16	16
Nominal off-state isolation	68 dB	68 dB	68 dB	68 dB
On-state resistance matching specifications	126 Ω	105 Ω	126 Ω	126 Ω
Maximum on-state resistance (Ron)	1800 Ω	1500 Ω	1800 Ω	1800 Ω
Maximum operating temperature	85 °C	125 °C	75 °C	75 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	SOP
Encapsulate equivalent code	SOP28,.4	DIP16,.3	SOP16,.25	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	260	260
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	5.08 mm	1.75 mm	1.75 mm
Maximum signal current	0.02 A	0.02 A	0.02 A	0.02 A
Maximum supply current (Isup)	2 mA	2 mA	2 mA	2 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	YES	NO	YES	YES
Maximum disconnect time	1000 ns	500 ns	1000 ns	1000 ns
Maximum connection time	1000 ns	500 ns	1000 ns	1000 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Matte Tin (Sn) - annealed	Tin/Lead (Sn/Pb)	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	NOT SPECIFIED	40	40
width	7.5 mm	7.62 mm	3.9 mm	3.9 mm
length	17.9 mm	-	9.9 mm	9.9 mm
Humidity sensitivity level	3	-	3	3
