ZXGD3105N8TC

Description
Driver 15V 5A 1-OUT 8-Pin SO T/R
File Size518KB,14 Pages
ManufacturerDiodes Incorporated
Environmental Compliance
Download Datasheet Parametric View All

ZXGD3105N8TC Online Shopping

Suppliers Part Number Price MOQ In stock
ZXGD3105N8TC - - View Buy Now

ZXGD3105N8TC Overview

Driver 15V 5A 1-OUT 8-Pin SO T/R

ZXGD3105N8TC Parametric

Parameter NameAttribute value
EU restricts the use of certain hazardous substancesCompliant
ECCN (US)EAR99
Part StatusActive
HTS8542.39.00.01
SVHCYes
Number of Drivers1
TypeMOSFET
Number of Outputs1
Maximum Rise Time (ns)77(Typ)
Maximum Fall Time (ns)26(Typ)
Maximum Operating Frequency (kHz)500
Maximum Propagation Delay Time (ns)118(Typ)
Minimum Operating Supply Voltage (V)4.5
Maximum Operating Supply Voltage (V)25
Reference Voltage (V)15(Max)
Peak Output Current (A)5(Typ)
Maximum Power Dissipation (mW)785
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)150
Maximum Turn-On Delay Time (ns)70
Maximum Turn-Off Delay Time (ns)15
PackagingTape and Reel
Pin Count8
Standard Package NameSOP
Supplier PackageSO
MountingSurface Mount
Package Height1.5(Max)
Package Length5(Max)
Package Width4(Max)
PCB changed8
Lead ShapeGull-wing

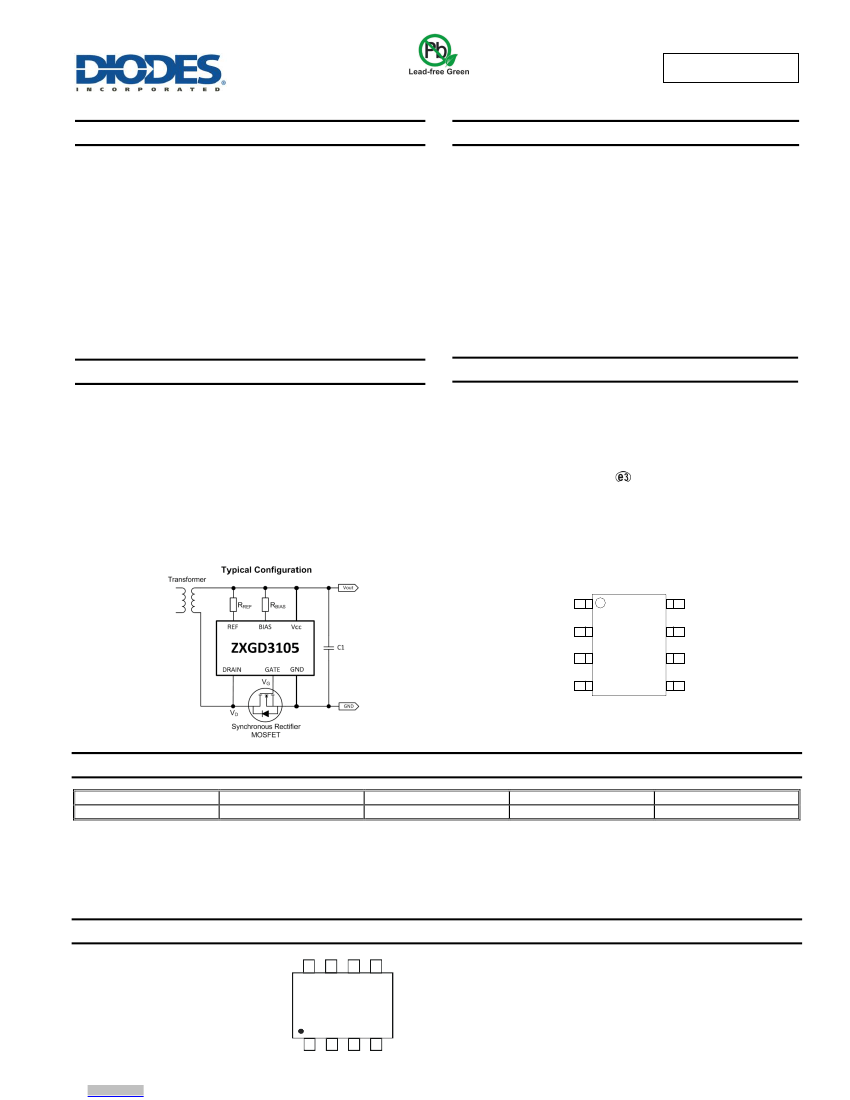

ZXGD3105N8
SYNCHRONOUS MOSFET CONTROLLER IN SO-8
Description
ZXGD3105N8 synchronous controller is designed for driving a
MOSFET as an ideal rectifier. This is to replace a diode for increasing
the power transfer efficiency.
Proportional Gate drive control monitors the reverse voltage of the
MOSFET such that if body diode conduction occurs a positive voltage
is applied to the MOSFET’s Gate Pin. Once the positive voltage is
applied to the Gate the MOSFET switches on allowing reverse current
flow. The controllers’ output voltage is then proportional to the
MOSFET Drain-Source voltage and this is applied to the Gate via the
driver. This action minimizes body diode conduction whilst enabling a
rapid MOSFET turn-off as the Drain current decays to zero.
Features
Proportional Gate Drive to Minimize Body Diode Conduction
Low Standby Power with Quiescent Supply Current <1mA
4.5V Operation Enables Low Voltage Supply
25V V
CC
Rating
100V Drain Voltage Rating
Operation up to 500kHz
Critical Conduction Mode (CrCM) & Continuous Mode (CCM)
Compliant with Eco-Design Directive
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Applications
Flyback Converters in:
Low Voltage AC- DC Adaptors
Set-Top-Box
PoE Power Devices
Resonant Converters in:
Telecoms PSU
Laptop Adaptors
Computing Power Supplies – ATX and Server PSU
Mechanical Data
Case: SO-8
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.074 grams (Approximate)
SO-8
Vcc
DNC
BIAS
DRAIN
Top View
Pin-Out
GATE
GND
DNC
REF
Ordering Information
(Note 4)
Product
ZXGD3105N8TC
Notes:
Marking
ZXGD3105
Reel Size (inches)
13
Tape Width (mm)
12
Quantity per Reel
2,500
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green"
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
ZXGD
3105
YY
WW
= Product Type Marking Code, Line 1
= Product Type Marking Code, Line 2
= Year (ex: 11 = 2011)
= Week (01 - 53)
ZXGD
3105
YY WW
ZXGD3105N8
Document Number DS35101
Rev. 4 - 2
1 of 14
www.diodes.com
November 2015
© Diodes Incorporated
