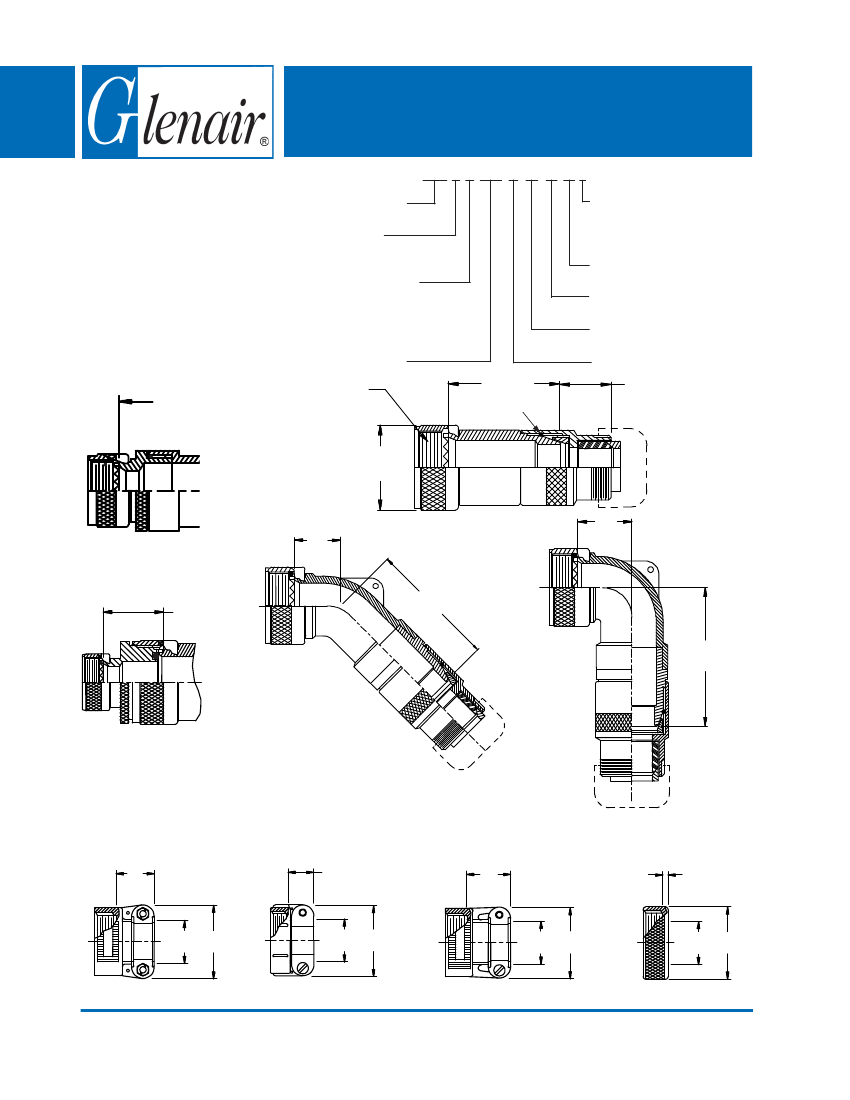

Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
Type C - Rotatable Coupling - Low Profile
390 F S 007 M 16 10 M 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
A Thread
(Table I)
Length *
O-Ring
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (H, A, M, D)
Cable Entry (Table X, XI)
Shell Size (Table I)
Finish (Table II)
1.125 (28.6)
Approx.
* Length
± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)
(Table III)
39
A-F-H-L-S
ROTATABLE
COUPLING
TYPE C OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
CONNECTOR
DESIGNATORS
C Typ.
(Table I)
G
STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
(Table III)
E
F (Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Entry
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 30
with Strain Relief
Type C - Rotatable Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
Shell Size
Conn. Desig.
H
A-F-L-S
08
09
11
10
12
13
15
14
16
17
19
18
20
21
23
22
24
25
28
32
36
TABLE III: ELBOW DIMENSIONS
E
Max
.520
.582
.645
.738
.926
.926
1.020
1.020
1.145
1.207
1.238
(13.2)
(14.8)
(16.4)
(18.7)
(23.5)
(23.5)
(25.9)
(25.9)
(29.1)
(30.7)
(31.4)
F
Max
2.775
2.835
3.554
3.664
3.854
3.854
4.192
4.192
4.225
4.325
4.465
(70.5)
(72.0)
(90.3)
(93.1)
(97.9)
(97.9)
(106.5)
(106.5)
(107.3)
(109.9)
(113.4)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
2.725 (69.2)
2.845 (72.3)
2.865 (72.8)
3.564 (90.5)
3.654 (92.8)
3.824 (97.1)
3.824 (97.1)
4.122 (104.7)
4.122 (104.7)
4.275 (108.6)
4.525 (114.9)
4.575 (116.2)
Dash
No.
04
06
08
10
12
16
20
24
28
32
TABLE X: CABLE ENTRY
T
V
Cable Range
Max
Min
Max
Max
.780 (19.8)
.957 (24.3)
.125 (3.2) .312 (7.9)
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
.780 (19.8) 1.332 (33.8)
.387 (9.8) .562 (14.3)
.780 (19.8) 1.332 (33.8)
.350 (8.9) .625 (15.9)
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
1. When maximum cable entry (page 21) is
exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are indicated in
parentheses.
3. Cable range is defined as the accommo-
dations range for
the wire bundle or cable. Dimensions
shown are not intended for inspection
criteria.
4. Consult factory for shorter lengths on
straight backshells.
5. Interface O-Ring not supplied with connec-
tor designator A.
TABLE XI: CABLE ENTRY
Dash
Y
X
Z
W
No.
Max
Max
Max
Max
03* .437 (11.1) .760 (19.3)
.843 (21.4)
.630 (16.0)
04* .437 (11.1) .760 (19.3)
.906 (23.0)
.755 (19.2)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7)
* Not available in Style M clamp (Style A clamp supplied).
© 2005 Glenair, Inc.
CAGE Code 06324
Cable
Min
.156 (4.0)
.188 (4.8)
.281 (7.1)
.387 (9.8)
.375 (9.5)
.438 (11.1)
.625 (15.9)
.875 (22.2)
1.000 (25.4)
1.250 (31.8)
1.437 (36.5)
1.875 (47.6)
Range
Max
.250 (6.4)
.312 (7.9)
.438 (11.1)
.562 (14.3)
.625 (15.9)
.750 (19.1)
.938 (23.8)
1.250 (31.8)
1.375 (34.9)
1.625 (41.3)
1.875 (47.6)
2.375 (60.3)
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 31
39
