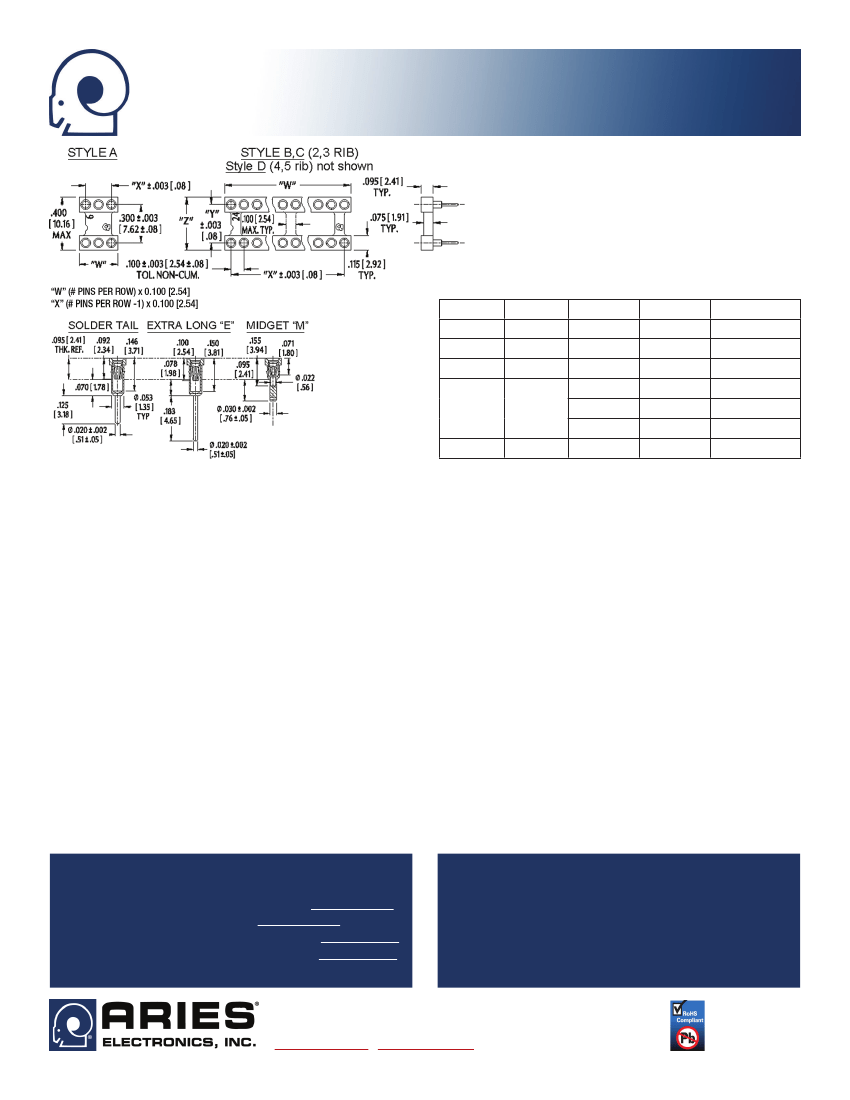

Series 518 Open Frame Socket
w/Collet Contacts & Solder Pin Tails
FEATURES
•
•
•
•
Open Frame allows Efficient Utilization of Board Space with Optimized Cooling
Choose from Several Pin Styles
Compatible with Automatic Insertion Equipment
Side-to-side and End-to-end Stackable
GENERAL SPECIFICATIONS
ORDERING INFORMATION
•
BODY MATERIAL:
Black UL 94V-0 Glass-filled 4/6 Nylon
•
PIN BODY:
Brass 360 1/2-hard per UNS C36000 ASTM B16-
XX-X 518-X XXX XXX
00
Additional Options
•
PIN BODY PLATING:
10μ [0.25μ] min. Au per MIL-G-45204
H = Heavy Au on Collet
–OR–
200μ [5.08μ] min. 93/7 Sn/Pb per ASTM B545
T = Sn on Collet
–OR–
200μ [5.08μ] min. Sn per ASTM B545 Type 1 over 100μ
TL = Sn/Pb on Collet
M = Midget Solder Tail
[2.54μ] min. Ni per SAE AMS-QQ-N-290
(Au Collet, Sn Shell Only)
•
4-FINGER COLLET CONTACT:
BeCu per UNS C17200 ASTM
MTL = Midget Solder Tail
B194-01
(Au Collet, Sn/Pb Shell Only)
•
CONTACT PLATING:
200μ [5.08μ] min. 93/7 Sn/Pb per ASTM
E = Extra Long Solder Tail
B545
Plating
*
–OR–
200μ [5.08μ] min. Sn per ASTM B545 Type 1
0 = Au Collet, Sn Shell
–OR–
10μ [0.25μ] Au per MIL-G-45204 over 50μ [1.27μ] min.
OTL = Au Collet, Sn/Pb Shell
1 = Au Collet & Shell
Ni per SAE AMS-QQ-N-290
•
AVAILABLE PLATING:
heavy Au 30μ [0.76μ]
Termination
•
CONTACT CURRENT RATING:
3 amps
1 = Solder Pin Tail
•
OPERATING TEMPERATURE:
221°F [105°C] for Sn and Sn/Pb
Series
plating, 257°F [125°C] for Au plating
Row-to-Row Spacing,
“Y” Dim.
•
INSERTION FORCE:
180g/pin
3 = 0.300 [7.62]
•
WITHDRAWAL FORCE:
90g/pin
4 = 0.400 [10.16]
•
NORMAL FORCE:
140g/pin
6 = 0.600 [15.24]
9 = 0.900 [22.86]
•
MIDGET PIN INSERTION FORCE:
370g/pin
•
MIDGET PIN WITHDRAWAL FORCE:
150g/pin
No. of Pins
(See Table)
•
MIDGET PIN NORMAL FORCE:
240g/pin, based on a 0.018
[0.46] dia. test lead
* Consult Factory for Additional Plating Options
•
ACCEPTS LEAD LENGTHS:
from 0.100 [2.54] min. and 0.015-
0.025 [0.38-0.64] dia.
•
ACCEPTS MIDGET PIN LEAD LENGTHS:
from 0.080 [2.03] and
up to 0.022 [0.56] dia.
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE FOR SOLDER PIN TAIL AND EXTRA LONG PIN:
0.030 ±0.002 [0.76 ±0.05] dia.
•
SUGGESTED PCB HOLE SIZE FOR MIDGET PIN:
0.040 ±0.002 [1.02 ±0.05] dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
OPEN FRAME COLLET SOCKET w/SOLDER PIN TAILS, SEE DATA SHEET 12017
OPEN FRAME SURFACE MOUNT SOCKET, SEE DATA SHEET 12018
OPEN FRAME COLLET CAPACITOR SOCKET w/SOLDER PIN, SEE DATA SHEET 12026
OPEN FRAME COLLET CAPACITOR SOCKET w/WIRE WRAP, SEE DATA SHEET 12027
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12016
Rev. 1.3
1 of 2
Series 518 Open Frame Socket
w/Collet Contacts & Solder Pin Tails
Frame Style
A
B
C
D
No. of Ribs
1
2
3
4, 5
Centers “Y”
0.300 [7.62]
0.300 [7.62]
0.400 [10.16]
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
0.900 [22.86]
Dim. “Z”
0.400 [10.16]
0.400 [10.16]
0.500 [12.70]
0.400 [10.16]
0.500 [12.70]
0.700 [17.78]
1.000 [25.40]
No. of Pins
6
8, 14, 16, 18, 20, 24
20, 22
28
24
24, 28, 32, 40, 48
50, 64
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
OPEN FRAME COLLET SOCKET w/SOLDER PIN TAILS, SEE DATA SHEET 12017
OPEN FRAME SURFACE MOUNT SOCKET, SEE DATA SHEET 12018
OPEN FRAME COLLET CAPACITOR SOCKET w/SOLDER PIN, SEE DATA SHEET 12026
OPEN FRAME COLLET CAPACITOR SOCKET w/WIRE WRAP, SEE DATA SHEET 12027
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12016
Rev. 1.3
2 of 2
