• Metal cover clips provide superior cover retention
• Bifurcated contacts provide reliable contact with
PC boards
• Keying plug 3439-2 provides polarization and/
or keying
• RoHS* compliant
Date Modified: January 11, 2007
TS-0011-13
Sheet 1 of 3
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Cover Clip
Material:
Plating:
Underplating and U-Slot:
Wiping Area:
Wire Accommodation:
Glass Filled Polyester (PBT)
UL 94V-0
Gray
Copper Alloy
Stainless Steel
100
μ″
[ 2.54
μm
] Nickel
30
μ″
[ 0.76
μm
] Gold
26 ang 28 AWG Solid and Stranded
Marking:
3M Logo and Part Identification Number, Position Identification
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1
×
10
9
Ω
at 500 V
DC
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

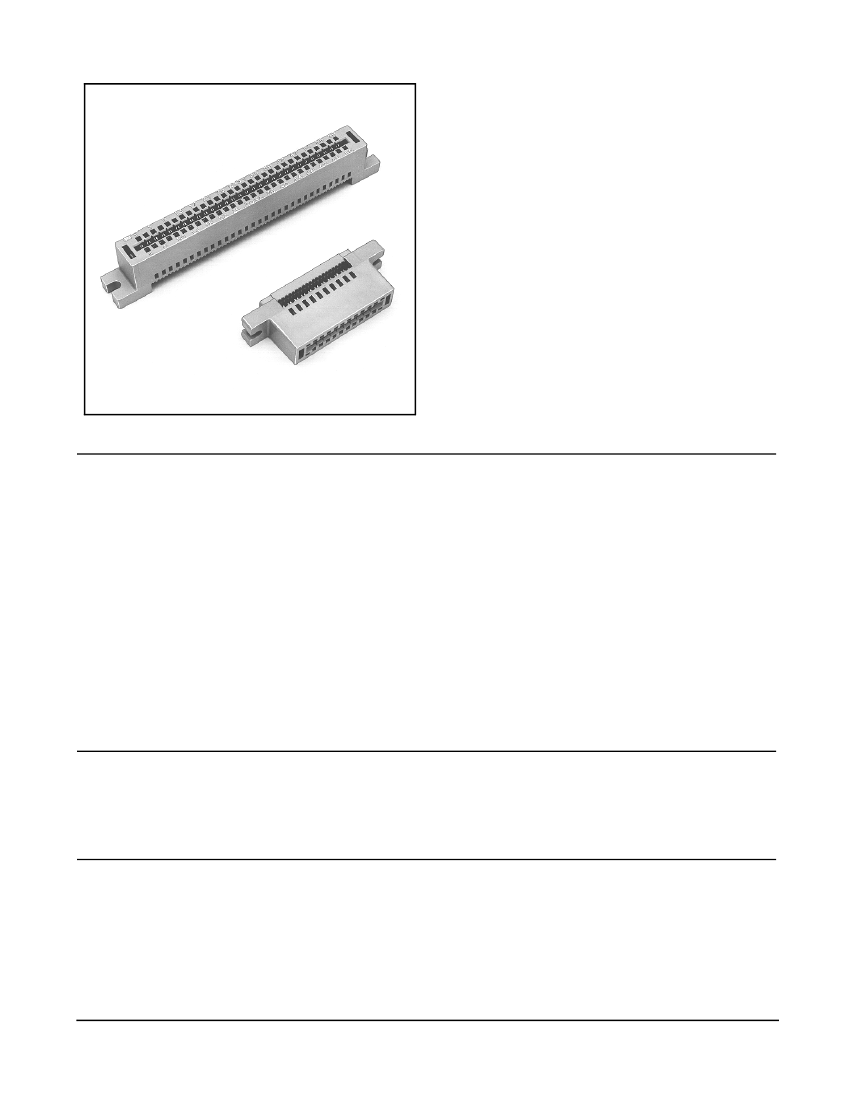

Pak 100 Card-Edge
.100″ With Slotted Mounting Flanges
Contact
Quantity
10
16
20
26
34
40
50
60
64
3M Part
Number
3358
3368
3461
3462
3463
3464
3415
3666
3403
Dimensions
A
0.96 [ 24.4 ]
1.26 [ 32.0 ]
1.46 [ 37.1 ]
1.76 [ 44.7 ]
2.16 [ 54.9 ]
2.46 [ 62.5 ]
2.96 [ 75.2 ]
3.46 [ 87.9 ]
3.66 [ 93.0 ]
B
0.85 [ 21.6 ]
1.15 [ 29.2 ]
1.35 [ 34.3 ]
1.65 [ 41.9 ]
2.05 [ 52.1 ]
2.35 [ 59.7 ]
2.85 [ 72.4 ]
3.35 [ 85.1 ]
3.55 [ 90.2 ]
C
0.612 [ 15.54 ]
0.912 [ 23.16 ]
1.112 [ 28.24 ]
1.412 [ 35.86 ]
1.812 [ 46.02 ]
2.112 [ 53.64 ]
2.612 [ 66.34 ]
3.112 [ 79.04 ]
3.312 [ 84.12 ]
D
1.30 [ 33.0 ]
1.60 [ 40.6 ]
1.80 [ 45.7 ]
2.10 [ 53.3 ]
2.50 [ 63.5 ]
2.80 [ 71.1 ]
3.30 [ 83.8 ]
3.80 [ 96.5 ]
4.00 [ 101.6 ]
E
1.50 [ 38.1 ]
1.80 [ 45.7 ]
2.00 [ 50.8 ]
2.30 [ 58.4 ]
2.70 [ 68.6 ]
3.00 [ 76.2 ]
3.50 [ 88.9 ]
4.00 [ 101.6 ]
4.20 [ 106.7 ]

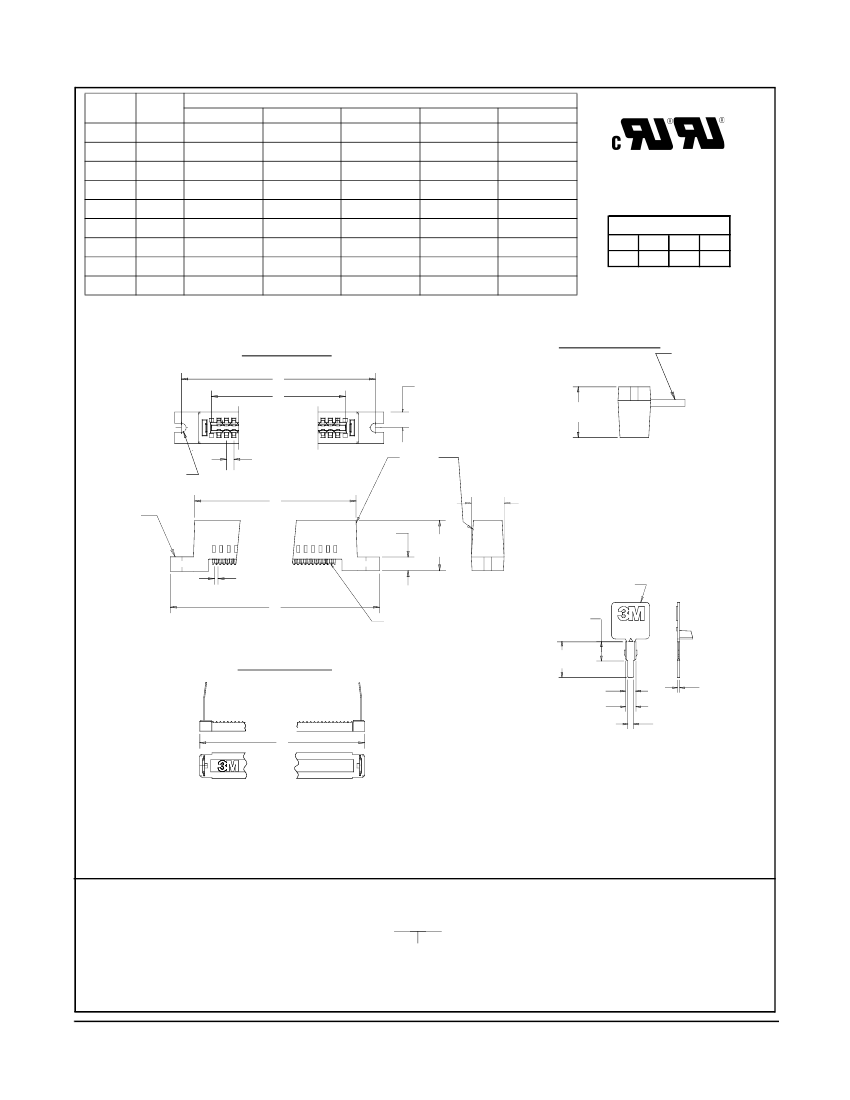

3000 Series
In c h
[m m ]
T o le ra n c e U n le s s N o te d
.0
in c h
± .1
.0 0
.0 0 0
± .0 1 ± .0 0 5
[ ] D im e n s io n s fo r R e fe re n c e
O n ly
Connector Body
D
C
1
59
Assembled Height
Cable
.22 Ref
[ 5.6 ]
.71 Ref
[ 18.0 ]
2
60
R .063
[ 1.60 ]
.100 Ref
[ 2.54 ]
A
Note;
1 1/2
°
Draft
Typ Ref
.44
[ 11.2 ]
.20
[ 5.1 ]
.71
[ 18.0 ]
Optional
Keying Plug
3M Part Number
3439-2
(Order Separately)
Material-Glass Filled Polyester
Mounting
Flange
.050 Ref
[ 1.27 ]
E
“U” Contact
Breakaway
Tab
.20 [ 5.1 ]
3439-2
Connector Cover
.39 [ 9.9 ]
.133[ 3.38 ]
.115 [ 2.92 ]
.06 [ 1.5 ]
.025
[ 0.64 ]
B
3XXX
Note: 1. Optional Keying Plug to be ordered separately.
