D38999/23YB5DN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> D38999/23YB5DN

D38999/23YB5DN: DescriptionCircular MIL Spec Connector JAM NUT MNT HERM SKT EYELET 25; CategoryThe connector; File Size249KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

D38999/23YB5DN Overview

Circular MIL Spec Connector JAM NUT MNT HERM SKT EYELET 25

D38999/23YB5DN Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Connector
RoHS	Details
MIL Type	MIL-DTL-38999 III
Product	Receptacles
Shell Style	Jam Nut

Preview

Download Datasheet

View All

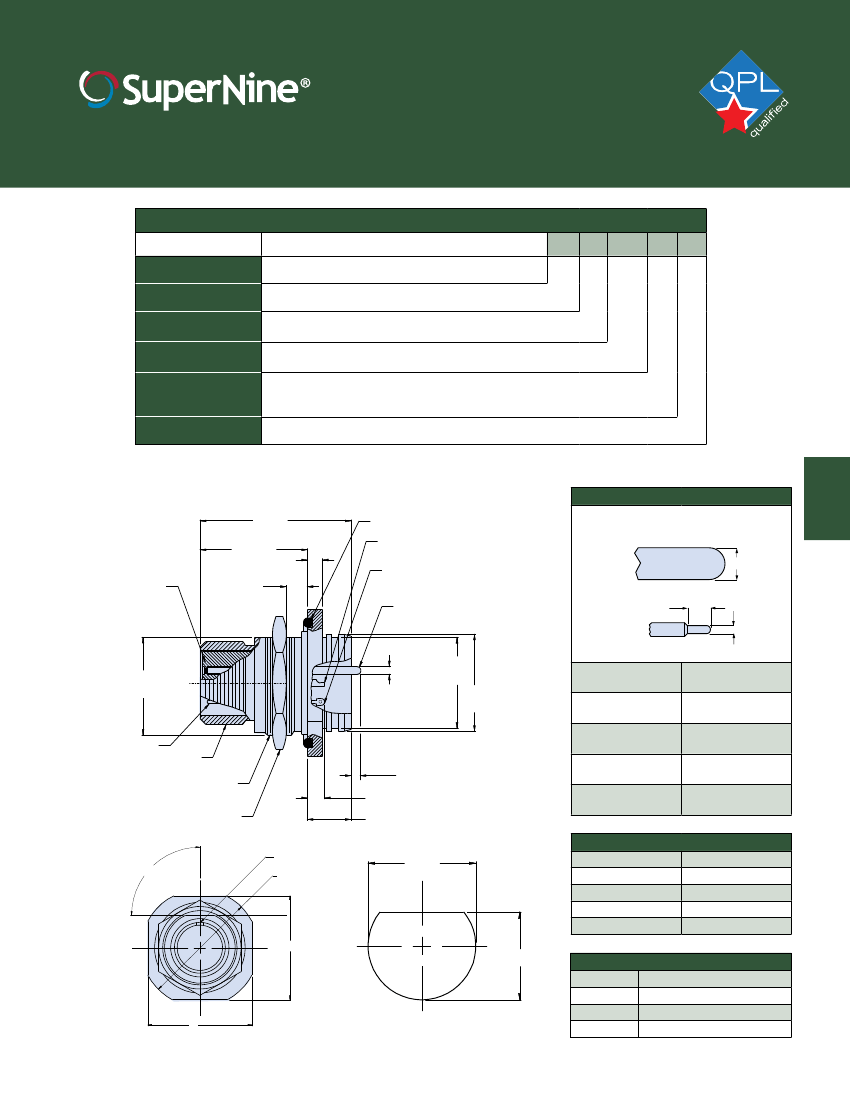

SERIES 23

MIL-DTL-38999 Series III type

Sample Part Number

Series / Basic Part No.

Connector Style

Finish*

Shell Size-Insert

Arrangement*

Contact Type

Alternate Key Position*

Hermetic connectors

233-100-H7 Jam nut mount hermetic receptacle

How To Order Commercial

233-100

Series 23 SuperNine® Hermetic Receptacle

= Jam Nut Mount

= CRES, Passivated

= CRES, Nickel Finish

Per MIL-STD-1560

-H7

11-35

= Pin, Solder Cup

= Pin, Eyelet

= Pin, PCB

A, B, C, D, E, N

= Normal

= Socket, Solder Cup

= Socket, Eyelet

= Socket, PCB

*Refer to Section A for complete details

Modification codes may be added directly to the end of any valid part number

Dimensions

Shell

Size

Code

Shell

Size

9/09

A Thread

-0.1P-0.03L-TS

0.625

0.750

0.875

1.000

1.187

1.250

1.375

1.500

1.625

B Dia

1.200(30.5)

1.178(29.9)

1.385(35.2)

1.363(34.6)

1.511(38.4)

1.489(37.8)

1.637(41.6)

1.615(41.0)

1.763(44.8)

1.741(44.2)

1.948(49.5)

1.926(48.9)

2.074(52.7)

2.051(52.1)

2.200(55.9)

2.177(55.3)

2.322(59.0)

2.300(58.4)

C A/F

±.015 (0.4)

1.063(27.0)

1.252(31.8)

1.374(34.9)

1.500(38.1)

1.626(41.3)

1.811(46.0)

1.937(49.2)

2.063(52.4)

2.189(55.6)

D Flat

±.005 (0.1)

.650(16.5)

.750(19.1)

.937(23.8)

1.061(26.9)

1.186(30.1)

1.311(33.3)

1.436(36.5)

1.561(39.6)

1.686(42.8)

E Dia

±.012 (0.3)

.603(15.3)

.725(18.4)

.851(21.6)

.977(24.8)

1.103(28.0)

1.229(31.2)

1.351(34.3)

1.477(37.5)

1.603(40.7)

F Dia

.653(16.6)

.642(16.3)

.775(19.7)

.764(19.4)

.905(23.0)

.894(22.7)

1.031(26.2)

1.020(25.9)

1.153(29.3)

1.142(29.0)

1.278(32.5)

1.268(32.2)

1.405(35.7)

1.394(35.4)

1.531(38.9)

1.520(38.6)

1.653(42.0)

1.642(41.7)

G Thread

Iso Metric

M17 X 1.0-6g

M20 X 1.0-6g

M25 X 1.0-6g

M28 X 1.0-6g

M32 X 1.0-6g

M35 X 1.0-6g

M38 X 1.0-6g

M41 X 1.0-6g

M44 X 1.0-6g

±.032 (0.8)

.094(2.4)

Dimensions (Continued)

±.008(0.2)

.106(2.7)

.138(3.5)

D-14

K Dia

±.005 (0.1)

.693 (17.60)

.825 (20.96)

1.010 (25.65)

1.135 (28.83)

1.260 (32.01)

1.385 (35.18)

1.510 (38.35)

1.635 (41.53)

1.760 (44.70)

L Max

1.149(29.2)

1.153(29.3)

1.185(30.1)

M Max

P&X

.208(5.3)

.200(5.1)

S&Z

.232(5.9)

.224(5.7)

±.005 (0.1)

.657 (16.70)

.771 (19.59)

.955 (24.26)

1.085 (27.56)

1.210 (30.73)

1.335 (33.91)

1.460 (37.08)

1.585 (40.26)

1.710 (43.43)

Plug Part

Number

233-105SG6

Mates With

Description

SuperNine® plug with single

integrated band porch

SuperNine® plug with integrated

233-105BG6

band porch and boot groove

233-105DG6

233-105-G6

SuperNine® plug with double

integrated band porch

SuperNine® plug with accessory

attachment threads
