M85049/1724N08B datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> M85049/1724N08B

M85049/1724N08B: DescriptionCircular MIL Spec Backshells EMI/RFI BKSHLL NI SH SZ 24 CLMP SZ 08; CategoryThe connector Connector bracket; File Size102KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/1724N08B Overview

Circular MIL Spec Backshells EMI/RFI BKSHLL NI SH SZ 24 CLMP SZ 08

M85049/1724N08B Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	M85049/17
Base Number Matches	1

Preview

Download Datasheet

View All

AS85049/17

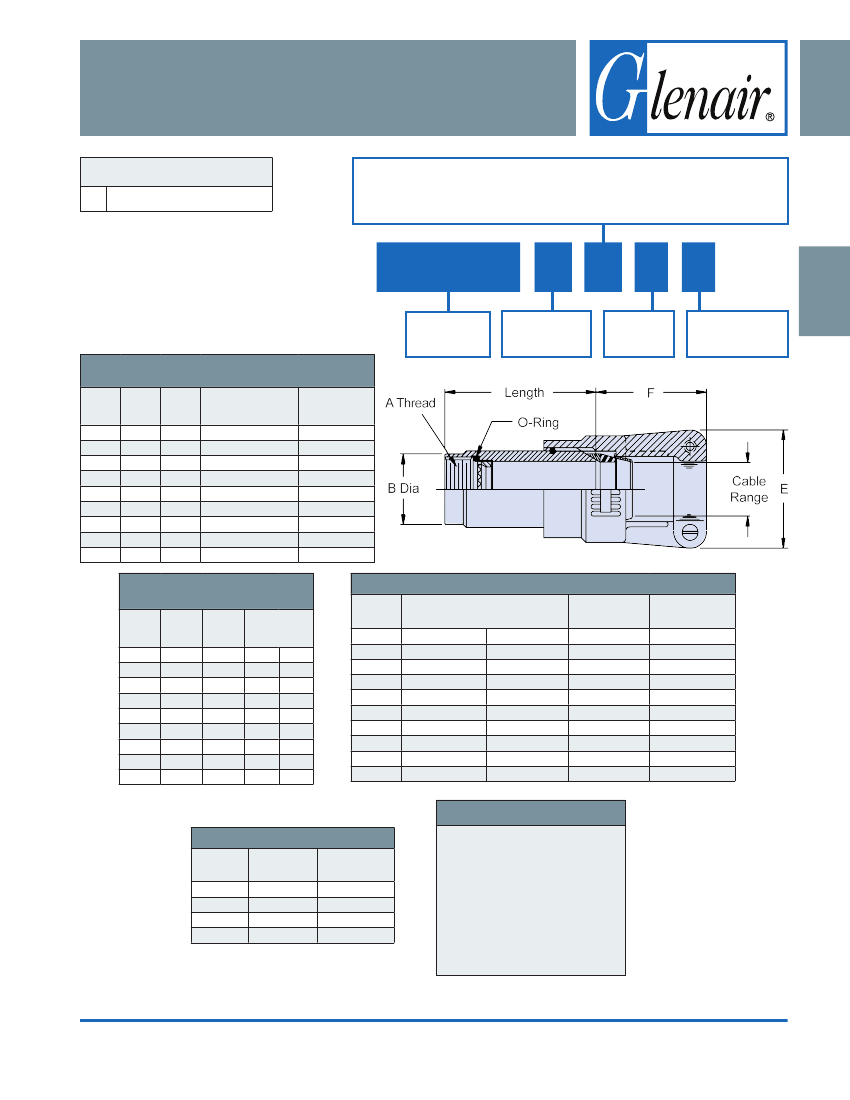

Straight EMI/RFI Environmental Backshell

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series I and II

= Electroless Nickel

= 1,000 Hr. Cadmium Olive Drab

over Electroless Nickel

Finish

= Aluminum, Nickel Flurocarbon Polymer

= Aluminum, Zinc-Nickel, Black

M85049/17

Basic

Part Number

Dash Number

(Table I)

Length Code

(Table IV)

Omit for Standard

Clamp Size

(Table III)

TABLE I: Shell Size,

Thread and Dimensions

Dash

No.

Series I

Shell

Size

Series II

Shell

Size

A Thread

Class 2B

.438 - 28 UNEF

.562 - 24 UNEF

.688 - 24 UNEF

.813 - 20 UNEF

.938 - 20 UNEF

1.063 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

B Dia

Max

.570

.700

.830

.950

1.080

1.200

1.330

1.450

1.580

(14.5)

(17.8)

(21.1)

(24.1)

(27.4)

(30.5)

(33.8)

(36.8)

(40.1)

TABLE II: Shell Size

and Clamp Size

Dash

No.

Series I

TABLE III: Clamp Size, Cable Range and Dimensions

Clamp

Size

Min

.062

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

Cable Range

Max

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

1.250

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

(31.8)

Max

.781

.969

1.062

1.156

1.250

1.375

1.500

1.625

1.750

1.875

(19.8)

(24.6)

(27.0)

(29.4)

(31.8)

(34.9)

(38.1)

(41.3)

(44.5)

(47.6)

Max

1.250

1.312

1.375

1.500

1.625

(31.8)

(33.3)

(34.9)

(38.1)

(41.3)

Shell

Size

Series II

Shell

Size

Clamp Size

Min Max

(1.6)

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

APPLICATION NOTES

TABLE IV: Length Code

Length

Code

Standard

Available

Shell Sizes

08 - 24

14 - 24

20 - 24

Length

1.500 (38.1)

2.500 (63.5)

3.500 (88.9)

4.500 (114.3)

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as

the accommodation range

for the wire bundle or cable.

Dimensions shown are not

intended for inspection criteria.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-37

E-Mail: sales@glenair.com

AS85049
