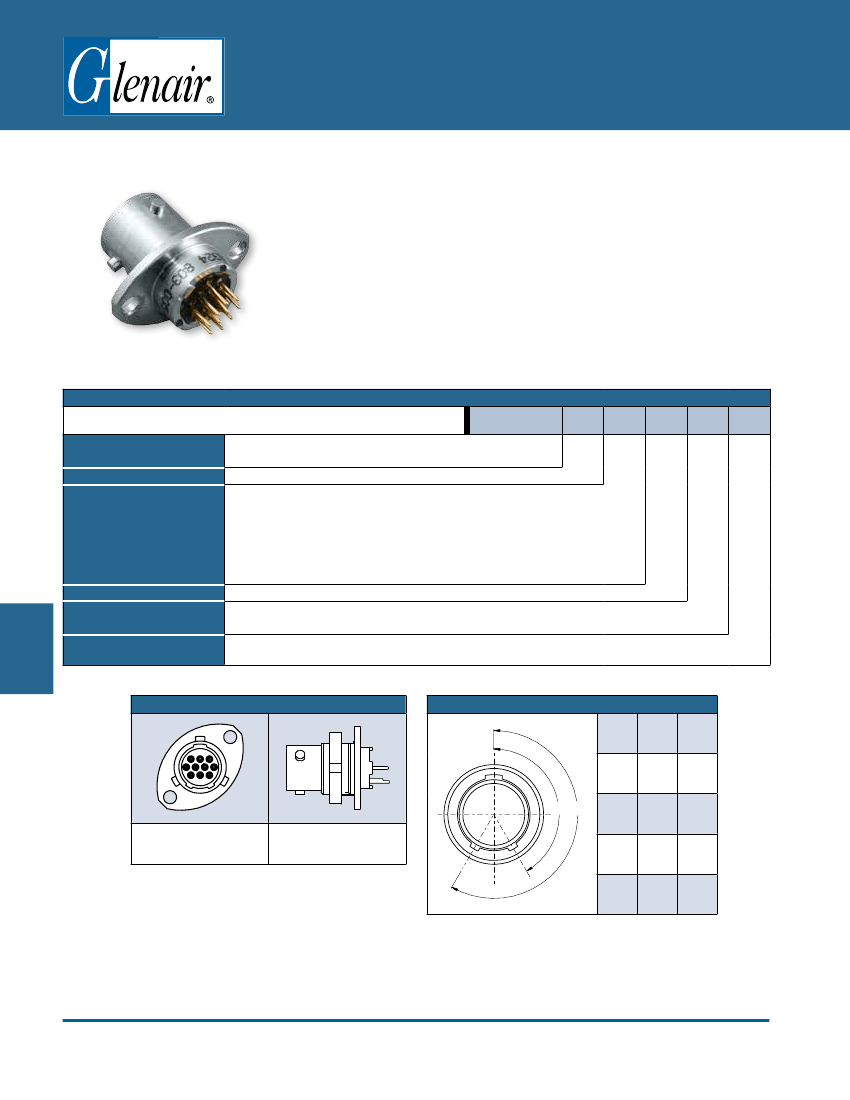

Series 803 Mighty Mouse ¼ Turn Bayonet
PC Tail and Solder Cup Receptacle
803-005 and 803-015 Ordering Information
F
Series 803
Sample Part Number
Series
Shell Style (See Table I)
Shell Material and Finish
Shell Key Positions
(See Table II)
N
= Normal
-02
Flange Mount
© 2014 Glenair, Inc.
Printed Circuit Board/ Solder Cup Receptacles
feature low profile shells for
minimum protrusion inside enclosures and integral standoffs for board washout.
Contacts are non-removable.
Water Immersion, Unmated
Specify 803-005 connectors for applications where open
face water immersion is not a requirement. For MIL-STD-810 Method 512G immersion
requirements, specify 803-015 watertight connectors . These 803-015 connectors
are specially sealed (“MOD-518”) and are 100% tested to maintain a helium leak rate
of 1 x 10
-4
cc/second at one atmosphere pressure differential from -40°C to +70°C.
NOTE: mated connectors are not submersible.
How To Order
803-005
803-005
= Receptacle, Solder Cup or PCB Contacts
803-015
= Receptacle, Solder Cup or PCB Contacts; Watertight
-02
= Flange Mount
-07
= Jam Nut (See Page
C
= Aluminum / Black Anodize (Non-Conductive); RoHS Compliant
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
-02
ZN
6-7
S
N
Z1
= Stainless Steel / Passivated; RoHS Compliant
Shell Size - Insert Arrangement
See Contact Arrangements Page F-2
P
= Pin, PC Tail
Contact Type
S
= Socket PC Tail
X
= Pos. X
Y
= Pos. y
Z
= Pos. Z
E
= Pin, Solder Cup
F
= Socket, Solder Cup
Table I: Shell Style
Table II: Alternate Key Positions
Pos.
N
A° B°
X
Y
Z
A°
150°
75°
95°
140°
B°
210°
210°
230°
275°
-07
Jam Nut
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
F-12
E-Mail: sales@glenair.com
