For FPC/FFC
FPC/FFC connectors
(0.5mm pitch)
Back lock
Y5B/Y5BW
Pitch 0.5 mm, low profile/space saving and double top and bottom contacts
construction
FEATURES
1. Double top and bottom contacts construction
2. Wiring patterns can be placed under the connector
3. Time and effort can be reduced by delivering with lever
open
4. Lock hold type (Y5BW) with excellent holding force is
available (Y5BW: support only FPC)
5. Supports high speed transmission standard V-by-One
®
HS. of THine Electronics, Inc.
APPLICATIONS
Mobile devices and industrial equipment
*V-by-One
®
HS: An interface for the next-
generation high-speed signals developed by
THine Electronics, Inc. V-by-One
®
is a
registered trademark of THine Electronics, Inc.

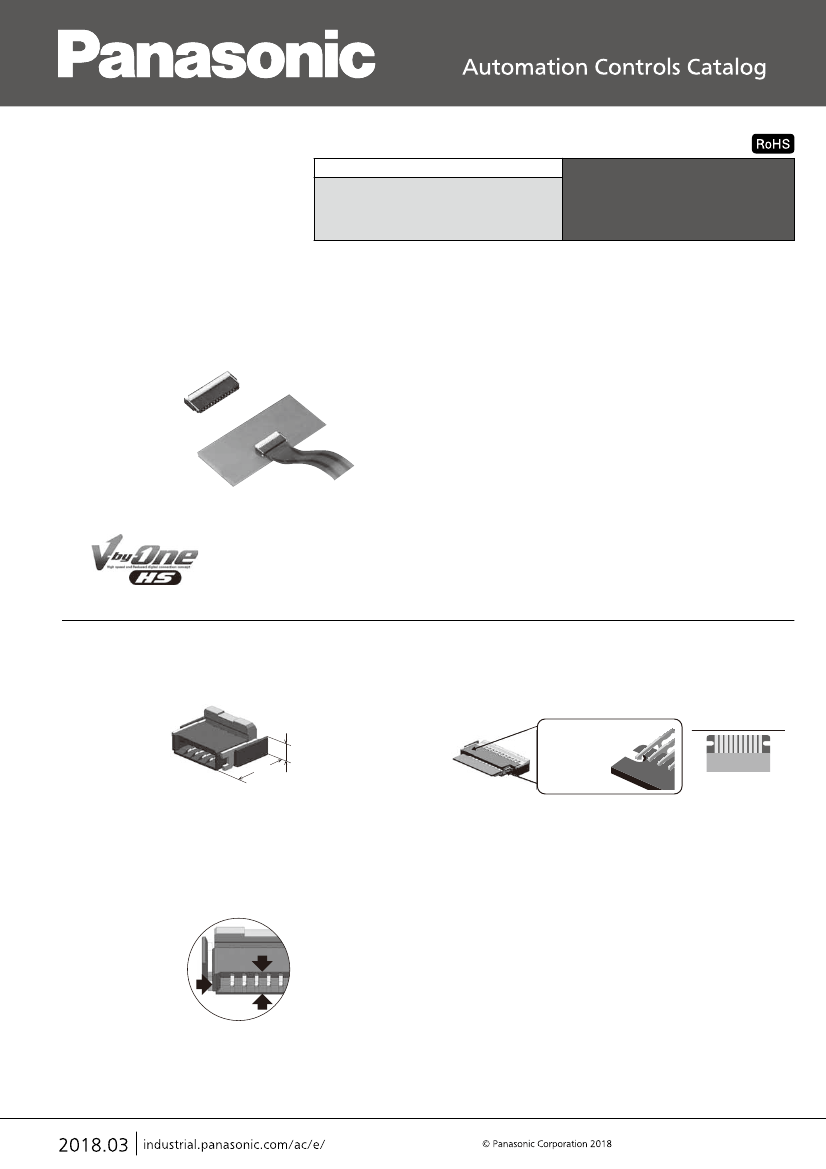

DETAILED FEATURES
Low profile and space saving design
Low profile and space saving design of 1.0 mm high and 3.20
mm deep (3.70 mm with lever)
Lock hold type (Y5BW) is also available
The FPC holding contacts located on both ends of the connector
facilitate positioning of FPC and further enhance the FPC
holding force.
Structure to lock
notches on both
ends of the FPC
with soldering
terminals
Applicable FPC shape
1.00
3.20
With notches
4 pins (Y5B: minimum)
Notes: 1. The inserted FPC can be temporarily held until the lever is closed.
2. When the lever is closed, the holding contacts lock the FPC by its notches,
enhancing the FPC holding force.
Prevent displacement of FPC insertion
Constructed to make positional displacement difficult by
surrounding the four sides on the FPC inlet side with wall
molding
–1–
ACCTB1E 201803-T
FPC/FFC connectors
Y5B/Y5BW
(0.5mm pitch)
ORDERING INFORMATION
Y5B
AYF 53
3 5
53: 0.5 mm pitch
Back lock
Number
of pins
(2 digits)
Function
3: Top and bottom
double contacts
Surface treatment
(Contact portion / Terminal portion)
5: Au plating/Au plating
Y5BW
AYF 53
6 5 T
53: 0.5 mm pitch
Back lock
Number
of pins
(2 digits)
Function
6: Top and bottom double contacts
and lock hold type
Surface treatment
(Contact portion / Terminal portion)
5: Au plating/Au plating
PRODUCT TYPES
Y5B
Height
Number of pins
4
5
6
8
10
12
14
16
24
28
30
32
34
40
42
50
Part number
AYF530435
AYF530535
AYF530635
AYF530835
AYF531035
AYF531235
AYF531435
AYF531635
AYF532435
AYF532835
AYF533035
AYF533235
AYF533435
AYF534035
AYF534235
AYF535035
Packing
Inner carton (1-reel)
Outer carton
1.0 mm
5,000 pieces
10,000 pieces
Notes: 1. Order unit: For volume production: 1-inner carton (1-reel) units. For samples, please contact our sales office.
2. Please contact our sales office for connectors having a number of pins other than those listed above.
–2–
ACCTB1E 201803-T
FPC/FFC connectors
Y5B/Y5BW
(0.5mm pitch)
Y5BW
Height
Number of pins
2
3
4
6
8
10
12
14
22
26
28
30
32
38
40
48
Part number
AYF530265T
AYF530365T
AYF530465T
AYF530665T
AYF530865T
AYF531065T
AYF531265T
AYF531465T
AYF532265T
AYF532665T
AYF532865T
AYF533065T
AYF533265T
AYF533865T
AYF534065T
AYF534865T
Packing
Inner carton (1-reel)
Outer carton
1.0 mm
5,000 pieces
10,000 pieces
Notes: 1. Order unit: For volume production: 1-inner carton (1-reel) units. For samples, please contact our sales office.
2. Please contact our sales office for connectors having a number of pins other than those listed above.
SPECIFICATIONS
1. Characteristics
The followings show specifications, when using an applicable FPC (thickness 0.30 mm)
Item
Rated current
Rated voltage
Electrical
characteristics
Dielectric strength
Insulation resistance
Contact resistance
Mechanical
characteristics
FPC holding force
Ambient temperature
Specifications
0.5A/pin contact (except for holding contact)
50V AC/DC
250V AC for 1 min.
Min. 1,000MΩ (initial)
Max. 100mΩ
Y5B: Min. 0.2N/pin contact
×
pin contacts (initial)
Y5BW: Min. 0.2N/pin contact
×
pin contacts + 2.0N
(initial)
–55 to +85°C
The initial specification must be satisfied electrically
and mechanically.
–55 to +85°C (product only)
–40 to +50°C (emboss packing)
Conditions
No short-circuiting or damage at a detection current of 1 mA
when the specified voltage is applied for one minute.
Using 250V DC megger (applied for 1 min.)
Based on the contact resistance measurement method
specified by JIS C 5402.
Measurement of the maximum force applied until the
inserted compatible FPC is pulled out in the insertion axis
direction while the connector lever is closed
No icing. No condensation.
Reflow soldering:
Peak temperature: 260°C or less
(on the surface of the PC board around the connector
terminals)
Soldering iron: 300°C within 5 sec. 350°C within 3 sec.
No icing. No condensation.
Conformed to MIL-STD-202F, method 107G
Order Temperature (°C)
0
1
–55
−3
2
3
85
+3
0
4
0
–55
−3
Time (minutes)
30
Max. 5
30
Max. 5
Soldering heat resistance
Storage temperature
Environmental
characteristics
Thermal shock resistance
(with FPC mated)
5 cycles,
insulation resistance min. 100MΩ,
contact resistance max. 100mΩ
Humidity resistance
(with FPC mated)
Saltwater spray resistance
(with FPC mated)
H
2
S resistance
(with FPC mated)
Lifetime
characteristics
Unit weight
Insertion and removal life
120 hours,
insulation resistance min. 100MΩ,
contact resistance max. 100mΩ
24 hours,
insulation resistance min. 100MΩ,
contact resistance max. 100mΩ
48 hours,
contact resistance max. 100mΩ
20 times
Y5B 50 pins: 0.16 g
Conformed to IEC60068-2-78
Temperature 40±2°C, humidity 90 to 95% R.H.
Conformed to IEC60068-2-11
Temperature 35±2°C, saltwater concentration 5±1%
Temperature 40±2°C, gas concentration 3±1 ppm,
humidity 75 to 80% R.H.
Repeated insertion and removal: min. 10 sec./time
–3–
ACCTB1E 201803-T
FPC/FFC connectors
Y5B/Y5BW
(0.5mm pitch)
2. Material and surface treatment
Part name
Molded portion
Contact
Holding contact (Only Y5BW)
Soldering terminal portion
Material
Housing: LCP resin (UL94V-0)
Lever: LCP resin (UL94V-0)
Copper alloy
Copper alloy
Copper alloy
The CAD data of the products with a
Surface treatment
—
Contact portion; Base: Ni plating, Surface: Au plating
Terminal portion; Base: Ni plating, Surface: Au plating
Terminal portion; Base: Ni plating, Surface: Au plating
Base: Ni plating, Surface: Au plating
mark can be downloaded from: http://industrial.panasonic.com/ac/e/

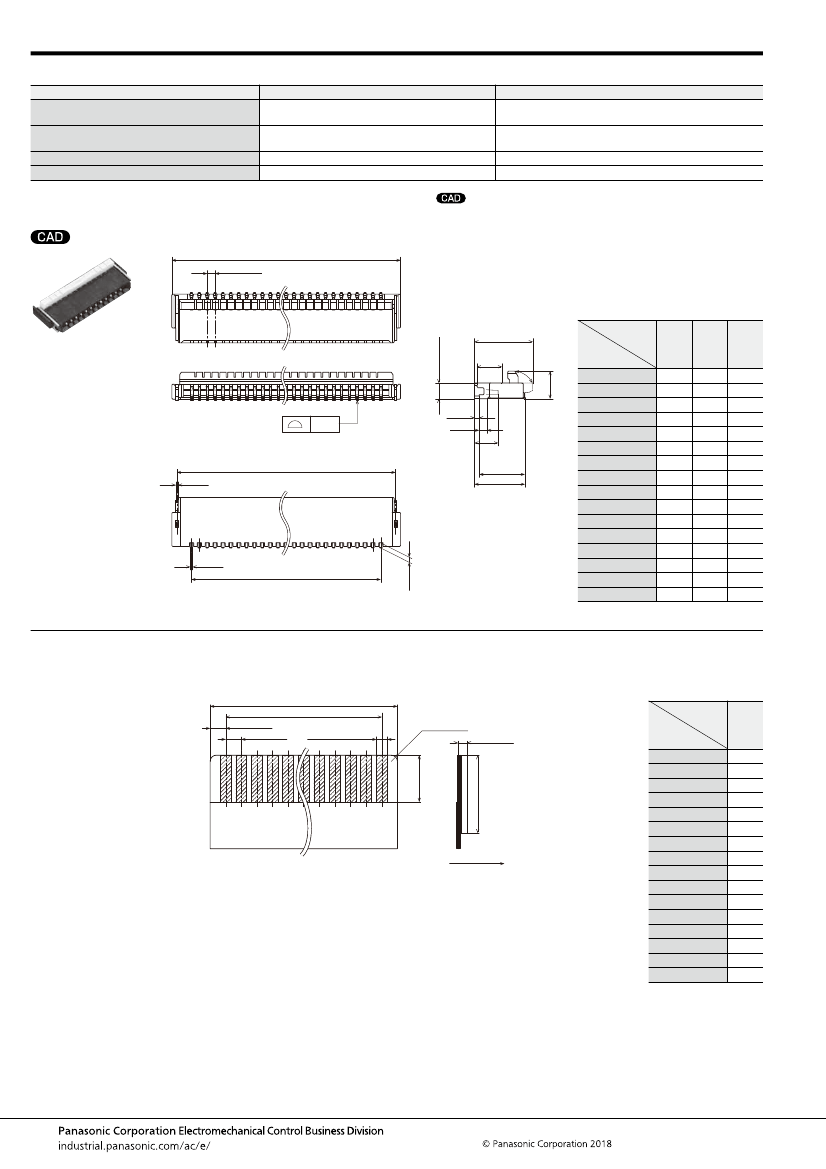

DIMENSIONS
(Unit: mm)
Y5B
External dimensions
A
0.50±0.10
Dimension table
Dimensions
1.00±0.10
(3.70)
1.60
(Suction area)
(1.76)
Terminal coplanarity
(0.30)
(0.50)
(1.50)
(FPC
insertion
depth)
2.90
3.20
Number
of pins
4
5
6
8
10
12
14
16
24
28
30
32
34
40
42
50
A
4.00
4.50
5.00
6.00
7.00
8.00
9.00
10.00
14.00
16.00
17.00
18.00
19.00
22.00
23.00
27.00
B
3.36
3.86
4.36
5.36
6.36
7.36
8.36
9.36
13.36
15.36
16.36
17.36
18.36
21.36
22.36
26.36
C
1.50
2.00
2.50
3.50
4.50
5.50
6.50
7.50
11.50
13.50
14.50
15.50
16.50
19.50
20.50
24.50
0.1
(Contact and soldering terminals)
B±0.20
(0.15)
C±0.20
Each mentioned sizes are at the stage of initial delivery.
(0.32)
(0.15)
General tolerance: ±0.3
Y5B Recommended FPC/FFC dimensions
(Finished thickness: t = 0.3±0.03)
The conductive parts should be based by Ni plating and then Au plating.
Dimension table
（A+1）
±0.05
Ａ
±0.03
0.50±0.07
0.50±0.03
（FPC）
0.35±0.03
（FFC）
0.30±0.03
R0.20±0.05
0.30±0.03
1.50min.
(Conductor
exposed area)
2.50min.
(Reinforcing plate)
Dimensions
Number
of pins
4
5
6
8
10
12
14
16
24
28
30
32
34
40
42
50
A
1.50
2.00
2.50
3.50
4.50
5.50
6.50
7.50
11.50
13.50
14.50
15.50
16.50
19.50
20.50
24.50
Cutting direction※
※Cut FPC/FFC from the copper foil side to the reinforcing plate side.
–4–
ACCTB1E 201803-T
FPC/FFC connectors
Y5B/Y5BW
(0.5mm pitch)

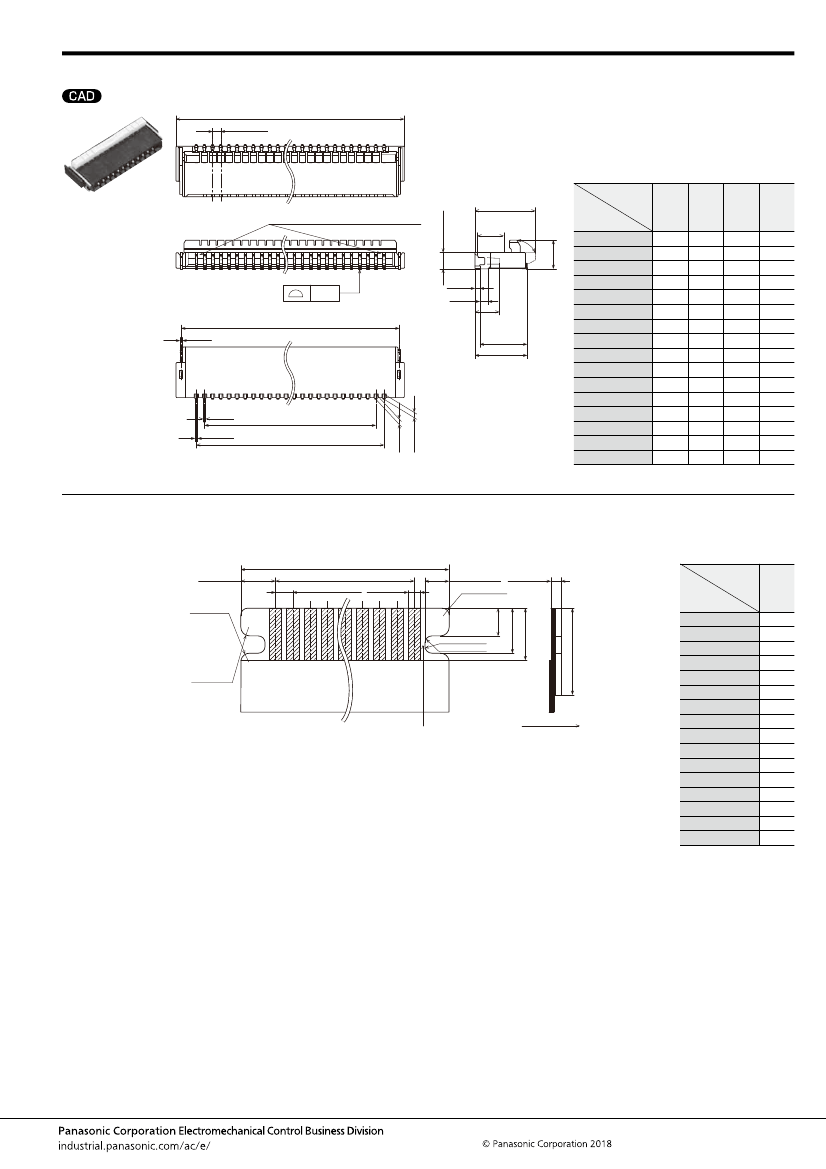

Y5BW
External dimensions
A
0.50±0.10
Dimension table
Dimensions
1.00±0.10
Holding contacts (The holding contacts
cannot be used as conductors.)
(3.70)
1.60
(Suction area)
(1.76)
Number
of pins
2
3
4
6
8
10
12
14
22
26
28
30
A
4.00
4.50
5.00
6.00
7.00
8.00
9.00
10.00
14.00
16.00
17.00
18.00
19.00
22.00
23.00
27.00
B
3.36
3.86
4.36
5.36
6.36
7.36
8.36
9.36
13.36
15.36
16.36
17.36
18.36
21.36
22.36
26.36
C
1.50
2.00
2.50
3.50
4.50
5.50
6.50
7.50
11.50
13.50
14.50
15.50
16.50
19.50
20.50
24.50
D
0.50
1.00
1.50
2.50
3.50
4.50
5.50
6.50
10.50
12.50
13.50
14.50
15.50
18.50
19.50
23.50
Terminal coplanarity
(0.30)
(0.50)
(1.50)
(FPC
insertion depth)
2.90
3.20
0.1
B±0.20
(0.15)
(Contact, holding contacts and soldering terminals)
（0.15）
（0.15）
（0.32）
C±0.20
（0.32）
D±0.20
General tolerance: ±0.3
32
38
40
48
Each mentioned sizes are at the stage of initial delivery.
Y5BW Recommended FPC dimensions
(Finished thickness: t = 0.3±0.03)
The conductive parts should be based by Ni plating and then Au plating.
Dimension table
1.00±0.07
（A+2）
±0.05
A±0.03
0．
50±0． (Pitch) 0．
03
35±0．
03
0.70±0.05※1 0.30±0.03
Ｒ0.20±0.05
0．
80±0．
05
1.50min
(Conductor
exposed area)
1.30±0.10
Dimensions
Number
of pins
2
3
4
6
8
10
12
14
22
26
28
30
32
38
40
48
A
0.50
1.00
1.50
2.50
3.50
4.50
5.50
6.50
10.50
12.50
13.50
14.50
15.50
18.50
19.50
23.50
R0.25max.
R0.20±0.05
R0.20±0.05
R0.25max.
Cutting direction※2
※1 Not interfere conductor
※2 Cut FPC from the copper foil side to the reinforcing plate side.
※1
2.50min
(Reinforcing plate)
–5–
ACCTB1E 201803-T
