8-675-191T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 8-675-191T

8-675-191T: DescriptionHeaders & Wire Housings 8P DIP PROGRAM HDR; CategoryThe connector socket; File Size399KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

8-675-191T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-675-191T	-	-	View	Buy Now

8-675-191T Overview

Headers & Wire Housings 8P DIP PROGRAM HDR

8-675-191T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Aries Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL 94V-0, DIP SOCKET
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	BRASS
Device slot type	IC SOCKET
Type of equipment used	DIP8
Shell material	POLYAMIDE46
JESD-609 code	e3
Number of contacts	8

Preview

Download Datasheet

View All

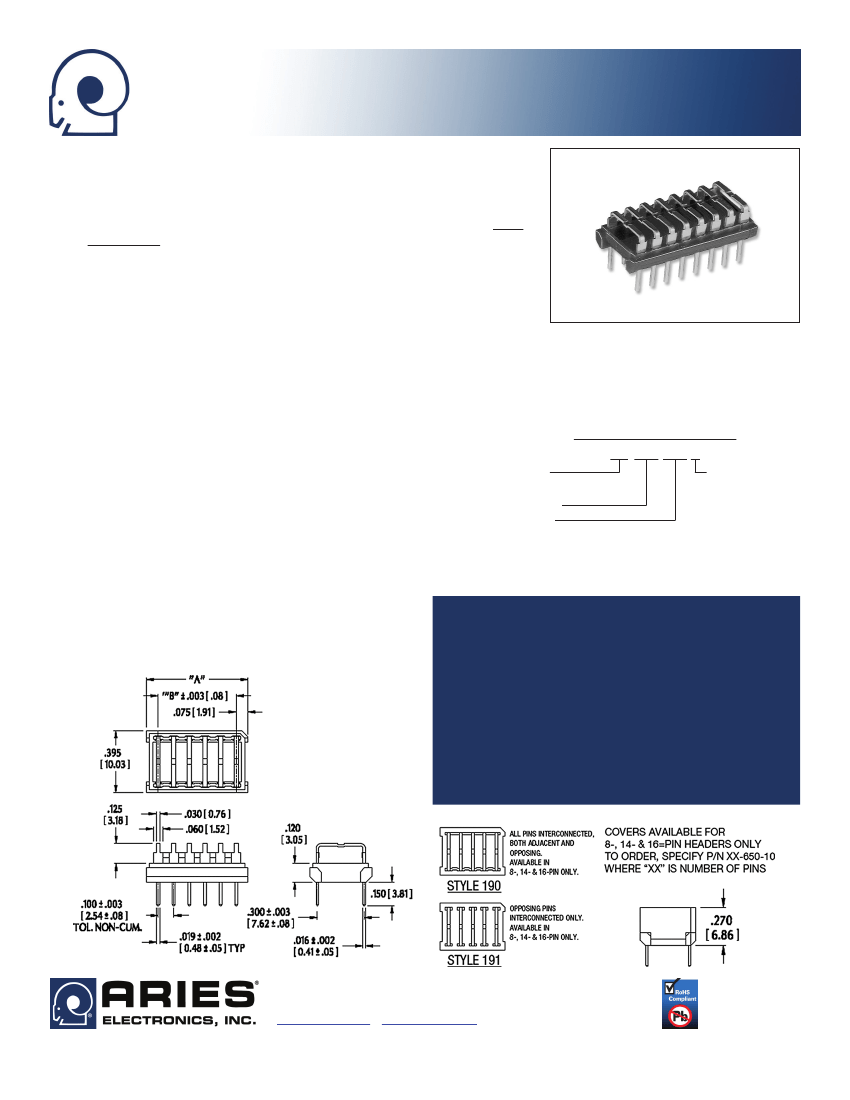

Series 675

DIP Program Headers

FEATURES

• Aries DIP programmable headers offer unusual versatility for programming within

the header itself

• They can be individually programmed using cutters or Aries programming tool, P/N

T-675, available separately, to remove the interconnecting sections. Consult

Data

Sheet 22002

for Aries programming tool

• Adjacent and/or opposing pins are interconnected until the pre-slotted section is

programmed out. An almost infinite number of programs can be attained by merely

leaving or removing interconnecting sections

• A low profile, snap-on cover protects header from dirt or accidental damage, and

can be marked to identify the program within the header

CUSTOMIZATION:

In addition to the standard products shown

GENERAL SPECIFICATIONS

on this page, Aries specializes in custom design and production.

• STANDARD HEADER BODY AND COVER: black UL 94V-0 4/6 Nylon

Special materials, platings, sizes, and configurations can be

furnished, depending on the quantity.

NOTE:

Aries reserves the

• PINS: Brass 3/4-hard

right to change product general specifications without notice.

• PIN PLATING: “-T” 200µ [5.08µ] min. matte Sn per ASTM B545-97 2004e1

over 50µ [1.27µ] min. Ni per QQ-N-290; “-G” 10µ [0.25µ] Au per MIL-

G-45204 over 50µ [1.27µ] min. Ni per QQ-N-290; “-TL” 200µ [5.08µ]

ORDERING INFORMATION

90/10 Sn/Pb per MIL-T-10727 Type I over 50µ [1.27µ] min. Ni per QQ-N-

XX-675-19X X

290

Plating

Pins

• CURRENT RATING: 2 amps

None = Au

8, 14 & 16 only*

• OPERATING TEMPERATURE: 221°F [105°C] Sn or Sn/Pb plating; 257°F

Series

T = Sn

[125°C] Au plating

Style

TL = Sn/Pb

MOUNTING CONSIDERATIONS

190 or 191 (see dwg)

* Consult factory for other sizes

• SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

“A” = (NO. OF PINS PER ROW x 0.100 [2.54]) + 0.050 [1.27]

“B” = (NO. OF PINS PER ROW -1) x 0.100 [2.54]

COVERS AVAILABLE FOR 8-, 14- AND 16-PIN HEADERS. TO ORDER,

SPECIFY P/N XX-650-10, WHERE “XX” DENOTES THE NUMBER OF

PINS. CONSULT DATA SHEET 12033 FOR ADDITIONAL INFORMA-

TION.

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

Bristol, PA 19007-6810 USA

TEL (215) 781-9956 • FAX (215) 781-9845

WWW.ARIESELEC.COM • INFO@ARIESELEC.COM

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

16004

Rev. AA
