35HDRANN: DescriptionPhone Connectors 3.5mm R/A STER PLUG; CategoryThe connector The connector; File Size95KB，2 Pages; ManufacturerSwitchcraft; Environmental Compliance

Download Datasheet Parametric Compare View All

35HDRANN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35HDRANN	-	-	View	Buy Now

35HDRANN Overview

Phone Connectors 3.5mm R/A STER PLUG

35HDRANN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	SHIELDED
Body/casing type	PLUG
Configuration	1X1 HORIZONTAL
Connector type	3.5mm AUDIO
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact material	COPPER ALLOY
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Installation type	CABLE
Number of poles	3
Number of ports	1
Options	GENERAL PURPOSE
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

PART NUMBER PLUG FINGER

35HDRABAU

35HDRABAUS

35HDRANAU

35HDRANAUS

35HDRANN

35HDRANNS

GOLD

NICKEL

HANDLE

BLACK

NICKEL

HANDLE

CABLE

OPENING I.D.

0.29

0.175

0.29

0.175

0.29

0.175

MATERIALS:

PLUG MOLDING COMPOUND - L.C.P. BLACK

SLEEVE, PLUG BODY

RING SLEEVE

TIP ROD

HOUSING

TUBULAR INSULATOR

HANDLE

CLAMP TERMINAL

SOLDER LUGS (TIP & RING)

- BRASS, NICKEL OR GOLD PLATED

- ZINC, BLACK OR NICKEL PLATED

- MYLAR, TRANSLUCENT

- BRASS, BLACK OR NICKEL PLATED

- CRS, TIN PLATED

- BRASS, TIN PLATED

.51 REF

1.52 REF

.41 REF

.14 REF

[3.5mm]

SOLDER LUG

(TIP)

SOLDER LUG

(RING)

TUBULAR INSULATOR

SHIPPED UNASSEMBLED

HANDLE

SHIPPED UNASSEMBLED

CABLE OPENING I.D.

SEE TABLE

HOUSING

CLAMP TERMINAL

(SLEEVE)

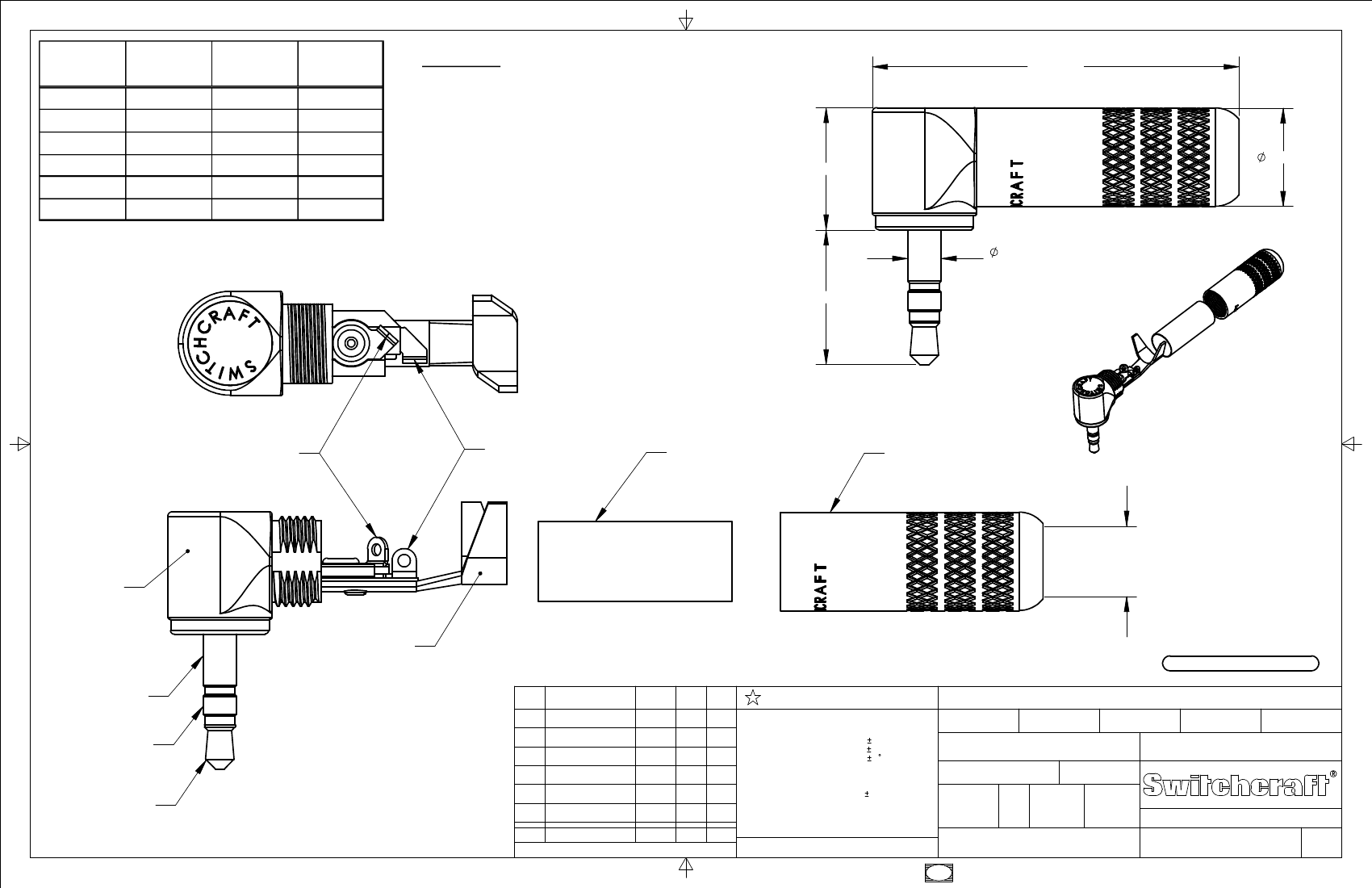

CUSTOMER DRAWING

SLEEVE,

PLUG BODY

STAR SYMBOL DENOTES CRITICAL DIMENSION

THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED

BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.

UNLESS OTHERWISE SPECIFIED

SIZE

WIDTH

MULT

LBS/M

TEMPER

RING

1. ALL DIMENSIONS IN INCHES

- TWO PLACE DECIMALS

0.01

- THREE PLACE DECIMALS

0.005

- ANGLES

1

- ALL DIA. CONCENTRIC WITHIN 0.005 T.I.R.

2. FEATURES ON THE SAME CENTERLINE

MUST BE ALIGNED WITHIN 0.002

*

FINISH

SPEC No.

FIRST USED ON

*

SCALE

*

MATERIAL

SPEC No.

*

DATE DRAWN

BY

CHKD

3:1

APVD

TIP

A

REV

24662

ECO NUMBER

3-23-04

DATE

JL

BY

AKE

APVD

3. REMOVE ALL BURRS

6-27-00

NAME

AKE

3-23-04

AKE

3-23-04

PART No.

SHEET

1

OF

1

REV

REVISIONS

DO NOT SCALE DRAWING

3.5mm RA STEREO PLUG

35HDRA SERIES

A

SolidWorks CAD File

B

35HDRANN Related Products

	35HDRANN	35HDRANNPKG	35HDRANNS	35HDRAAU	35HDRABN
Description	Phone Connectors 3.5mm R/A STER PLUG	Phone Connectors 3.5MM RIGHT ANGLE ST	Phone Connectors 3.5 MM R/A PLUG NICK	Phone Connectors 3.5MM R/A Plug Nickel	Telephone connector RA 3.5MM STEREO PLUG
Is it Rohs certified?	conform to	-	conform to	conform to	-
Reach Compliance Code	compliant	-	compliant	compliant	-
Body/casing type	PLUG	-	PLUG	PLUG	-
Configuration	1X1 HORIZONTAL	-	1X1 HORIZONTAL	1X1 HORIZONTAL	-
Connector type	3.5mm AUDIO	-	3.5mm AUDIO	3.5mm AUDIO	-
Contact to complete cooperation	TIN	-	NOT SPECIFIED	GOLD	-
Contact completed and terminated	Tin (Sn)	-	Nickel (Ni)	Tin (Sn)	-
Contact material	COPPER ALLOY	-	BRASS	COPPER ALLOY	-
DIN compliance	NO	-	NO	NO	-
IEC compliance	NO	-	NO	NO	-
MIL compliance	NO	-	NO	NO	-
Installation type	CABLE	-	CABLE AND PANEL	CABLE	-
Number of ports	1	-	1	1	-
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-
Termination type	SOLDER	-	SOLDER LUG	SOLDER	-
Base Number Matches	1	-	1	1	-
