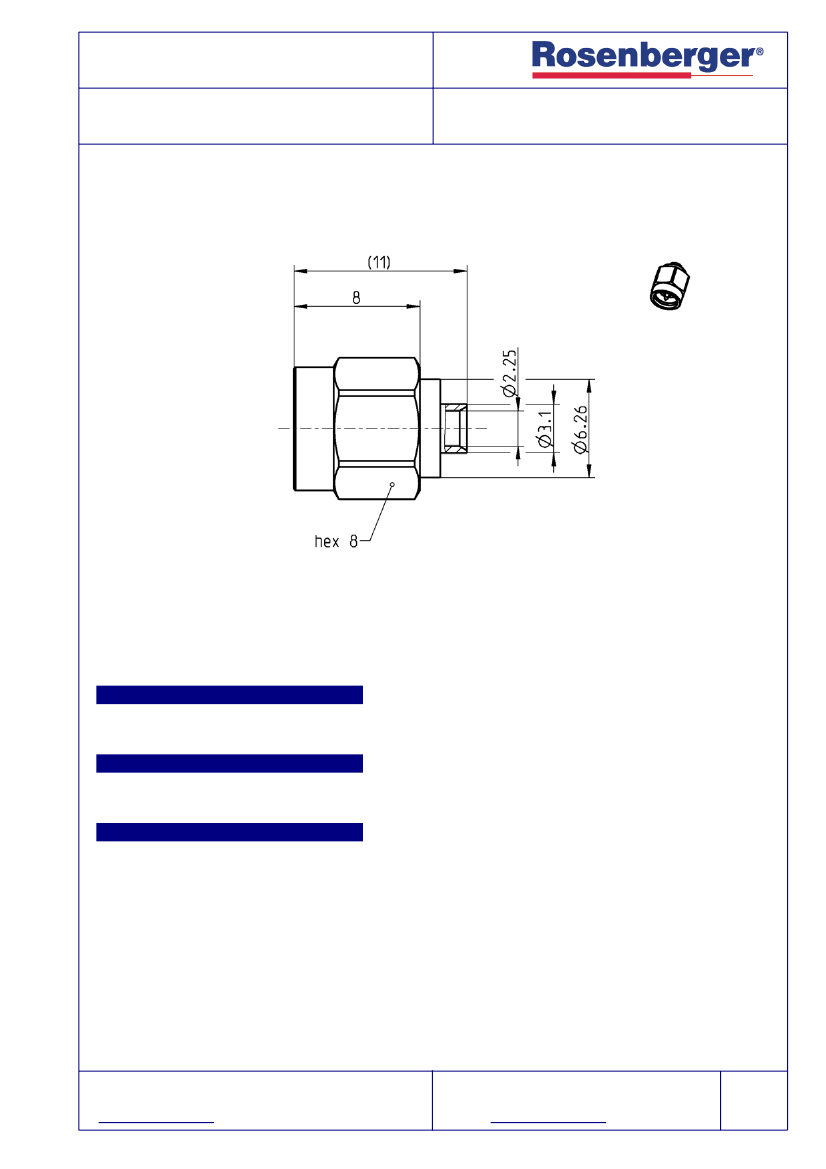

TECHNICAL DATA SHEET
SMA
STRAIGHT PLUG
32S142-271L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348A, Fig. 310
Documents
Assembly instruction
32 A6 or 32 A20
Material and plating
Connector parts
Center contact
Outer contact
Coupling nut
Dielectric
Gasket
Material
Brass
Brass
Brass
PTFE
Silicone
Plating
AuroDur®, gold plated
AuroDur®, gold plated
Gold, 0.1 µm min.
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SMA
STRAIGHT PLUG
32S142-271L5
50
Ω
DC to 18 GHz
≤
1.05 + 0.01 x f [GHz]
≤
0.03 x
f(GHz)
dB
≥
5 x10
3
MΩ
≤
3 mΩ
≤
2 mΩ
1000 V rms
480 V rms
≤
200 W @ 2 GHz
≥
100 dB up to 1 GHz
Electrical data
Impedance
Frequency
VSWR
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Coupling nut retention
Coupling test torque
Recommended torque
min. 100
≥
180 N
max. 0.6 Nm
0.5 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
2002/95/EC (RoHS)
-65°C to +165°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
D
I
Tooling
N/A
Suitable cables
UT 85, RG 405
Packing
Standard
Weight
300 pcs in bag
2.65 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Rong Fang
Date
03/05/04
Approved
M. Schmid
Date
23/01/08
Rev.
a00
Engineering change number
07-0154
Name
S. Huber-Siegl
Date
23/01/08
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
