AN616 datasheet, PDF - EEWORLD Datasheet

AN616: DescriptionVideo Signal Processing Circuit for TV Cameras; CategoryOther integrated circuit (IC) Consumption circuit; File Size178KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

AN616 Overview

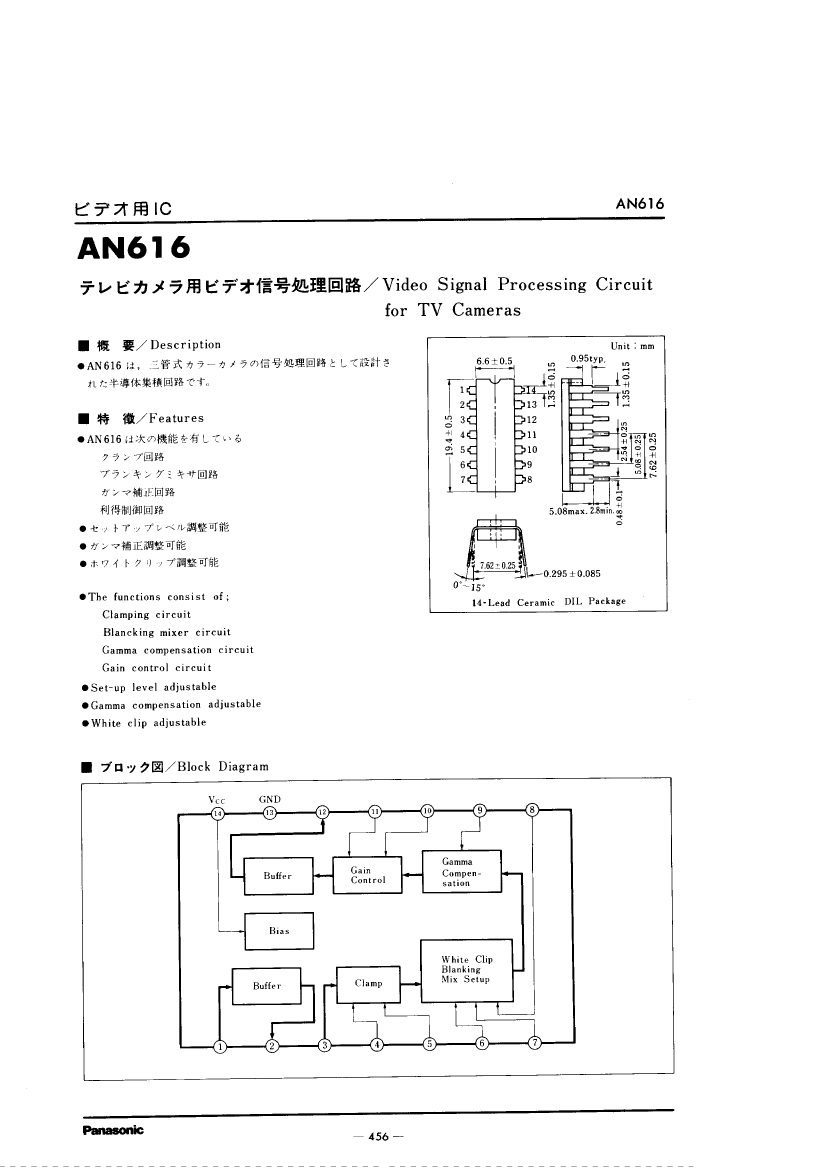

Video Signal Processing Circuit for TV Cameras

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
