AN6164 datasheet, PDF - EEWORLD Datasheet

AN6164: DescriptionConstant Voltage Drive Speech Network Circuits; File Size376KB，7 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Compare View All

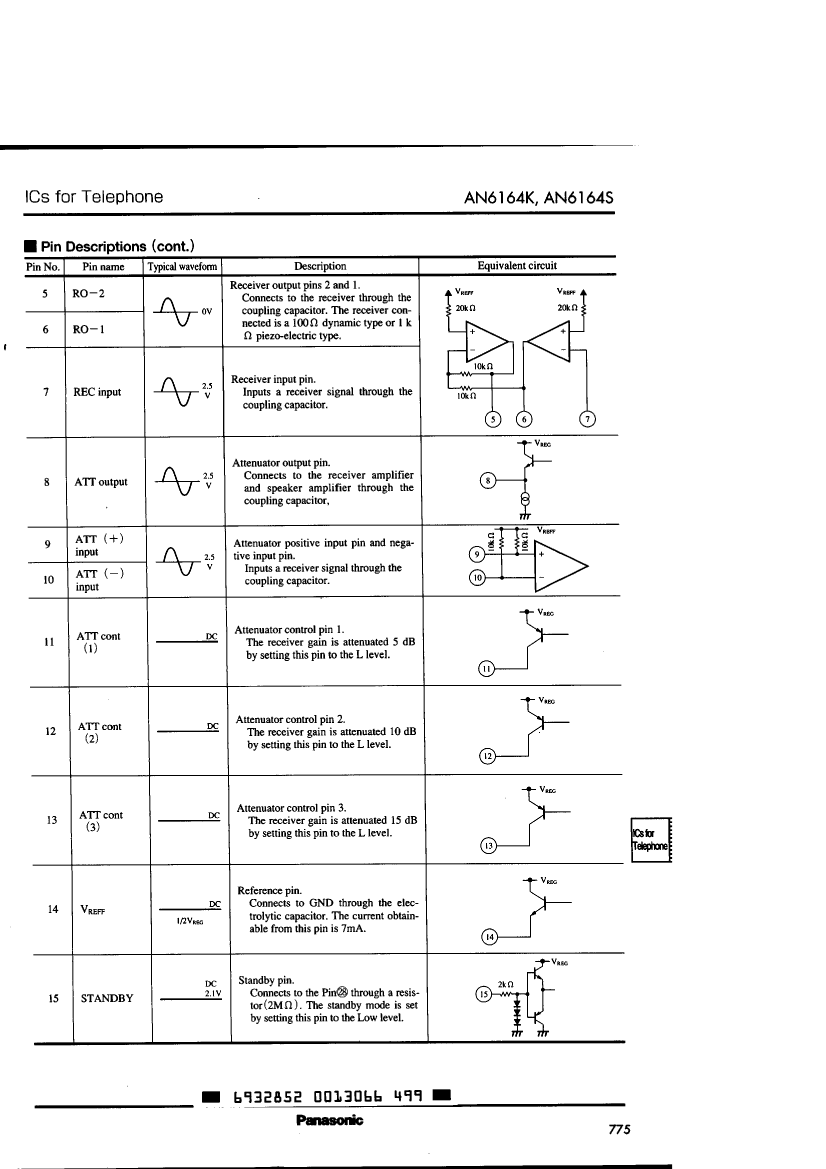

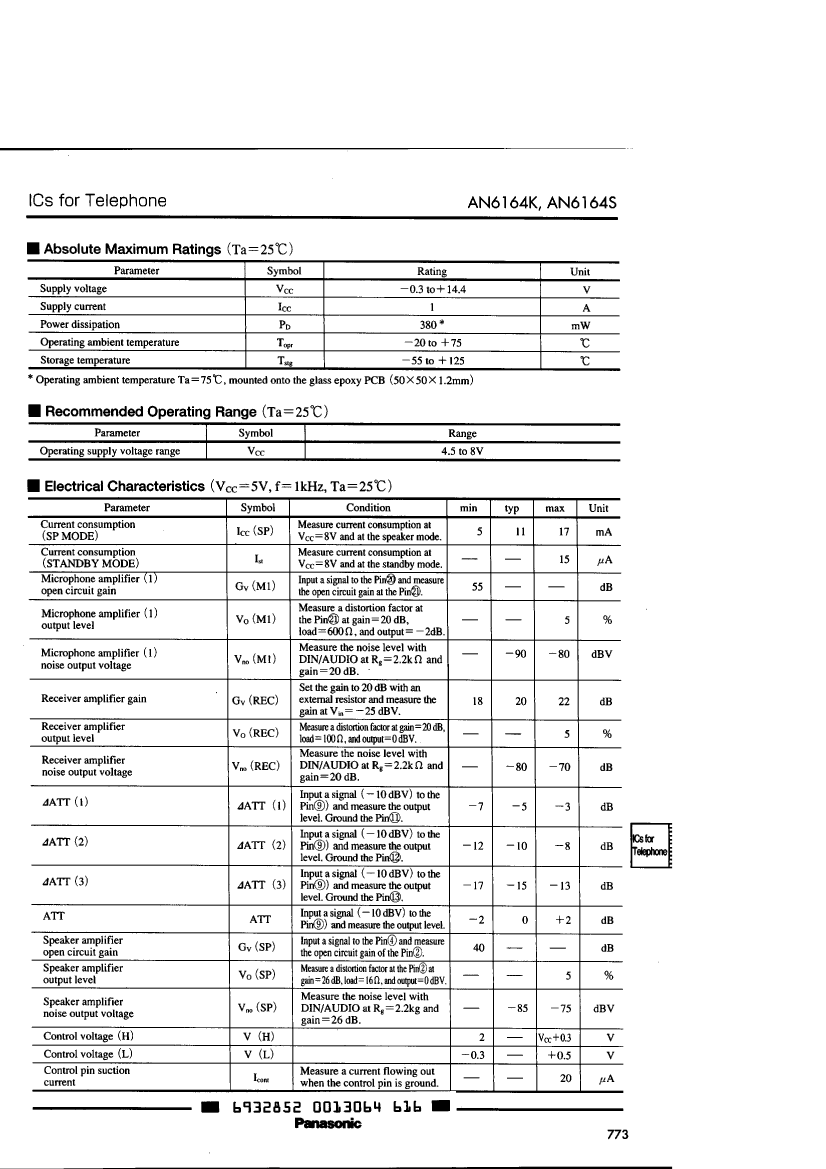

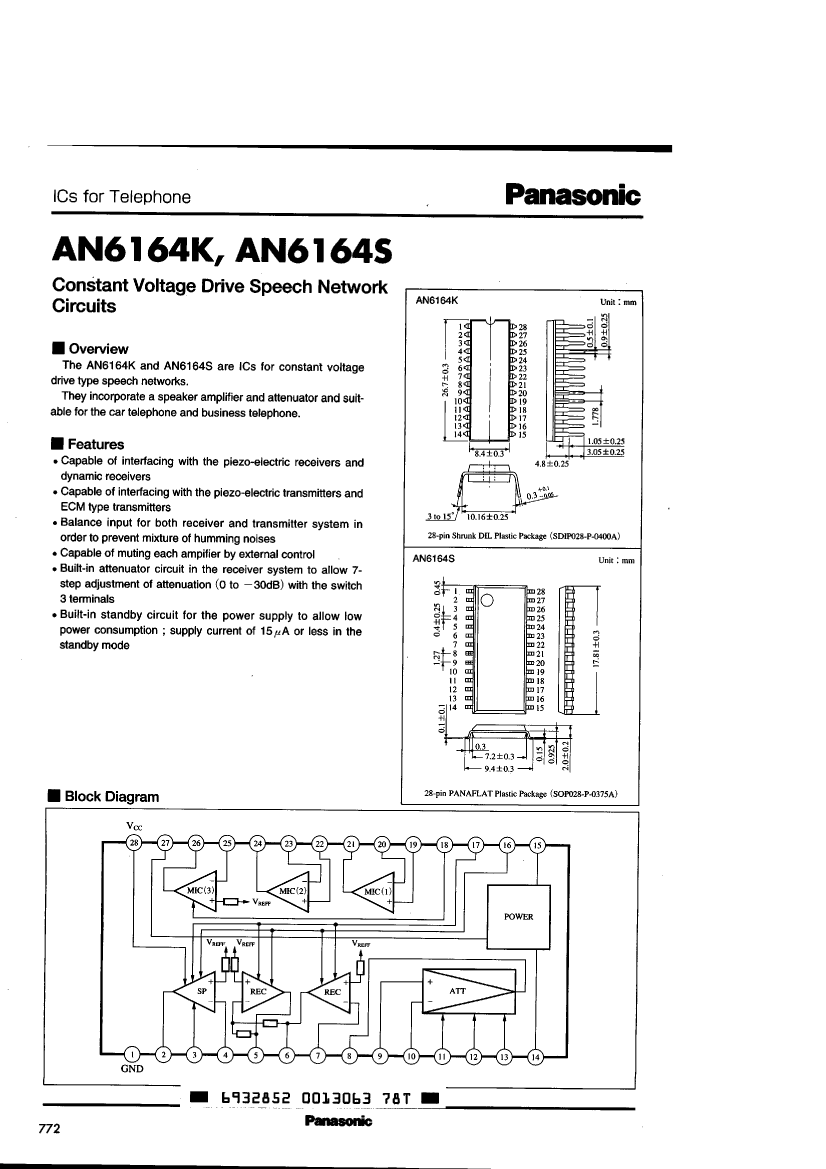

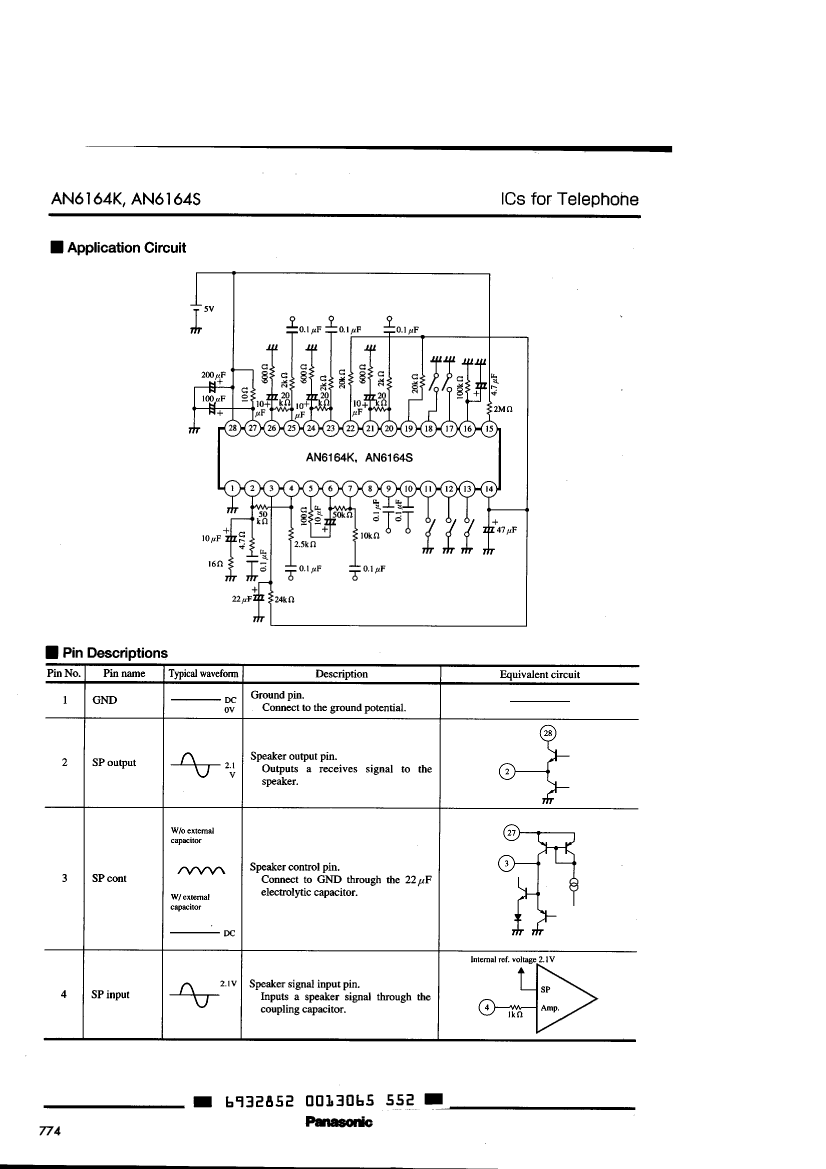

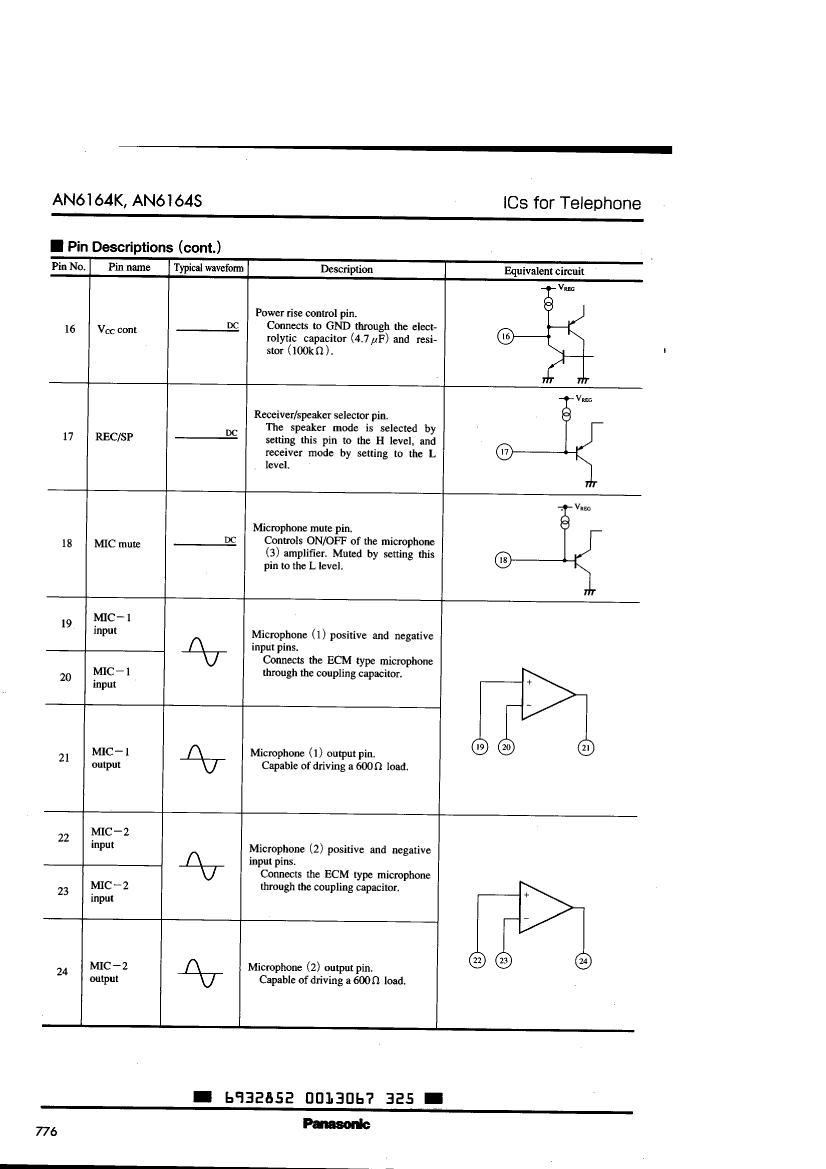

AN6164 Overview

Constant Voltage Drive Speech Network Circuits

	AN6164	AN6164K	AN6164S
Description	Constant Voltage Drive Speech Network Circuits	Constant Voltage Drive Speech Network Circuits	Constant Voltage Drive Speech Network Circuits
Is it Rohs certified?	-	incompatible	incompatible
Parts packaging code	-	DIP	SOIC
package instruction	-	SDIP, SDIP28,.4	SOP, SOP28,.4
Contacts	-	28	28
Reach Compliance Code	-	unknow	unknow
JESD-30 code	-	R-PDIP-T28	R-PDSO-G28
JESD-609 code	-	e0	e0
length	-	26.7 mm	17.81 mm
Number of functions	-	1	1
Number of terminals	-	28	28
Maximum operating temperature	-	75 °C	75 °C
Minimum operating temperature	-	-20 °C	-20 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SDIP	SOP
Encapsulate equivalent code	-	SDIP28,.4	SOP28,.4
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
power supply	-	4.5/8.0 V	4.5/8.0 V
Certification status	-	Not Qualified	Not Qualified
Maximum seat height	-	5.05 mm	2.4 mm
Maximum slew rate	-	0.017 mA	0.017 mA
Nominal supply voltage	-	5 V	5 V
surface mount	-	NO	YES
technology	-	BIPOLAR	BIPOLAR
Telecom integrated circuit types	-	TELEPHONE SPEECH CIRCUIT	TELEPHONE SPEECH CIRCUIT
Temperature level	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	THROUGH-HOLE	GULL WING
Terminal pitch	-	1.778 mm	1.27 mm
Terminal location	-	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
width	-	10.16 mm	7.2 mm
Base Number Matches	-	1	1
