AT4558
Dual Operational Amplifier for Audio
Features
˙Operating
Voltage :
±1.5~±8V
or 3~16V
˙Large
DC Voltage Gain: 100 dB
˙High
input Resistance :0.8MΩ
˙Low
Input Offset Voltage:0.7mV
˙Bandwidth(unity
gain):3MHz
˙Bipolar
Technology
Description
The AT4558 consists of two independent, high
gain, internally compensated amplifiers which
were designed specifically to operate from a
single or split power supply.
Application areas include transducer amplifier,
DC gain blocks and all the conventional
operational amplifier circuits. The AT4558 can
be directly operated +5V power supply, which is
normally used in digital systems.
Block Diagram
2F, No.10, Prosperity RD. II, Science-Based Industrial Park, Hsinchu 300,Taiwan, R.O.C.
Tel: 886-3-563-0878
WWW:
http://www.aimtron.com.tw
Fax: 886-3-563-0879
Email:
service@aimtron.com.tw
1
AT4558
Dual Operational Amplifier for Audio
Absolute maximum ratings (Ta = 25
o
C)
Parameter
Power supply voltage
Diffeential Input Voltage
Input Voltage Range
Power Dissipation
Operating temperature
Storage temperature
Symbol
V+/V-
V
ID
V
IN
PD
T
opr
T
stg
Limits
±8
±14
±7
500
0~+85
-55~+150
unit
V
V
V
mW
o
C
o
C
*Stresses beyond those listed under “ absolute maximum ratings” may cause
permanent damage to the device. Exposure to absolute-maximum-rated conditions
for extended peeriods may affect device reliability.
Recommended Operating Condition
Parameter
Power supply voltage
Symbol
V+/V-
Limits
±1.5~±8(3~16)
unit
V
Electrical characteristics (
unless otherwise noted, Ta = 25
o
C, V+ = 6V, V- =-6V
)
Parameter
Input Offset Voltage
Input Offset Current
Input Bias Current
Input Resistance
Input Voltage Range
Large Signal Voltage Gain
Gain Bandwidth
Phase Margin
Output Voltage Swing
DC common mode
Rejection ratio
Power supply rejection
Ratio
Slew rate
Input Noise Voltage
Output Resistance
Output Short-Circuit
Current
Channel separation
Rise Time
Operating Current
Symbol
VIO
IIO
IB
RIN
Vin
Av
GBW
θm
Vsw
CMRR
PSRR
SR
Vnoise
Ro
Ios
α
Tr
Icc
Min.
-
-
-
0.5
-
86
-
-
-
-
-
0.9
-
-
-
-
-
-
Typ.
0.7
5
70
0.8
-
100
3
60
±5
98
95
1.0
1.94
75
100
100
55
5.5
Max.
6
200
500
-
±5
-
-
-
-
-
-
-
-
-
-
-
-
10
Unit
mV
nA
nA
MΩ
V
dB
MHz
deg.
V
dB
dB
V/μS
uVrms
Ω
mA
dB
ns
mA
Conditions
Rs
≤10KΩ
RL=10KΩ
Rs
≤10KΩ,
fin=100Hz
Vp-p=100mV
RL=2KΩ
CL=100pF
RIAA, Rs=1KΩ,
30kHz, LPF
*
f=1KHz~20KHz
*1 Due to power disspation issue, it is not allowed for both channels to operate at this condition at the same moment.
2F, No.10, Prosperity RD. II, Science-Based Industrial Park, Hsinchu 300,Taiwan, R.O.C.
Tel: 886-3-563-0878
WWW:
http://www.aimtron.com.tw
Fax: 886-3-563-0879
Email:
service@aimtron.com.tw
2
AT4558
Dual Operational Amplifier for Audio

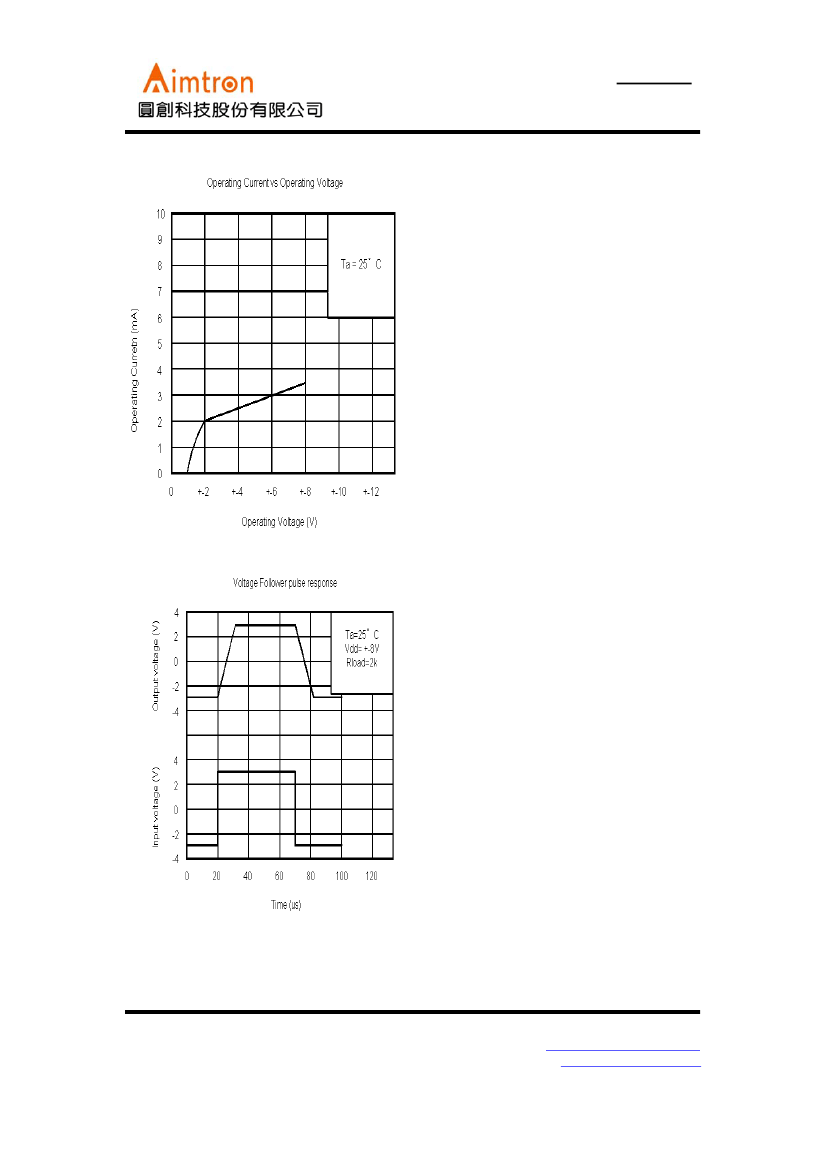

Typical Curve

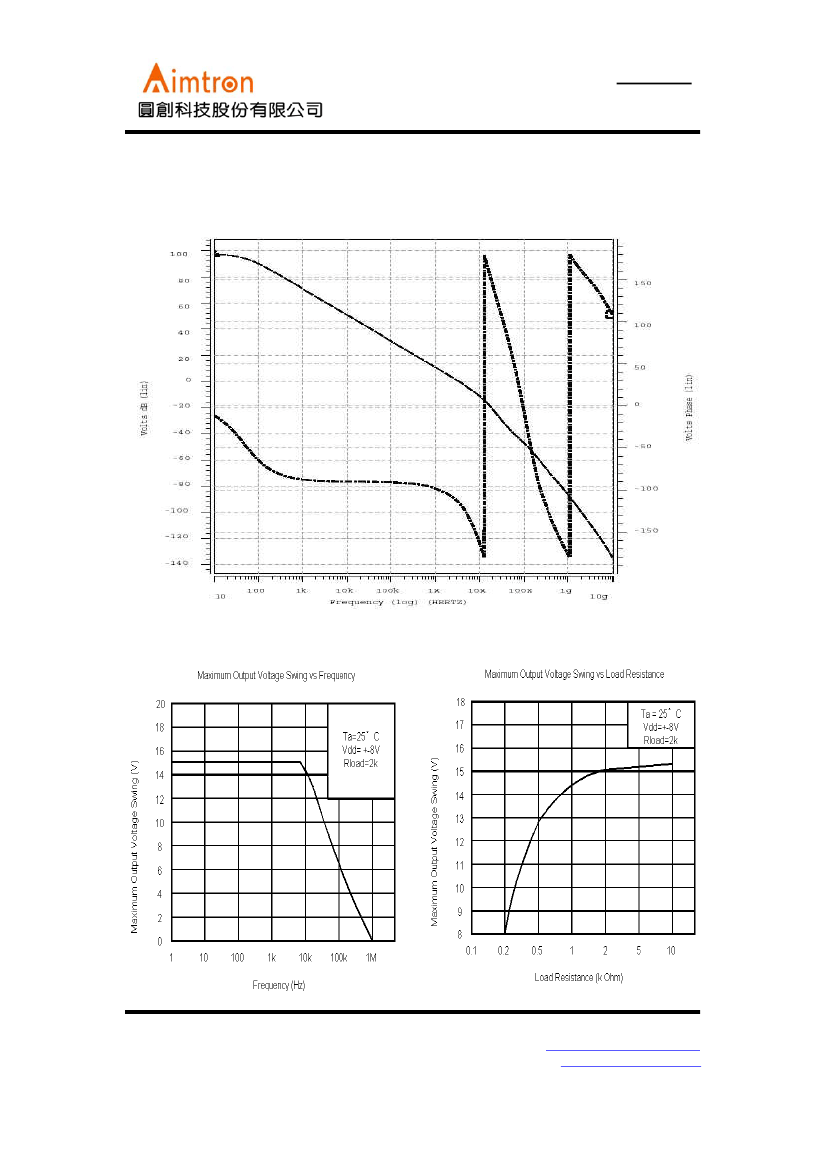

Open-Loop Gain Bandwidth and Phase Margin
2F, No.10, Prosperity RD. II, Science-Based Industrial Park, Hsinchu 300,Taiwan, R.O.C.
Tel: 886-3-563-0878
WWW:
http://www.aimtron.com.tw
Fax: 886-3-563-0879
Email:
service@aimtron.com.tw
3

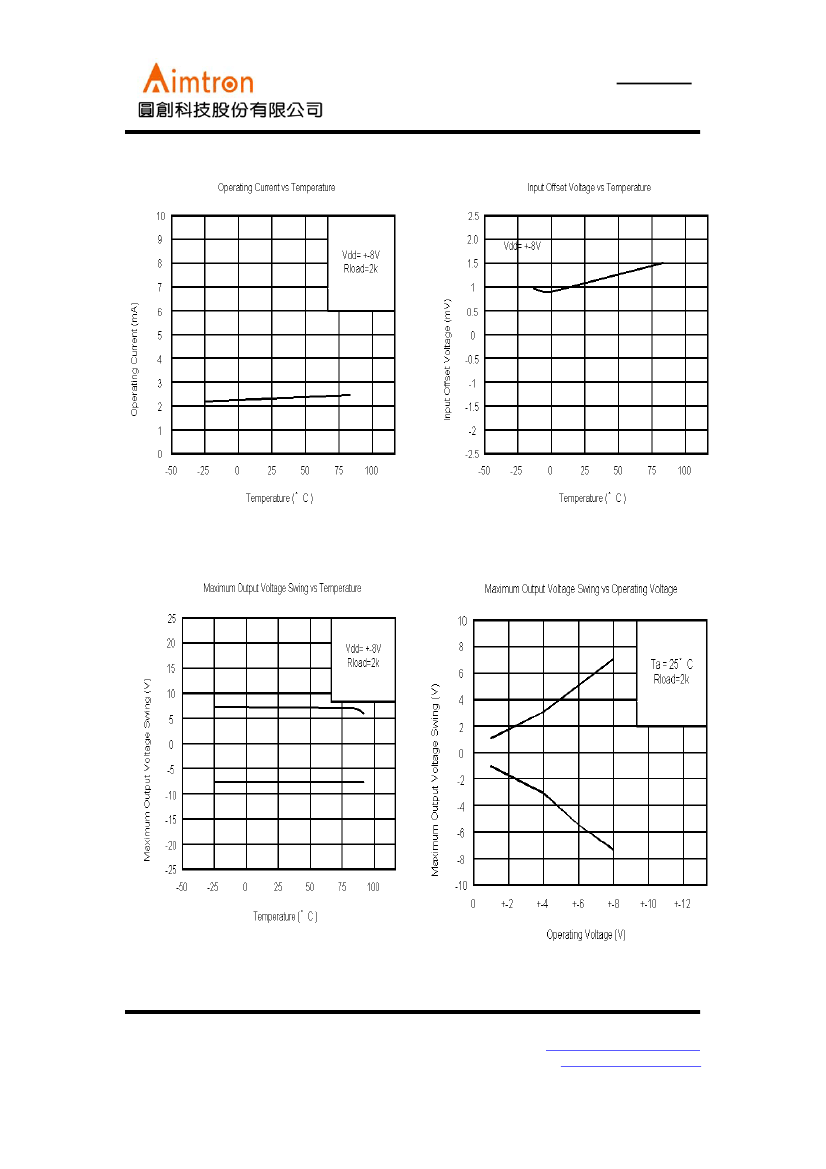

AT4558
Dual Operational Amplifier for Audio
2F, No.10, Prosperity RD. II, Science-Based Industrial Park, Hsinchu 300,Taiwan, R.O.C.
Tel: 886-3-563-0878
WWW:
http://www.aimtron.com.tw
Fax: 886-3-563-0879
Email:
service@aimtron.com.tw
4
AT4558
Dual Operational Amplifier for Audio
2F, No.10, Prosperity RD. II, Science-Based Industrial Park, Hsinchu 300,Taiwan, R.O.C.
Tel: 886-3-563-0878
WWW:
