380AS009NF1807F2 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 380AS009NF1807F2

380AS009NF1807F2: DescriptionCircular MIL Spec Backshells NON ENV STRN RLF DC LOW STRT LT DUTY; CategoryThe connector Connector bracket; File Size119KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

380AS009NF1807F2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380AS009NF1807F2	-	-	View	Buy Now

380AS009NF1807F2 Overview

Circular MIL Spec Backshells NON ENV STRN RLF DC LOW STRT LT DUTY

380AS009NF1807F2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	not_compliant
Factory Lead Time	8 weeks
Other features	LOW PROFILE
Assembly name	STRAIN RELIEF
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Material	ALUMINIUM ALLOY
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Base Number Matches	1

Preview

Download Datasheet

View All

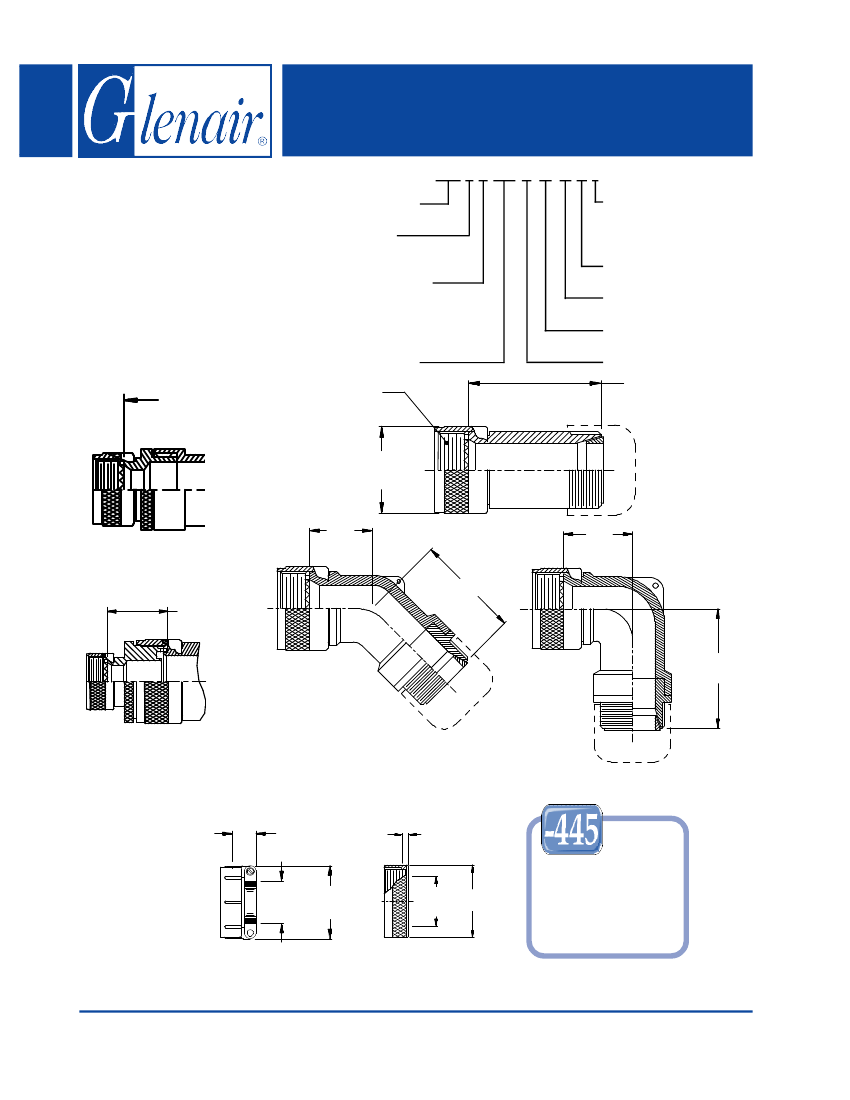

380-009

EMI/RFI Non-Environmental Backshell

with Strain Relief

Type D - Rotatable Coupling - Low Profile

CONNECTOR

DESIGNATORS

380 F S 009 M 16 05 F 6

Product Series

Connector

Designator

Angle and Profile

A = 90

B = 45

S = Straight

Basic Part No.

A Thread

(Table I)

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (F, G)

Cable Entry (Table IV, V)

Shell Size (Table I)

Finish (Table II)

Length – .060 (1.52)

Minimum Order

Length 1.5 Inch

(See Note 4)

A-F-H-L-S

ROTATABLE

COUPLING

TYPE D INDIVIDUAL

OR OVERALL

SHIELD TERMINATION

Length – .060 (1.52)

Minimum Order Length 2.0 Inch

(See Note 4)

C Typ.

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

.88 (22.4)

Max

(Table III)

F (Table III)

(Table III)

H (Table III)

STYLE 2

(45° & 90°

See Note 1)

STYLE F

Light Duty

(Table IV)

.416 (10.5)

Max

Cable

Range

STYLE G

Light Duty

(Table V)

.072 (1.8)

Max

Cable

Entry

Now Available

with the NESTOR

Glenair’s Non-Detent,

Spring-Loaded, Self-

Locking Coupling.

Add “-445” to Specify

This AS85049 Style “N”

Coupling Interface.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 50
