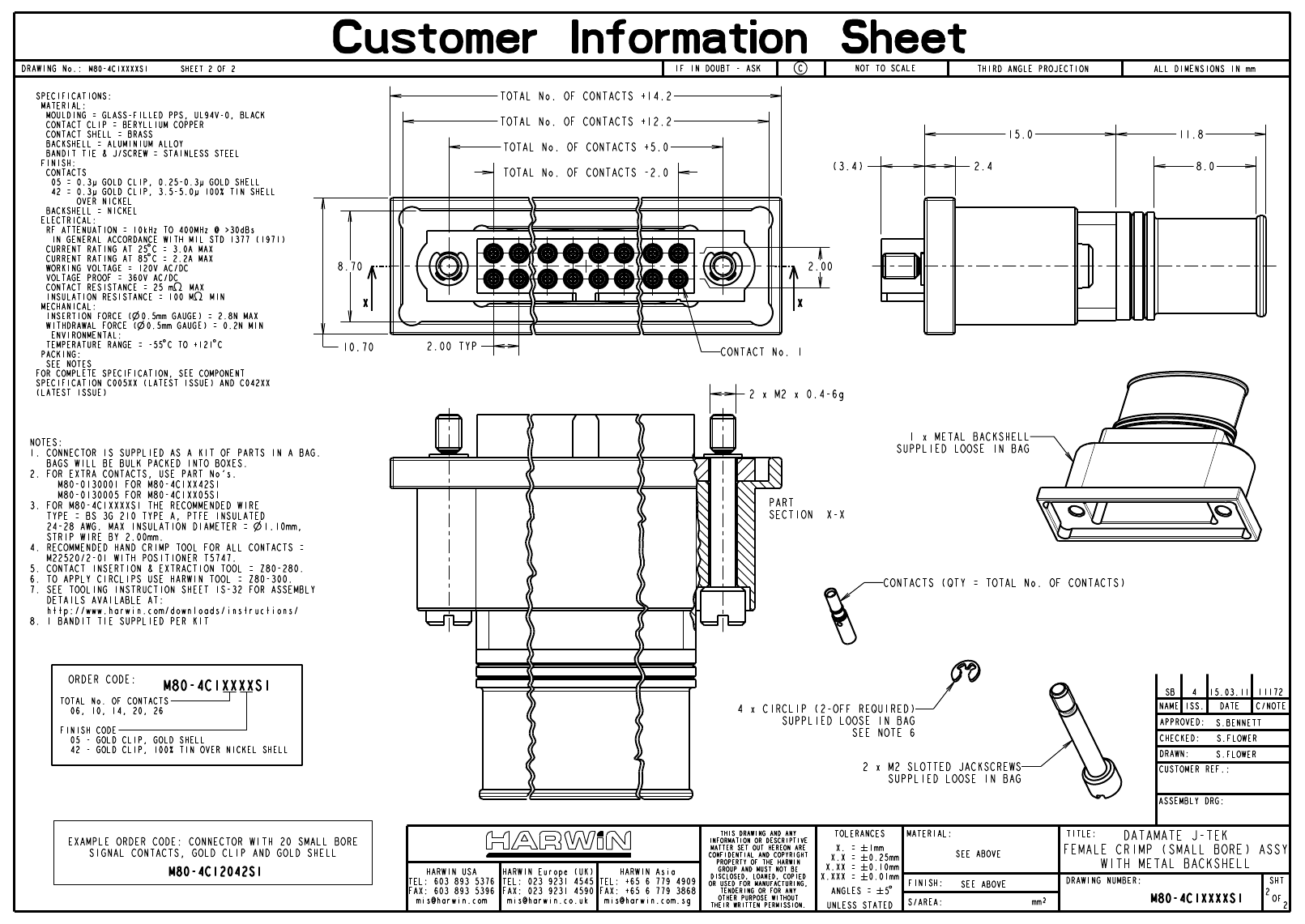

M80-4C10605S1: DescriptionPower to the Board 2x3 F CRIMP W/BKSHL S BOR 24-28AWG GD/GD; CategoryThe connector The connector; File Size143KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-4C10605S1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-4C10605S1	-	-	View	Buy Now

M80-4C10605S1 Overview

Power to the Board 2x3 F CRIMP W/BKSHL S BOR 24-28AWG GD/GD

M80-4C10605S1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.421 inch
subject depth	0.591 inch
body length	0.795 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	360VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	121 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

M80-4C10605S1 Related Products

	M80-4C10605S1	M80-4C12605S1	M80-4C11005S1	M80-4C11042S1	M80-4C12005S1	M80-4C11405S1	M80-4C11442S1
Description	Power to the Board 2x3 F CRIMP W/BKSHL S BOR 24-28AWG GD/GD	Power to the Board 2x13 F CRIMP W/BKSHL S BOR 24-28AWG GD/GD	Power to the Board 2x5 F CRIMP W/BKSHL S BOR 24-28AWG GD/GD	Power to the Board 5+5 POS FEMALE CRIMP WITH BACKSHELL	Power to the Board 2x10 F CRIMP W/BKSHL S BOR 24-28AWG GD/GD	Power to the Board 2x7 F CRIMP W/BKSHL S BOR 24-28AWG GD/GD	Power to the Board 7+7 POS FEMALE CRIMP WITH BACKSHELL
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.421 inch	0.421 inch	0.421 inch	0.421 inch	0.421 inch	0.421 inch	0.421 inch
subject depth	0.591 inch	0.591 inch	0.591 inch	0.591 inch	0.591 inch	0.591 inch	0.591 inch
body length	0.795 inch	1.583 inch	0.953 inch	0.953 inch	1.346 inch	1.11 inch	1.11 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	360VAC V	360VAC V	360VAC V	360VAC V	360VAC V	360VAC V	360VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	121 °C	121 °C	121 °C	121 °C	121 °C	121 °C	121 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	6	26	10	10	20	14	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Tin (Sn) - with Nickel (Ni) barrier	Gold (Au)	-	Tin (Sn) - with Nickel (Ni) barrier
JESD-609 code	e4	e4	e4	e3	e4	-	e3
