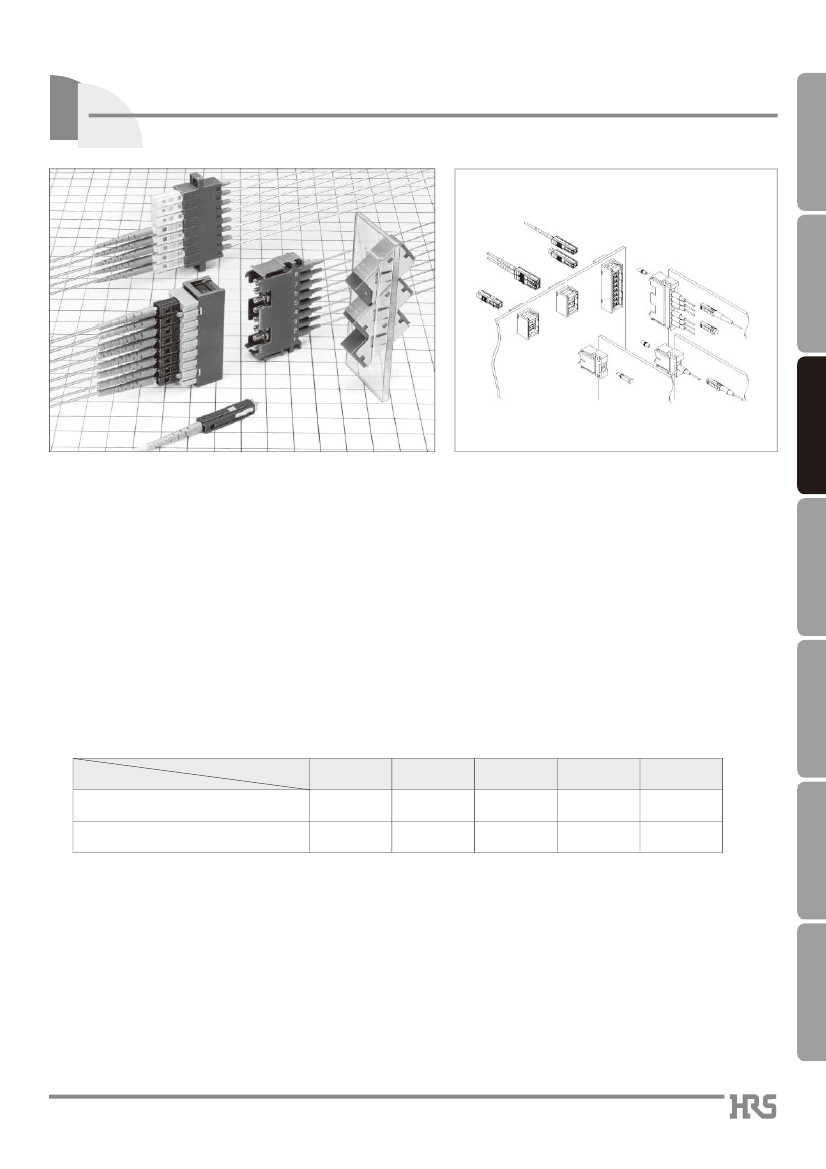

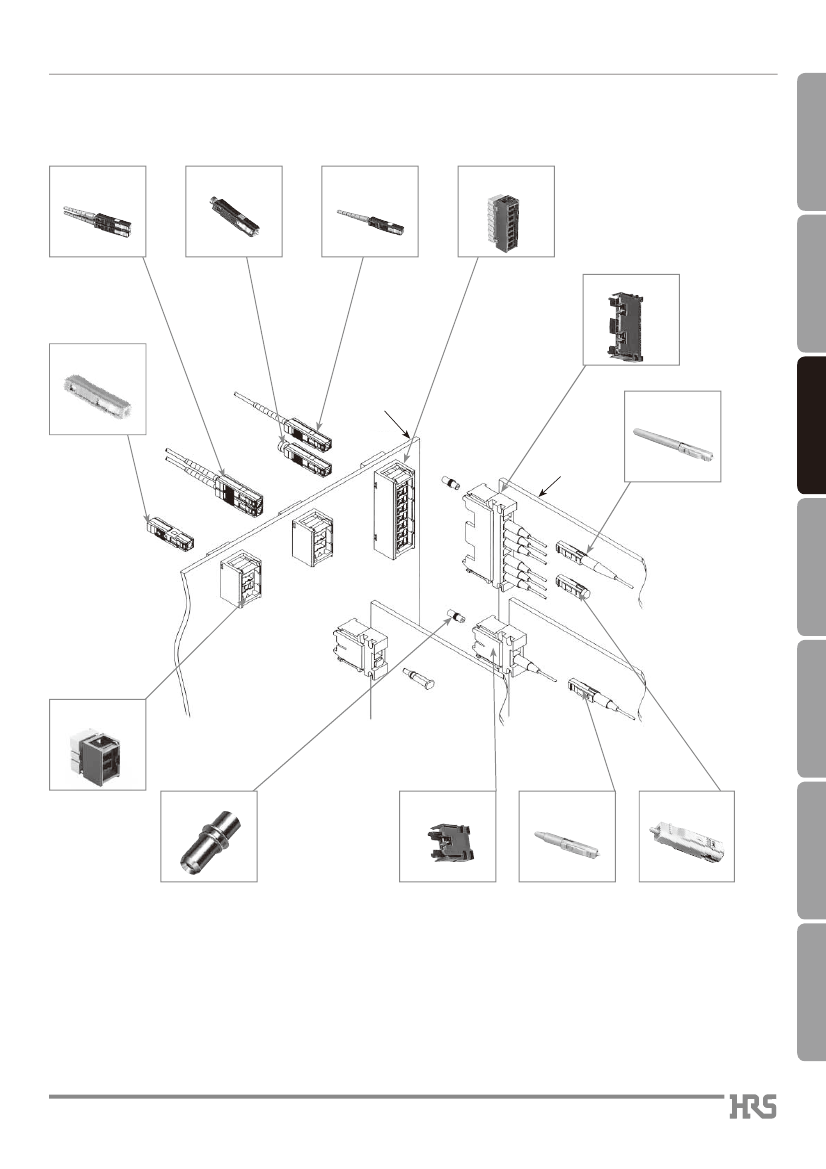

MU Type Fiber Optic Connectors
HMU Series
Back panel side
SC
Package side
FC
Jun.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
MU
■Features
1. IEC, JIS standard compliant and intermateability test certified.
Comply with JIS C 5983 (F14 type fiber optic connectors) and IEC 61754-6.
MU intermate test by NTT certified connector.
Harsh
Environment
2. Flame resistant
Satisfies flammability rating UL94V-0
3. Backplane
MU Backplane connector has a self-holding mechanism which does not transfer any force on the back panel when
both side of connector assemblies are fully connected. Back panel side connectors can be removed or inserted
even both sides are mated.
Attenuators
4. Wide Variety of adapter type
Number of Fiber connections
Type
Board Mounting
Snap-in Panel Mounting & Screw Panel Mounting
Single
Duplex
4 way
---
8 way
16 way
---
✓
✓
✓
✓
✓
✓
Terminators
(Only Snap-in)
✓
✓
5. Simplified plugs and Receptacles
Extremely small size (only 13.75mm Plug length). MU simplified plug is designed for equipments inside connection.
POF / PCF
39
HMU Series
●
MU Type Fiber Optic Connectors
■Product
Specifications
Ratings
Operating temperature range
-25°C to +70°C
Storage temperature range
-25°C to +70°C
SC
Item
Optical
Characteristics
Insertion Loss
SM
MM(GI)
SM
MM(GI)
Test Method (IEC 61300)
Wavelength 1310nm (LD)
Wavelength 1310nm (LED)
Wavelength 1310nm (LD)
Specifications
0.5dB max. (AdPC)
0.3dB max. (PC)
40dB min.(AdPC)
22dB min.(PC)
Simplex plug
Engagement force: 20 N max.
Separation force: 20 N max.
Engagement force: 30 N max.
Separation force: 30 N max.
1N to 3N
1N to 2.5N
Return Loss
FC
Engagement and
Separation forces
Measured with corresponding connector.
Duplex plug
Jun.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Mechanical Characteristics
Ferrule with drawal force
Cable retention
(Straight pull)
Durability
(cycles, mating/un-mating)
Vibration
Extract zirconia gauge 1.249 ±0.0005 mm diameter
from split sleeve.
70N tensile loads for one minute.
200 times (Backplane)
500 times (Plug)
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours in each of the 3 axis.
Acceleration of 981 m/s
2
, 6 ms duration,
sin half-wave waveform, 10 cycles in each of the 3 axis.
-10°C to 65°C, humidity: 90% to 96%
10 cycles
-25°C to +70°C 100 cycles
960 hours at 85°C
960 hours at -25°C
48 hours in a 5% concentration of salt mist
Copper alloy split sleeve
Zirconia split sleeve
1) Insertion loss fluctuation after test: 0.2dB max.
2) No visible damage, dislocation of clamp or cable.
MU
Shock
Humidity
(Temperature/ humidity- cycles)
Change of temperature
Dry heat
Cold
Salt mist
1) Insertion loss fluctuation after test: 0.2dB max.
2) No visible damage, cracks or part dislocation.
Harsh
Environment
Environmental
Characteristics
No significant corrosion.
■Materials
Part
Simplex plug housing
Spring
Ferrule
Simplex adapter housing
Adapter metal fittings
Simplified receptacle housing
Material
Synthetic resin
Steel
Zirconia
Synthetic resin
Stainless steel or copper alloy (Nickel plating)
Synthetic resin
Zirconia
Synthetic resin
Zirconia or copper alloy
Synthetic resin
Attenuators
Terminators
Simplified plug
Backplane connector housing
Split sleeve
Dust cap
POF / PCF
40
HMU Series
●
MU Type Fiber Optic Connectors

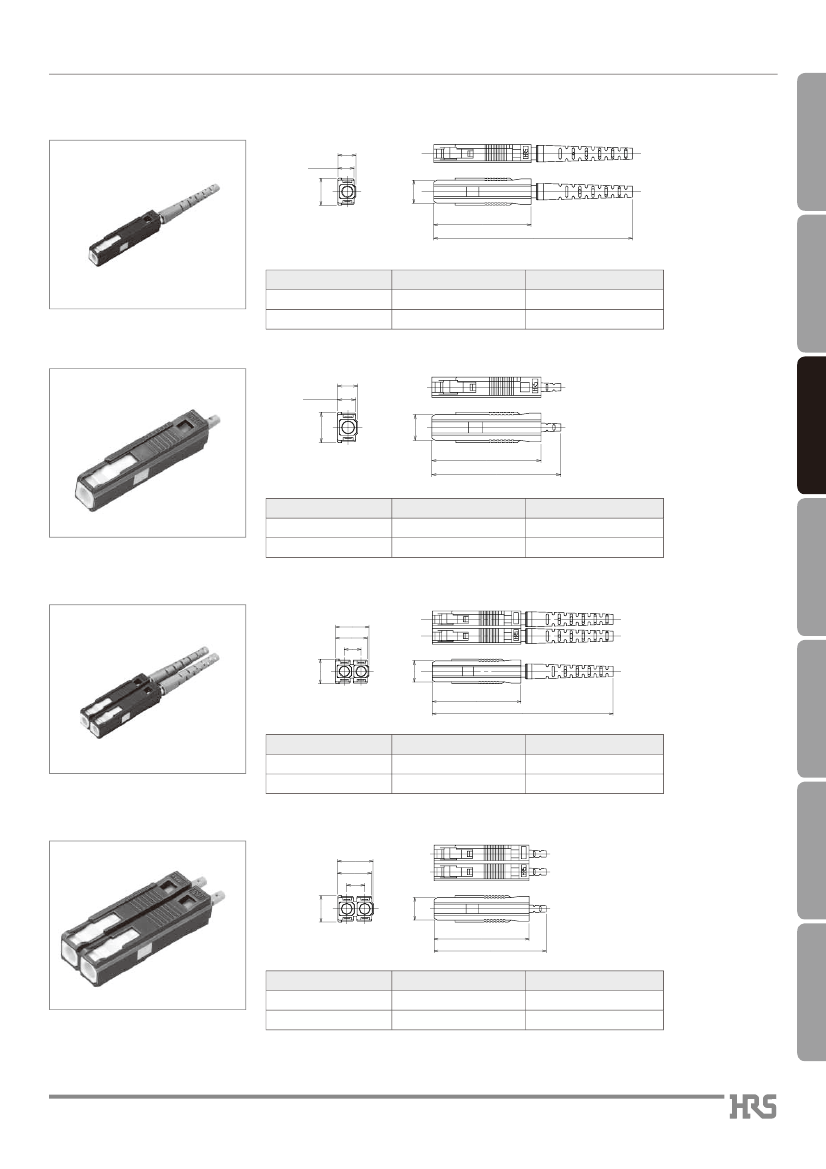

■Plug
Housings
●
Simplex Plug Housing for 2mm cable
4.35
3.95
6.6
5.6
SC
23.6
48.5
FC
Part Number
CL No.
710-0047-9-61
710-0001-8-61
Boot color
Blue
Light purple
Jun.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HMUA-P2-H1(61)
HMUA-P2-H2(61)
●
Simplex Plug Housing for 0.9mm fiber
4.35
3.95
MU
6.6
5.6
23.6
28
Part Number
HMUA-P0.9-H1(60)
HMUA-P0.9-H2(60)
CL No.
710-0158-0-60
710-0159-2-60
Boot color
Blue
Light purple
Harsh
Environment
●
Duplex Plug Housing for 2mm cable
8.85
8.45
4.5
6.6
5.6
JAPAN
Attenuators
23.6
48.5
Part Number
HMUA-2P2-H1(61)
HMUA-2P2-H2(61)
CL No.
710-0048-1-61
710-0002-0-61
Boot color
Blue
Light purple
●
Duplex Plug Housing for 0.9mm fiber
8.85
8.45
4.5
6.6
5.6
JAPAN
Terminators
23.6
28
POF / PCF
Part Number
HMUA-2P0.9-H1(60)
HMUA-2P0.9-H2(60)
CL No.
710-0162-7-60
710-0163-0-60
Boot color
Blue
Light purple
