Simple Assembly Type PC Card Frame Kits
NX1 Series
Back connector
68-contact socket
Frame+Metal panel
Figure 1
sFeatures
1. Great reduction of the number of frame kit
assembly steps
Use of this simple assembly method has greatly reduced the
number of assembly steps. Processes such heat fusion and
cooling of the covers are no longer required. Assembly of the
frame kit is possible using simple jig tools. (See the Simple
Assembly Method insert to the right.).

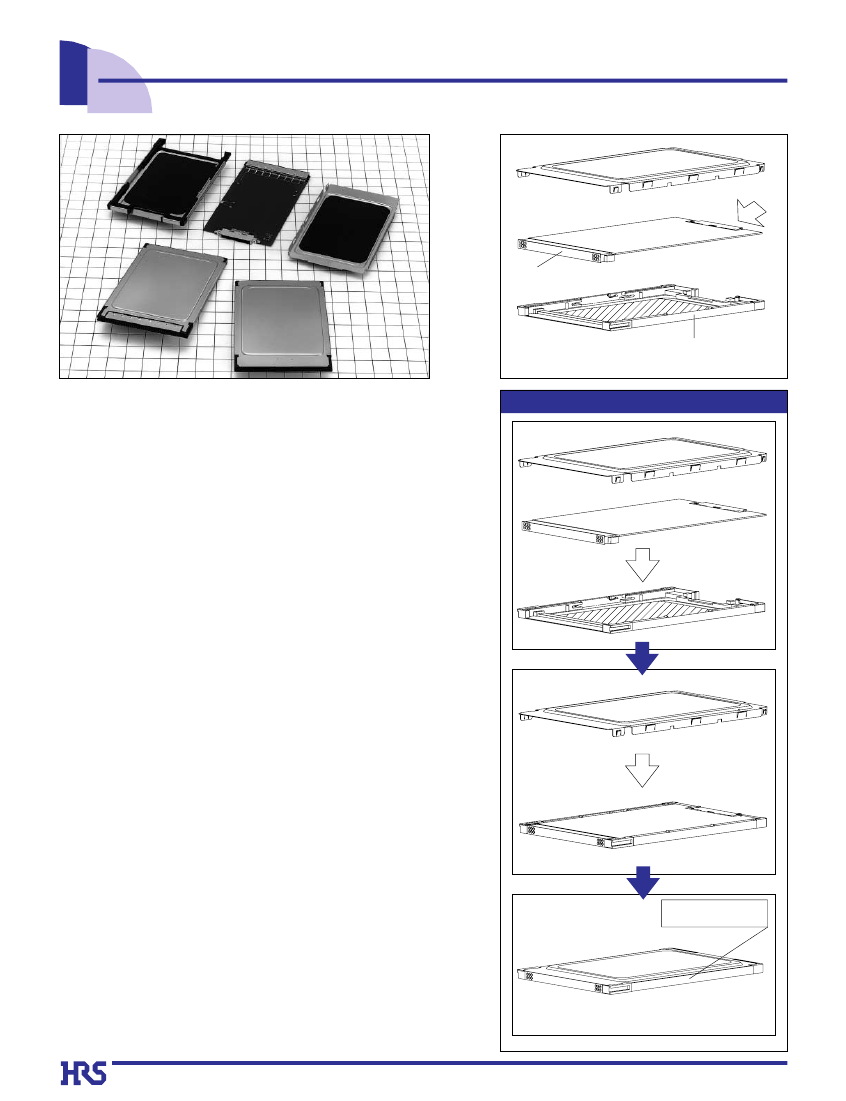

Simple Assembly Method
2. Excellent Shielding Qualities
The covered construction using a metal panel out to the sides of
the card provide excellent shielding qualities. (See Figure 4.)
3. Board Offset
Available in types with board offsets of 0.3mm and 0.9mm.
Figure 2
4. Back connectors
Back Connectors available with 15,25, and 32 contacts.
5. Can Be Used With CardBus Types
6. Stable Conduction Maintained Between Panels
The spring quality of the metal ensures stable conduction to be
maintained between the panels at the panel lock portion.
7. Conduction Maintained Between Panel and Board
The cunduction between panel and board is maintained by
contact between the panel and a one-body ground spring.
Figure 3
Metal panel covers all the
way to the card sides
sApplications
A wide variety of PC cards including LAN, FAX modem, and
SCSI.
Figure 4
(For details, see the frame Kit assembly procedure on page 6)
B2
sProduct
Rating
Operating temperature range
-30ç
to
+70ç
sMaterials
Part
Frame
Panel
Material
PBT
Stainless steel
Color
Black
Dull Finish
Black
Remarks
UL94V-0
-------
510-FR
Insulation tape Polyester
sOrdering
Information
NX1B L - 32 T - KT 3 B (05)
q
w
e r
t
y u
i
q
Series name
r
Suitable back connectors
u
Type of suitable 68-contact connectors
NX1 : General type
NX1B : Card bus type
w
Card key type
T: NX Series
t
Connector type
K: General type (IC1K Series)
B: Card Bus type (IC9 Series)
i
Presence of insulation tape
KT: Frame kit
y
Offset
None : 5 V type
L
: 3.3 V type
e
Number of back connector
3: 0.3mm
9: 0.9mm
05 : With insulation tape
06 : Without insulation tape
15, 25, or 32

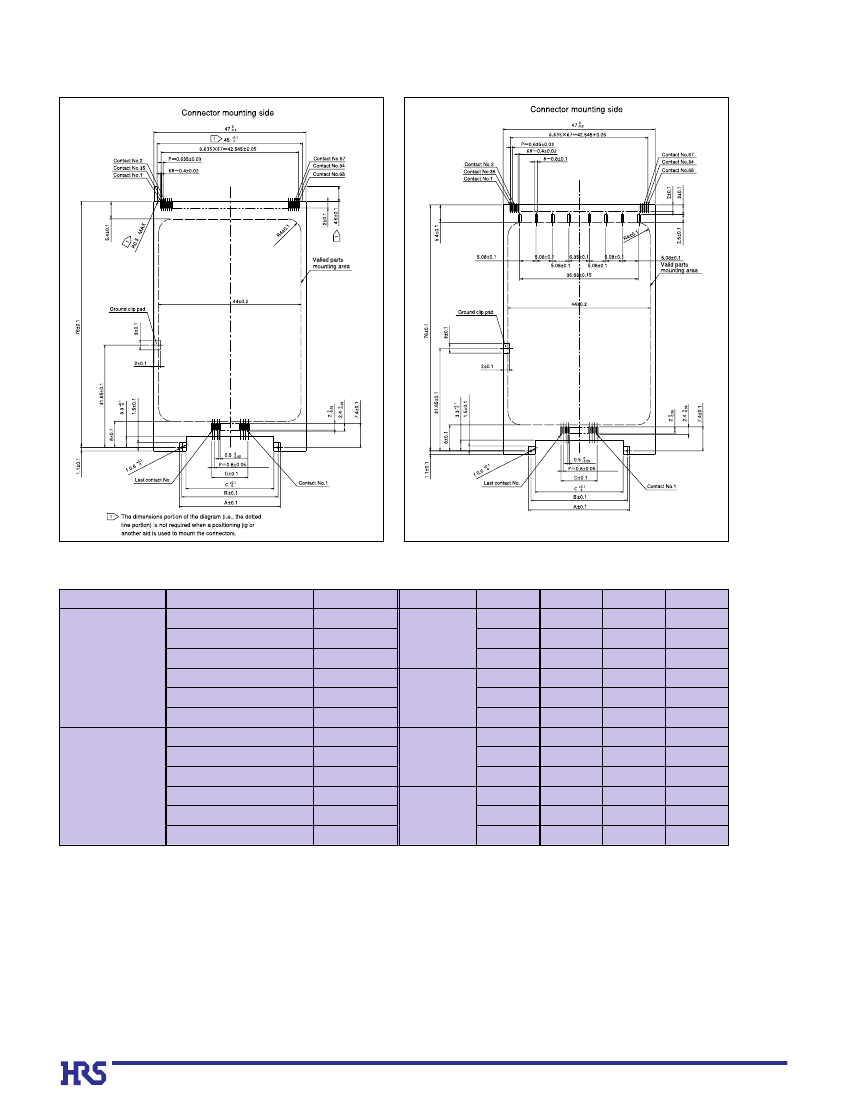

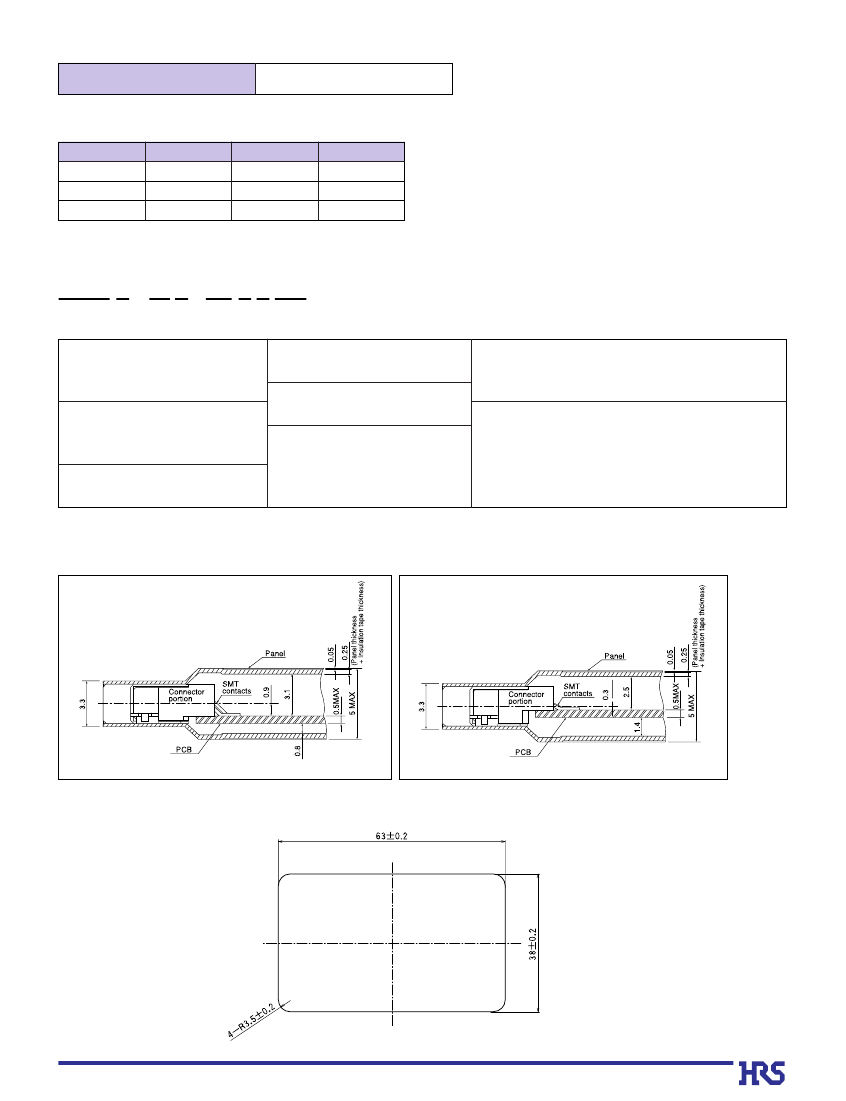

sConnector
Mounting Condition (Back conector side)
q0.9mm
Offset Type
q0.3mm
Offset Type
sLabel
Dimensions (Recommended Label Thickness: 50µm)
B3
sNX1
Series (General Type Frame Kit)
Panel A
Panel B
Number of
Contacts
15
25
32
Offset
(mm)
0.9
0.3
0.9
0.3
0.9
0.3
Frame Kit
Part Number
CL No.
Suitable 68-Contact Socket Connectors
Part Number
CL No.
640-0047-2
640-0046-0
640-0047-2
640-0046-0
640-0047-2
640-0046-0
Suitable Back Connectors
Part Number
NX60TB-15SAA9-SP
NX60TB-15SAA3-SP
NX60TA-25SAA9-SP
NX60TA-25SAA3-SP
NX60TB-32SAA9-SP
NX60TA-32SAA3-SP
CL No.
234-0097-6
234-0098-9
234-0107-8
234-0033-3
234-0023-0
234-0053-0
NX1-15T-KT9K(
**
) 234-2102-5-
**
IC1K-68RD-1.27SFA
NX1-15T-KT3K(
**
) 234-2103-8-
**
IC1K-68RD-1.27SF
NX1-25T-KT9K(
**
) 234-2104-0-
**
IC1K-68RD-1.27SFA
NX1-25T-KT3K(
**
) 234-2105-3-
**
IC1K-68RD-1.27SF
NX1-32T-KT9K(
**
) 234-2106-6-
**
IC1K-68RD-1.27SFA
NX1-32T-KT3K(
**
) 234-2107-9-
**
IC1K-68RD-1.27SF
(
**
) : (05) : With Insulation type
(
**
) :
(06) : Without Insulation type
B4
sNX1B
Series (Card Bus Type Frame Kit)
Panel A
Panel
B
Number of
Contacts
15
25
32
Offset
(mm)
0.9
0.3
0.9
0.3
0.9
0.3
Frame Kit
Part Number
CL No.
NX1BL-15T-KT9B
(
**
)
234-2153-6
-
**
NX1BL-15T-KT3B
(
**
)
234-2154-9
-
**
NX1BL-25T-KT9B
(
**
)
234-2157-7
-
**
NX1BL-25T-KT3B
(
**
)
____
___
NX1BL-32T-KT9B
(
**
)
234-2155-1
-
**
NX1BL-32T-KT3B
(
**
)
234-2156-4
-
**
Suitable 68-Contact Socket Connectors
Part Number
IC9-68RD-0.635SFA
IC9-68RD-0.635SF
IC9-68RD-0.635SFA
IC9-68RD-0.635SF
IC9-68RD-0.635SFA
IC9-68RD-0.635SF
Suitable Back Connectors
Part Number
NX60TB-15SAA9-SP
NX60TB-15SAA3-SP
NX60TA-25SAA9-SP
NX60TA-25SAA3-SP
NX60TB-32SAA9-SP
NX60TA-32SAA3-SP
CL No.
640-0902-5
640-0901-2
640-0902-5
640-0901-2
640-0902-5
640-0901-2
CL No.
234-0097-6
234-0098-9
234-0107-8
234-0033-3
234-0023-0
234-0053-0
(
**
) : (05) : With Insulation type
(
**
) :
(06) : Without Insulation type
B5
B

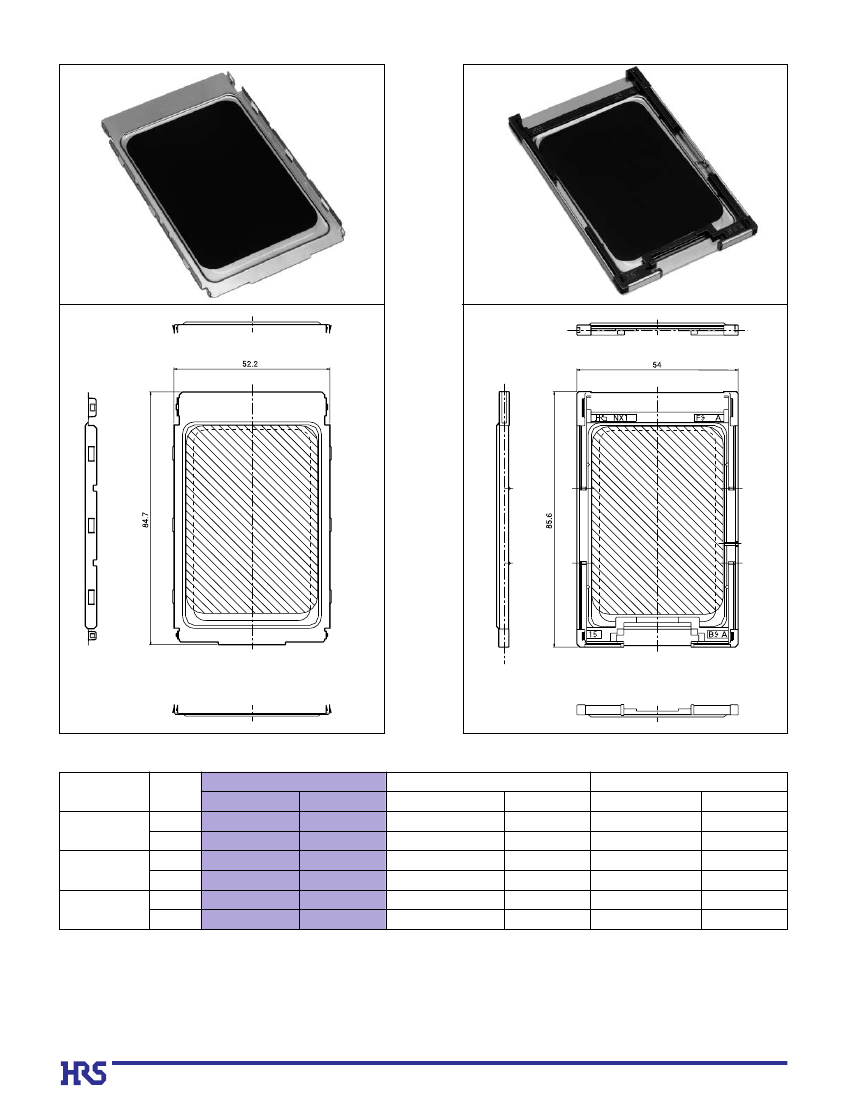

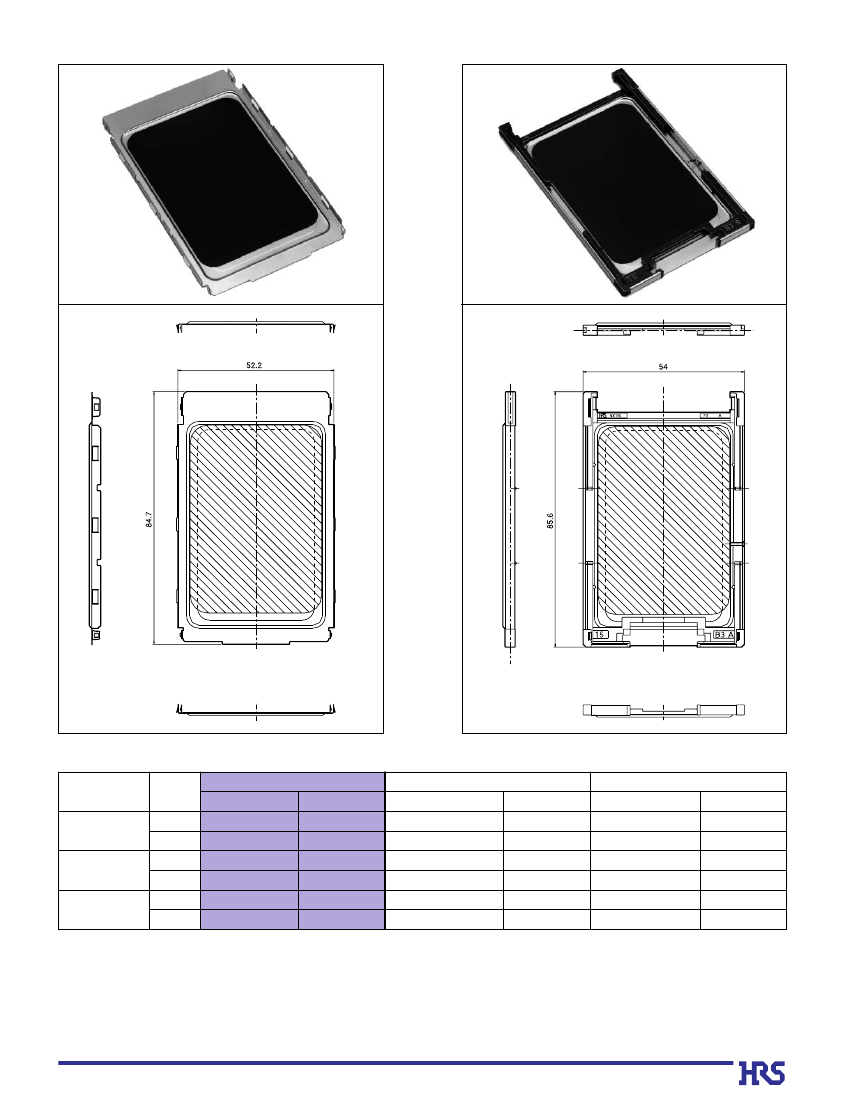

Board Dimensions (Applicable Board Thickness: 0.5 mm Max.)
qNX1
Series (General Type)
qNX1B
Series (CardBus Type)
NOTE
Type
Part Number
NX1-15T-KT9K(
**
)
NX1-25T-KT9K(
**
)
Number of Contacts
15
25
32
15
25
32
15
25
32
15
25
32
Offset
0.9
A
31.2
39.2
44.8
31.2
B
29.8
37.8
43.4
29.8
37.8
43.4
29.8
37.8
43.4
29.8
37.8
43.4
C
27.2
35.2
40.8
27.2
35.2
40.8
27.2
35.2
40.8
27.2
35.2
40.8
D
11.2
19.2
24.8
11.2
19.2
24.8
11.2
19.2
24.8
11.2
19.2
24.8
NX 1Series
(General Type)
NX1-32T-KT9K(
**
)
NX1-15T-KT3K(
**
)
NX1-25T-KT3K(
**
)
NX1-32T-KT3K(
**
)
NX1BL-15T-KT9B(
**
)
NX1BL-25T-KT9B(
**
)
NX1BL-32T-KT9B(
**
)
NX1BL-15T-KT3B(
**
)
NX1BL-25T-KT3B(
**
)
NX1BL-32T-KT3B(
**
)
0.3
39.2
44.8
31.2
NX1B Series
(Card Bus Type
Frame Kit)
0.9
39.2
44.8
31.2
0.3
39.2
44.8
½Please
use "NX Series Flame Kit (Not N X 1) "when print processing the panel.
(
**
) : (05) : With Insulation type
(
**
) :
(06) : Without Insulation type
B6
