AU-46AN: DescriptionVariable Attenuator, 500MHz Min, 8000MHz Max, 0.5dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size335KB，2 Pages; ManufacturerMerrimac Industries（Crane）; Websitehttp://www.craneae.com/

Download Datasheet Parametric Compare View All

AU-46AN Overview

Variable Attenuator, 500MHz Min, 8000MHz Max, 0.5dB Insertion Loss-Max

AU-46AN Parametric

Parameter Name	Attribute value
Maker	Merrimac Industries（Crane）
Reach Compliance Code	unknow
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
Maximum input power (CW)	40 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	8000 MHz
Minimum operating frequency	500 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

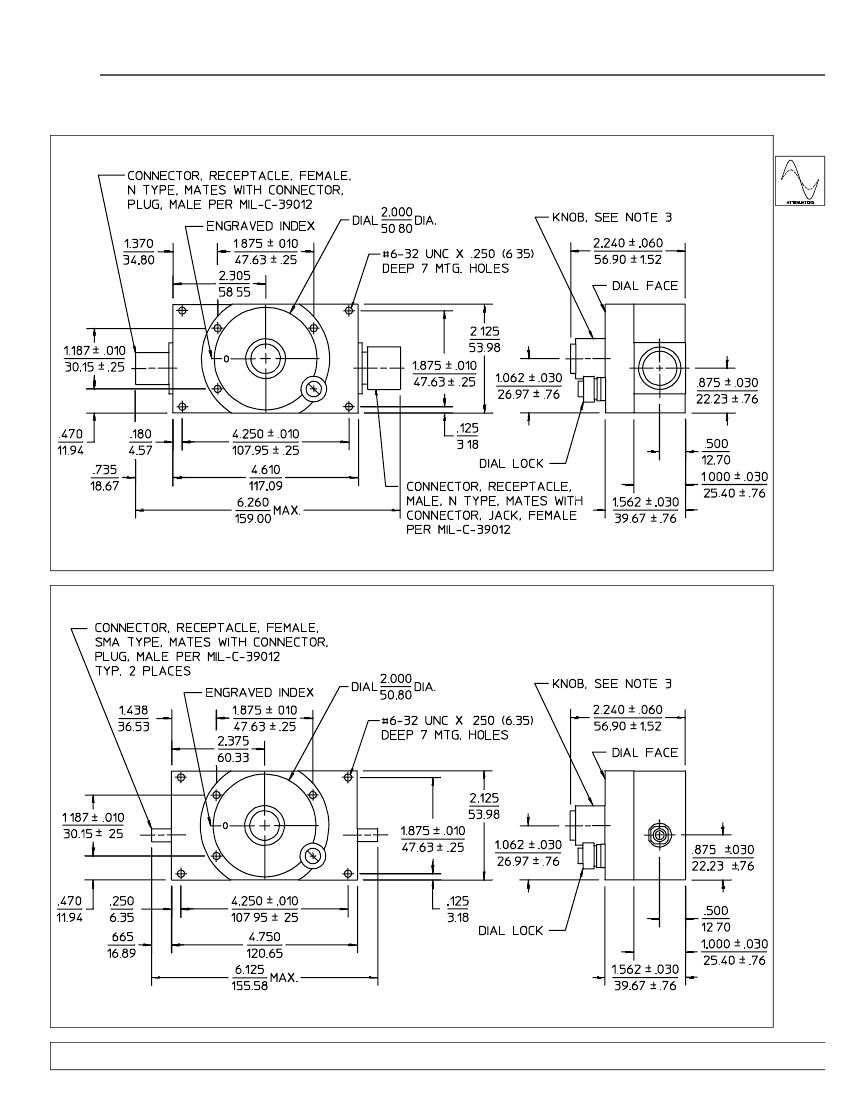

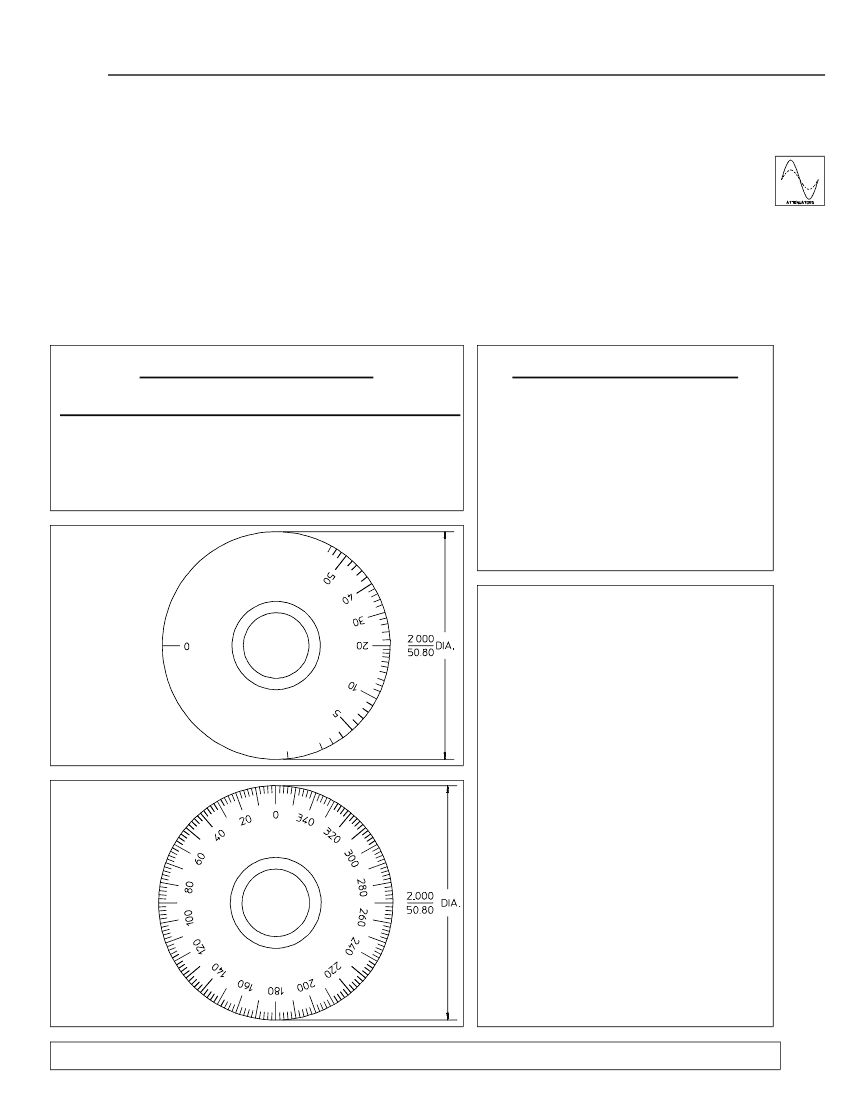

AU-46 Series

MICROWAVE ATTENUATORS

0.5 to 8 GHz / 0 to 55 dB / Ferrite / Stable / Low Insertion Loss / Direct Reading Dial / SMA & N-Type

PRINCIPAL SPECIFICATIONS

Model

Number

AU-46AN

AU-46AN-***G

AU-46AX

AU-46AX-***G

Dial

Calibration

Linear 360° Scale

dB Calibrated @ f

c

Linear 360° Scale

dB Calibrated @ f

c

Connector

Style

N (m-f)

SMA (f-f)

Weight

oz. (g)

20 (560)

18 (504)

GENERAL SPECIFICATIONS

Attenuation Range:

0.5 - 1 GHz,

Attenuation = 0 - 20 dB:

1 - 2 GHz,

Attenuation = 0 - 35 dB:

2 - 4 GHz,

Attenuation = 0 - 50 dB:

4 - 8 GHz,

Attenuation = 0 - 55 dB:

Impedance:

50

Ω

nom.

VSWR:

1.5:1 max.

Insertion Loss:

0.5 dB max.

CW Power:

10 Watts max.

Operating Temperature:

-- 55° to +85°C

For complete Model Number replace *** with desired Calibration frequency in GHz.

Dial Calibrated in dB Units

Dial with 360° Scale Markings

General Notes:

1. The AU-46 series has been

designed for wideband ECM

systems and other microwave

applications in the 0.5 GHz to 8.0

GHz frequency band where

precise attenuation must be

maintained over a wide variety of

military

and

laboratory

environments.

2. Applications include signal and

LO power control, automatic level

control and impedance matching.

3. The AU-46 series of attenuators

use ferrite absorption of

microwave energy for long term

stability and high reliability. They

can be supplied screened to meet

specific military and commercial

high reliability applications.

28Feb96

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531

AU-46AN Related Products

	AU-46AN	AU-46AX
Description	Variable Attenuator, 500MHz Min, 8000MHz Max, 0.5dB Insertion Loss-Max	Variable Attenuator, 500MHz Min, 8000MHz Max, 0.5dB Insertion Loss-Max
Maker	Merrimac Industries（Crane）	Merrimac Industries（Crane）
Reach Compliance Code	unknow	unknown
Other features	HIGH RELIABILITY	HIGH RELIABILITY
Characteristic impedance	50 Ω	50 Ω
Maximum input power (CW)	40 dBm	40 dBm
Maximum insertion loss	0.5 dB	0.5 dB
Maximum operating frequency	8000 MHz	8000 MHz
Minimum operating frequency	500 MHz	500 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.5	1.5

Recommended Resources

KBC-Ⅱ type programmable power circuit

The working principle of common collector amplifier circuit

Plastic heat sealing machine control circuit

Touch on-off electronic switch circuit diagram

Induction motor speed control circuit
