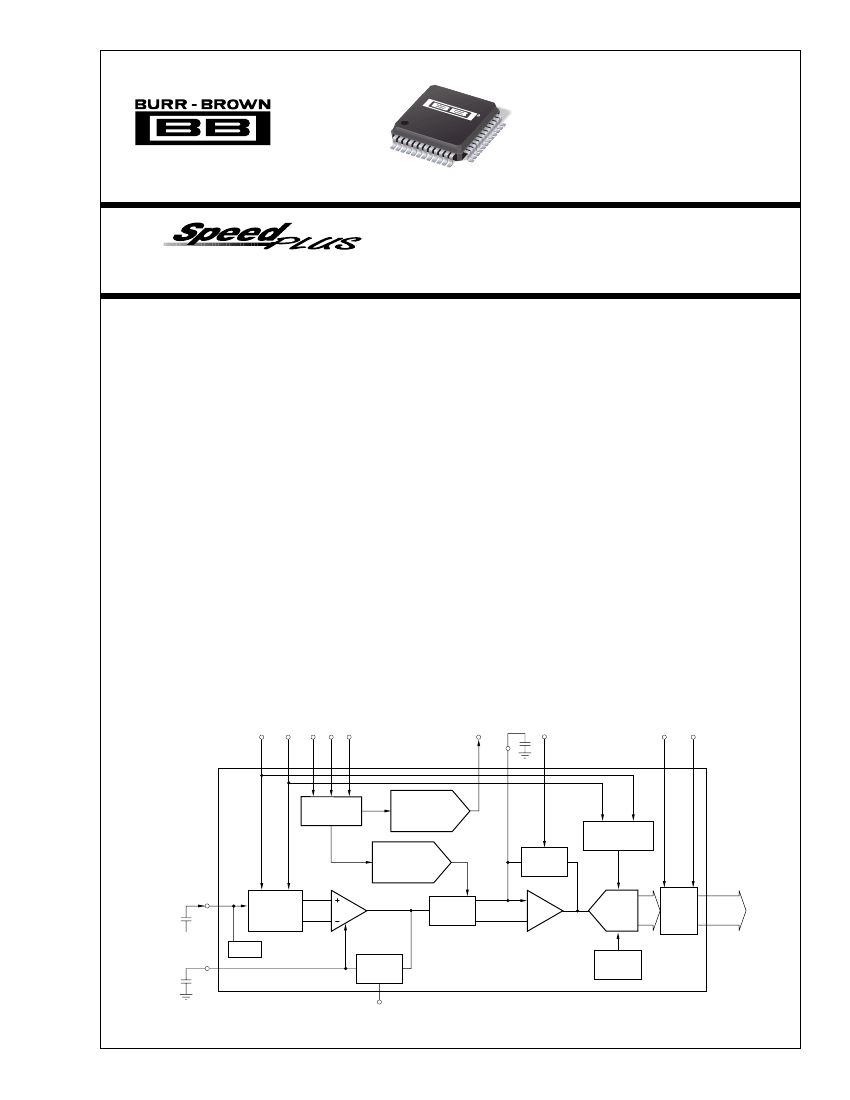

The VSP2100Y is a complete digital camera IC, pro-
viding signal conditioning and 10-bit analog-to-digital
conversion for the output of a CCD array.
The primary CCD channel provides correlated double
sampling to extract the video information from the
pixels, 0dB to +34dB gain ranging with digital control
for varying illumination conditions, and black level
clamping for an accurate black reference.
Input signal clamping and offset correction of the CDS
is also performed. The stable gain control is linear in
dB. Additionally, the black level is quickly recovered
after gain change. An on-chip general purpose 10-bit
digital-to-analog converter allows you to obtain ana-
log control voltage for iris control.
The VSP2100Y is available in a 48-lead LQFP pack-
age and operates from a single +3V supply.
APPLICATIONS
q
q
q
q
VIDEO CAMERAS
DIGITAL STILL CAMERAS
PC CAMERAS
SECURITY CAMERAS
REFCK DATCK
WRT SD SCLK
DAC OUT
OB
ADCK
DRV
DD
C
Serial Port
Register
10-Bit
D/A Converter
(DAC1)
A/D
Timing Control
10-Bit
D/A Converter
(DAC0)
Black Level
Auto-Zero
CCD D
Correlated
Double
Sampling
+6dB
Log VCA
+28dB
10-Bit
A/D
Converter
Output
Latch
10-Bit
Digital
Output
CCD Out
Clamp
CCD R
Dummy
Pixel
Auto- Zero
A/D
Reference
DUMC
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 • Twx: 910-952-1111
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN
assumes no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject
to change without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not
authorize or warrant any BURR-BROWN product for use in life support devices and/or systems.
Analog Input .............................................................. –0.3V to (+V
S
+0.3V)
Logic Input ............................................................... –0.3V to (+V
S
+0.3V)
Case Temperature ......................................................................... +100°C
Junction Temperature .................................................................... +150°C
Storage Temperature ...................................................... –40°C to +150°C
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric
changes could cause the device not to meet its published
specifications.
PACKAGE/ORDERING INFORMATION
PACKAGE
DRAWING
NUMBER
(1)
340
"
SPECIFIED
TEMPERATURE
RANGE
–25°C to +85°C
"
PACKAGE
MARKING
VSP2100Y
"
ORDERING
NUMBER
(2)
VSP2100Y
VSP2100Y/2K
TRANSPORT
MEDIA
50-Piece Tray
Tape and Reel
PRODUCT
VSP2100Y
"
PACKAGE
48-Lead LQFP
"
NOTES: (1) For detailed drawing and dimension table, please see end of data sheet, or Appendix C of Burr-Brown IC Data Book. (2) Models with a slash (/) are
available only in Tape and Reel in the quantities indicated (e.g., /2K indicates 2000 devices per reel). Ordering 2000 pieces of “VSP2100Y/2K” will get a single 2000-
piece Tape and Reel. For detailed Tape and Reel mechanical information, refer to Appendix B of Burr-Brown IC Data Book.
®
3
VSP2100
PIN CONFIGURATION
DACOUT
RESET
AV
DD6
AV
DD5
AV
DD4
AV
DD3
REFN
AV
SS6
AV
SS5
REFP
48
DV
SS1
B10 (LSB)
B9
B8
B7
B6
B5
B4
B3
1
2
3
4
5
6
7
8
9
47
46
45
44
43
42
41
40
39
38
37
36 WRT
35 SCLK
34 SD
33 AV
DD2
32 LCM
31 AV
SS4
VSP2100Y
2.4V
30 TP2
29 TP1
28 AV
SS2
27 CCD R
26 CCD D
25 AV
SS1
24
B2 10
B1 (MSB) 11
DRV
DD
12
13
14
15
16
17
18
19
20
21
22
23
PD
PB
CM
DUMC
OB
REFCK
PIN DESCRIPTIONS
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
DESIGNATOR
DV
SS1
B10 (LSB)
B9
B8
B7
B6
B5
B4
B3
B2
B1 (MSB)
DRV
DD
DRV
SS
DV
SS2
DV
SS3
ADCK
DV
DD
PD
DESCRIPTION
Digital Ground
Bit 10, ADC Output, Least Significant Bit
Bit 9, ADC Output
Bit 8, ADC Output
Bit 7, ADC Output
Bit 6, ADC Output
Bit 5, ADC Output
Bit 4, ADC Output
Bit 3, ADC Output
Bit 2, ADC Output
Bit 1, ADC Output, Most Significant Bit
Digital Power Supply for Digital Outputs (B1-B10)
Digital Ground for Digital Outputs (B1-B10)
Digital Ground
Digital Ground
Clock for Digital Data Output Latch
Digital Power Supply
Power Down: LOW = Normal Operation
HIGH = Reduced Power (digital
output= 0000000000)
Preblanking: LOW = ADC Output: –FS +32LSB
HIGH = ADC Output: Normal
Optical Black Clamp Pulse, Active LOW
CDS Reference Sampling Pulse, Active LOW
CDS Data Sampling Pulse, Active LOW
Dummy Clamp, Active LOW
PIN
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
DESIGNATOR
C
AV
SS1
CCD D
CCD R
AV
SS2
TP1
TP2
AV
SS4
LCM
AV
DD2
SD
SCLK
WRT
2.4V
CM
AV
DD3
AV
DD4
RESET
DACOUT
AV
DD5
AV
DD6
AV
SS5
AV
SS6
REFN
REFP
DESCRIPTION
Capacitor for Optical Feedback Loop
Analog Ground
CCD Signal Input
Capacitor for Dummy Feedback Loop
Analog Ground
Test Pin 1, Open
Test Pin 2, Open
Analog Ground
Attenuator Common-Mode Bypass
Analog Power Supply
Serial Data Input for D/A Converters
Clock for Serial Data Input
Write Pulse for Serial Data Input, Rising Edge Trigger
