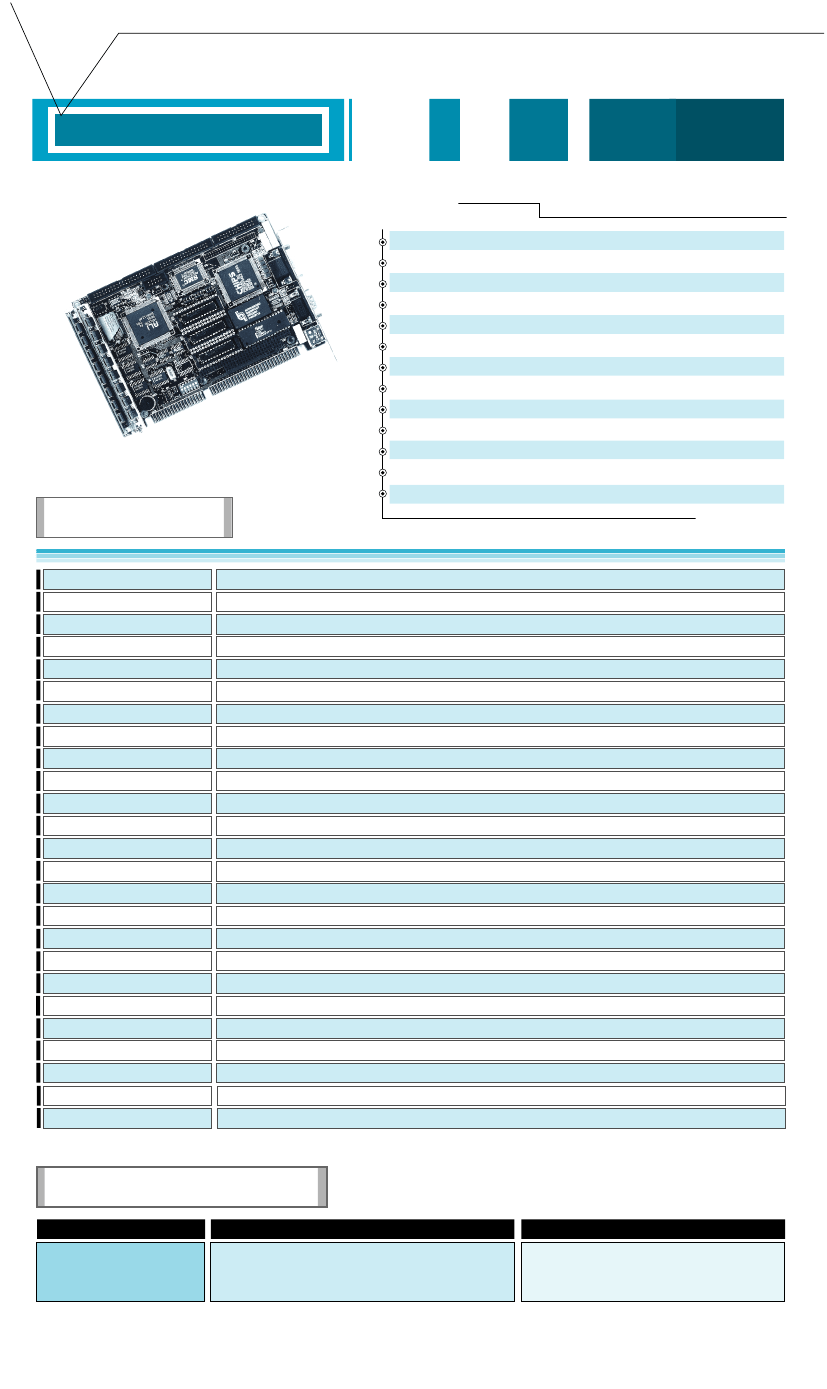

AR-B1376: DescriptionHalf-size 386SX ISA-bus CPU Card with VGA/LCD, DOC, SSD; File Size377KB，1 Pages; ManufacturerETC

Download Datasheet View All

AR-B1376 Overview

Half-size 386SX ISA-bus CPU Card with VGA/LCD, DOC, SSD

Preview

Download Datasheet

View All

Half-size 386SX ISA-bus CPU Card with VGA/LCD, DOC, SSD

AR-B1376

Features

80386SX-33MHz CPU

ISA and non-stack through PC/104 bus

Up to 32MB FPM or EDO RAM

Onboard VGA/LCD panel display

Supports two IDE hard disk devices and two floppy disk device

Up to 3MB Solid State Disk

Supports one Bi-directional parallel port

Supports two serial ports

PC/AT compatible keyboard

AMI BIOS

Built-in status LED indicators

Programmable Watchdog timer

Multi-layer PCB for noise reduction

Specifications

General

CPU

Chipset

Bus Interface

Memory

VGA/LCD Display

IDE

FDD

Parallel Port

Serial Port

Solid State Disk

Keyboard

BIOS

Watchdog Timer

LED Indicator

Bus Speed

DMA Channels

Humidity

Interrupt Levels

Operating Temperature

Power Connector

RTC

Speaker

Storage Temp.

Power Req.

Dimensions

33MHz

ALI M6117C

ISA and non-stack through PC/104 Bus

Up to 32MB FPM or EDO RAM (Using two 72-pin SIMMs)

1MB VRAM (1024 x768 / 256 colors)

Supports one IDE port up to two IDE devices and IDE flash Modules

Supports one FDC port up to two FDDs

Supports one Bi-directional parallel port

Supports oneRS-232C, one RS-232C/485 serial ports

1.5- 3MB Flash/SRAM/EPROM disk(3 socket), one socket for DOC

PC/AT compatible keyboard

AMI Flash BIOS

Programmable watchdog timer

Built-in Power LED, HDD LED and Watchdog LED Indicators

7.159MHz

7 DMA channels

0 to 95% (non-condensing)

15 vectored interrupt levels

0 to 60 Celsius degree (140 degrees F)

One 8-pin (2.5mm) power connector

BQ3287MT or compatible chips

Onboard buzzer and external speaker with 4-pin header

-25 to 85 Celsius degree

+5V, 1.5A Maximum

185 mm x 122 mm

Ordering information:

Model No.

AR-B1376

Description

Half-size 386SX ISA-bus CPU Card with VGA/LCD,

DOC, SSD

Accessories

1. Cable : HDD cable, FDD cable, Print Port Cable

2. Disk : SSD Utility, DOS Driver, Win31 Driver

3. Adapter : AT to PS/2 keyboard Adapter
