RF chokes
LBC series, 5.2 x 12 (mm)
LBC choke (Large Bobbin Core)
Rated inductance 1 ... 100 000 μH
Rated current 20 ... 2200 mA
Construction
■
Large ferrite drum core
■
Winding: enamel copper wire
■
Flame-retardant lacquer coating
B82144A
Features
■
■
■
■
Very wide inductance range
High rated current
Suitable for wave soldering
RoHS-compatible
Applications
■
RF blocking and filtering
■
Decoupling and interference suppression
■
For telecommunications (12- or 16-kHz blocking filter),
automotive electronics, energy-saving lamps,
entertainment electronics
Terminals
■
Central axial leads
■
Base material CuAg0.1
■
Electroplated with nickel and pure tin
Marking
Inductance indicated by color bands to IEC 60062

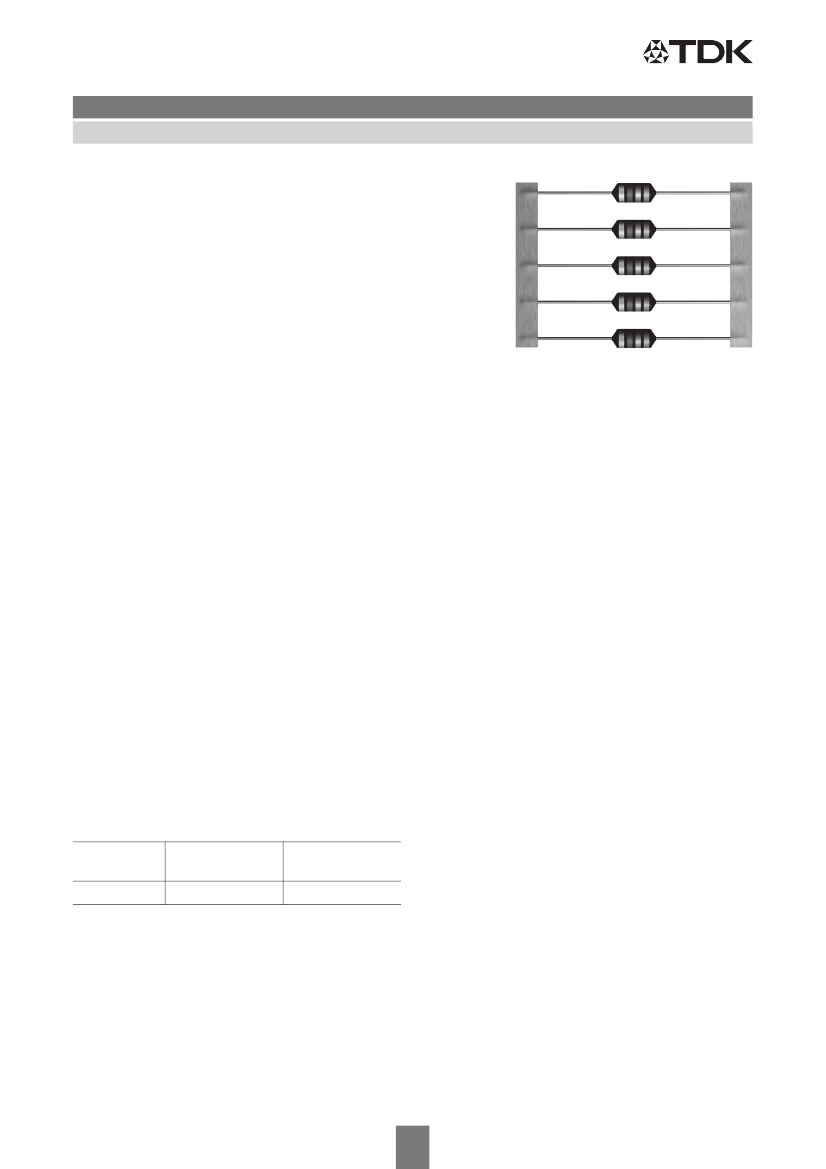

Delivery mode and packing units
■

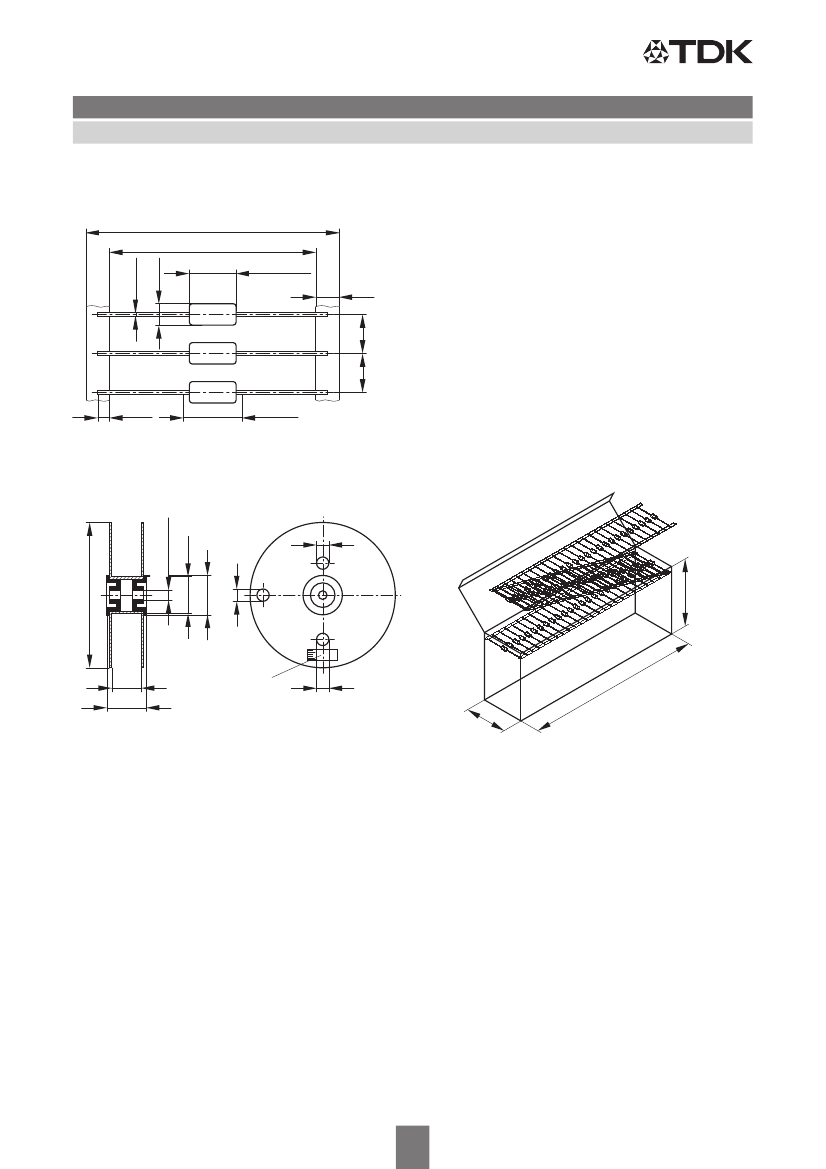

Taped, Ammo and reel packing
■
Packing units:
Ammo
(pcs./pack.)
Axial
1250
Reel
(pcs./reel)
1500
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
06/12
RF chokes
LBC series, 5.2 x 12 (mm)
Technical data and measuring conditions
Rated inductance L
R
B82144A
Measured with LCR meter Agilent 4284A
or impedance analyzer Agilent 4294A
Measuring frequency:
L
R
10 H
= 1 MHz
10 H < L
R
4700 H = 100 kHz
= 10 kHz
L
R
> 4700 H
Measuring current:
1 mA
Measuring temperature: +20 °C
Measured with precision impedance analyzer Agilent 4294A,
+20 °C
+40 C
Maximum permissible DC current at rated temperature
10% (referred to initial value) at I
R
, +20 C
Measured at +20 C
Sn95.5Ag3.8Cu0.7: +(245 5) °C, (3 0.3) s
Wetting of soldering area 90%
(to IEC 60068-2-20, test Ta)
+(260 5) °C, 10 s (to IEC 60068-2-20, test Tb)
20 N (to IEC 60068-2-21, test Ua)
55/125/56 (to IEC 60068-1)
Mounted: –55 °C … +125 °C
Packaged: –25 °C … +40 °C, 75% RH
Approx. 1.1 g
Q factor Q
min
Rated temperature T
R
Rated current I
R
Inductance decrease L/L
0
DC resistance R
max
Solderability (lead-free)
Resonance frequency f
res,min
Measured with Agilent 4294A or 8753ES, +20 °C
Resistance to soldering heat
Tensile strength of leads
Climatic category
Storage conditions
Weight
Mounting information
When bending the leads, take care that the start-of-winding areas at the face ends (protected by
glue and lacquer) are not subjected to any mechanical stress.
