SBD
Type :
EA20QS06
EA20QS06
OUTLINE DRAWING
FEATURES
* TO-251AA Case
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available
Maximum Ratings
Rating
Repetitive Peak Reverse Voltage
Non-repetitive Peak Reverse Voltage
P.C.Board
Average Rectified
mounted *
Output Current
-
RMS Forward Current
Surge Forward Current
Operating JunctionTemperature Range
Storage Temperature Range
Symbol
V
RRM
V
RSM
I
O
I
F(RMS)
I
FSM
Tjw
Tstg
40
1.4
1.7
Ta=33°C
Tc=135°C
Approx Net Weight:0.35g
EA20QS06
60
65
50Hz Half Sine Wave
Resistive Load
Unit
V
V
A
A
A
°C
°C
2.67
50Hz Half Sine Wave,1cycle,
Non-repetitive
- 40 to + 150
- 40 to + 150
Electrical
•
Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Junction to Ambient
Thermal
Resistance
Junction to Case
* Print Land = 20x20 mm
Symbol
Conditions
Min Typ Max
-
-
-
-
-
-
-
-
2.0
0.58
80
7
Unit
mA
V
°C/W
°C/W
I
RM
Tj=25°C,V
RM
=V
RRM
V
FM
Tj=25°C,I
FM
= 1.7 A
Rth(j-a) P.C.Board mounted *
Rth(j-c)
-
EA20QS06 OUTLINE DRAWING (Dimensions in mm)
4
1
2
3
4
1
2
3

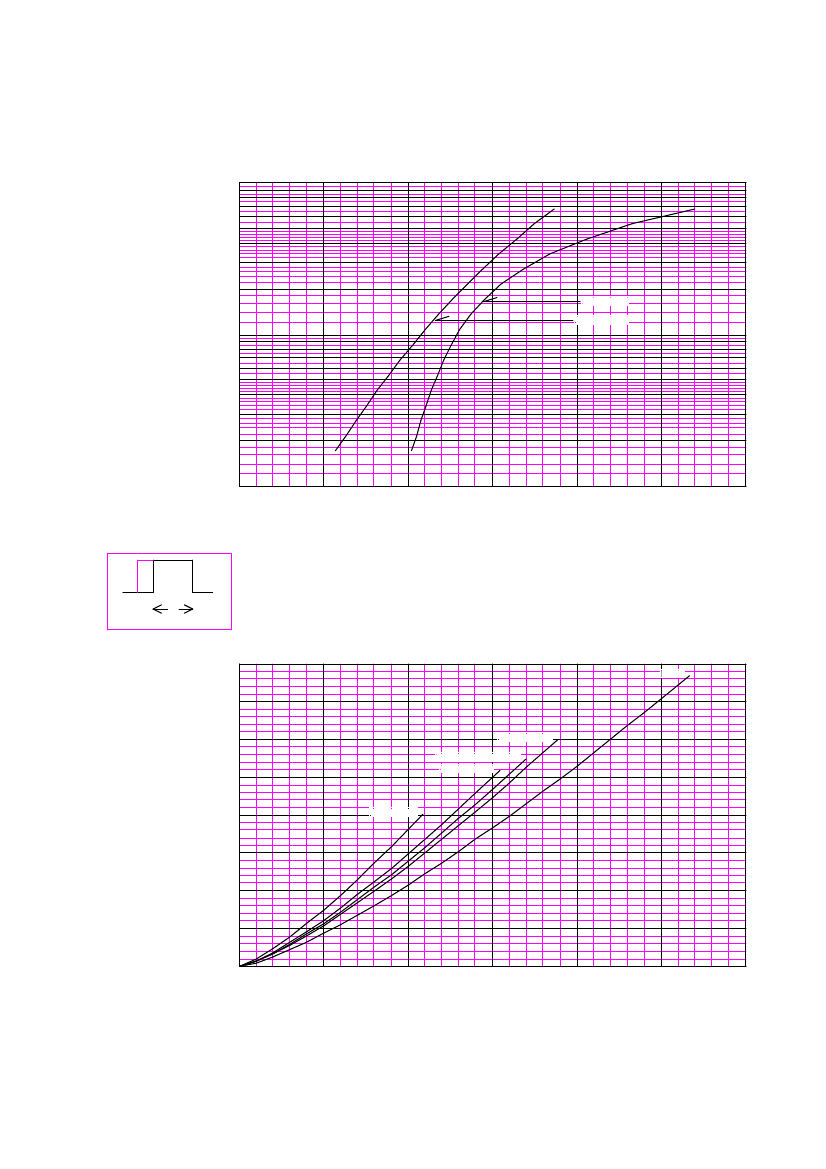

FORWARD CURRENT VS. VOLTAGE
EA20QS06/EA20QS06-F
10
INSTANTANEOUS FORWARD CURRENT (A)
5
2
Tj=25°C
Tj=150°C
1
0.5
0.2
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
INSTANTANEOUS FORWARD VOLTAGE (V)
0°
θ
180°
CONDUCTION ANGLE
AVERAGE FORWARD POWER DISSIPATION
EA20QS06/EA20QS06-F
D.C.
1.6
AVERAGE FORWARD POWER DISSIPATION (W)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
0.5
1.0
1.5
2.0
2.5
3.0
RECT 60°
RECT 180°
HALF SINE WAVE
RECT 120°
AVERAGE FORWARD CURRENT (A)
PEAK REVERSE CURRENT VS. PEAK REVERSE VOLTAGE
Tj= 150 °C
100
EA20QS06/EA20QS06-F
PEAK REVERSE CURRENT (mA)
50
20
10
0
10
20
30
40
50
60
70
PEAK REVERSE VOLTAGE (V)
AVERAGE REVERSE POWER DISSIPATION
EA20QS06/EA20QS06-F
D.C.
4.0
AVERAGE REVERSE POWER DISSIPATION (W)
3.5
RECT 300°
3.0
2.5
2.0
1.5
HALF SINE WAVE
RECT 240°
RECT 180°
1.0
0.5
0
0
10
20
30
40
50
60
70
REVERSE VOLTAGE (V)
0°
θ
180°
CONDUCTION ANGLE

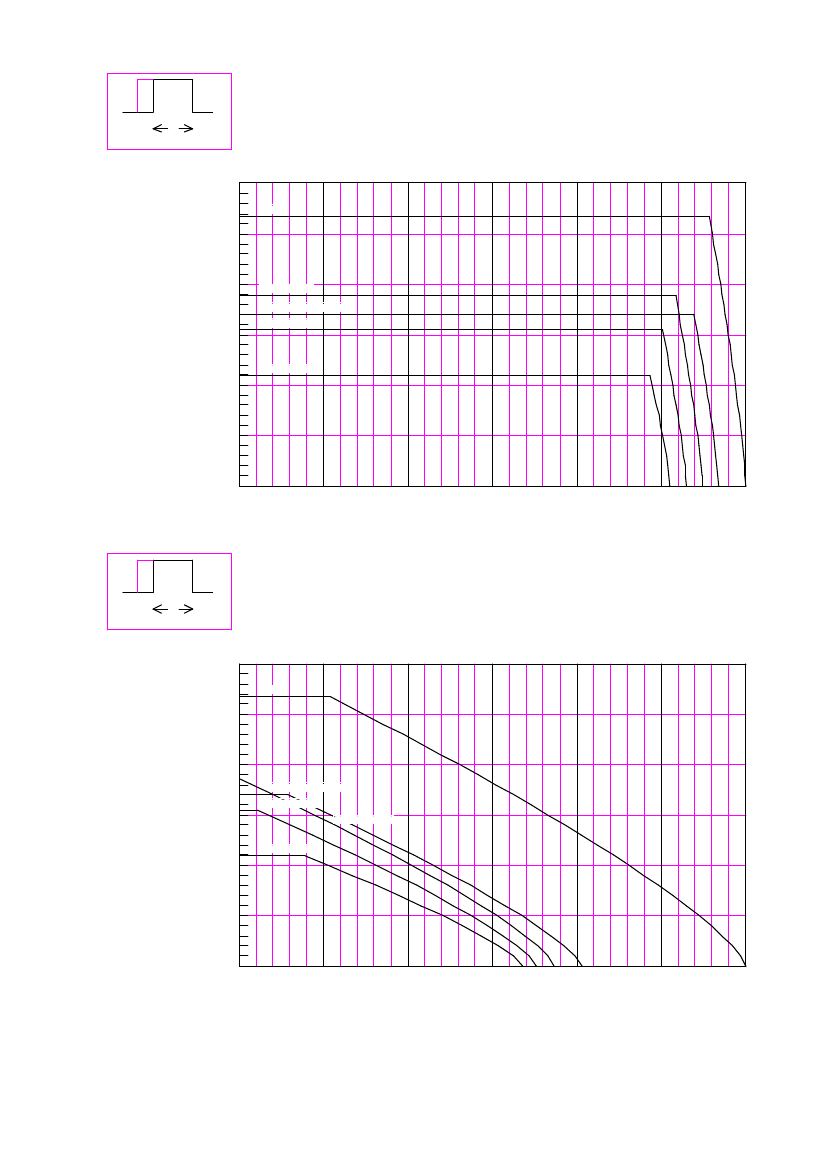

AVERAGE FORWARD CURRENT VS. CASE TEMPERATURE
V
RM
=60 V
EA20QS06/EA20QS06-F
D.C.
3.0
AVERAGE FORWARD CURRENT (A)
2.5
2.0
RECT 180°
HALF SINE WAVE
RECT 120°
1.5
RECT 60°.
1.0
0.5
0
0
25
50
75
100
125
150
CASE TEMPERATURE (°C)
0°
θ
180°
CONDUCTION ANGLE
AVERAGE FORWARD CURRENT VS. AMBIENT TEMPERATURE
P.C. Board mounted (Print land=20×20mm)
EA20QS06/EA20QS06-F
D.C.
3.0
AVERAGE FORWARD CURRENT (A)
2.5
2.0
HALF SINE WAVE.
RECT 120°.
RECT 180°.
RECT 60°.
1.5
1.0
0.5
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (°C)
