SBD
Type :
EA60QC03L
EA60QC03L-F
60QC03
OUTLINE DRAWING
FEATURES
* TO-252AA Case, Surface Mount Device
* Dual Diodes Cathode Common
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 30 Volts thru 100 Volts Types Available
* Packaged in 16mm Tape and Reel
Maximum Ratings
Rating
Repetitive Peak Reverse Voltage
P.C.Board
Average Rectified
mounted *
Output Current
-
RMS Forward Current
Surge Forward Current
Operating JunctionTemperature Range
Storage Temperature Range
Symbol
V
RRM
I
O
I
F(RMS)
I
FSM
Tjw
Tstg
45
2.0
6.0
Ta=20°C
Tc=111°C
Approx Net Weight:0.30g
EA60QC03L-F
30
50Hz Full Sine Wave
Resistive Load
Unit
V
A
A
A
°C
°C
6.66
50Hz Full Sine Wave,1cycle,
Non-repetitive
- 40 to + 150
- 40 to + 150
Electrical
•
Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Junction to Ambient
Thermal
Resistance
Junction to Case
* Print Land = 20x20 mm
Symbol
Conditions
Min Typ Max
-
-
-
-
-
-
-
-
3.0
0.45
80
5
Unit
mA
V
°C/W
°C/W
I
RM
Tj=25°C,V
RM
=V
RRM
per Arm
V
FM
Tj=25°C,I
FM
= 3A per Arm
Rth(j-a) P.C.Board mounted *
Rth(j-c)
-

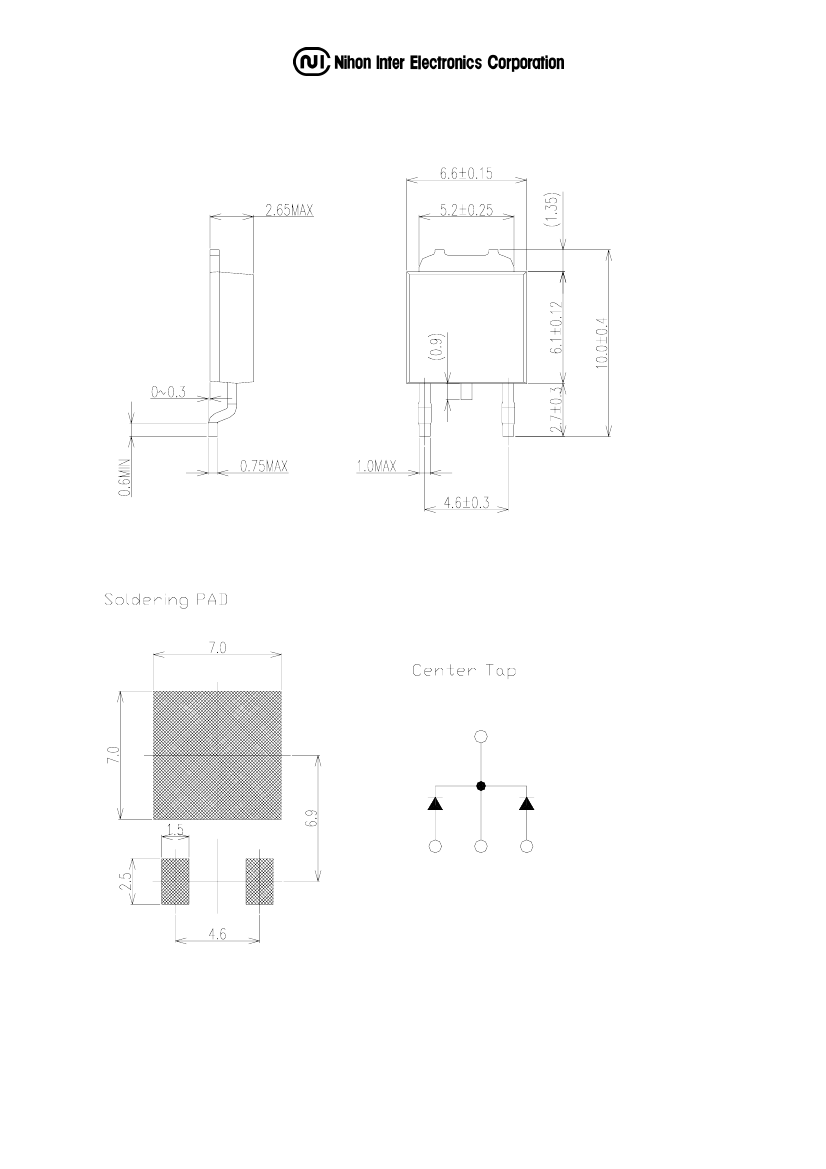

EA60QC03L-F OUTLINE DRAWING (Dimensions in mm)
4
2
1
3
4
1
2
3
FORWARD CURRENT VS. VOLTAGE
EA60QC03L/EA60QC03L-F (per Arm)
20
INSTANTANEOUS FORWARD CURRENT (A)
10
5
2
Tj=25°C
Tj=150°C
1
0.5
0.2
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
INSTANTANEOUS FORWARD VOLTAGE (V)
0°
θ
180°
CONDUCTION ANGLE
AVERAGE FORWARD POWER DISSIPATION
EA60QC03L/EA60QC03L-F (Total)
RECT 180°
3.5
AVERAGE FORWARD POWER DISSIPATION (W)
3.0
SINE WAVE
2.5
2.0
1.5
1.0
0.5
0
0
1
2
3
4
5
6
7
AVERAGE FORWARD CURRENT (A)
PEAK REVERSE CURRENT VS. PEAK REVERSE VOLTAGE
Tj= 150 °C
500
EA60QC03L/EA60QC03L-F (per Arm)
PEAK REVERSE CURRENT (mA)
200
100
50
20
0
5
10
15
20
25
30
35
PEAK REVERSE VOLTAGE (V)
AVERAGE REVERSE POWER DISSIPATION
EA60QC03L/EA60QC03L-F (Total)
AVERAGE REVERSE POWER DISSIPATION (W)
RECT 180°
8
6
SINE WAVE
4
2
0
0
5
10
15
20
25
30
35
REVERSE VOLTAGE (V)
0°
θ
180°
CONDUCTION ANGLE
AVERAGE FORWARD CURRENT VS. CASE TEMPERATURE
V
RM
=30 V
7
EA60QC03L/EA60QC03L-F (Total)
RECT 180°.
SINE WAVE.
AVERAGE FORWARD CURRENT (A)
6
5
4
3
2
1
0
0
25
50
75
100
125
150
CASE TEMPERATURE (°C)
0°
θ
180°
CONDUCTION ANGLE
AVERAGE FORWARD CURRENT VS. AMBIENT TEMPERATURE
P.C. Board mounted (Plint land=20x20mm)
EA60QC03L/EA60QC03L-F (Total)
3.5
AVERAGE FORWARD CURRENT (A)
3.0
2.5
RECT 180°.
2.0
SINE WAVE.
1.5
1.0
0.5
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (°C)
