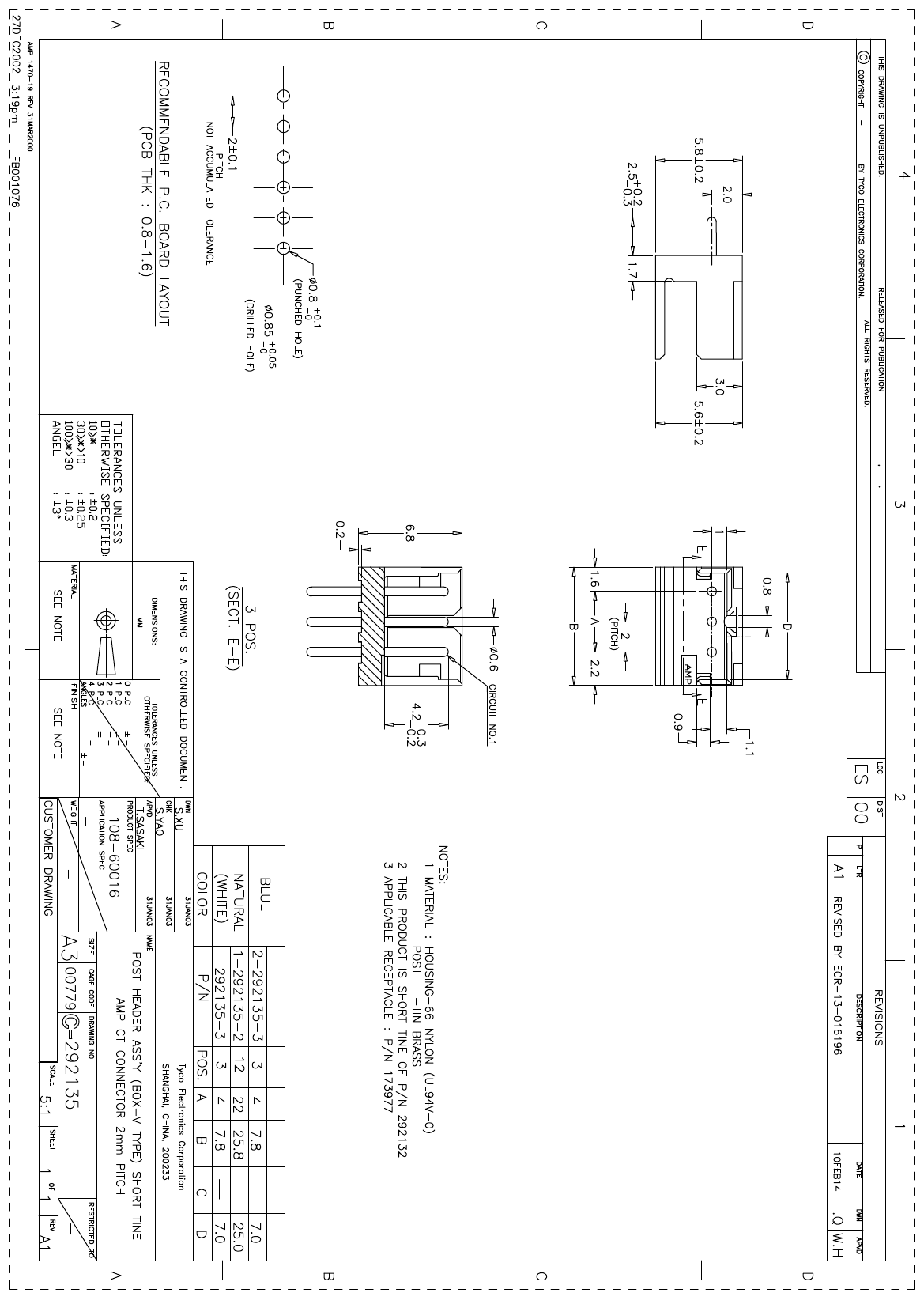

CT BOX HDR V ASSY 12P SHORT TIN
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Connector System | wire to board |
| Connector type | with hood |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| stress relief | Without |
| Cable type | Separate conductor |
| PCB mounting direction | vertical |
| Number of Positions | 12 |
| Rows | 1 |
| Backwall/Post Interruptions | Without |
| Operating voltage (VAC) | 125 |
| Operating voltage (VDC) | 125 |
| Terminal base material | brass |
| Terminal shape | round, round |
| Terminal contact plating material | tin |
| Terminal contact plating thickness | 1 µm [ 39.37 µin ] |
| Terminal type | Pin |
| Contact Current Rating (Max) (A) | 4 |
| PCB terminal termination area plating thickness | 1 µm [ 39.37 µin ] |
| Terminal layout | Direct plug-in |
| Terminal conduction (typ.) | signal (data) |
| PCB terminal termination area plating materials | tin |
| Terminal design | cylinder |
| PCB Termination Methods | Through Hole - Solder |
| PCB installation method | Through hole |
| PCB mounting alignment | Without |
| joint fixation | Without |
| PCB installation and fixation | Without |
| joint alignment | with |
| Joint fixation type | Polar position lock |
| Joint alignment type | polarization |
| Terminal positioning force | Without |
| Centerline (Pitch) (mm) | 2 |
| Shell color | nature |
| Shell material | 66 nylon, 66 nylon |
| high | 6.8 mm [ .267 in ] |
| tail length | 2.5 mm [ .098 in ] |
| width | 5.8 mm [ .228 in ] |
| PCB thickness (recommended) | .8 mm [ .031 – .063 in ] |
| length | 20.8 mm [ .8189 in ] |
| Cable size (AWG) | 28 – 22 |
| Joint post length | 4.2 mm [ .165 in ] |
| Working group temperature range | -40 – 105 °C [ -40 – 105 °F ] |
| pick and place cover | internal |
| UL flammability rating | UL 94V-0 |
| Agencies/Standards | CSA |
| CSA file number | LR 7189 |
| Organization/Standard Number | CSA, UL |
| UL file number | E28476 |
| Encapsulation method | bag/box |
| Package quantity | 1000 |
