EMZR100ADA152MJA0G

Description
Aluminum Electrolytic Capacitors - SMD 10V 1500uF 20% Tol. AEC-Q200
CategoryPassive components
File Size438KB,3 Pages
ManufacturerUnited Chemi-Con (UCC)
Environmental Compliance
Download Datasheet Parametric View All

EMZR100ADA152MJA0G Online Shopping

Suppliers Part Number Price MOQ In stock
EMZR100ADA152MJA0G - - View Buy Now

EMZR100ADA152MJA0G Overview

Aluminum Electrolytic Capacitors - SMD 10V 1500uF 20% Tol. AEC-Q200

EMZR100ADA152MJA0G Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerUnited Chemi-Con (UCC)
Product CategoryAluminum Electrolytic Capacitors - SMD
RoHSDetails
ProductLow ESR Electrolytic Capacitors
Capacitance1500 uF
Voltage Rating DC10 VDC
Tolerance20 %
ESR60 mOhms
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 105 C
Length10.3 mm
Width10.3 mm
Height10 mm
Ripple Current1.19 A
QualificationAEC-Q200
PackagingCut Tape
PackagingMouseReel
PackagingReel
Termination StyleSMD/SMT
TypeAluminum Electrolytic Capacitors, Surface Mount Type
Dissipation Factor DF0.19
Factory Pack Quantity500

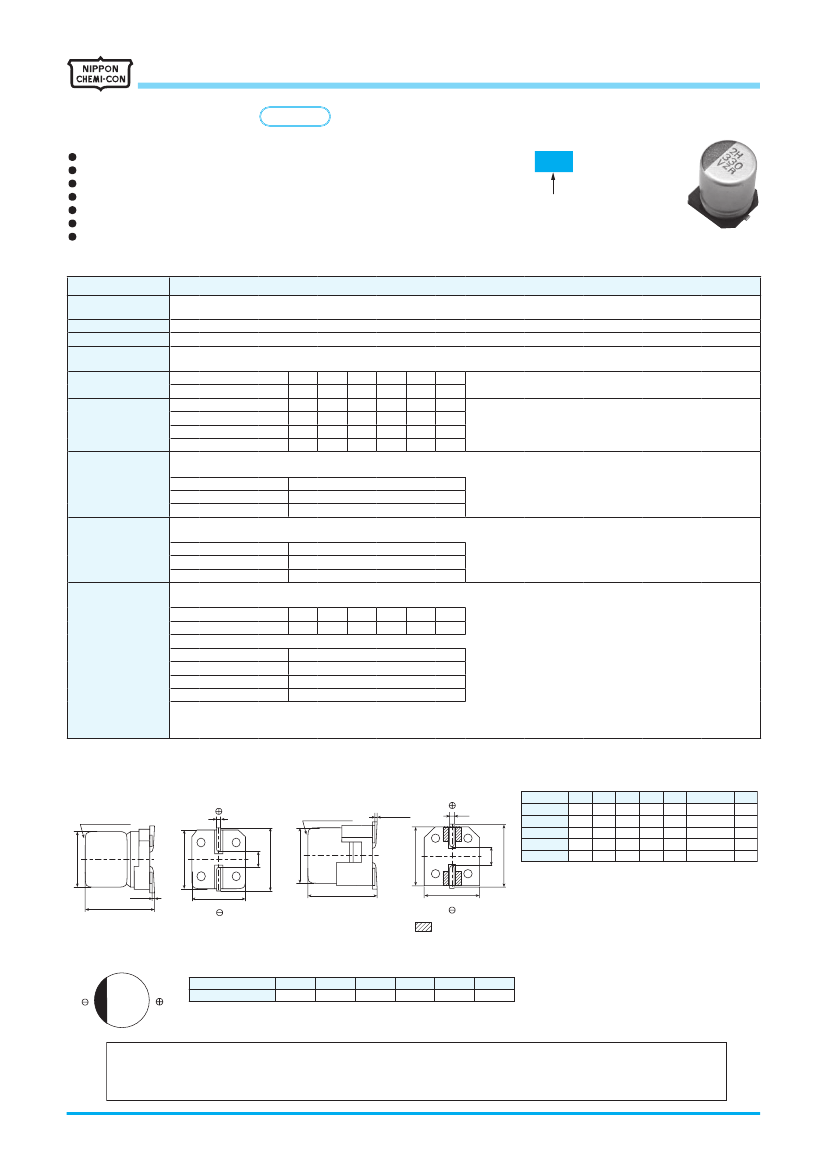

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
AIchip
TM
Low ESR, 105℃
-
・Added
case size
φ5×5.8L
and
φ6.3×5.8L
・Downsizing
and Lower ESR, 2,000hours at 105℃
・Rated
voltage range : 6.3 to 50V, Nominal capacitance range : 22 to 2,200μF
・Solvent
resistant type(see PRECAUTIONS AND GUIDELINES)
・Vibration
resistance structure
・RoHS2
Compliant
・AEC-Q200
compliant : Please contact Chemi-Con for more details, test data, information.
MZR
Series
Upgrade!
MZR
Downsized
MZJ
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
-55 to +105℃
6.3 to 50V
dc
(at 20℃, 120Hz)
±20%
(M)
I=0.01CV or 3μA, whichever is greater.
Where, I : Max. leakage current (μA), C : Nominal capacitance (μF), V : Rated voltage (V)
(at 20℃ after 2 minutes)
Rated voltage (V
dc
)
6.3V 10V 16V 25V 35V 50V
(at 20℃, 120Hz)
tanδ(Max.)
0.26 0.19 0.16 0.14 0.12 0.10
Rated voltage (V
dc
)
6.3V 10V 16V 25V 35V 50V
(at 120Hz)
Z(-25℃)/Z(+20℃)
2
2
2
2
2
2
Z(-40℃)/Z(+20℃)
3
3
3
3
3
3
Z(-55℃)/Z(+20℃)
4
4
4
3
3
3
The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 2,000 hours
at 105℃.
Capacitance change
≦±30%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±30%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The capacitors shall be subjected to 1,000 cycles each consisting of charging with the specified surge voltage for 30±5 seconds through
a protective resistor (as required for RC=0.1±0.05sec) and open-circuiting for 5.5 minutes at a room temperature of 15 to 35℃.
Rated voltage (V
dc
)
6.3V 10V 16V 25V 35V 50V
7.2V 12V 18V 29V 40V 58V
Surge voltage (V
dc
)
Appearance
No significant damage
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
(Caution)
Surge Voltage Test intends to evaluate capacitors in durability of an exceptional excessive voltage under specific conditions.It does
not imply long-term use at all.
Characteristics
Shelf Life
Surge Voltage Test
◆DIMENSIONS
[mm]
Terminal
Code : A
Size code : E61 to JA0
Vent for JA0
φD±0.5
B±0.2
W
φD±0.5
P
C±0.2
Code : G(Vibration resistant structure)
Size code : HA0 and JA0
Size code
Vent for JA0
0.3max.
W
E61
F61
F80
HA0
JA0
Terminal
B±0.2
0.3max.
L±0.3 (Note)
A±0.2
L±0.5
A±0.2
Note : L±0.5 for HA0 and JA0
: Dummy terminals
◆MARKING
EX) 35V330µF
Rated
voltage symbol
6.3
j
10
A
16
C
25
E
35
V
50
H
330
V
ZR
3Q
Rated voltage (V
dc
)
Symbol
Applying voltage over the rated voltages causes the capacitors to have short lifetime.
Besides, applying voltage over the specified surge voltages may cause to have short circuit failure. A protection
circuit should be used if applied voltage will exceed the rated voltages.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
P
C±0.2
D
5
6.3
6.3
8
10
L
A
B
C
5.8 5.3 5.3 5.9
5.8 6.6 6.6 7.2
7.7 6.6 6.6 7.2
10.0 8.3 8.3 9.0
10.0 10.3 10.3 11.0
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
P
1.4
1.9
1.9
3.1
4.5
CAT. No. E1001S
