DFEG7030D-3R3M=P3 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> DFEG7030D-3R3M=P3

Preview

DFEG7030D-3R3M=P3: DescriptionFixed Inductors 3.3uH 29mOhms 5.3A 6.6x7.0mm AEC-Q200; CategoryPassive components inductor; File Size3MB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

DFEG7030D-3R3M=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DFEG7030D-3R3M=P3	-	-	View	Buy Now

DFEG7030D-3R3M=P3 Overview

Fixed Inductors 3.3uH 29mOhms 5.3A 6.6x7.0mm AEC-Q200

DFEG7030D-3R3M=P3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
core material	METAL ALLOY
DC Resistance	0.029 Ω
Nominal inductance(L)	3.3 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rated current	5.4 A
Guideline	AEC-Q200
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

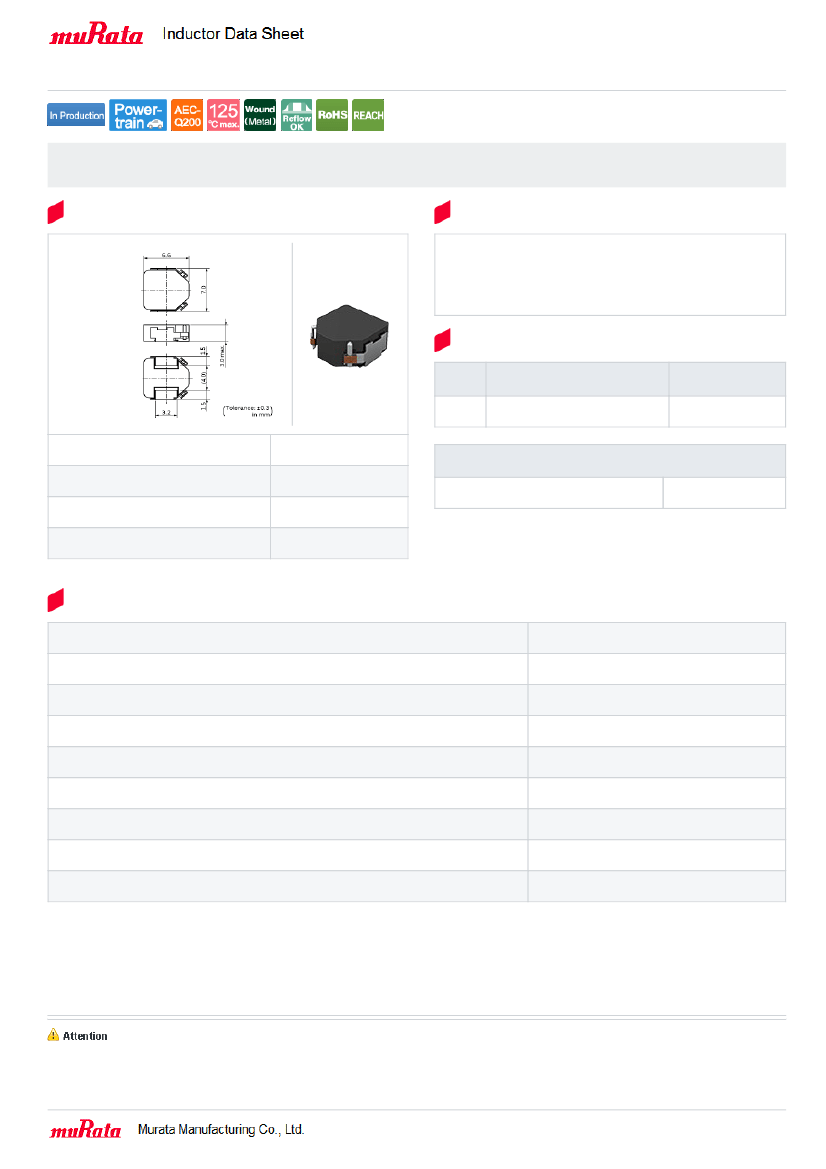

DFEG7030D-3R3M#

< List of part numbers with package codes >

“#” indicates a package specification code.

DFEG7030D-3R3M=P3

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 20%. (The ambient reference temperature is 25℃.)

Rated current (Itemp) is specified when temperature of inductor the is

raised 40℃ by DC current. (The ambient reference temperature is 25℃.)

References

Packaging

code

=P3

Specifications

φ330mm

Embossed taping

Minimum quantity

1000

L size

W size

T size

Size code in inch (mm)

7.0 ±0.3mm

6.6 ±0.3mm

3.0 mm

2726 (7066)

Mass (Typ.)

1 piece

0.6614g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

Absolute maximum voltage

Series

3.3µH ±20%

0.1MHz

5300mA

5400mA

0.0290Ω

-40〜125℃

Metal Alloy

50V DC

DFEG7030D

1 of 3

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/05/20
