033706 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 033706

033706: DescriptionBoard Euro Connector, 80 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Plug,; CategoryThe connector The connector; File Size188KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

033706 Overview

Board Euro Connector, 80 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Plug,

033706 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.618 inch
subject depth	0.453 inch
body length	2.165 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.8618 N
Insulation resistance	1000000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	033704
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C,D,E
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.216 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	80
UL Flammability Code	94V-0
Evacuation force-minimum value	.8618 N
Base Number Matches	1

Preview

Download Datasheet

View All

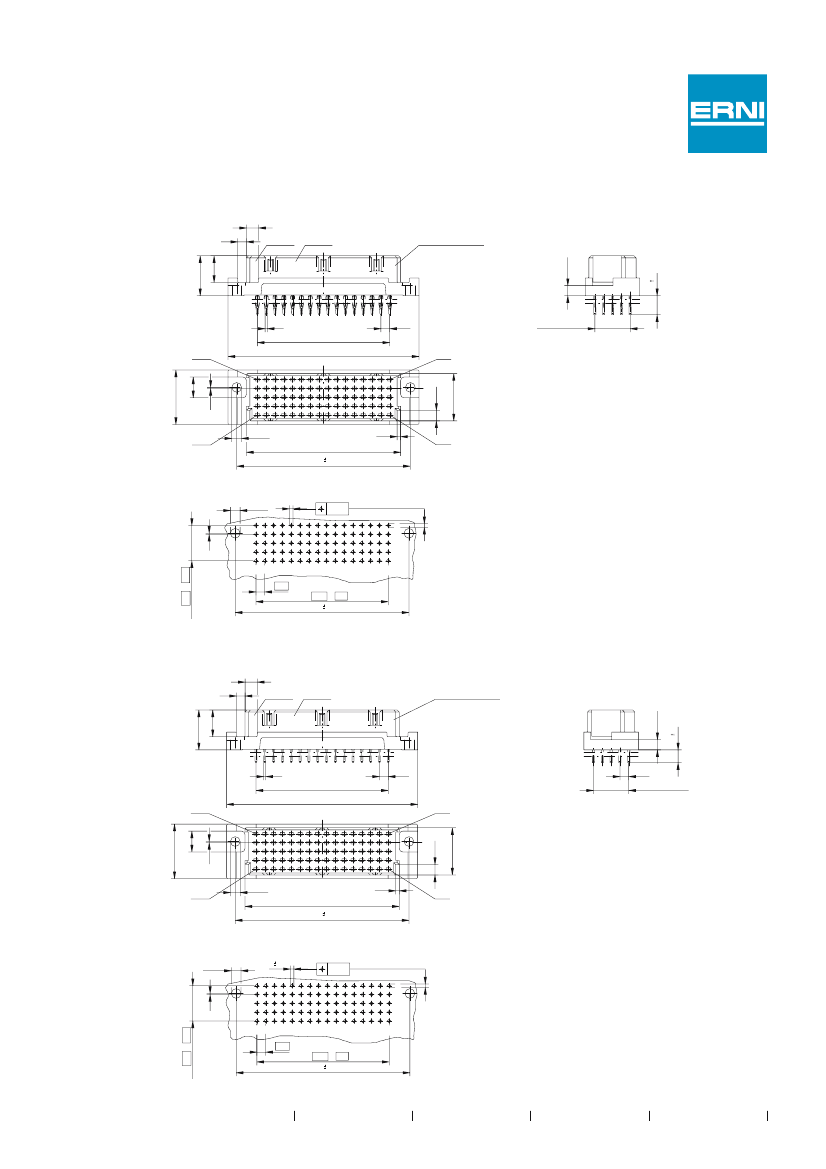

DIN 41612 / IEC 60603-2 Connectors

Type E 80 Female

Dimensional Drawing Pressfit

3,5

2,5

Datum

date

Id.-Nr.

Anforderungsstufe

class

-0,3

11,6 max

2,9

0,6

15 x 2,54 = 38,1

a16

55 max.

2,54

4 x 2.54 =

10,16

15,7

-0,3

0,3

+0,1

2,8

e16

44,4

-0,2

0,1

Leiterplatten-Lochbild /

2,8

PCB drillhole pattern

+0,1

alle Löcher/

0,05

all holes

+ 0,09

- 0,06

+ 0,09

- 0,06

13,6

-0,1

+0,2

ø 1,0

Durchmesser des metallisierten Loches

Diameter of finished plated-through hole

0,3

ø 1,15

0,025

Bohrungsdurchmesser des Loches

ø 1,15

0,025

Diameter of drilled hole

10,16

16 15 14 13 12 11 10 9

4 x 2,54 =

2,54

15 x 2,54 = 38,1

0,1

Dimensional Drawing Solder

3,5

2,5

Datum

date

Id.-Nr.

Anforderungsstufe

class

-0,3

11,6 max

2,9

0,6

15 x 2,54 = 38,1

55 max.

a16

2,54

4 x 2,54 =

15,7

-0,3

0,3

+0,1

2,8

e16

44,4

-0,2

0,1

Leiterplatten-Lochbild /

+0,1

PCB drillhole pattern

0,1

2,8

alle Löcher/

0,05

all holes

10,16

0,3

16 15 14 13 12 11 10 9

4 x 2,54 =

2,54

15 x 2,54 = 38,1

0,1

120

Catalog E 074558

03/06

13,6

-0,1

+0,2

Edition 1

www.erni.com

0,2

7,7

ERNI

XXXXXX

0,2

7,7

ERNI

XXXXXX

033706 Related Products

	033706	043193	033707	043270	123874
Description	Board Euro Connector, 80 Contact(s), 5 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Plug,	Board Euro Connector, 80 Contact(s), 5 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 80 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal	Board Euro Connector, 80 Contact(s), 5 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 80 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal
Reach Compliance Code	compli	unknown	unknown	unknown	unknow
Other features	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	NOT SPECIFIED	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	SOLDER	PRESS FIT	SOLDER	PRESS FIT
Total number of contacts	80	80	80	80	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	GOLD	GOLD	GOLD	-	GOLD
JESD-609 code	e4	e4	e4	-	e4
Maker	-	ERNI	ERNI	ERNI	ERNI
Manufacturer's serial number	-	043193	033707	043270	123874
