Z25YCT52R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> Z25YCT52R

Z25YCT52R: DescriptionCarbon Film Resistors - Through Hole 15 AMP ZERO OHM; CategoryPassive components The resistor; File Size179KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

Z25YCT52R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z25YCT52R	-	-	View	Buy Now

Z25YCT52R Overview

Carbon Film Resistors - Through Hole 15 AMP ZERO OHM

Z25YCT52R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED CURRENT: 15A
structure	Conformal Coated
JESD-609 code	e2
Lead diameter	0.6 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	2.2 mm
Package length	6.1 mm
Package form	Axial
method of packing	TR
Rated temperature	70 °C
resistance
Resistor type	FIXED RESISTOR
surface mount	NO
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

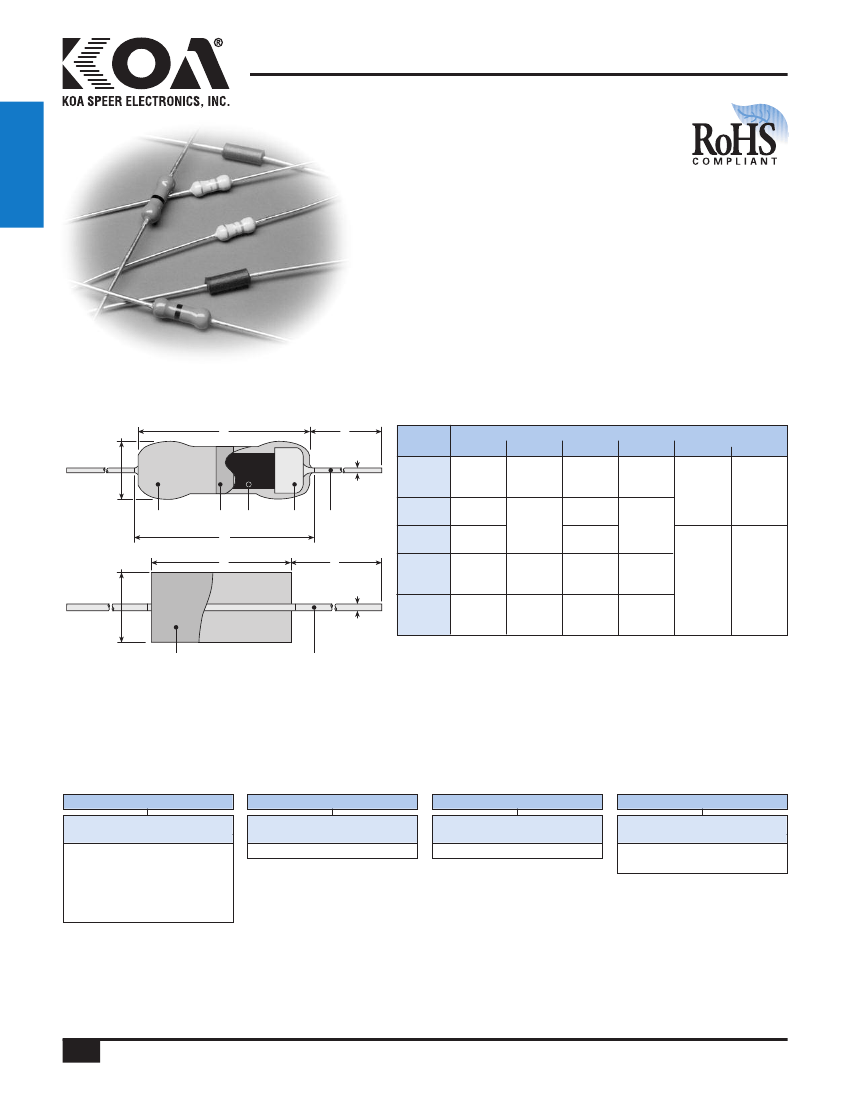

zero ohm jumpers

resistors

features

Type Z are conformal coated

Type J are molded

Suitable for automatic machine insertion

Size compatible with 1/8, 1/4 and 1/2 watt resistors

Marking: Type Z are tan color, single black band identifier

Type J are black, no marking

•

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

•

dimensions and construction

Type Z

Type

Z16

Z25

Z25Y

L (ref.)

Dimensions

inches

(mm)

C (max.)

d (nom.) Standard

.134

(3.4)

.280

(7.1)

.067

+.008

-.004

+0.2

(1.7

-0.1

)

.091±.012

(2.3±0.3)

.087±.004

(2.2±0.1)

.067±.008

(1.7±0.2)

.091

-.012

(2.3

)

-0.3

.018

(0.45)

.024

(0.6)

.020

(0.5)

.024

(0.6)

Long

.126±.008

(3.2±0.2)

.240±.02

(6.1±0.5)

.228

(5.8)

.134

+.004

-.008

(3.4

+0.1

)

-0.2

.256±.02

(6.5±0.5)

.551 Min. .787 Min.

(14.0 Min.) (20.0 Min.)

Insulation Marking Resistive End

Coating

Film

Cap

Type J

Lead

Wire

J1/6Z

––

1.18±.118

(30.0±3.0)

––

J1/4Z

––

Molded Resin

Solder Plated

Copper Wire

Lead length changes depending on taping and forming type.

Forming code S is applied for bulk type.

Long type is custom-made.

ordering information

Z16

Type

Z16

Z25

Z25Y

J1/4Z

J1/6Z

Termination Material

C: SnCu

T52

Taping and Forming

T26, T52

Packaging

A: Ammo

R: Reel

For further information on packaging,

please refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

12/18/12

174

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

Z25YCT52R Related Products

	Z25YCT52R	Z25LT52R	Z25CT52R	Z16CT52R	J1/4ZCT52R	Z25YLT52R	J1/6ZCT52R	Z16L	Z25YL
Description	Carbon Film Resistors - Through Hole 15 AMP ZERO OHM	Carbon Film Resistors - Through Hole ZEROohms JUMPER	Carbon Film Resistors - Through Hole ZEROohms JUMPER	Carbon Film Resistors - Through Hole 1.5 AMP ZERO OHM	Carbon Film Resistors - Through Hole 10 AMP ZERO OHM	Carbon Film Resistors - Through Hole 15 AMP ZERO OHM	Carbon Film Resistors - Through Hole 8 AMP ZERO OHM	Carbon Film Resistors - Through Hole 1.5 AMP ZERO OHM	Carbon Film Resistors - Through Hole 15 AMP ZERO OHM
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Contains lead	Lead free	-	-
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	incompatible	conform to	-	-
package instruction	AXIAL LEADED	-	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	,	AXIAL LEADED	-	-
Reach Compliance Code	compliant	-	compliant	compliant	compliant	not_compliant	compliant	-	-
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	-	-
Other features	RATED CURRENT: 15A	-	RATED CURRENT: 2.5A	RATED CURRENT: 1.5A	RATED CURRENT: 10A	RATED CURRENT: 15A	RATED CURRENT: 8A	-	-
structure	Conformal Coated	-	Conformal Coated	Conformal Coated	Molded	-	Molded	-	-
JESD-609 code	e2	-	e2	e2	e2	e0	e2	-	-
Lead diameter	0.6 mm	-	0.6 mm	0.45 mm	0.6 mm	-	0.5 mm	-	-
Installation features	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	-
Number of terminals	2	-	2	2	2	2	2	-	-
Maximum operating temperature	155 °C	-	155 °C	155 °C	125 °C	-	125 °C	-	-
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-
Package diameter	2.2 mm	-	2.3 mm	1.7 mm	2.3 mm	-	1.7 mm	-	-
Package length	6.1 mm	-	6.1 mm	3.2 mm	6.5 mm	-	3.4 mm	-	-
Package form	Axial	-	Axial	Axial	Axial	-	Axial	-	-
method of packing	TR	-	TR	TR	TR	TR	TR	-	-
Rated temperature	70 °C	-	70 °C	70 °C	70 °C	70 °C	70 °C	-	-
Resistor type	FIXED RESISTOR	-	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	-	-
surface mount	NO	-	NO	NO	NO	NO	NO	-	-
Terminal surface	Tin/Copper (Sn/Cu)	-	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Lead (Sn/Pb)	Tin/Copper (Sn/Cu)	-	-
Terminal shape	WIRE	-	WIRE	WIRE	WIRE	WIRE	WIRE	-	-
Base Number Matches	1	-	1	1	1	1	1	-	-
