MULTILAYER CHIP BEAD INDUCTORS FOR POWER LINES(BK SERIES P TYPE)
WAVE＊
MULTILAYER CHIP BEAD INDUCTORS FOR POWER LINES (BK SERIES P TYPE)
REFLOW
＊Except for BKP0603, BKP1005
■PARTS
NUMBER
*Operating Temp. : -55½+85℃
B
K P
①
1
6
②
0
8
H
③
S
1
8 1
④
－ T △
⑤ ⑥ ⑦
△＝Blank space
①Series name
Code
BKP
Series name
Multilayer chip bead inductor for power line
②Dimensions（L×W）
Code
0603
1005
1608
2125
③Material
Code
HS
HM
TS
TM
EM
Type（inch）
0603（0201）
1005（0402）
1608（0603）
2125（0805）
Dimensions
（L×W）［mm½
0.6×0.3
1.0×0.5
1.6×0.8
2.0×1.25
④Nominal impedance
Code
（example）
330
101
391
⑤Characteristics
Code
－
⑥Packaging
Code
T
⑦Internal code
Code
△
Nominal impedance［Ω½
33
100
390
Characteristics
Standard
NOISE SUPPRESSION COMPONENTS FERRITE BEAD INDUCTORS
Material

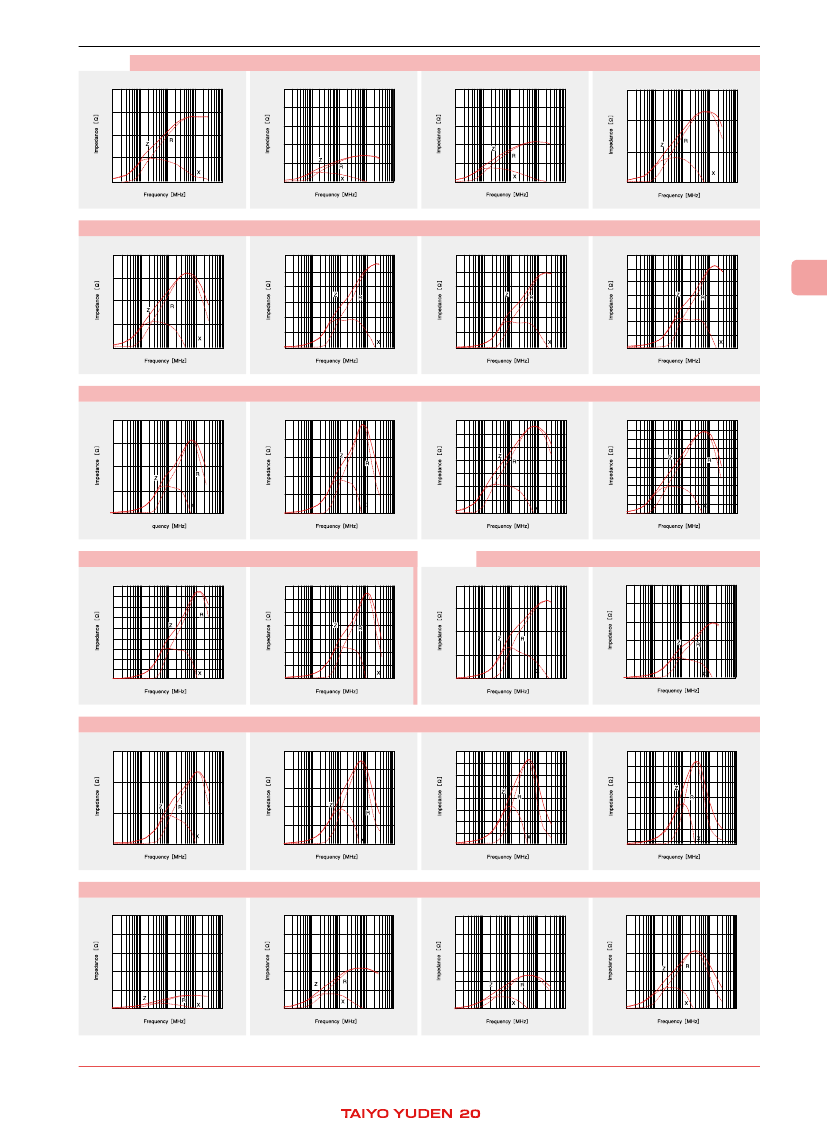

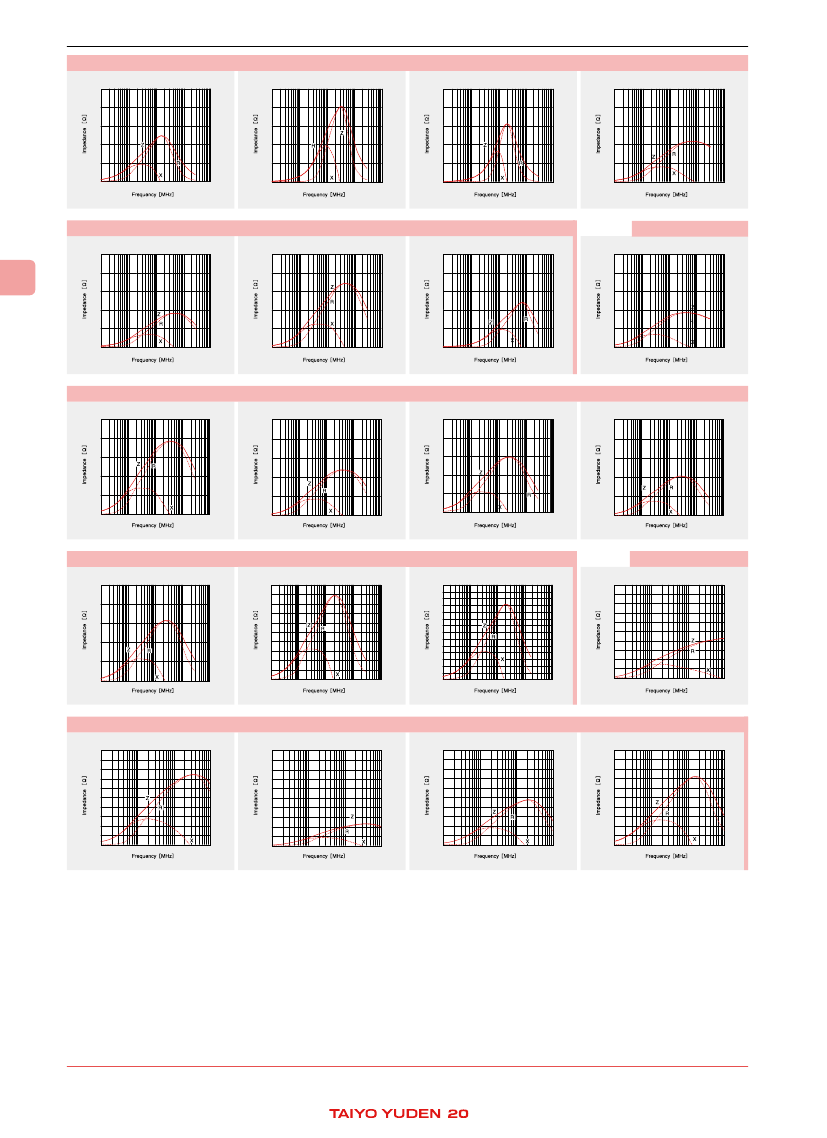

Refer to impedance curves
for material differences
Packaging
Taping
Internal code
Standard
■STANDARD

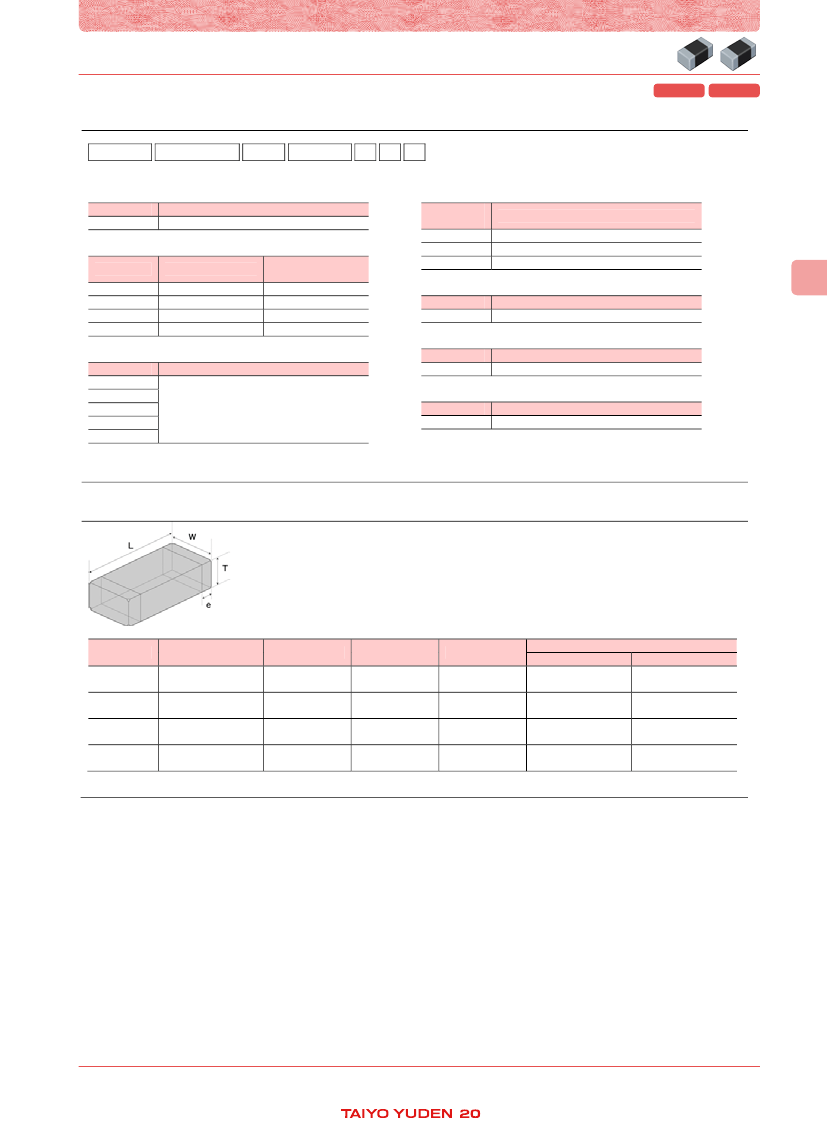

EXTERNAL DIMENSIONS / STANDARD QUANTITY
／
Type
BKP0603
（0201）
BKP1005
（0402）
BKP1608
（0603）
BKP2125
（0805）
L
0.6±0.03
（0.024±0.001）
1.0±0.05
（0.039±0.002）
1.6±0.15
（0.063±0.006）
2.0＋0.3/－0.1
（0.079＋0.012/－0.004）
W
0.3±0.03
（0.012±0.001）
0.5±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
1.25±0.2
（0.049±0.008）
T
0.3±0.03
（0.012±0.001）
0.5±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
0.85±0.2
（0.033±0.008）
e
0.15±0.05
（0.006±0.002）
0.25±0.1
（0.010±0.004）
0.3±0.2
（0.012±0.008）
0.5±0.3
（0.020±0.012）
Standard quantity [pcs]
Paper tape
Embossed tape
15000
10000
4000
4000
－
－
－
－
Unit：mm（inch）
i_mlci_BKP_e-E02R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
