5 Ld Voltage Supervisors with Adjustable Power-On Reset, Dual Voltage
Monitoring or Watchdog Timer Capability
The ISL88011, ISL88012, ISL88013, ISL88014, ISL88015
family of devices offer both fixed and/or adjustable
voltage-monitoring that combine popular functions such as
Power-On reset control, watchdog timer, supply voltage
supervision, and manual reset assertion in a small 5 Ld
SOT-23 package.
Unique features on the ISL88013 and ISL88015 include a
watchdog timer with a 51s start-up timeout and a 1.6s
normal timeout duration. On the ISL88011 and ISL88014,
users can increase the nominal 200ms Power-On reset
timeout delay by adding an external capacitor to the C
POR
pin. Both fixed and adjustable voltage monitors are provided
by the ISL88012. Complementary active-low and active-high
reset outputs are available on the ISL88011, ISL88012 and
ISL88013 devices. All devices provide manual reset
capability (see “Product Features Table” on page 5).
Seven preprogrammed reset threshold voltages accurate to
±1.5% over temperature are offered (see “Ordering
Information” on page 3). The ISL88012, ISL88014 and
ISL88015 have a user-adjustable voltage input available for
custom monitoring of any voltage down to 0.6V. All parts are
specifically designed for low power consumption and high
threshold accuracy.
December 4, 2015
FN8093
Rev 5.00
December 4, 2015
Features
• Single/dual voltage monitoring supervisors
• Fixed-voltage options allow precise monitoring of +2.5V,
+3.0V, +3.3V, and +5.0V power supplies
• Dual supervisor has one fixed voltage input and another
that is user-adjustable down to 0.6V.
• Both RST and RST outputs available
• Adjustable POR timeout delay options
• Watchdog timer with 1.6s normal and 51s start-up timeout
durations
• Manual reset input on all devices
• Reset signal valid down to V
DD
= 1V
• Accurate ±1.5% voltage threshold
• Immune to power-supply transients
• Ultra low 5.5µA supply current
• Small 5 Ld SOT-23 Pb-Free package
• Pb-Free (RoHS Compliant)
Applications
• Process control systems
• Intelligent instruments
• Embedded control systems
• Computer systems
• Critical µP and µC power monitoring
• Portable/battery-powered equipment
• PDA and handheld PC devices
FN8093 Rev 5.00
December 4, 2015
Page 1 of 15
ISL88011, ISL88012, ISL88013, ISL88014, ISL88015
Pinouts
ISL88011
(5 LD SOT-23)
TOP VIEW
RST/MR
1
5
VDD
RST/MR
ISL88012
(5 LD SOT-23)
TOP VIEW
1
5
VDD
GND
2
GND
2
RST
3
4
CPOR
RST
3
4
VMON
ISL88013
(5 LD SOT-23)
TOP VIEW
RST/MR
1
5
VDD
RST/MR
ISL88014
(5 LD SOT-23)
TOP VIEW
1
5
VDD
GND
2
GND
2
RST
3
4
WDI
VMON
3
4
CPOR
ISL88015
(5 LD SOT-23)
TOP VIEW
RST/MR
1
5
VDD
GND
2
VMON
3
4
WDI
FN8093 Rev 5.00
December 4, 2015
Page 2 of 15
ISL88011, ISL88012, ISL88013, ISL88014, ISL88015
Ordering Information
PART NUMBER
(Notes 1, 2, 3)
ISL88011IH546Z-TK
ISL88011IH546Z-T7A
ISL88011IH544Z-TK
ISL88011IH544Z-T7A
ISL88011IH531Z-TK
ISL88011IH531Z-T7A
ISL88011IH529Z-TK
ISL88011IH529Z-T7A
ISL88011IH526Z-TK
ISL88011IH526Z-T7A
ISL88011IH523Z-TK
ISL88011IH523Z-T7A
PART
MARKING V
THVDD
V
THVMON
(Note 4)
(V)
(V)
AGU
AGU
AGV
AGV
AGW
AGW
AGX
AGX
AGY
AGY
AGZ
AGZ
4.64
4.64
4.38
4.38
3.09
3.09
2.92
2.92
2.63
2.63
2.32
2.32
2.19
2.19
4.64
4.64
4.38
4.38
3.09
3.09
2.92
2.92
2.63
2.63
2.32
2.32
2.19
2.19
4.64
4.64
4.38
4.38
3.09
3.09
2.92
2.92
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
TEMPERATURE
RANGE
(°C)
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
PACKAGE
TAPE AND REEL PKG.
(Pb-free)
DWG. #
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23)
5 Ld SOT-23)
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
ISL88011IH522Z-TK
(No longer available, recommended
AHE
replacement: ISL88013IH522Z-TK)
ISL88011IH522Z-T7A
(No longer available,
recommended replacement: ISL88013IH522Z-T7A)
AHE
ISL88012IH546Z-TK
(No longer available or supported)
AHF
ISL88012IH546Z-T7A
(No longer available or supported)
AHF
ISL88012IH544Z-TK
(No longer available or supported)
AHG
ISL88012IH544Z-T7A
(No longer available or supported)
AHG
ISL88012IH531Z-TK
(No longer available or supported)
AHH
ISL88012IH531Z-T7A
(No longer available or supported)
AHH
ISL88012IH529Z-TK
(No longer available or supported)
AHI
ISL88012IH529Z-T7A
(No longer available or supported)
AHI
ISL88012IH526Z-TK
(No longer available or supported)
AHJ
ISL88012IH526Z-T7A
(No longer available or supported)
AHJ
ISL88012IH523Z-TK
(No longer available or supported)
AHK
ISL88012IH523Z-T7A
(No longer available or supported)
AHK
ISL88012IH522Z-TK
(No longer available or supported)
AHL
ISL88012IH522Z-T7A
(No longer available or supported)
AHL
ISL88013IH546Z-TK
(No longer available, recommended
AHM
replacement: ISL88011IH546Z-TK)
ISL88013IH546Z-T7A
(No longer available,
recommended replacement: ISL88011IH546Z-T7A)
ISL88013IH544Z-TK
ISL88013IH544Z-T7A
ISL88013IH531Z-TK
ISL88013IH531Z-T7A
ISL88013IH529Z-TK
ISL88013IH529Z-T7A
AHM
AHN
AHN
AHO
AHO
AHP
AHP
FN8093 Rev 5.00
December 4, 2015
Page 3 of 15
ISL88011, ISL88012, ISL88013, ISL88014, ISL88015
Ordering Information
(Continued)
PART
MARKING V
THVDD
V
THVMON
(Note 4)
(V)
(V)
AHQ
AHQ
AHR
AHR
AHS
AHS
AHT
AHT
AHU
2.63
2.63
2.32
2.32
2.19
2.19
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
0.6 (Note 2)
TEMPERATURE
RANGE
(°C)
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
PACKAGE
TAPE AND REEL PKG.
(Pb-free)
DWG. #
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
P5.064
PART NUMBER
(Notes 1, 2, 3)
ISL88013IH526Z-TK
ISL88013IH526Z-T7A
ISL88013IH523Z-TK
(No longer available,
recommended replacement: ISL88011IH523Z-TK)
ISL88013IH523Z-T7A
(No longer available,
recommended replacement: ISL88011IH523Z-T7A)
ISL88013IH522Z-TK
ISL88013IH522Z-T7A
ISL88014IH5Z-TK
ISL88014IH5Z-T7A
ISL88015IH5Z-TK
(No longer available or supported)
ISL88015IH5Z-T7A
(No longer available or supported)
AHU
ISL88011EVAL1Z
ISL88013EVAL1Z
ISL88014EVAL1Z
NOTES:
ISL88011 Evaluation Card
ISL88013 Evaluation Card
ISL88014 Evaluation Card
1. These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte
tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil Pb-
free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
2. The voltage trip point can be adjusted to be greater than 0.6V using 2 external resistors. By default, the VTHVMON trip point is 0.6V if no external
resistors are used.
3. For Moisture Sensitivity Level (MSL), please see device information page for ISL88011, ISL88012, ISL88013, ISL88014, ISL88015. For more
information on MSL please see techbrief TB363.
4. The part marking is located on the bottom of the part.

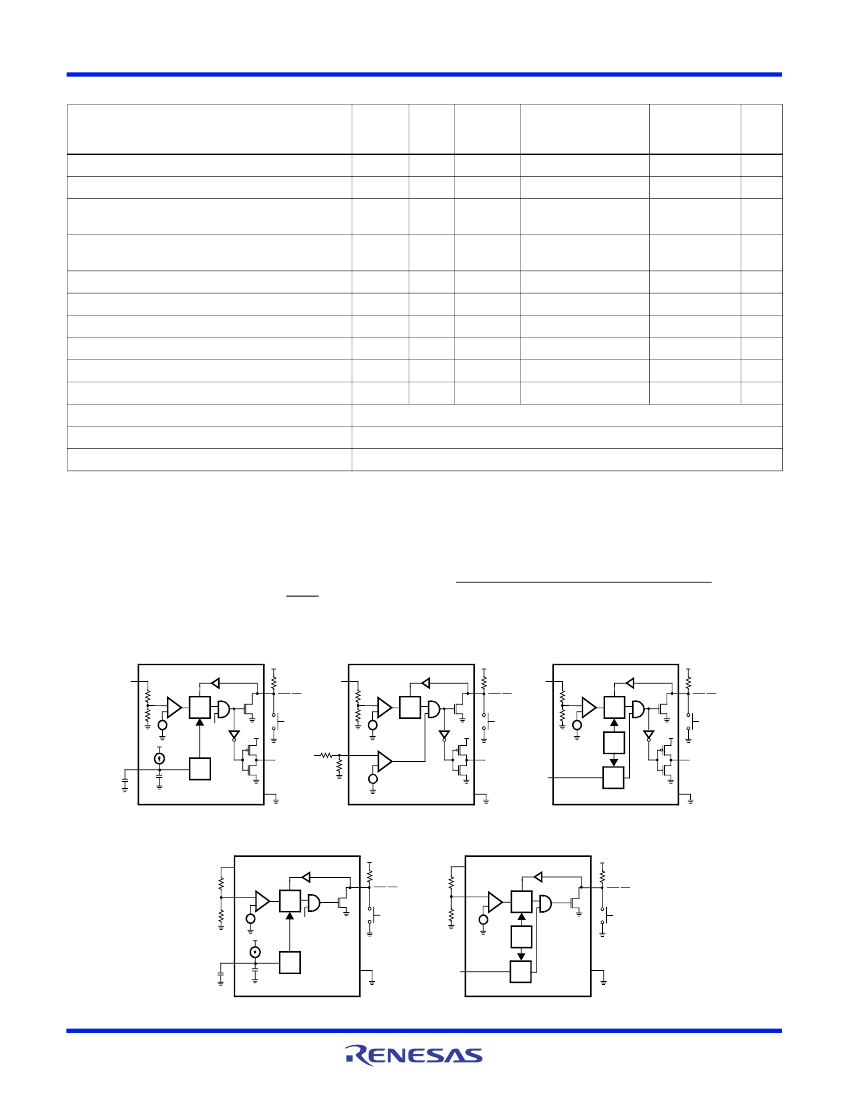

Functional Block Diagrams
V
DD
RST/MR
POR
± V
THMON
V
DD
PB
± V
THMON
VMON
C
POR
RST
OSC
± V
REF
GND
GND
WDI
WDT
GND
RST
POR
PB
± V
THMON
OSC
RST
V
DD
RST/MR
POR
PB
V
DD
RST/MR
ISL88011
ISL88012
ISL88013
V
DD
R
1
VMON
R
2
± V
THMON
POR
V
DD
PB
R
1
RST/MR
VMON
R
2
V
DD
RST/MR
POR
± V
THMON
OSC
PB
C
POR
OSC
GND
WDI
WDT
GND
ISL88014
ISL88015
FN8093 Rev 5.00
December 4, 2015
Page 4 of 15
ISL88011, ISL88012, ISL88013, ISL88014, ISL88015
Product Features Table
FUNCTION
Active-Low Reset (RST)
Active-High Reset (RST)
Watchdog Timer (WDI)
Dual Voltage Supervision
Adjustable POR Timeout (C
POR
)
Manual Reset Input (MR)
Fixed Trip Point Voltage
Adjustable Trip Point Voltage
x
x
x
x
x
x
x
x
x
x
x
x
x
x
ISL88011
x
x
ISL88012
x
x
ISL88013
x
x
x
x
ISL88014
x
ISL88015
x
Pin Descriptions
PIN
ISL88011
1
2
ISL88012
1
2
4
3
4
4
5
5
5
5
3
3
4
4
5
ISL88013
1
2
ISL88014
1
2
3
ISL88015
1
2
3
NAME
RST/MR
GND
VMON
RST
C
POR
WDI
V
DD
FUNCTION
Combined Active-Low Reset Output and Manual Reset Input
[i=s]This post was last edited by zca123 on 2014-7-24 21:07[/i] Chengdu has been like a steamer these past two days. It should be similar everywhere in the country. The dog days of summer are really n...
Tianqian Technology exclusively launches the application development tutorial and source code based on QT4, welcome to download. The source code includes the following:...
Dual-mode inverters can operate both in conjunction with the grid and independently. These inverters can inject excess energy from renewable energy and storage devices into the grid, and withdraw p...[Details]
1. Equipment Overview
Shell-and-tube heat exchangers are a common heat exchange device used in chemical evaporation and heating equipment. Currently, the tubesheets of shell-and-tube heat exch...[Details]
EtherCAT (Ethernet for Control Automation Technology) is a real-time industrial fieldbus communication protocol based on an Ethernet-based development framework. EtherCAT is one of the fastest indu...[Details]
In recent years, with the application of the IEC61850 standard and the development and deployment of optoelectronic transformers, the concept of digital substations has been put into practical use ...[Details]
Capable of providing precise and efficient thermal management for artificial intelligence computing power, intelligent sensing and autonomous driving systems
Shenzhen, ...[Details]
summary
There are multiple approaches to making industrial systems more intelligent, including applying artificial intelligence (AI) technology at the edge and in the cloud to sensor...[Details]
For healthcare professionals, accurate diagnosis and treatment are crucial for a clear picture of a person's health. However, healthcare professionals often rely on tests at medical facilities, cli...[Details]
Gross profit margin jumped from 13.6% in the first half of last year to 25.9%, almost doubling year-on-year.
On August 21, RoboSense released its interim performance report, in which the...[Details]
On August 22, South Korean media Nate reported on the 20th local time that Samsung Electronics is introducing Hyper Cell technology into its most advanced 2nm process technology, striving to improv...[Details]
Since its invention in the mid-1940s, the microwave oven has evolved from a humble beginning to commercial use, entering homes in the 1960s and rapidly gaining popularity. Its basic functionality a...[Details]
introduction
According to the China Fire Statistics Yearbook, electrical fires accounted for more than 30% of fire accidents in the past decade, and the trend is increasing year by year. They ...[Details]
Through AI connection technology supported by Qualcomm X85 5G modem and RF and Qualcomm FastConnect 7900 mobile connection system, seamless switching can be achieved between cellular net...[Details]
PowiGaN achieves 95% efficiency at both light and full loads, meeting critical operational and safety requirements.
DARWIN, Australia and SAN JOSE, Calif.,
August 22, 2025 – Powe...[Details]
With growing environmental awareness, the continuous improvement of three-electric technology and the increasing deployment of infrastructure such as charging stations, the electrification of new e...[Details]
Smartphones can be incredibly unintelligent. For example, consider an office full of people, each absorbed in their work. Suddenly, the silence is broken by a burst of loud pop music. A colleague's...[Details]
Integrated technical exchanges
京公网安备 11010802033920号
EEWORLD
