NJU7201U35: DescriptionLDO Voltage Regulators CMOS 3-Term Pos. Vltg Reg; Categorysemiconductor Power management; File Size239KB，7 Pages; ManufacturerNJR; Environmental Compliance

Download Datasheet Parametric View All

NJU7201U35 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NJU7201U35	-	-	View	Buy Now

NJU7201U35 Overview

LDO Voltage Regulators CMOS 3-Term Pos. Vltg Reg

NJU7201U35 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	NJR
Product Category	LDO Voltage Regulators
RoHS	Details
Mounting Style	SMD/SMT
Package / Case	SOT-89-3
Output Voltage	3.5 V
Output Current	100 mA
Number of Outputs	1 Output
Polarity	Positive
Input Voltage MAX	12 V
Output Type	Fixed
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 75 C
Load Regulation	180 mV
Dropout Voltage	0.2 V at 20 mA
Packaging	Cut Tape
Packaging	Reel
Height	1.5 mm
Length	4.5 mm
Width	2.5 mm
Dropout Voltage - Max	600 mV
Line Regulation	0.1 % / V
Pd - Power Dissipation	0.3 W
Factory Pack Quantity	1000
Unit Weight	0.004603 oz

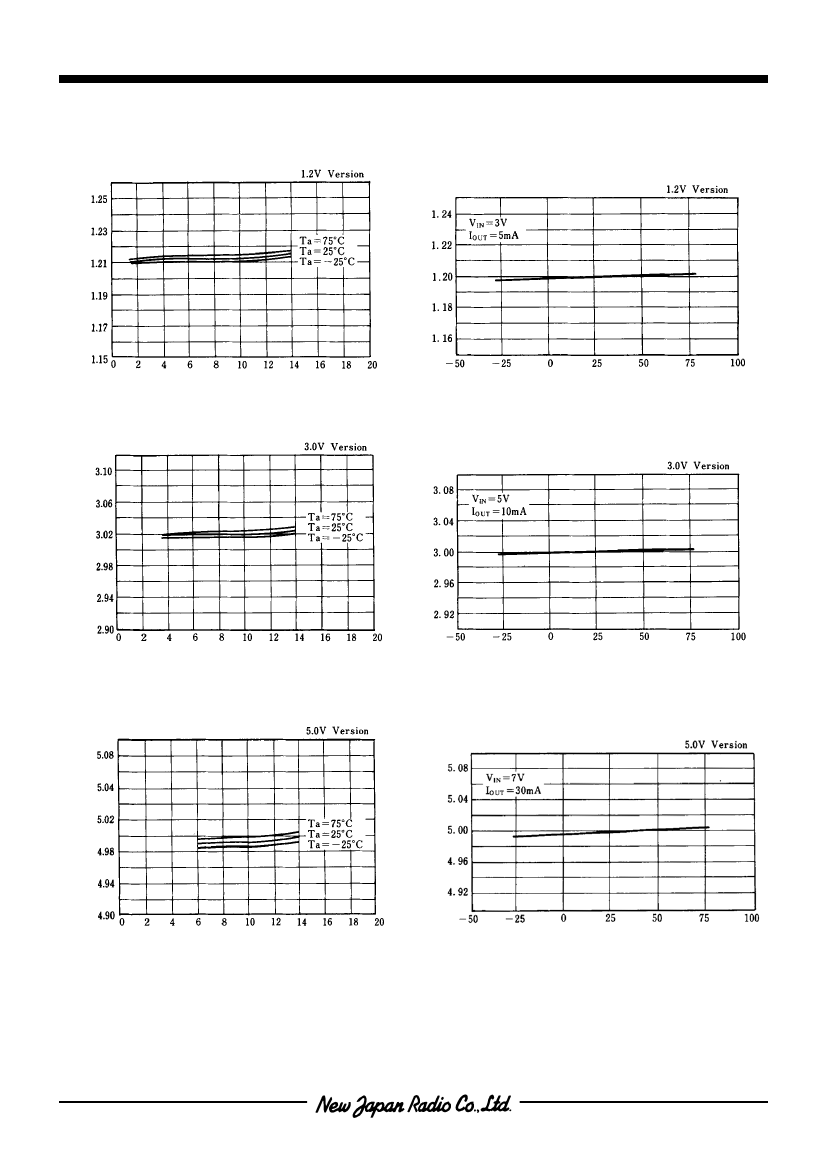

Preview

Download Datasheet

View All

NJU7201 Series

C-MOS 3-TERMINAL POSITIVE VOLTAGE REGULATOR

■

GENERAL DESCRIPTION

The

NJU7201 series

is a C-MOS 3-terminal positive voltage

regulator which contains internal accurate voltage reference, error

amplifier, control transistor and output voltage setting resistor.

The regulation voltage is fixed by internal circuits and the following

line-up of different output voltage versions are available.

The

NJU7201 series

is suitable for battery operated items and

battery back-up systems because of low operating current and low

dropout voltage.

■

FEATURES

•

Low Operating Current

(19μA typ.)

•

Wide Operating Voltage Range

•

Low Dropout Voltage

(ΔV

< 0.3V 1.2 to 1.5V output, I

OUT

= 0.5mA)

(ΔV

< 0.6V 2.5 to 3.5V output, I

OUT

= 20mA)

(ΔV

< 0.6V 4.0 to 5.5V output, I

OUT

= 40mA)

•

Small Temperature Coefficient of Output Voltage

•

Package Outline

(SOT-89)

•

C-MOS Technology

■

PACKAGE OUTLINE

NJU7201U

(SOT-89)

■

TERMINAL DESCRIPTION

No.

Description

GND

Input

Output

■

OUTPUT VOLTAGE LINE-UP

Output Voltage SOT-89 Type Output Voltage

SOT-89 Type

+1.2V

NJU7201U12

+3.5V

NJU7201U35

+1.5V

NJU7201U15

+4.0V

NJU7201U40

+2.5V

NJU7201U25

+4.5V

NJU7201U45

+2.7V

NJU7201U27

+5.0V

NJU7201U50

+3.0V

NJU7201U30

+5.2V

NJU7201U52

+3.2V

NJU7201U32

+5.5V

NJU7201U55

Note1) The SOT-89 type name is different from the marking, so it refer to attached paper correspondence table.

■

EQUIVALENT CIRCUIT

OUT

REF

GND

Ver.2007-02-14

-1-
