PAM8006A
15W STEREO CLASS-D AUDIO POWER AMPLIFIER WITH POWER LIMIT
Description
The PAM8006A is a 15W (per channel) stereo Class-D audio
amplifier which offers low THD+N (0.2%), low EMI and good PSRR
thus high quality sound reproduction.
The PAM8006A runs off of an 8V to 18V supply at much higher
efficiency than competitors’ Ics.
The PAM8006A only requires very few external components,
significantly saving cost and board space.
The PAM8006A is available in a QFN5x5-32L package.
Pin Assignments
Features
15W x2 into a 8Ω speaker
Low Noise: -90dB
Over 90% Efficiency
With Shutdown/Mute Function
Over Current ,OVP,UVLO,Thermal and Short-Circuit Protection
Low THD+N
Power Limit with Non-Clip
Low Quiescent Current
Pop Noise Suppression
Small Package Outlines: QFN5x5-32L
Pb-Free Package (RoHS Compliant)
Applications
Flat Monitor /LCD TVs
Multi-Media Speaker System
DVD Players, Game Machines
Boom Box
Music Instruments
Typical Applications Circuit
PAM8006A
Document number: DSxxxxx Rev. 1 - 0
1 of 13
www.diodes.com
April 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
PAM8006A
Pin Descriptions
Pin Number
1, 8, 17, 24
2
3
4
5
6
7
9, 16
10, 15
11
12
13
14
18
19
20
21
22
23
25, 32
26, 31
27
28
29
30
33
Package Name
NC
RINN
RINP
MUTE
AVDD
LINP
LINN
PGNDL
PVCCL
LOUTN
BSLN
BSLP
LOUTP
PL
V2P5
AGND
VCLAMP
AVCC
SD
PGNDR
PVCCR
ROUTP
BSRP
BSRN
ROUTN
Thermal Pad
Function
Not Connected
Negative differential audio input for right channel.
Positive differential audio input for right channel.
A logic high on this pin disables the outputs and a logic low enables the outputs.
5V Analog Supply
Positive differential audio input for left channel.
Negative differential audio input for left channel.
Power ground for left channel H-bridge.
Power supply for left channel H-bridge, not connected to PVCCR or AVCC.
Class-D 1/2-H-bridge negative output for left channel.
Bootstrap I/O for left channel, negative high-side FET.
Bootstrap I/O for left channel, positive high-side FET.
Class-D 1/2-H-bridge positive output for left channel.
Reference voltage for power limit function.
2.5V Reference for analog cells.
Analog Ground
Internally generated voltage supply for bootstrap capacitors.
High-voltage analog power supply (8V to 26V)
Shutdown signal for IC (low= shutdown, high = operational). TTL logic levels
with compliance to V
CC
.
Power ground for right channel H-bridge.
Power supply for right channel H-bridge, not connected to PVCCL or AVCC.
Class-D 1/2-H-bridge positive output for right channel.
Bootstrap I/O for right channel, positive high-side FET.
Bootstrap I/O for right channel, negative high-side FET.
Class-D 1/2-H-bridge negative output for right channel.
Connect to ground. Thermal pad should be soldered down on all
applications to secure the device properly to the printed wiring board.
PAM8006A
Document number: DSxxxxx Rev. 1 - 0
2 of 13
www.diodes.com
April 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
PAM8006A

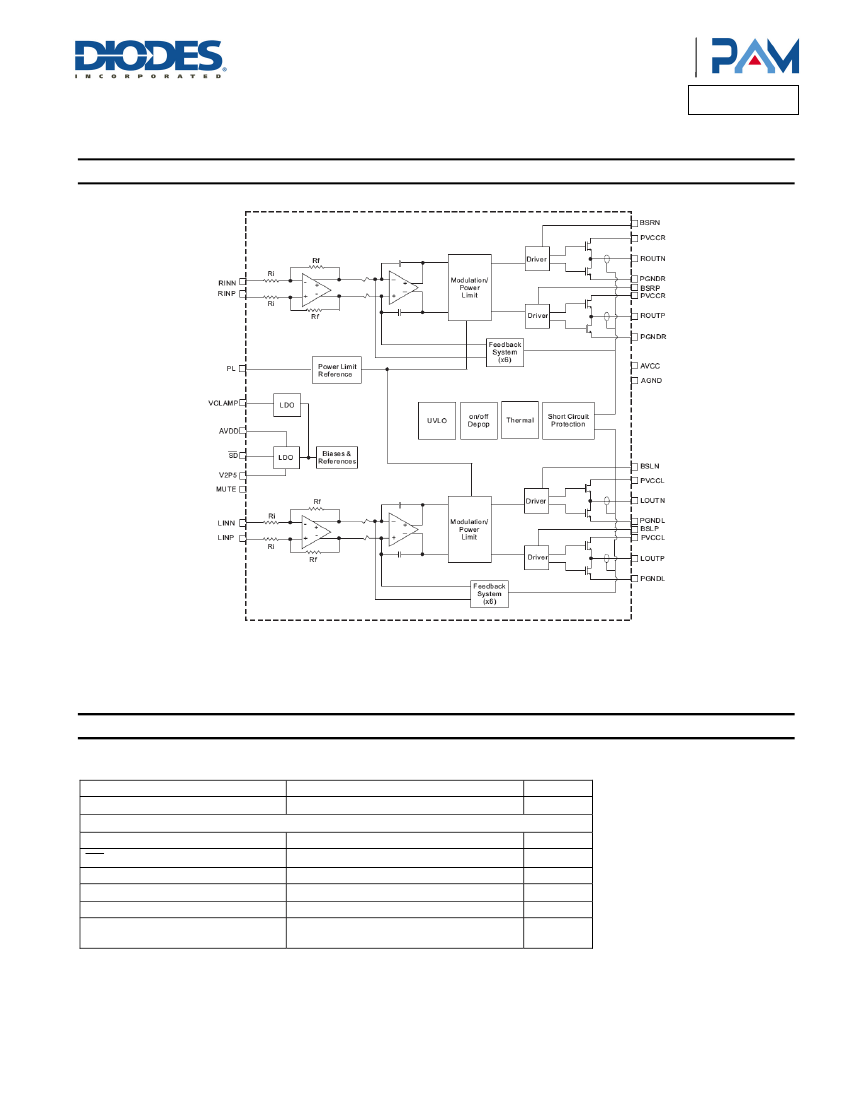

Functional Block Diagram
Notes:
Maximum Gain: R
I
= 12.5k, R
F
= 100k;
Power Limit Function: R
I
and R
F
are adjustable.
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may affect device reliability. All
voltages are with respect to ground.
Parameter
Supply Voltage V
CC
Input Voltage Range V
I
:
MUTE, PL
SD
RINN, RINP, LINN, LINP
Junction Temperature Range, T
J
Storage Temperature
Lead Temperature 1,
6mm (1/16inch)
Rating
-0.3 to +28.0
0 to 6.0
-0.3 to V
CC
-0.3 to +6.0
-40 to +125
-65 to +150
260 (5sec)
Unit
V
V
V
V
°C
°C
°C
PAM8006A
Document number: DSxxxxx Rev. 1 - 0
3 of 13
www.diodes.com
April 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
PAM8006A
Recommended Operating Conditions
(@T
A
= +25°C, unless otherwise specified.)
Parameter
Supply Voltage V
CC
Input Pin Voltage
High Level Input Voltage: SD
MUTE
Low Level Input Voltage: SD
MUTE
Ambient Operating Temperature
Rating
8 to 18
0 to 5.5
2.0 to V
CC
2.0 to 5.5
0 to 0.3
0 to 0.3
-20 to +85
Unit
V
V
V
V
V
V
°C
Thermal Information
Parameter
Thermal Resisitance
(Junction to Case)
Thermal Resistance
(Junction to Ambient)
Package
QFN5x5-32L
QFN5x5-32L
Symbol
θ
JC
θ
JA
Maximum
5.0
°C/W
16.1
Unit
The exposed PAD must be soldered to a thermal land on the PCB.
Electrical Characteristics
(@T
A
= +25°C, V
CC
= 12V, R
L
=8Ω, unless otherwise specified.)
Symbol
P
O
I
DD
I
SD
R
DS(ON)
PSRR
f
OSC
Vn
CS
SNR
Parameter
Continuous Output Power
Quiescent Current
Supply Quiescent Current in Shutdown
Mode
Drain-Source On-State Resisitance
Conditions
THD+N = 0.12%, f = 1kHz, R
L
= 8Ω
THD+N = 1%, f = 1kHz, R
L
= 8Ω
THD+N = 10%, f = 1kHz, R
L
= 8Ω
(No Load)
Shutdown = 0V
I
O
= 0.5A
T
J
= +25°C
High Side
Low Side
Total
Min
Typ
6
8.5
10
16.5
4
210
210
420
-65
300
20Hz to 22kHz, A-Weighting
P
O
= 3W, R
L
= 8Ω, f = 1kHz
Maximum Output at THD+N < 0.5%,
f = 1kHz
INN and INP Connected Together
No Load
V
CC
= 8V to 26V
-100
-95
90
32
30
2.5
5
160
50
5.5
25
10
mA
µA
mΩ
W
Max
Units
Power Supply Ripple Rejection Ratio
Oscillator frequency
Output Integrated Noise Floor
Crosstalk
Signal to Noise Ratio
Gain
Output Offset Voltage
(measured differentially)
2.5V Bias Voltage
Internal Analog Supply Voltage
Over Temperature Shutdown
Thermal Hysteresis
1V
PP
Ripple, f = 1kHz,
Inputs AC-Coupled to Ground
dB
kHz
dB
dB
dB
dB
mV
V
V
°C
°C
|V
OS
|
V2P5
AVDD
OTS
OTH
PAM8006A
Document number: DSxxxxx Rev. 1 - 0
4 of 13
www.diodes.com
April 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
PAM8006A
Electrical Characteristics
(@T
A
= +25°C, V
CC
= 18V, R
L
=8Ω, unless otherwise specified.)
Symbol
P
O
THD+N
I
DD
I
SD
R
DS(ON)
PSRR
f
OSC
Vn
CS
SNR
Parameter
Continuous Output Power
Total Harmonic Distortion plus Noise
Quiescent Current
Supply Quiescent Current in Shutdown
Mode
Drain-Source On-State Resisitance
Conditions
THD+N = 0.12%, f = 1kHz, R
L
= 8Ω
THD+N = 0.18%, f = 1kHz, R
L
= 8Ω
P
O
= 10W, f = 1kHz, R
L
= 8Ω
(No Load)
Shutdown = 0V
I
O
= 0.5A
T
J
= +25°C
High Side
Low Side
Total
210
210
420
-65
300
20Hz to 22kHz, A-Weighting
P
O
= 3W, R
L
= 8Ω, f = 1kHz
Maximum Output at THD+N < 0.5%,
f = 1kHz
INN and INP Connected Together
No Load
V
CC
= 8V to 26V
-100
-95
90
32
30
2.5
5
160
50
5.5
Min
Typ
2.2
15
0.28
18
25
50
Max
Units
W
%
mA
µA
mΩ
Power Supply Ripple Rejection Ratio
Oscillator Frequency
Output Integrated Noise Floor
Crosstalk
Signal to Noise Ratio
Gain
Output Offset Voltage
(measured differentially)
2.5V Bias Voltage
Internal Analog Supply Voltage
Over Temperature Shutdown
Thermal Hysteresis
1V
PP
Ripple, f = 1kHz,
Inputs AC-Coupled to Ground
dB
kHz
dB
dB
dB
dB
mV
V
V
°C
°C
|V
OS
|
V2P5
AVDD
OTS
OTH
PAM8006A
Document number: DSxxxxx Rev. 1 - 0
5 of 13
www.diodes.com
April 2013
© Diodes Incorporated
