FMS6403MTC20

Description
Video ICs TrplViddrvr W/Hdprog SDbypassYPbPr Sgnl
Categorysemiconductor    Analog mixed-signal IC
File Size667KB,15 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric View All

FMS6403MTC20 Online Shopping

Suppliers Part Number Price MOQ In stock
FMS6403MTC20 - - View Buy Now

FMS6403MTC20 Overview

Video ICs TrplViddrvr W/Hdprog SDbypassYPbPr Sgnl

FMS6403MTC20 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerON Semiconductor
Product CategoryVideo ICs
RoHSDetails
TypeTriple Video Drivers
Minimum Operating Temperature0 C
Maximum Operating Temperature+ 70 C
Mounting StyleSMD/SMT
Package / CaseTSSOP-20
PackagingTube
Length6.5 mm
Width4.4 mm
Factory Pack Quantity73
Unit Weight0.006737 oz
FMS6403 — Triple Video Drivers with Selectable HD/PS/SD Bypass Filters for RGB and YPbPr Signals
February 2008
FMS6403
Triple Video Drivers with Selectable HD/PS/SD
Bypass Filters for RGB and YPbPr Signals
Features
Three Video Anti-aliasing or Reconstruction Filters
2:1 MUX Inputs for YPbPr and RGB Inputs
Supports D1, D2, D3, and D4 Video D-connector
(EIAJ CP-4120)
Selectable 8MHz/15MHz/30MHz 6th-order Filters,
Plus Bypass
Works with SD (480i), Progressive (480p), and HD
(1080i/ 720p)
AC-coupled Inputs Include DC Restore / Bias
Circuitry
All Outputs Can Drive AC- or DC-Coupled
75Ω Loads and Provide Either 0dB or 6dB of Gain
0.40% Differential Gain, 0.25° Differential Phase
TSSOP-20 Packaging
Description
The FMS6403 offers comprehensive filtering for TV,
set-top box, or DVD applications. This part consists of a
triple, sixth-order filter with selectable 30MHz, 15MHz,
or 8MHz cutoff frequency. The filters may also be
bypassed so that the bandwidth is limited only by the
output amplifiers.

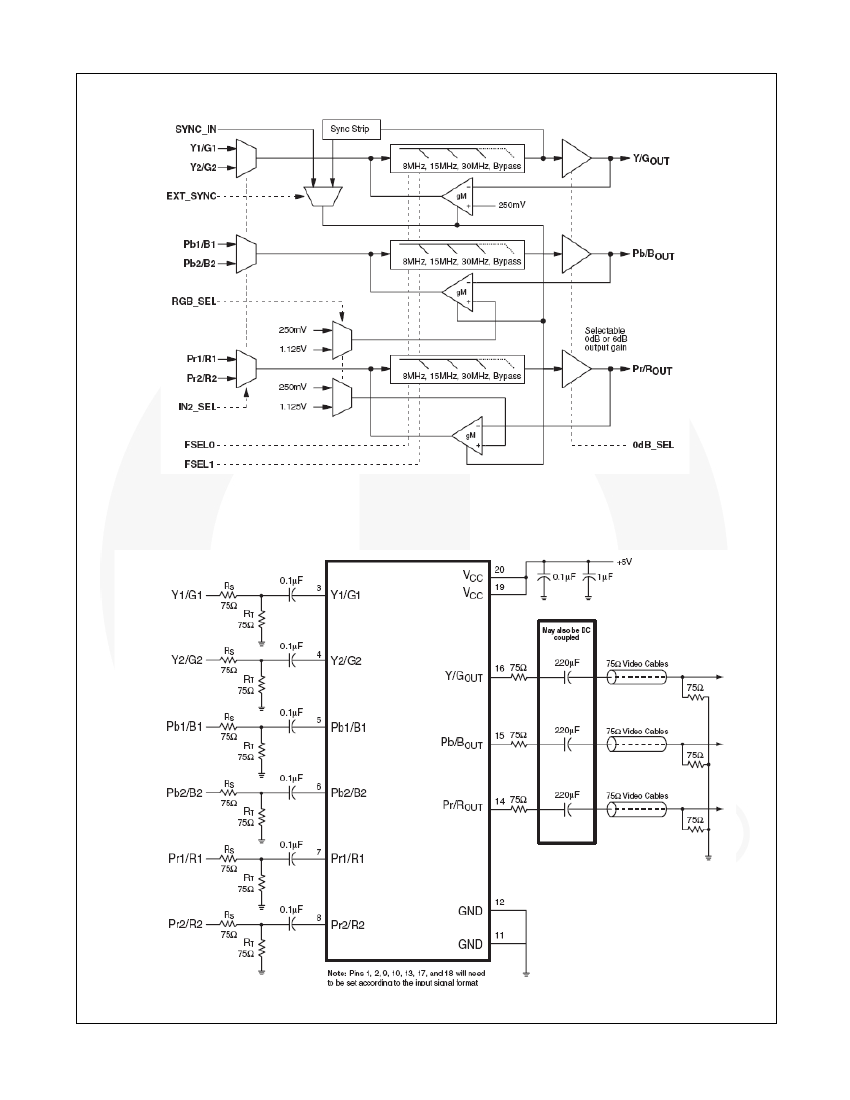

A 2:1 multiplexer is provided on each filter channel. The
triple filters are intended for YPbPr and RGB signals.
The DC clamp levels are set according to the RGB_SEL
control input. YPbPr sync tips are clamped to 250mV,
1.125V, and 1.125V, respectively; while RGB sync tips
are all clamped to 250mV. Sync clamp timing can be
derived from the Y/G inputs or from the external
SYNC_IN pin. The 8MHz and 15MHz filter settings
support bi-level sync, while the 30MHz filter setting and
bypass mode support tri-level sync.
All channels nominally accept AC-coupled 1V
PP
signals.
Selectable 0dB or 6dB gain allows the outputs to drive
1V
PP
or 2V
PP
signals into AC- or DC-coupled terminated
loads with a 1V
PP
input. Input signals cannot exceed
1.5V
PP
and outputs cannot exceed 2.5V
PP
.
Applications
Progressive Scan
Cable Set-top Boxes
Home Theaters
Satellite Set-top Boxes
DVD Players
HDTV
Personal Video Recorders (PVR)
Video On Demand (VOD)
Ordering Information
Part Number
FSM6403MTC
FSM6403MTC20X
Operating
Temperature
Range
0 to 70°C
0 to 70°C
Package
20-Lead, Thin Shrink Small Outline Package
(TSSOP)
20-Lead, Thin Shrink Small Outline Package
(TSSOP)
Packing Method
94 Units in Tubes
2500 Unit Tape and
Reel
All packages are lead free per JEDEC: J-STD-020B standard.
© 2005 Fairchild Semiconductor Corporation
FMS6403 • Rev. 1.0.4
www.fairchildsemi.com
