CZB
www.vishay.com
Vishay Dale
Thick Film Chip Attenuator, Surface Mount, Balanced
Type
FEATURES
• Single component reduces board space and
component counts - replaces 3 or more
Available
components
• Tolerance matching and temperature tracking
superior to individual components
• Maximum power dissipation: 0.075 W for
CZB06S
Available
• Consult
factory
for
extended
values,
non-standard tolerances, impedance matching and other
attenuation values
• Frequency range: DC to 3 GHz
• Surface mount chip attenuator in a resistor array package
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are RoHS-compliant and/or parts that are non-RoHS-compliant. For example, parts
with lead (Pb) terminations are not RoHS-compliant. Please see the information/tables in this datasheet for details.
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL MODEL
CZB06S
POWER RATING
P
70 °C
W
0.075
IMPEDANCE
50/75
ATTENUATION RANGE AND TOLERANCE
± 0.3 dB (L)
0 dB, 1 dB to 5 dB
± 0.5 dB (H)
6 dB to 10 dB
Note
• Power rating depends on the maximum temperature at the solder point, the component placement density and the substrate material.
IMPEDANCE
50
1
1.5
2
Attenuation in dB
(1)
3
4
5
6
10
Note
(1)
Consult factory for other attenuations.
75
1
1.5
2
3
4
5
6
10
1
R1
2
Balanced
π
Type
CIRCUIT SCHEMATIC
4-PIN CIRCUIT
CZB06S
(Marking)
4
R2
R1
3
R2
TECHNICAL SPECIFICATIONS
PARAMETER
Rated dissipation at 70 °C
VSWR
Category temperature range
Frequency range
°C
UNIT
W
CZB06S
0.075
1.2 max.
-55 to +150
DC to 3 GHz
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: CZB06S04020050LRT (preferred part numbering format)
C
MODEL
CZB06S
Z
B
0
6
S
0
4
0
2
0
0
5
0
L
R
T
SPECIAL
(Dash number)
Up to 1 digit
Blank = Standard
PIN COUNT
04
= 4 pin
ATTENUATION
010
= 1.0 dB
015
= 1.5 dB
020
= 2.0 dB
100
= 10.0 dB
000
= 0 dB
IMPEDANCE
050
= 50
075
= 75
TOLERANCE
H
= ± 0.5 dB
L
= ± 0.3 dB
PACKAGING
EA
= Lead (Pb)-free, T/R
RT
= Tin lead, T/R
Note
• For additional information on packaging, refer to the Surface Mount Network Packaging document (www.vishay.com/doc?31540).
Revision: 14-May-14
Document Number: 31101
1
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CZB
www.vishay.com

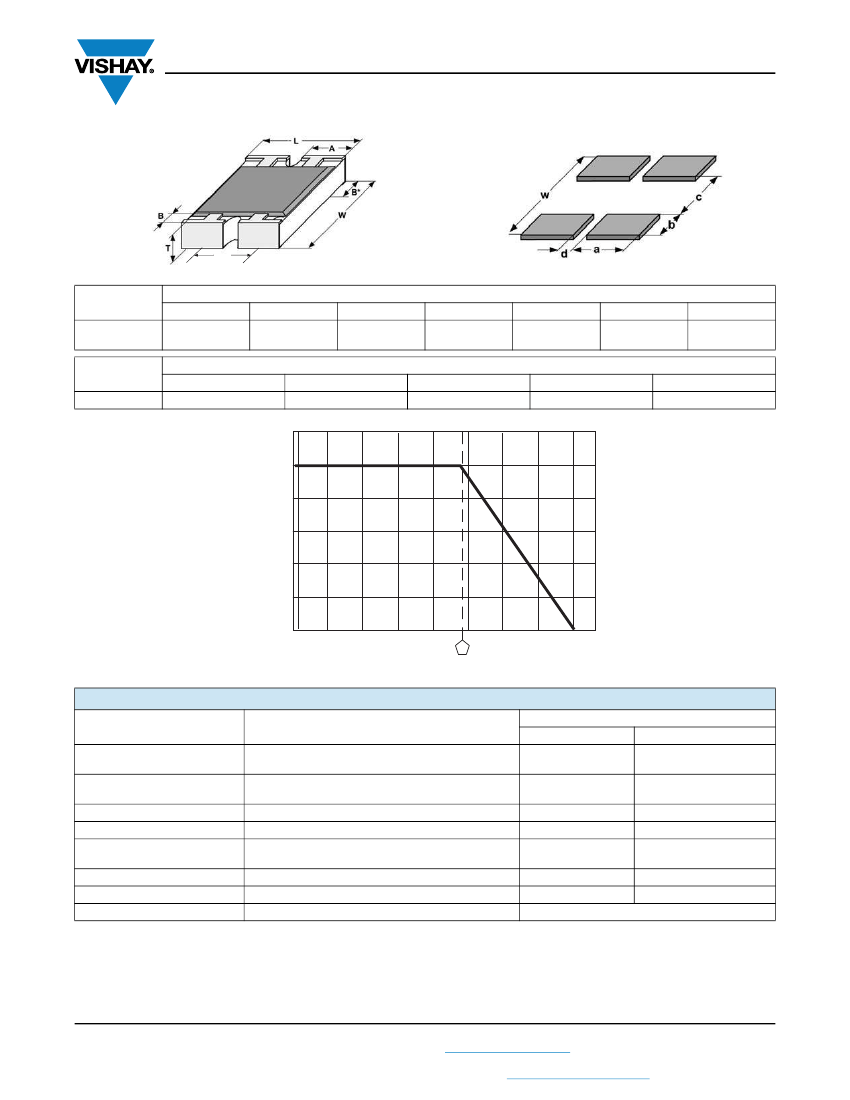

DIMENSIONS
4-Terminal device
S - Version
Vishay Dale
CZB06S
Pin 1
P
CZB06S
Pin 1
GLOBAL
MODEL
CZB06S
GLOBAL
MODEL
CZB06S
DIMENSIONS
in inches (millimeters)
L
0.063 ± 0.006
(1.60 ± 0.15)
W
0.059 ± 0.006
(1.50 ± 0.15)
T
0.020 ± 0.004
(0.51 ± 0.10)
A
0.024 ± 0.006
(0.61 ± 0.15)
P
0.031
(0.80)
B
0.012 ± 0.006
(0.30 ± 0.15)
B*
0.012 ± 0.006
(0.30 ± 0.15)
SOLDER PAD DIMENSIONS
in inches (millimeters)
c
0.031 (0.80)
120
100
w
0.122 (3.10)
d
0.014 (0.36)
a
0.025 (0.63)
b
0.045 (1.15)
Rated Power %
80
60
40
20
0
- 55
- 25
0
25
50
Derating CZB06S
PERFORMANCE
TEST
Endurance test at 70 °C
per EIA 575-3.14
Overload
per EIA 575-3.6
Thermal shock
Moisture resistance
Resistance to soldering heat
High temperature exposure
Low temperature operations
Solderability and leaching
CONDITIONS OF TEST
70
75
100
125
150 175
Ambient Temperature °C
TEST RESULTS (TYPICAL TEST LOTS)
0.5 dB to 5 dB
± 0.2 dB
± 0.2 dB
± 0.2 dB
± 0.2 dB
± 0.2 dB
± 0.2 dB
± 0.2 dB
6 dB to 10 dB
± 0.3 dB
± 0.3 dB
± 0.3 dB
± 0.3 dB
± 0.3 dB
± 0.3 dB
± 0.3 dB
95 % coverage
1000 h at 70 °C, 1.5 h “ON”, 0.5 h “OFF”
Short time overload
Per EIA 575-3.5
Per EIA 575-3.10
10 s at 260 °C solder bath temperature
EIA 575 3.8
Per EIA 575-3.7
Per EIA-575-3.6
EIA 575-3.12
Revision: 14-May-14
Document Number: 31101
2
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
