DG301ABA

Description
SPDT, 1 Func, 1 Channel, CMOS, MBCY10, METAL CAN-10
CategoryAnalog mixed-signal IC    The signal circuit
File Size75KB，10 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

DG301ABA Online Shopping

Suppliers Part Number Price MOQ In stock
DG301ABA - - View Buy Now

DG301ABA Overview

SPDT, 1 Func, 1 Channel, CMOS, MBCY10, METAL CAN-10

DG301ABA Parametric

Parameter NameAttribute value
Objectid1466607807
Parts packaging codeBCY
package instruction,
Contacts10
Reach Compliance Codeunknown
Samacsys ManufacturerVishay
Samacsys Modified On2017-01-17 12:32:02
Analog Integrated Circuits - Other TypesSPDT
JESD-30 codeO-MBCY-W10
Nominal Negative Supply Voltage (Vsup)-15 V
Number of channels1
Number of functions1
Number of terminals10
Nominal off-state isolation62 dB
Maximum on-state resistance (Ron)50 Ω
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Package body materialMETAL
Package shapeROUND
Package formCYLINDRICAL
Certification statusNot Qualified
Nominal supply voltage (Vsup)15 V
surface mountNO
technologyCMOS
Temperature levelOTHER
Terminal formWIRE
Terminal locationBOTTOM

Preview

Download Datasheet
DG300A_MIL/301A_MIL/302A_MIL
Vishay Siliconix
CMOS Analog Switches
(Obsolete for non-hermetic. Use DG300B Series as pin-for-pin replacements.)
FEATURES
D
D
D
D
D
D
Analog Signal Range:
"15
V
Fast Switching—t
ON
: 150 ns
Low On-Resistance—r
DS(on)
: 30
W
Single Supply Operation
Latch-up Proof
CMOS Compatible
BENEFITS
D
Full Rail-to-Rail Analog Signal Range
D
Low Signal Error
D
Low Power Dissipation
APPLICATIONS
D
Low Level Switching Circuits
D
Programmable Gain Amplifiers
D
Portable and Battery Powered Systems
DESCRIPTION
The DG300A_MIL/DG301A_MIL/DG302A_MIL monolithic
CMOS switches feature three switch configuration options
(SPST, SPDT, and DPST) for precision applications in
communications, instrumentation and process control, where
low leakage switching combined with low power consumption
are required.
Designed on the Vishay Siliconix PLUS-40 CMOS process,
these switches are latch-up proof, and are designed to block
up to 30 V peak-to-peak when off. An epitaxial layer prevents
latchup.
In the on condition the switches conduct equally well in both
directions (with no offset voltage) and minimize error
conditions with their low on-resistance.
Featuring low power consumption (3.5 mW typ) these
switches are ideal for battery powered applications, without
sacrificing switching speed. Designed for break-before-make
switching action, these devices are CMOS and quasi TTL
compatible. Single supply operation is allowed by connecting
the V - rail to 0 V.

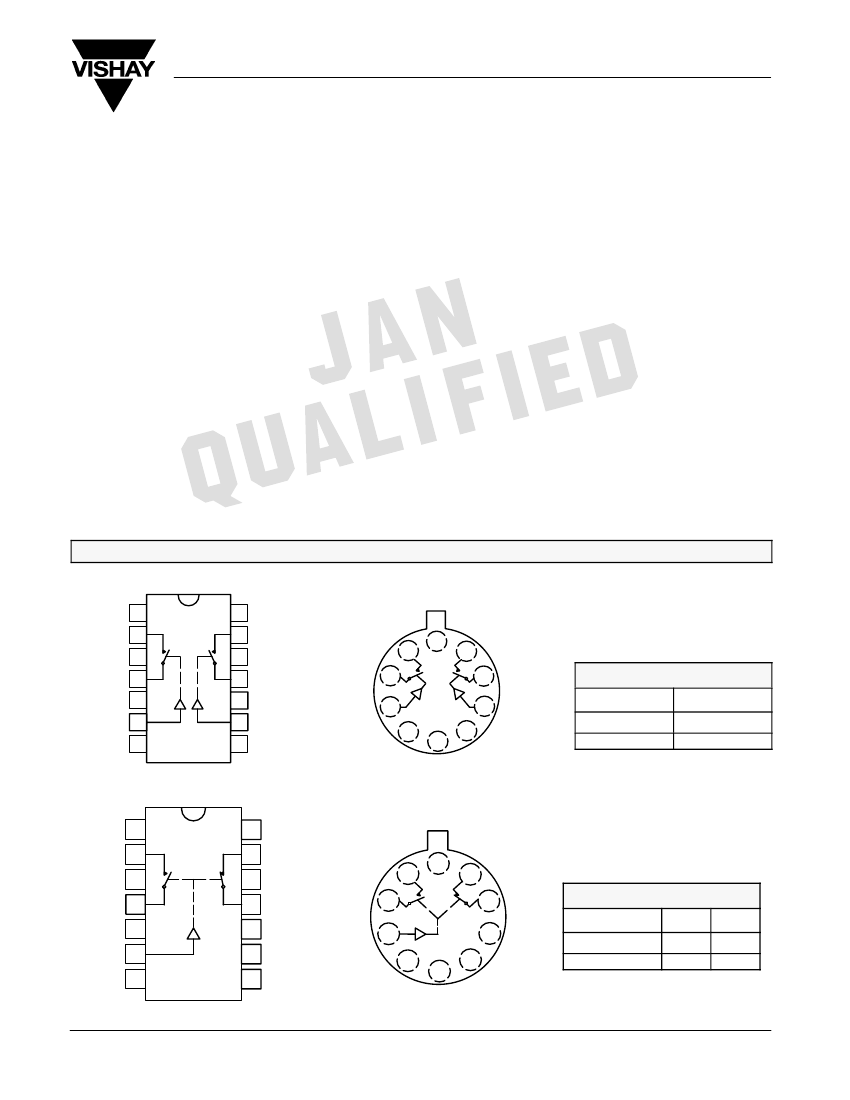

FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION
DG300A_MIL
NC
D
1
NC
S
1
NC
IN
1
GND
1
2
3
4
5
6
7
Top View
Dual-In-Line
14
13
12
11
10
9
8
V+
D
2
NC
S
2
NC
IN
2
V-
NC
IN
1
S
1
2
3
4
5
GND
8
7
6
V-
IN
2
D
1
1
10
9
S
2
D
2
DG300A_MIL
Metal Can
V+ (Substrate and Case)
TRUTH TABLE
Logic
0
1
Logic “0”
v
0.8 V
Logic “1”
w
4 V
Top View
Switch
OFF
ON
DG301A_MIL
1
2
3
4
5
6
7
Dual-In-Line
14
13
V+
D
2
DG301A_MIL
Metal Can
V+ (Substrate and Case)
D
1
10
1
S
1
2
9
D
2
12 NC
11
10
9
8
Top View
S
2
NC
NC
V-
S
2
8
7
4
NC
5
GND
Top View
6
V-
TRUTH TABLE
Logic
SW
1
OFF
ON
Logic “0”
v
0.8 V
Logic “1”
w
4 V
1
SW
2
ON
OFF
IN
3
NC
0
1
Document Number: 71677
S-31622—Rev. C, 11-Aug-03
www.vishay.com
1

DG301ABA Related Products

DG301ABA DG301AAA-883 DG300AAK-883 DG301AAK DG302AAK/883 DG301AAA
Description SPDT, 1 Func, 1 Channel, CMOS, MBCY10, METAL CAN-10 Analog Switch ICs Sing SPDT Anlg Swtch Analog Switch ICs Dual SPST Anlg Swtch Analog Switch ICs SPDT Analog Switch Analog Switch ICs Dual DPST Anlg Swtch Analog Switch ICs SPDT Analog Switch
Reach Compliance Code unknown - - unknown unknown unknown
Analog Integrated Circuits - Other Types SPDT - - SPDT DPST SPDT
JESD-30 code O-MBCY-W10 - - R-XDIP-T14 R-XDIP-T14 O-MBCY-W10
Nominal Negative Supply Voltage (Vsup) -15 V - - -15 V -15 V -15 V
Number of functions 1 - - 1 2 1
Number of terminals 10 - - 14 14 10
Maximum operating temperature 85 °C - - 125 °C 125 °C 125 °C
Minimum operating temperature -25 °C - - -55 °C -55 °C -55 °C
Package body material METAL - - CERAMIC CERAMIC METAL
Package shape ROUND - - RECTANGULAR RECTANGULAR ROUND
Package form CYLINDRICAL - - IN-LINE IN-LINE CYLINDRICAL
Certification status Not Qualified - - Not Qualified Not Qualified Not Qualified
Nominal supply voltage (Vsup) 15 V - - 15 V 15 V 15 V
technology CMOS - - CMOS CMOS CMOS
Temperature level OTHER - - MILITARY MILITARY MILITARY
Terminal form WIRE - - THROUGH-HOLE THROUGH-HOLE WIRE
Terminal location BOTTOM - - DUAL DUAL BOTTOM
