Part Number

Search

5646547-4

Description
125 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE
CategoryThe connector
File Size92KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

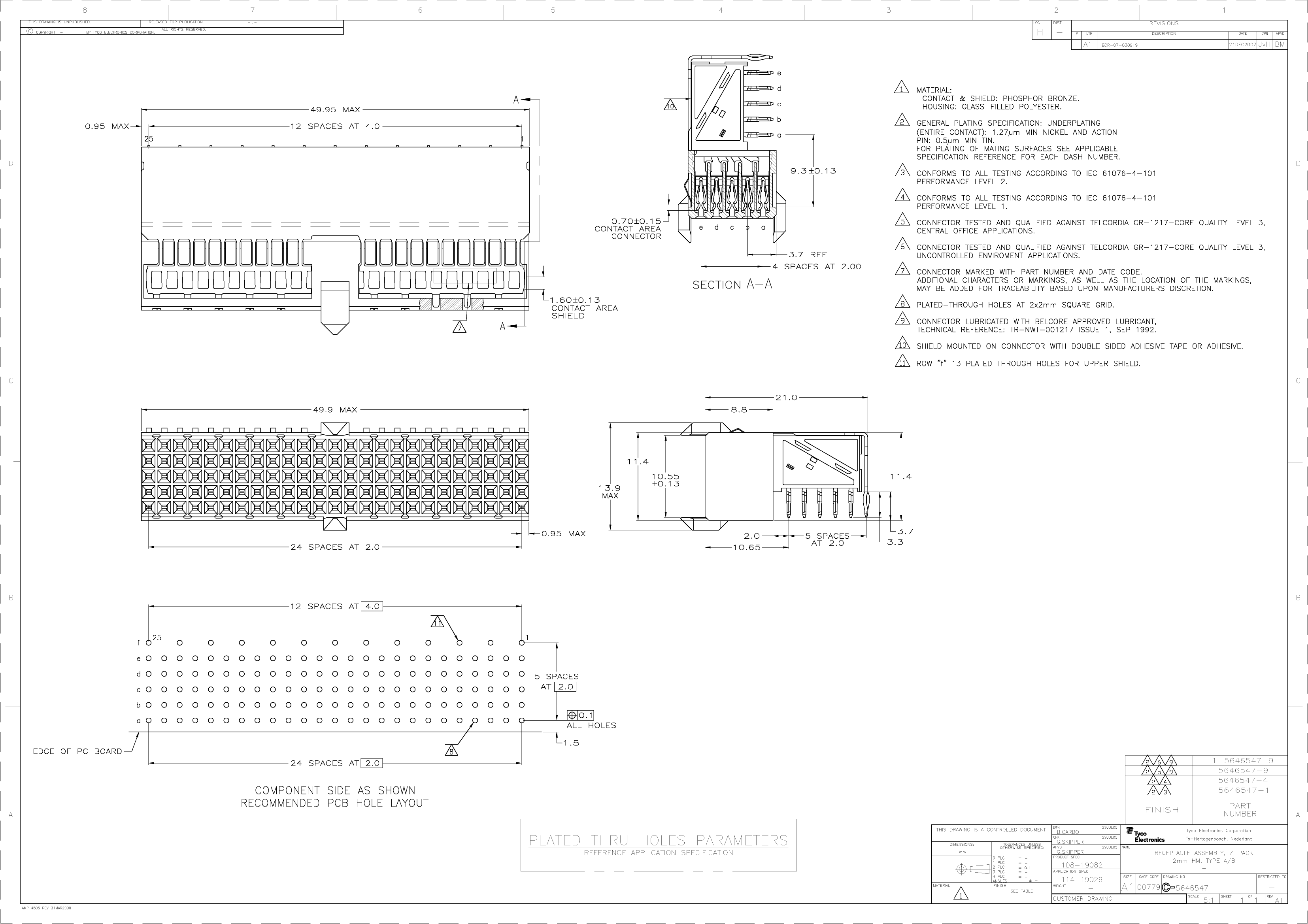

5646547-4 Overview

125 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE

5646547-4 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresSHIELDED
body width0.547 inch
subject depth0.827 inch
body length1.965 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN (20) OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Durability250 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.7506 N
Insulation resistance10000000000 Ω
insulator materialGLASS FILLED POLYESTER
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number5646547
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number5
Number of rows loaded5
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.129 inch
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts125
Evacuation force-minimum value.139 N
Base Number Matches1

5646547-4 Related Products

5646547-4 1-5646547-9 5646547-9
Description 125 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE 125 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE 125 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE
Reach Compliance Code unknown unknow unknown
ECCN code EAR99 EAR99 EAR99
Other features SHIELDED SHIELDED SHIELDED
body width 0.547 inch 0.547 inch 0.547 inch
subject depth 0.827 inch 0.827 inch 0.827 inch
body length 1.965 inch 1.965 inch 1.965 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated TIN (20) OVER NICKEL TIN (20) OVER NICKEL TIN (20) OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO NO
Durability 250 Cycles 250 Cycles 250 Cycles
Filter function NO NO NO
IEC compliance NO NO NO
maximum insertion force .7506 N .7506 N .7506 N
Insulation resistance 10000000000 Ω 10000000000 Ω 10000000000 Ω
insulator material GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER
JESD-609 code e3 e3 e3
MIL compliance NO NO NO
Manufacturer's serial number 5646547 5646547 5646547
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch
Mixed contacts NO NO NO
Installation option 1 LOCKING LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
PCB row number 5 5 5
Number of rows loaded 5 5 5
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.0066 mm 2.0066 mm 2.0066 mm
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 1.5 A 1.5 A 1.5 A
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.129 inch 0.129 inch 0.129 inch
Terminal pitch 2 mm 2 mm 2 mm
Termination type PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 125 125 125
Evacuation force-minimum value .139 N .139 N .139 N
Base Number Matches 1 1 1
Maker TE Connectivity - TE Connectivity
Is Samacsys N - N
