DB153G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DB153G

DB153G: DescriptionBridge Rectifiers SI BRIDGE RECT DB-PK 50-1KV 1.5A200P/140R; Categorysemiconductor Discrete semiconductor; File Size321KB，4 Pages; ManufacturerGeneSiC Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

DB153G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DB153G	-	-	View	Buy Now

DB153G Overview

Bridge Rectifiers SI BRIDGE RECT DB-PK 50-1KV 1.5A200P/140R

DB153G Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	GeneSiC Semiconductor
Product Category	Bridge Rectifiers
RoHS	Details
Mounting Style	Through Hole
Termination Style	Through Hole
Package / Case	DB
If - Forward Current	1.5 A
Peak Reverse Voltage	200 V
Vf - Forward Voltage	1.1 V
Max Surge Current	50 A
Minimum Operating Temperature	- 65 C
Maximum Operating Temperature	+ 150 C
Packaging	Bulk
Product	Bridge Rectifiers
Ir - Reverse Current	5 uA
Factory Pack Quantity	2500
Vr - Reverse Voltage	140 V

Preview

Download Datasheet

View All

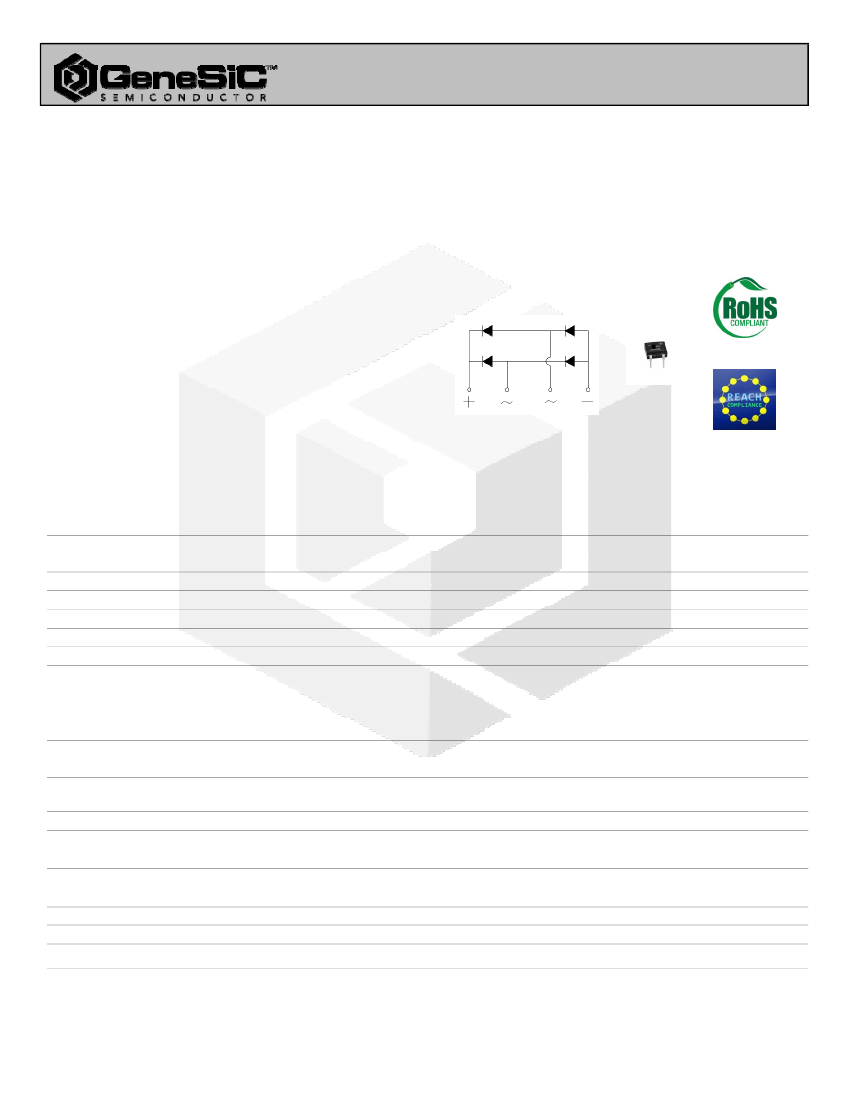

DB151G thru DB154G

Single Phase Glass Passivated

Silicon Bridge Rectifier

Features

• Ideal for printed circuit board

• Reliable low cost construction utilizing molded

plastic technique

• High surge current capability

• Small size, simple installation

• Types from 50 V up to 400 V V

RRM

• Not ESD Sensitive

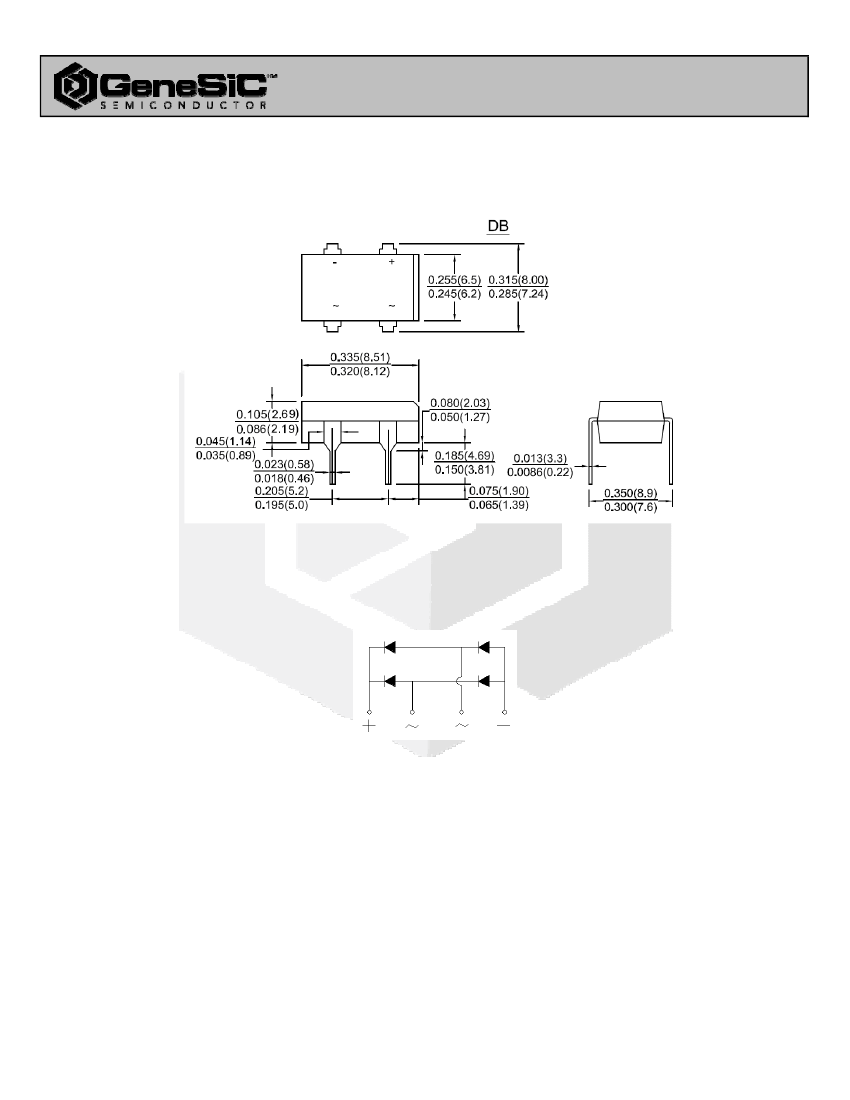

DB Package

RRM

= 50 V - 400 V

= 1.5 A

Mechanical Data

Case: Molded plastic

Terminals: Plated terminals, solderable per MIL-STD-

202, Method 208

Polarity: Polarrity symbols marked on the body

Mounting position: Any

Maximum ratings at Tc = 25 °C, unless otherwise specified

Parameter

Repetitive peak reverse voltage

RMS reverse voltage

DC blocking voltage

Operating temperature

Storage temperature

Symbol

RRM

RMS

stg

Conditions

DB151G

-55 to 150

DB152G

100

-55 to 150

DB153G

200

140

200

-55 to 150

DB154G

400

280

400

-55 to 150

Unit

°C

Electrical characteristics at Tc = 25 °C, unless otherwise specified

Single phase, half sine wave, 60 Hz, resistive or inductive load

For capacitive load derate current by 20%

Parameter

Maximum average forward

rectified current

Peak forward surge current

Maximum instantaneous

forward voltage drop

Maximum DC reverse current at

rated DC blocking voltage

Rating for fusing

Symbol

FSM

ΘJA

Conditions

= 40 °C

= 8.3 ms, half sine

= 1.5 A

= 25 °C

= 125 °C

t < 8.3 ms

DB151G

1.5

1.1

500

DB152G

1.5

1.1

500

DB153G

1.5

1.1

500

DB154G

1.5

1.1

500

Unit

μA

sec

°C/W

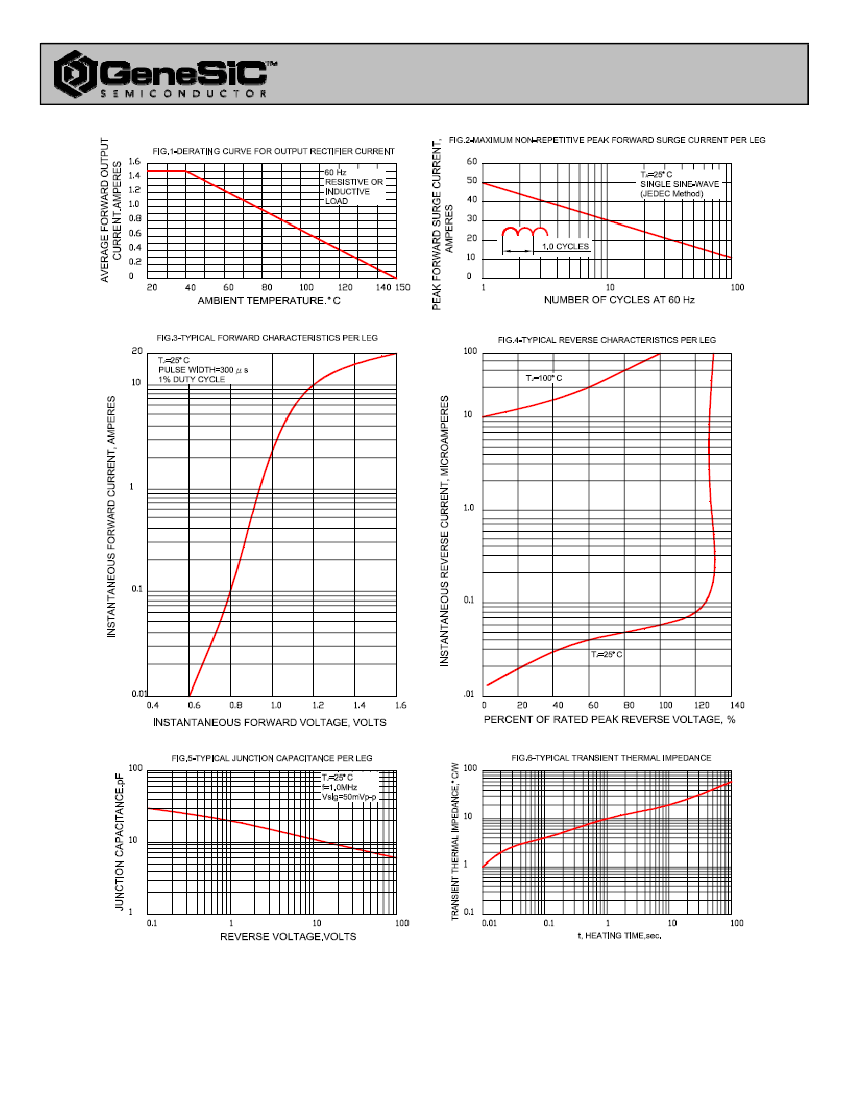

Typical junction capacitance

Typical thermal resistance

Apr 2016

Latest version of this datasheet at: www.genesicsemi.com/silicon-products/bridge-rectifiers/

DB153G Related Products

	DB153G	DB152G
Description	Bridge Rectifiers SI BRIDGE RECT DB-PK 50-1KV 1.5A200P/140R	Bridge Rectifiers SI BRIDGE RECT DB-PK 50-1000V1.5A100P/70R
Product Attribute	Attribute Value	Attribute Value
Manufacturer	GeneSiC Semiconductor	GeneSiC Semiconductor
Product Category	Bridge Rectifiers	Bridge Rectifiers
RoHS	Details	Details
Mounting Style	Through Hole	Through Hole
Termination Style	Through Hole	Through Hole
Package / Case	DB	DB
If - Forward Current	1.5 A	1.5 A
Peak Reverse Voltage	200 V	100 V
Vf - Forward Voltage	1.1 V	1.1 V
Max Surge Current	50 A	50 A
Minimum Operating Temperature	- 65 C	- 65 C
Maximum Operating Temperature	+ 150 C	+ 150 C
Packaging	Bulk	Bulk
Product	Bridge Rectifiers	Bridge Rectifiers
Ir - Reverse Current	5 uA	5 uA
Factory Pack Quantity	2500	2500
Vr - Reverse Voltage	140 V	70 V
