ZIC2410FG72R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> ZIC2410FG72R

ZIC2410FG72R: DescriptionRF System on a Chip - SoC MeshConnect IC, FG72 pkg, T&R, 2.4 GHz ZigBee / 802.15.4 RF Tx/Rx IC w/ 8051 MCU 96 kB flash; CategoryTopical application Wireless rf/communication; File Size536KB，2 Pages; ManufacturerCEL; Websitehttp://www.cel.com/

Download Datasheet Parametric Compare View All

ZIC2410FG72R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZIC2410FG72R	-	-	View	Buy Now

ZIC2410FG72R Overview

RF System on a Chip - SoC MeshConnect IC, FG72 pkg, T&R, 2.4 GHz ZigBee / 802.15.4 RF Tx/Rx IC w/ 8051 MCU 96 kB flash

ZIC2410FG72R Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CEL
Product Category	RF System on a Chip - SoC
Type	Zigbee
Core	8051
Operating Frequency	2.4 GHz
Maximum Data Rate	1 Mb/s
Output Power	8 dBm
Sensitivity	- 98 dBm
Operating Supply Voltage	1.9 V to 3.3 V
Supply Current Receiving	33.2 mA
Supply Current Transmitting	33.2 mA
Program Memory Size	96 kB
Operating Temperature Range	- 40 C to + 85 C
Package / Case	VFBGA-72
Packaging	Tape
Program Memory Type	Flash
Data RAM Size	8 kB
Interface Type	SPI, UART
Mounting Style	SMD/SMT
Number of I/Os	24 I/O
ADC Resolution	8 bit
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Number of ADC Channels	4
Number of Timers	4 Timer
Processor Series	ZIC2410

Preview

Download Datasheet

View All

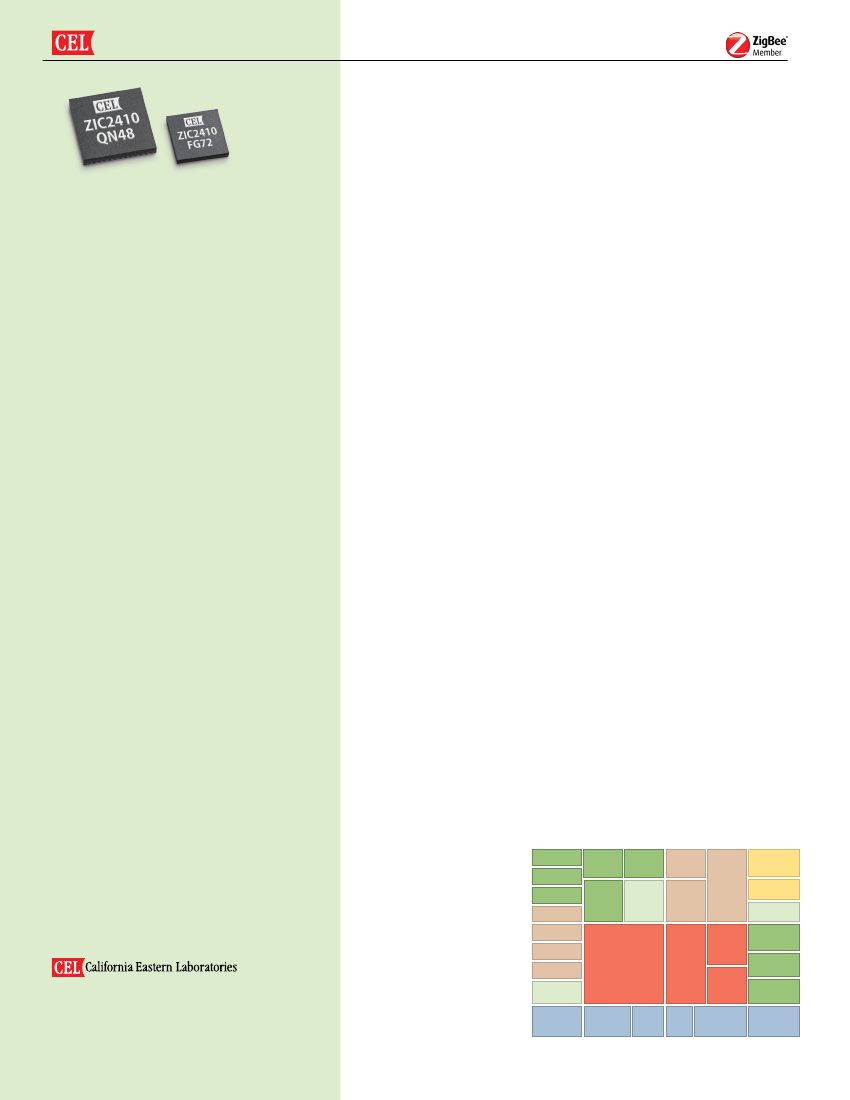

MeshConnect

™

MeshConnect IC System-on-Chip

Integrated RF Transceiver/MCU

for ZigBee / IEEE 802.15.4 Networks

FEATURES

CEL’s MeshConnect ICs combine a power-

ful RF transceiver with an industry-standard,

8051-based 8-bit microprocessor. Available in

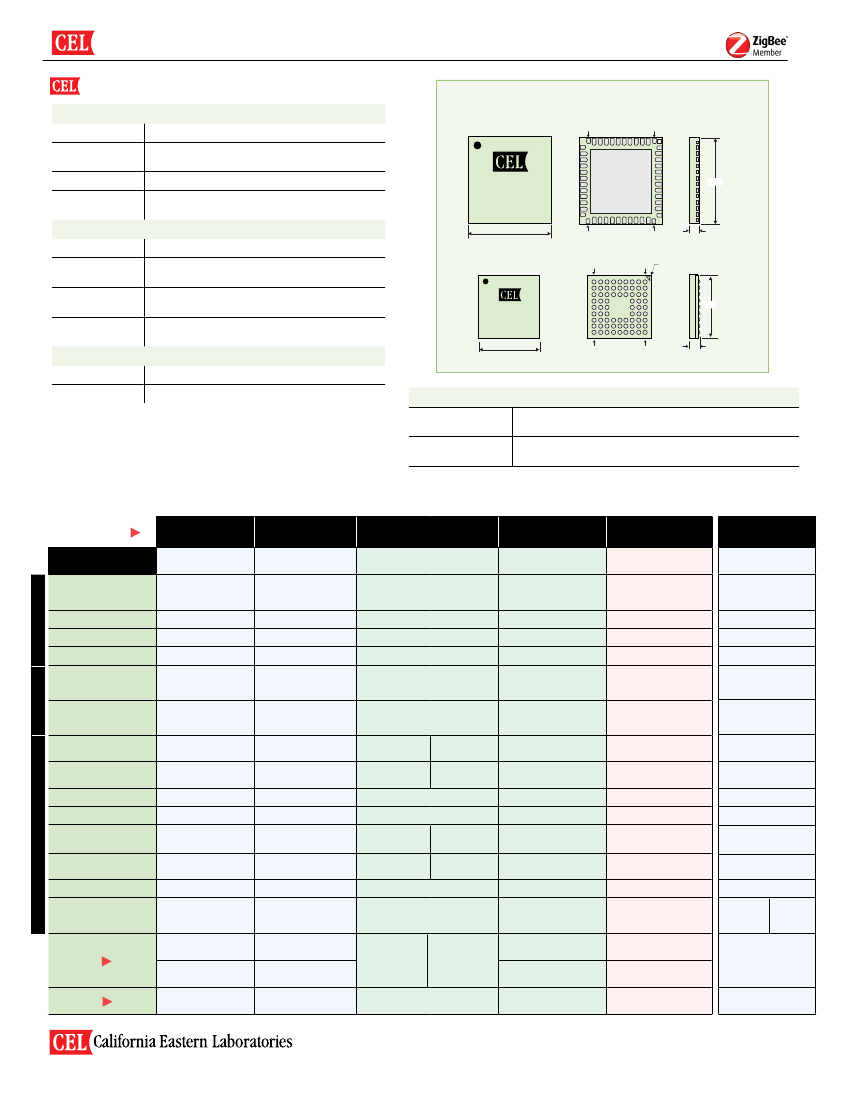

a QFN48 or VFBGA72 package, these low cost,

highly integrated System-on-Chip radios can help

simplify your design, reduce its size, lower its

power consumption, and reduce

your overall system costs.

At +8 dBm, the MeshConnect IC delivers the

industry’s leading output power. Combined

with excellent –98 dBm receiver sensitivity,

the MeshConnect IC provides a best-in-class

link budget of 106 dB. The high output power

ensures immunity to interference from other

2.4GHz transmissions, while the high sensi-

tivity and link budget can help eliminate the

need for power amplifiers and peripheral range

extension components.

With 1Mbps data rates and an on-chip Voice

CODEC the MeshConnect IC can handle high-

bandwidth voice/data transmission. A variety

of other robust peripherals — battery monitor,

temperature sensor, RSSI and AES encryption

engines — are all designed to help lower your

system component count.

MeshConnect ICs are ideal for home and building

automation, lighting control, solar/wind, HVAC

control, security networks, cable replacement,

video, asset management, AMR/AMI, remote

sensing and voice applications. With their low Tx,

Rx and standby power consumption, they’re an

excellent choice when battery life is critical.

MeshConnect ICs are part of a broad family of

CEL ZigBee products, including integrated radio

modules and discrete power amplifiers, LNAs and

RFIC switches for ZigBee range extension.

•

Integrated 2.4 GHz Transceiver

and 8-bit 8051-based Microprocessor

•

106 dB RF Link Budget

•

Supports up to 1Mbps Wireless Networks

•

On-chip Voice CODEC

•

On-chip AES Encryption Engine

•

On-chip Battery Monitor and Temperature Sensor

•

On-chip RSSI Engine

•

Four 16-bit Timers, Two PWMs

•

Two UARTs plus SPI Interface

•

Single 16MHz Crystal Design

•

Single-Differential Bidirectional Antenna Interface

SPECIFIC ATIONS

Operating Voltage

Output Power

Sensitivity

Flash Memory

Data Memory

Power Consumption

Transmit Mode

Receive Mode

Standby Mode

APPLIC ATIONS

• Home

& Building Automation

• Lighting

Control

• Solar/Wind

• HVAC

Control

• Security

Networks

• Cable

Replacement

• Video

• Asset

Management

• AMR/AMI

4590 Patrick Henry Drive

Santa Clara, CA 95054

408.919.2500

www.cel.com

• Remote

Sensing

• Voice

I2S/2

UART/2

SPI

WDT

GPIO/24

Timer/4

PWM/2

Quad

Key Scan

Digital

Regulator

Oscillator

Clock

PLL

PQR

MCU

(8051)

FLASH

96KB

ROM

a-law

u-law

DMA

AES

Engine

ADPCM

Voice

FIFO

MAC

MODEM

RF RX

PLL

Temp

Sensor

Bat

Monitor

ADC

(4CH)

Analog

Regulator

RF TX

1.5 – 3.3 V

+8 dBm max

– 98 dBm

96 KB

8 KB

QFN48:

30.6 mA @ 0 dBm

VFBGA72:

29.7 mA @ 0 dBm

33.2 mA

0.3 µA

MeshConnect Module

™

DATA

8KB

Circuitry

MeshConnect IC Block Diagram

ZIC2410FG72R Related Products

	ZIC2410FG72R	ZIC2410QN48R
Description	RF System on a Chip - SoC MeshConnect IC, FG72 pkg, T&R, 2.4 GHz ZigBee / 802.15.4 RF Tx/Rx IC w/ 8051 MCU 96 kB flash	RF System on a Chip - SoC MeshConnect IC, QN48 pkg, T&R, 2.4 GHz ZigBee / 802.15.4 RF Tx/Rx IC w/ 8051 MCU 96 kB flash
Product Attribute	Attribute Value	Attribute Value
Manufacturer	CEL	CEL
Product Category	RF System on a Chip - SoC	RF System on a Chip - SoC
Type	Zigbee	Zigbee
Core	8051	8051
Operating Frequency	2.4 GHz	2.4 GHz
Maximum Data Rate	1 Mb/s	1 Mb/s
Output Power	8 dBm	8 dBm
Sensitivity	- 98 dBm	- 98 dBm
Operating Supply Voltage	1.9 V to 3.3 V	1.9 V to 3.3 V
Supply Current Receiving	33.2 mA	33.2 mA
Supply Current Transmitting	33.2 mA	34.2 mA
Program Memory Size	96 kB	96 kB
Operating Temperature Range	- 40 C to + 85 C	- 40 C to + 85 C
Package / Case	VFBGA-72	QFN-48
Packaging	Tape	Tape
Program Memory Type	Flash	Flash
Data RAM Size	8 kB	8 kB
Interface Type	SPI, UART	SPI, UART
Mounting Style	SMD/SMT	SMD/SMT
Number of I/Os	24 I/O	22 I/O
ADC Resolution	8 bit	8 bit
Maximum Operating Temperature	+ 85 C	+ 85 C
Minimum Operating Temperature	- 40 C	- 40 C
Number of ADC Channels	4	4
Number of Timers	4 Timer	4 Timer
Processor Series	ZIC2410	ZIC2410
